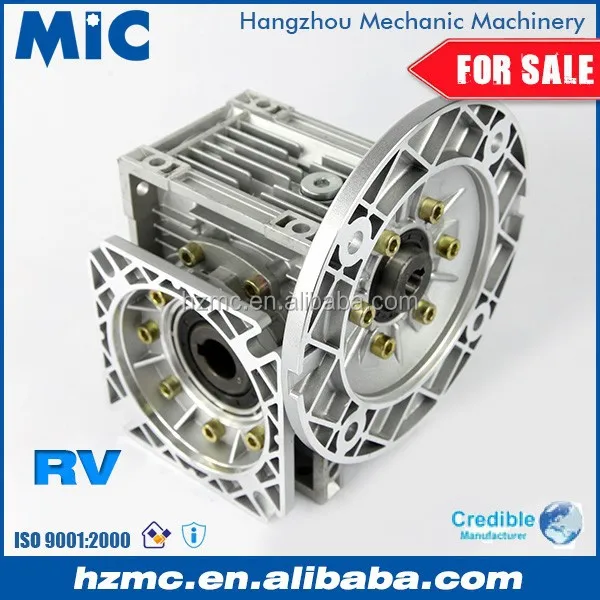

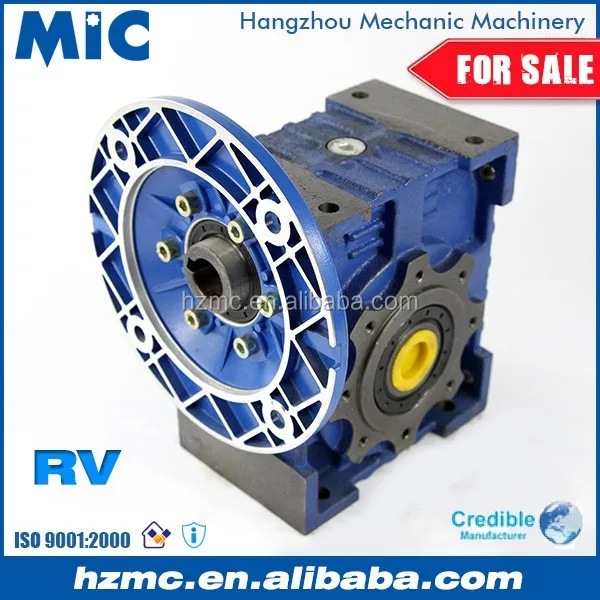

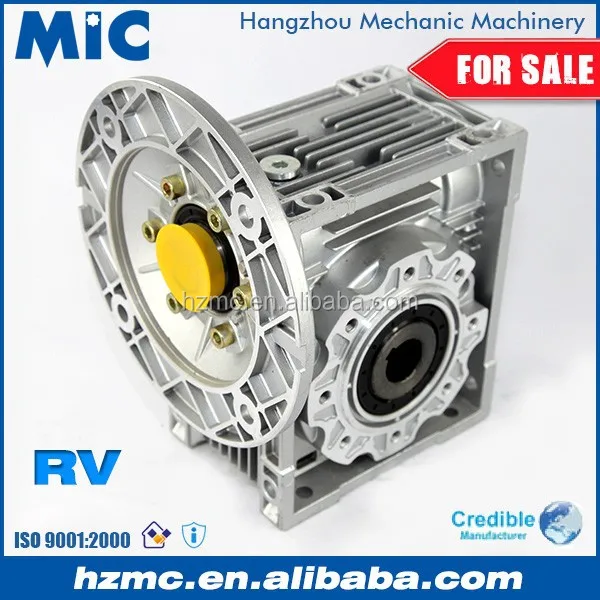

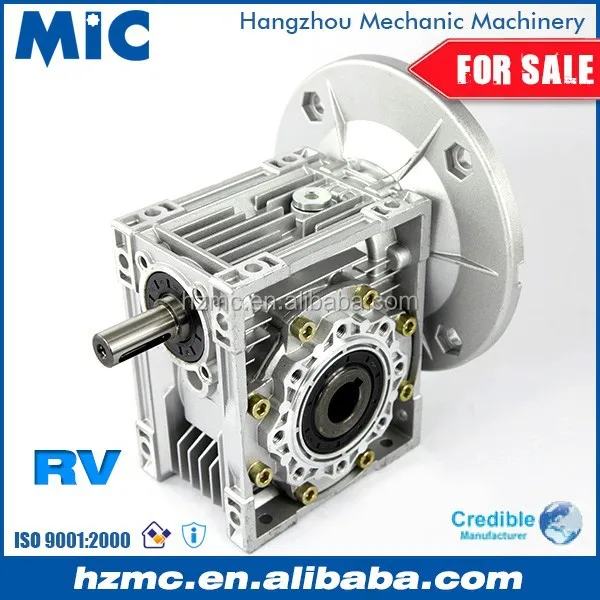

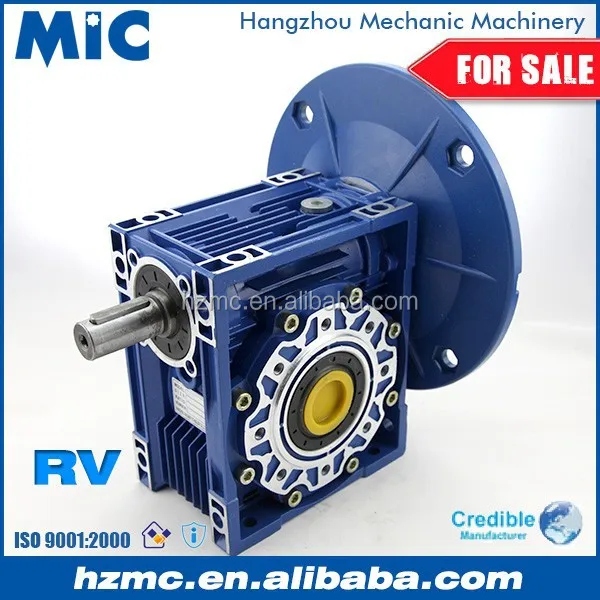

Bonfiglioli Like NMRV030 Marine Transmission Gear Motor
- Category: >>>
- Supplier: Hangzhou Mechanic Machinery Co. Ltd.
Share on (60282828901):
Product Overview
Description
Product Description

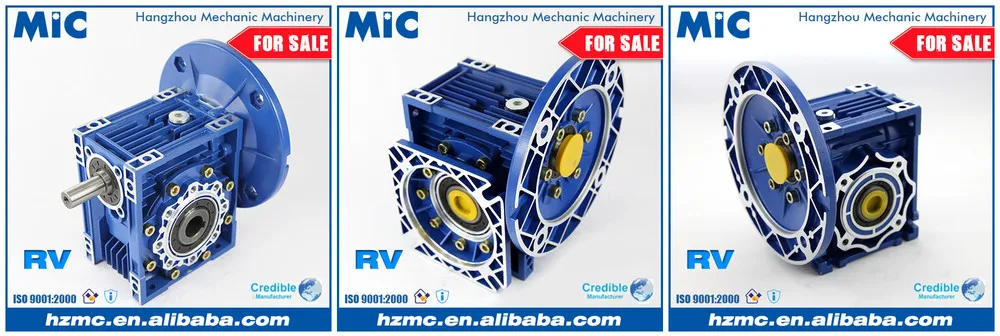

Motovario Like Reducers NMRV25 to 150 Speed Reducer
Specifications:
| Type: | Worm Gear Speed Reducer | ||||||||
| Model: | NMRV030-150 | ||||||||
| Ratio: | 1:7.5,10,15,20,25,30,40,50,60,80,100 | ||||||||
| Color: | Blue/Silver Or On Customer Request | ||||||||
| Material: | Housing:Aluminum Alloy | ||||||||
| Worm Gear-Copper-9-4# | |||||||||
| Worm-20CrMn Ti with carburizing and quenching, surface harness is 56-62HRC | |||||||||
| WheelBoss : Cast Iron | |||||||||
| Packing: | Carton and Wooden Case | ||||||||
| Bearing: | Input: C&U Output: HGH or Upon Customer Request | ||||||||
| Seal: | SKF & NAK | ||||||||
| Warranty: | 1 Year | ||||||||
| Input Power: | 0.55KW,0.75KW,1.1KW,1.5KW,2.2KW,4KW,5.5KW,7.5KW | ||||||||
| Usages: | Industrial Machine: Food Stuff, Ceramics,CHEMICAL,Packing,Dyeing, Woodworking,Glass... | ||||||||

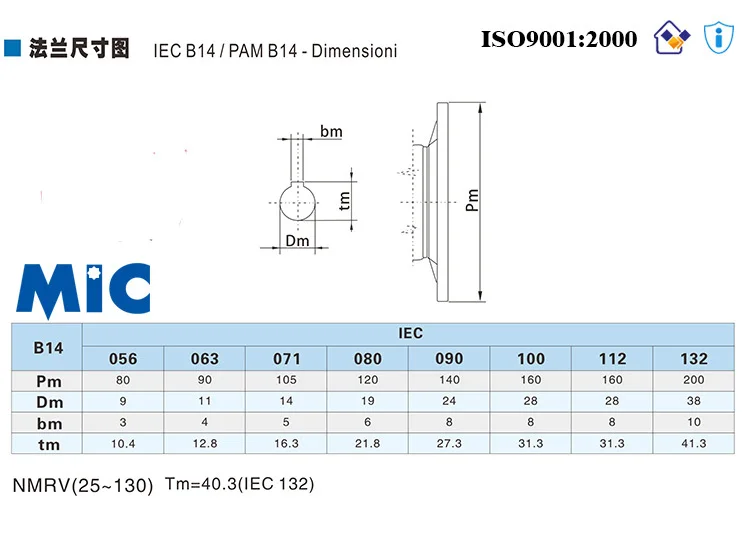

| IEC Flange: | 56B5,63B5,71B5,80B5,90B5,100B5,112B5,132B5,160B5,180B5,200B5 | ||||||||
| Lubricant: |
Synthetic&Mineral
| ||||||||
Predisposition:
| NMRV | PAM ICE | N | M | P | D | |||||||||||
| 5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 100 | |||||
| 25 | 56B14 | 50 | 65 | 80 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | |||
| 30 | 63B5 | 95 | 115 | 140 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | |||
| 63B14 | 60 | 75 | 90 | |||||||||||||
| 56B5 | 80 | 100 | 120 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | ||
| 56B14 | 50 | 65 | 80 | |||||||||||||
| 40 | 71B5 | 110 | 130 | 160 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | ||||
| 71B14 | 70 | 85 | 105 | |||||||||||||
| 63B5 | 95 | 115 | 140 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | |
| 63B14 | 60 | 75 | 90 | |||||||||||||
| 56B5 | 80 | 100 | 120 | 9 | 9 | 9 | 9 | |||||||||
| 50 | 80B5 | 130 | 165 | 200 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | |||||
| 80B14 | 80 | 100 | 120 | |||||||||||||
| 71B5 | 110 | 130 | 160 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | ||
| 71B14 | 70 | 85 | 105 | |||||||||||||
| 63B5 | 95 | 115 | 140 | 11 | 11 | 11 | 11 | 11 | ||||||||
| 63 | 90B5 | 130 | 165 | 200 | 24 | 24 | 24 | 24 | 24 | 24 | ||||||
| 90B14 | 95 | 115 | 140 | |||||||||||||
| 80B5 | 130 | 165 | 200 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | ||||
| 80B14 | 80 | 100 | 120 | |||||||||||||
| 71B5 | 110 | 130 | 160 | 14 | 14 | 14 | 14 | 14 | ||||||||
| 71B14 | 70 | 85 | 105 | |||||||||||||
| 75 | 100/112B5 | 180 | 215 | 250 | 28 | 28 | 28 | |||||||||
| 100/112B14 | 110 | 130 | 150 | |||||||||||||
| 90B5 | 130 | 165 | 200 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | ||||||
| 90B14 | 95 | 115 | 140 | |||||||||||||
| 80B5 | 130 | 165 | 200 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | |||||
| 80B14 | 80 | 100 | 120 | |||||||||||||
| 71B5 | 110 | 130 | 160 | 14 | 14 | 14 | 14 | |||||||||
| 90 | 100/112B5 | 190 | 215 | 250 | 28 | 28 | 28 | 28 | 28 | 28 | ||||||
| 100/112B14 | 110 | 130 | 160 | |||||||||||||
| 90B5 | 130 | 165 | 200 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | ||||
| 90B14 | 95 | 115 | 140 | |||||||||||||
| 80B5 | 130 | 165 | 200 | 19 | 19 | 19 | 19 | 19 | ||||||||
| 80B14 | 80 | 100 | 120 | |||||||||||||
| 110 | 132B5 | 230 | 265 | 300 | 38 | 38 | 38 | 38 | ||||||||
| 100/112B5 | 180 | 215 | 250 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | ||||
| 90B5 | 130 | 165 | 200 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | ||||||
| 80B5 | 130 | 165 | 200 | 19 | 19 | |||||||||||
| 130 | 132B5 | 230 | 265 | 300 | 38 | 38 | 38 | 38 | 38 | 38 | 38 | |||||
| 100/112B5 | 180 | 215 | 250 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | ||||||
| 90B5 | 130 | 165 | 200 | 24 | 24 | |||||||||||
| 150 | 160B5 | 250 | 300 | 350 | 42 | 42 | 42 | 42 | 42 | |||||||
| 132B5 | 230 | 265 | 250 | 38 | 38 | 38 | 38 | 38 | 38 | |||||||
| 100/112B5 | 180 | 215 | 200 | 28 | 28 | 28 | 28 | |||||||||
#House shape on request is available
- mountings........................................................................................MIC
Packaging & Shipping
How to delivery:
By sea - Buyer appoint forwarder, or our sales team find suitable forwarder for buyers.
By air - Buyer offer collect express account, or our sales team find suitable express for buyers. (Mostly for sample)
Others - We arrange to delivery goods to some place in China appoint by buyers.
Company Information
FAQ
Process Of An Order:
1.Please check product detailed information above:
A.Model/Size B.Transmission Ratio
C.Shaft Direction D.Order Quantity.
2.Our Export Service Team will contact you with a qultation file 3 hours after our team get your enquiry.
3.When you please an order, our team will confirm with you about color, package,method of payment and delivery, then a sales contract will be sent to you to confirm.
4.Packing: Carton and Wooden Case.

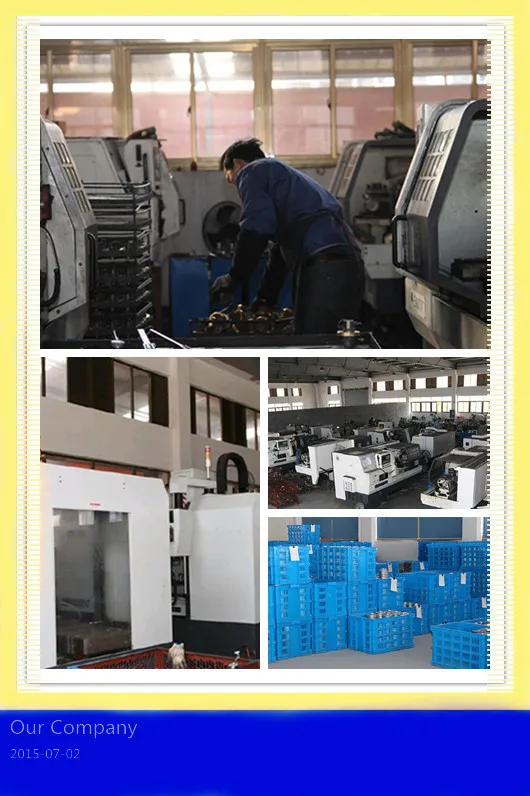

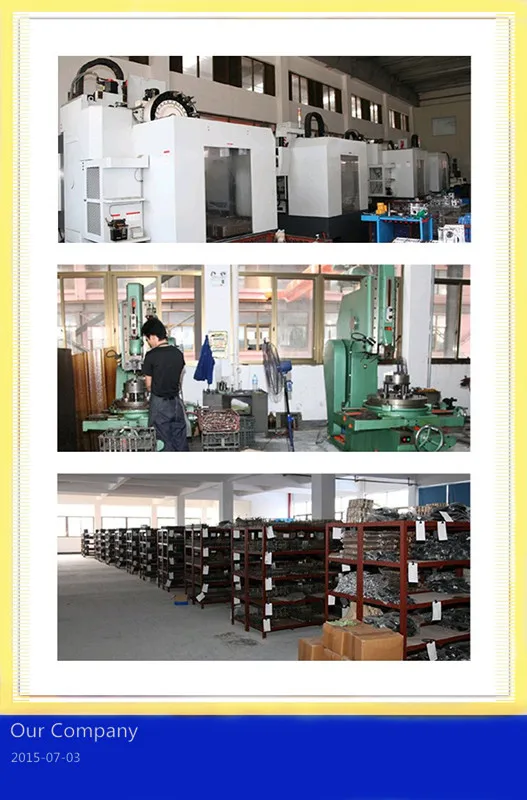

Welcome To Visit Our Factory - Located in the tourism city - Hangzhou -West Lake.
