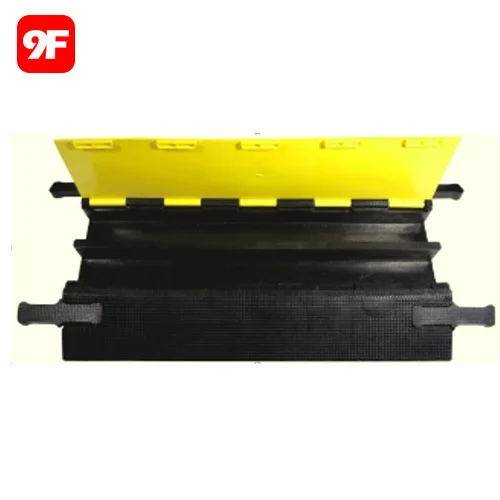

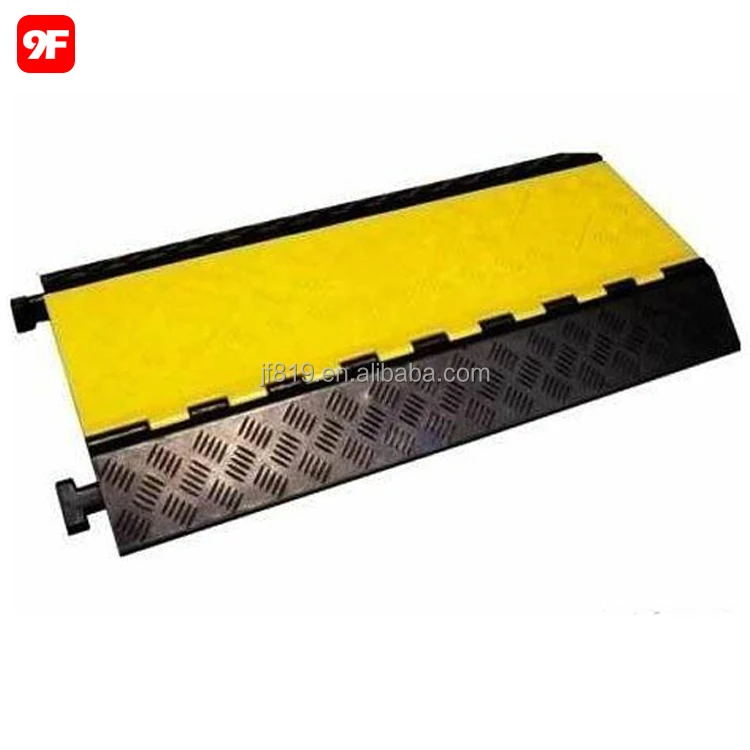

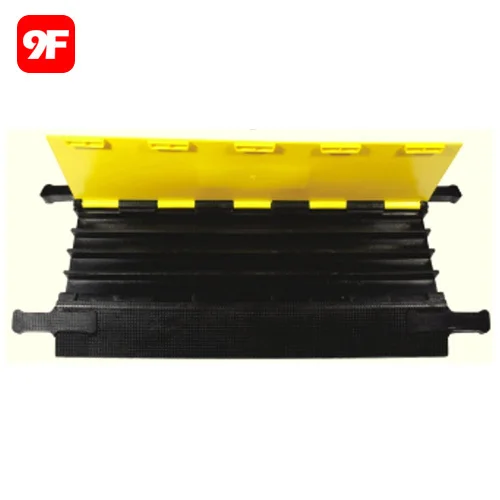

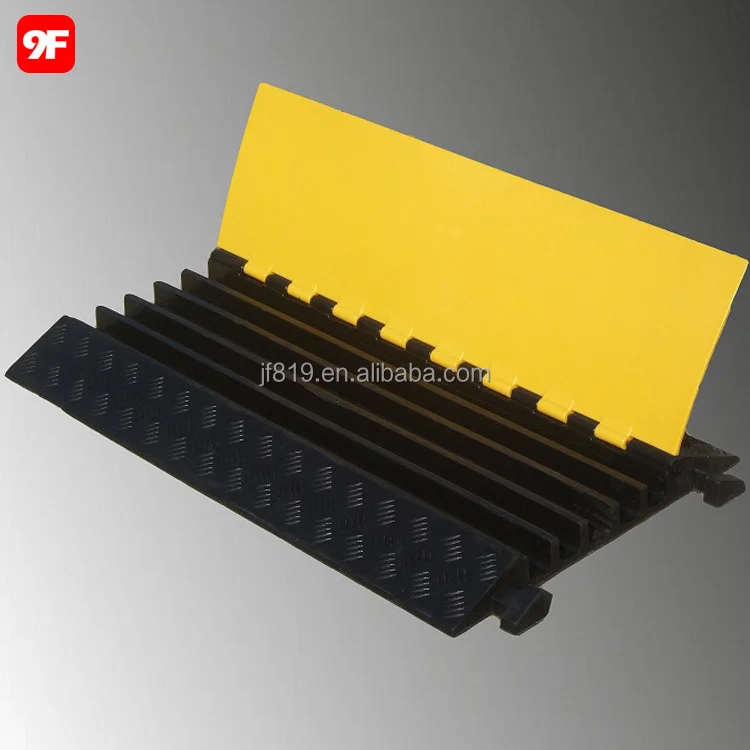

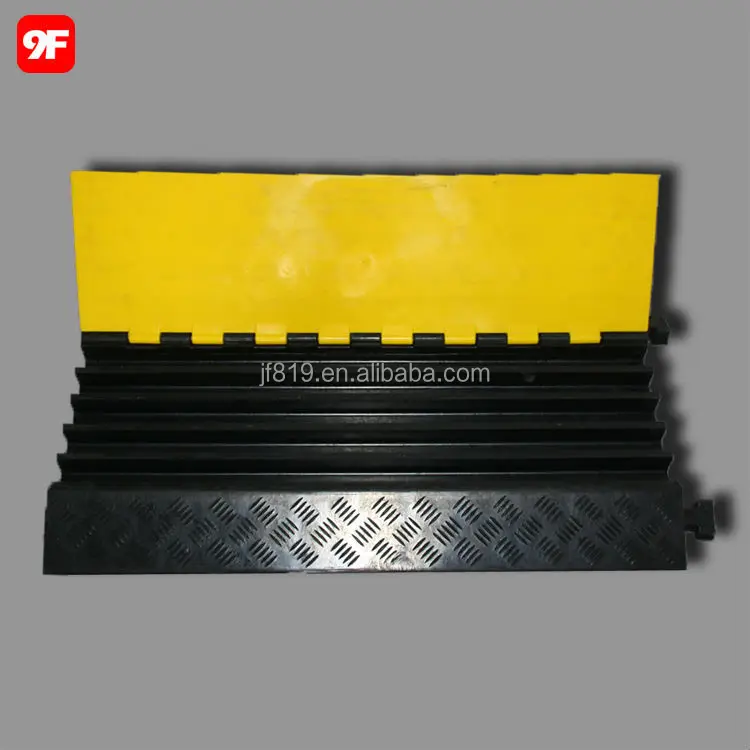

4-channel heavy duty rubber cable protector cable ramp

Heavy duty cable ramp rubber cable protector.
1. Factory direct sale, most competitive price.
2. Many stocks assure fast delivery time.
2. Many years experience, knowledgeable team assure professional service.
3. Strict quality control system.
4-channel heavy duty rubber cable protector cable ramp.
These heavy duty cable ramps have multiple channels for the protection of a large number of wires. Hinged lid allows for top loading of cables for convenience. Made of recycled rubber it is suitable for use outdoors and indoors in most weather conditions. The black body color with a yellow lid is highly visible. These units will protect your cables from vehicles of up to 18,000 pounds per axle. Due to the heavy nature of this cable protector, it tends to stay where you put it. Operating temperature range is -40 to +130 °F.
| SPECIFICATIONS | ||
![]() | Model | JFCP-R04 |
| Product Type | Cable Ramp | |
| Size | 900*500*60mm | |
| Channel Width | 45mm | |
| Channel Height | 40mm | |
| Weight | 14KG/pc | |
| Ramp Material | Rubber | |
| Flap Material | PVC | |
| Hinge Pin Material | Reinforced Steel Bar | |
| Max Load | 5000kgs per tire | |
| Color | Yellow flap, Black ramp | |
| Operating Temperature | -40~+60 C | |
Cable ramp features:
• Protects multiple cables from pedestrian, car and truck traffic
• Heavy duty construction designed for use in commercial, industrial or residential settings
• Made of heavy duty, recycled rubber
• Top hinged lid for easy access to install cables
• For indoor or outdoor use
• High visibility black body with yellow lid
• Connectors allow units to be ganged together for modular expansion

| Picture | Description | Model | Porduct Size | Channel Size(H*W) | Weight |
![]() | 5-Channel | JFCP-R05 | 900*500*50mm | 30*40mm |
13.0kg
|
![]() | 5-Channel | JFCP-R05N | 910*500*50MM | 35*35MM | 13.0kg |
![]() | 4-Channel | JFCP-R04 | 900*500*60mm | 40*45mm | 14.0kg |
![]() | 3-Channel | JFCP-R03A | 1000*300*50mm | 30*35mm | 8.0kg |
| 3-Channel | JFCP-R03B | 900*500*70mm | 55*65mm | 14.5.0kg | |
![]() | 3-Channel | JFCP-R03N | 910*550*80mm | 65*60mm | 18.0kg |
![]() | 2-Channel | JFCP-R02A | 1000*250*50mm | 30*32mm | 6.5kg |
| 2-Channel | JFCP-R02B | 1000*450*70mm | 50*55mm | 13.0kg | |
| 2-Channel | JFCP-R02C | 900*580*90mm | 70*95mm | 20.0kg | |
![]() | 2-Channel | JFCP-R02N | 900*600*100mm | 90*90mm | 25.0kg |
![]() | 1-Channel | JFCP-R01A | 1000*220*30mm | 20*70mm | 4.5kg |
| 1-Channel | JFCP-R01B | 1000*260*70mm | 50*70mm | 8.5kg | |
| 1-Channel | JFCP-R01C | 1000*580*120mm | 110*125mm | 22.0kg | |
![]() | 1-Channel | JFCP-R01N | 1000*500*100mm | 80*80mm | 21.0kg |
Shanghai Join Forces Industry Co.,Ltd is an integrated enterprise specialized in traffic safety, parking safety industries. Since 2004, our founder Mr. Tao started the manufacturing facility for safety mirrors. With more than 10 years development, recently, Our main products are including various Convex mirror, Dome mirror, Inspection mirror, Solar flashing light, Solar warning sign, Solar road stud, Traffic cone, T-top bollard, Speed Hump, Wheel stopper, Wheel chock, Cable protector, Corner guard, Road stud, Parking lock, Safety fence and so on. Thanks to the efforts made by our main distributors, we are now supplying many goods to not only domestic market, but also customers located in Australia, Singapore, South Korea, India, UAE, UK, Spain, South Africa, Japan, Greece and so on.
Join Forces Industry is recognized for its strict standard in quality control. We have taken many steps internally to ensure that we will always meet the highest standard for quality in our products and service. Also, we send our products to independent laboratories for testing purposes regularly. Quality is always our first commitment.
“Concentration, Reliability, Commitment, Responsibility” is the philosophy insisted by the founder of Join Forces Industry. With this philosophy, Everyone in our company takes the mission of "Establishing the top grade quality with professional knowledge and honest attitudes", meantime, we will continue investing on new products R&D, improving the quality management and making cost down, to provide the most valuable products and services, hoping to achieve a rapid development together with partners all over the world.


Q1:Are you a factory or trading company?
A:We are an integrated company, we have two manufacture facilities and also a business branch.
Q2:Where is your factory located? How can I visit there?
A:Our company located in Shanghai city, we can arrange the driver to pick up you in the airport. Welcome you!
Q3. Can I have samples?
A: We are honored to offer you samples.
Q4:Do you have inspection procedure for cable protector?
A:Quality is priority. 100% self-inspection before packing
Q5:Can I add my logo?
A:Yes,OEM and ODM are available for us.
