Product Overview

Description

Pressed wheel conveyor  pressed Skate wheel conveyor  Gravity pressed roller

         The outer ring and the case are pressed from the plate, and the plated wheel is suitable for cheap, light weight to medium load load rotation.

• press wheel with the great adavantages of low cost and flexible rotation, especially for lightweight occasion


• the roller surface can be galvanized , hard chrome plated or wraped with plastic packets and other treatment


• the frame of the  conveyor mainly consists of steel or stainless steel,sheet mental bending processing


• with high mounting accuracy,competitive price, we have our own moldings


• various types of wheels can be choosen


• customized size and drawing are greatly welcome







>>specifications:

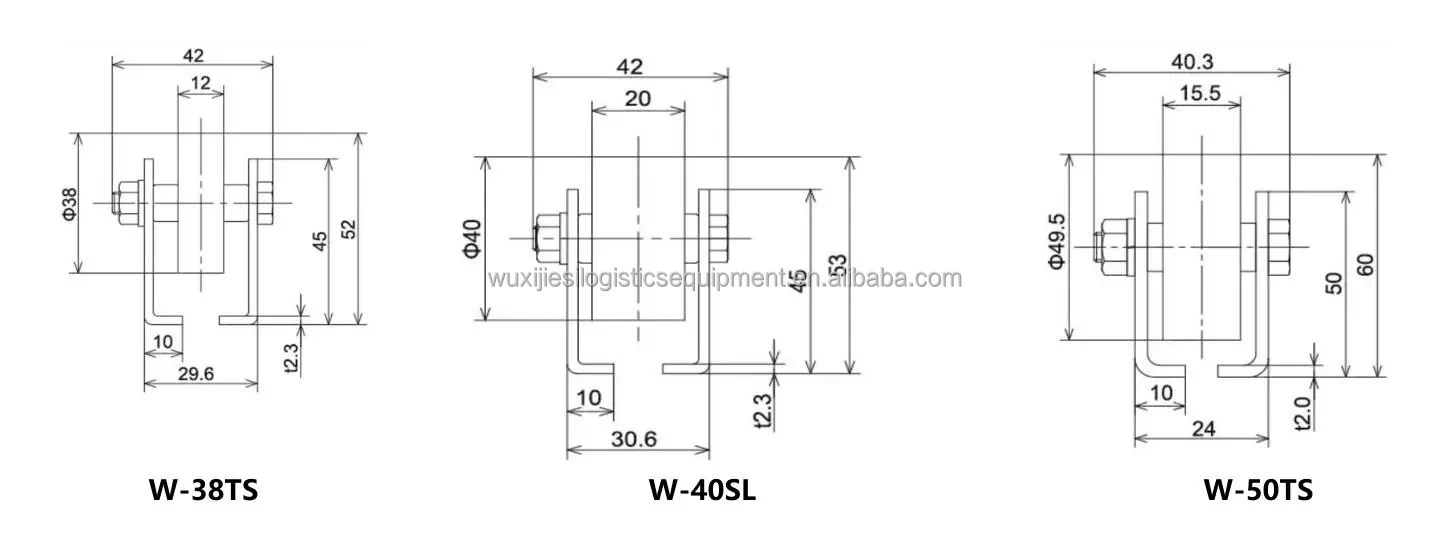

Model	Wheel size outer                           diameterxWidthxInner diameterxboss                 D       W       d        b	shaft	Frame shape    shape hxw1xw2xw3xt	Height	Length	wheel pitch	Load Capacity        (Kg/wheel)	Remark
JW-38TS	38×12×6.5×25	M6x38L	45×29.6× 10×42×2.3	52	1000~3000	50/75/100/150	20
JW-50TS	50×20×8.2×28	M8x45L	50×34.4×13×50.5×3.2	60	1000~3000	75/100/150	25
JW-40SL	40×20×6.5×26	M6x3L	45×30.6×10×42×2.3	53	1000~3000	50/75/100/150	20



>>Picutres:

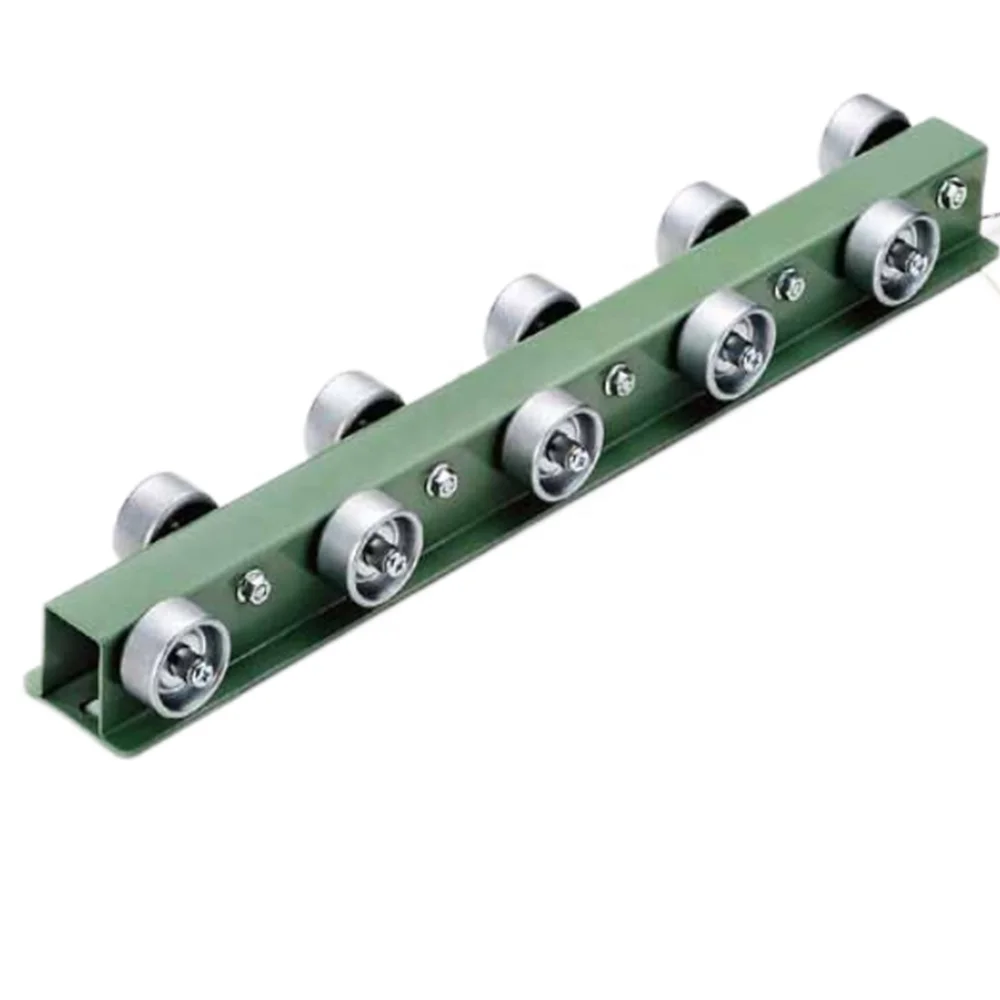

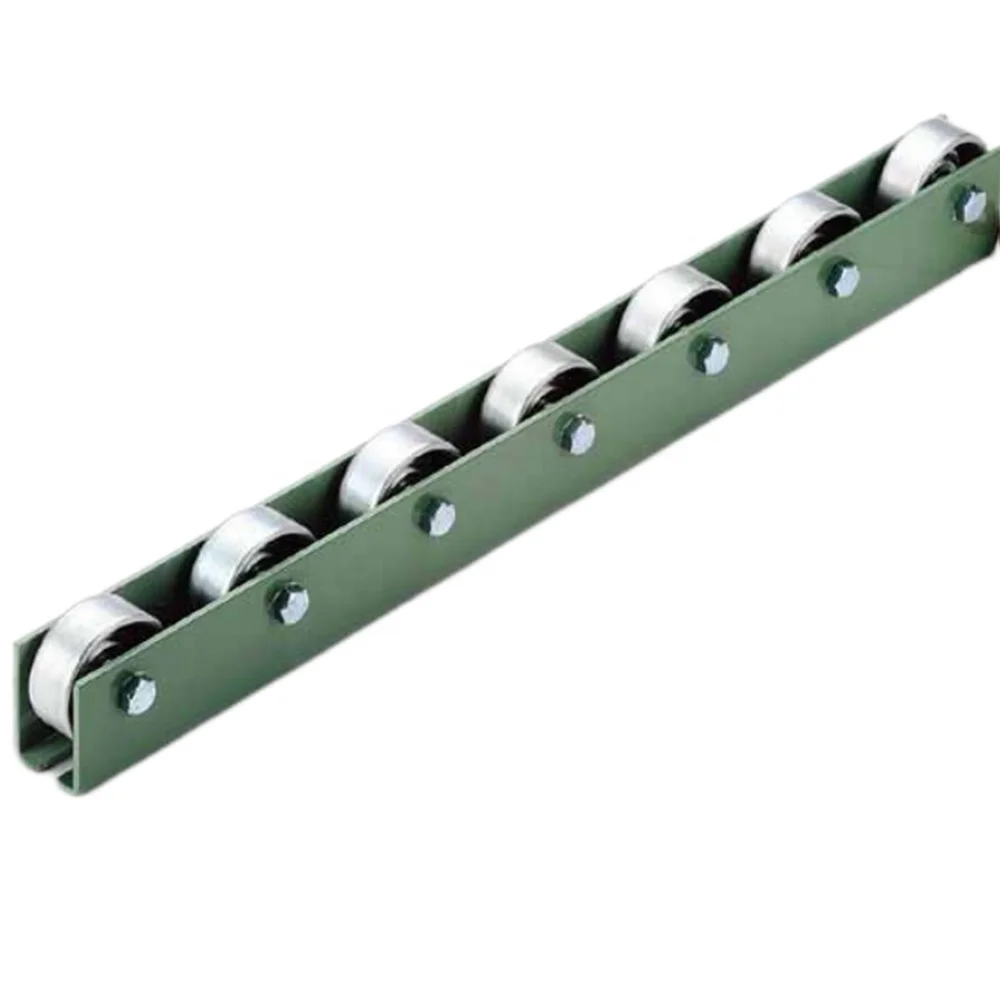

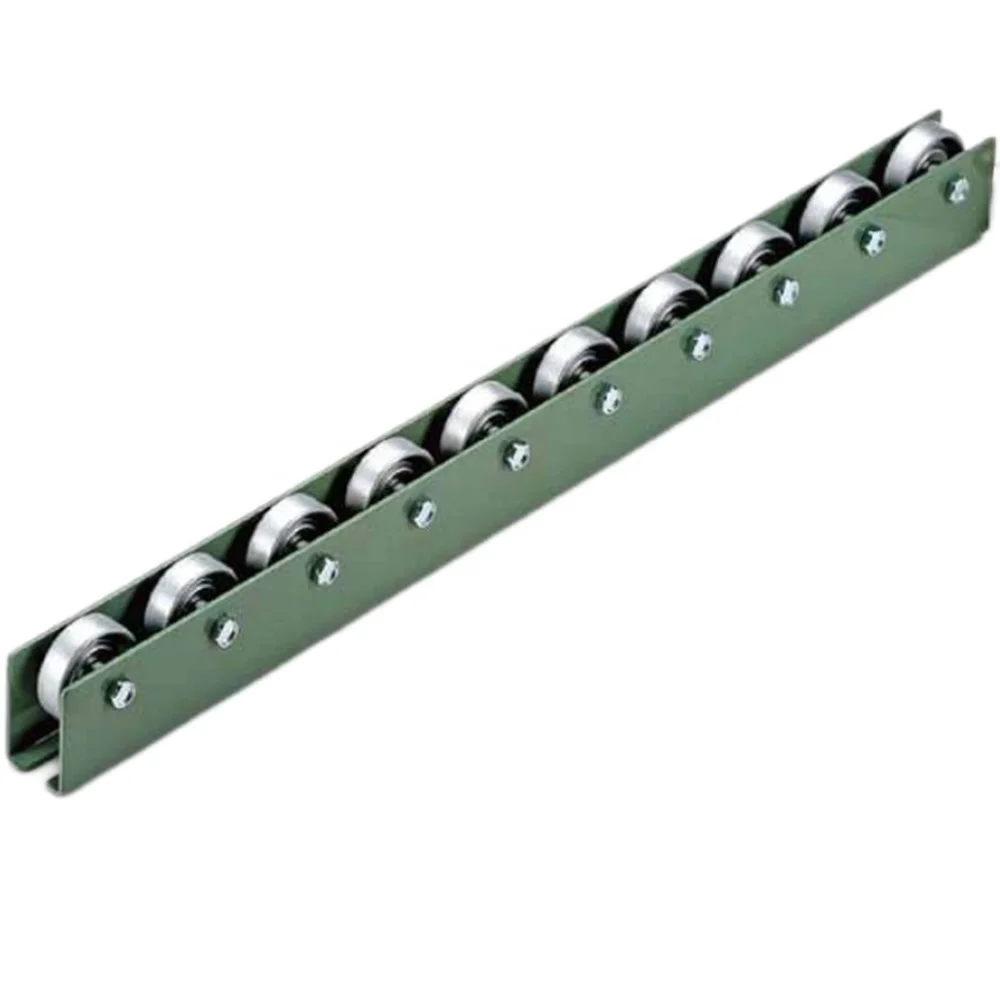

   We have all kinds of skate wheel track.
