Yuntong Fully Automated Used Car Tyre Pelletizing Production Line
Tyre shredder
1. double shaft shearing method optimizes the drive force between blades and main shaft.
2. adopts swing needle wheel decelerator or hard tooth face decelerator, with high capacity, high efficiency, lower noise, long lifespan, etc.
3. horny alloy blade edge can be shaped several times to ensure long lifespan for blades.
4. teeth type coupling connect commission, convenient maintenance and installation.
Technical Parameter
Motor power(kW)
(22-37)×2
Blades(PCS)
22
Revolution speed of main shaft(rpm)
8-14
Crushing room length(mm)
1200
Round-screen hole diameter(mm)
Φ50-Φ90
Inlet granules(mm)
≤Φ1200
Outlet granules(mm)
40-70
Capacity (With Filter Screen)(kg/h)
≤3500
Capacity (Without Filter Screen) (kg/h)
≤8000
Dimension((L*W*H)mm
6310×3670×2850
Product Description
Scrap tire recycling machine
Using scrap tire make clean fine crumb rubber at ambient temperation
Overlook-Yuntong Environmental Machinery

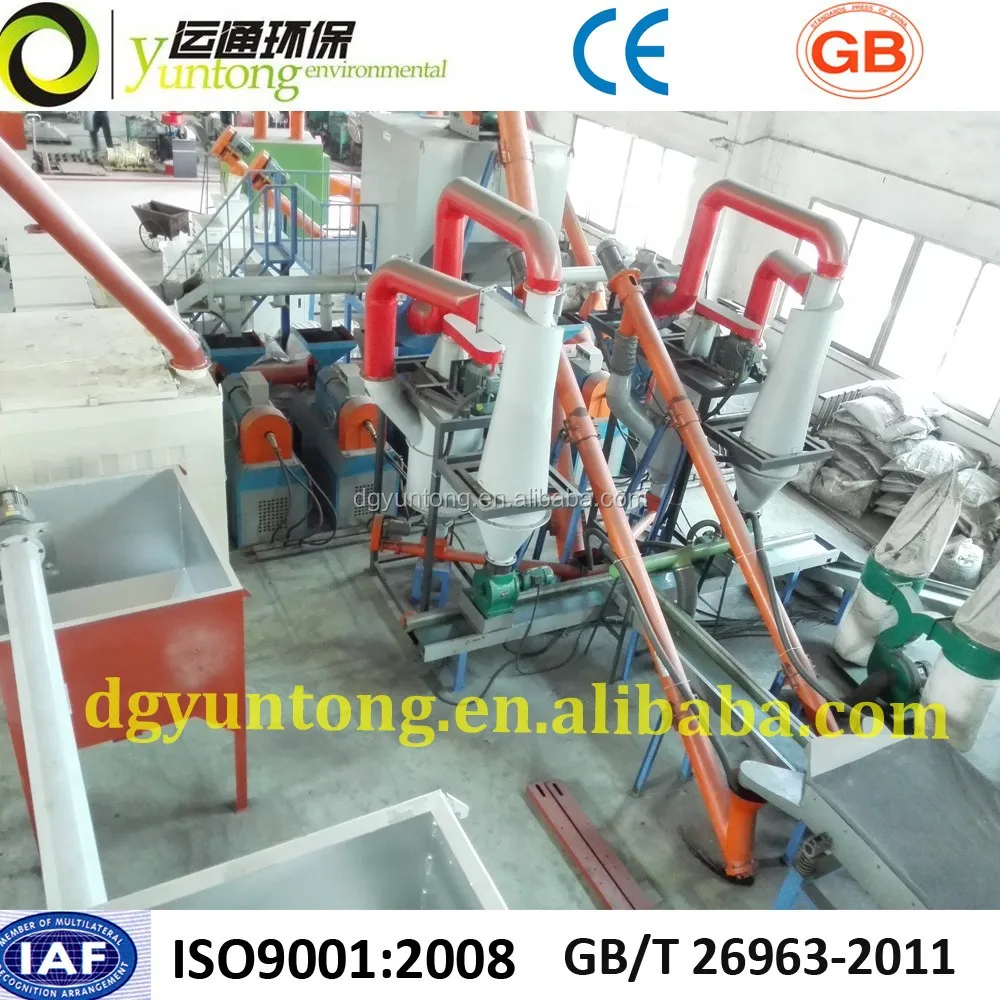

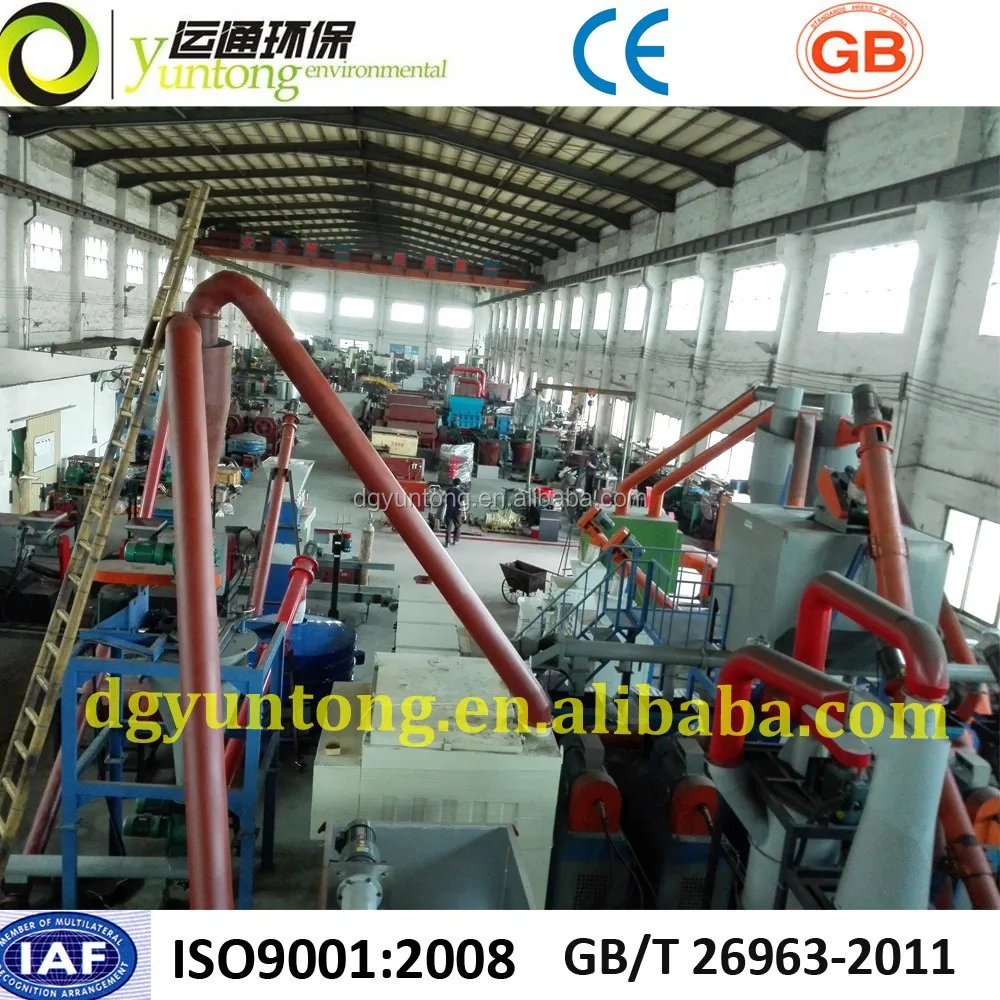

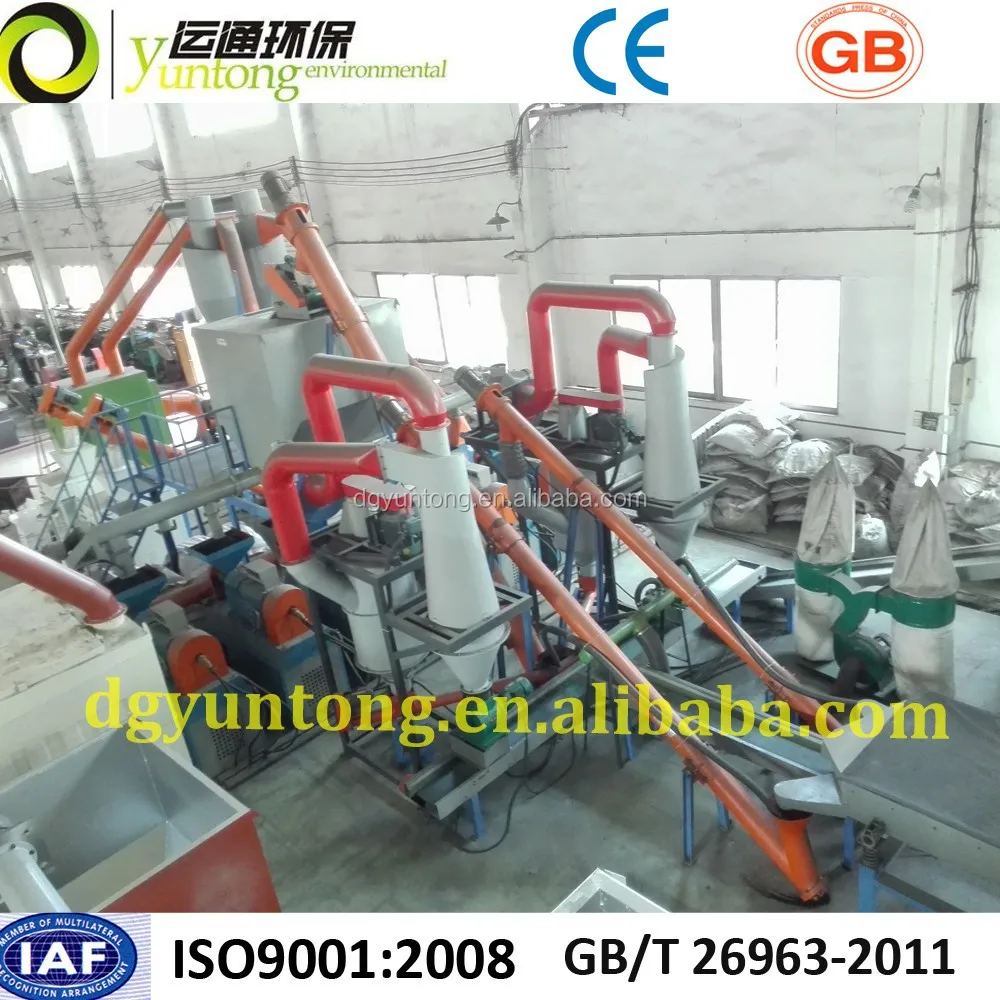

Sample production line in workshop
1/input:1 tons tire per hour,tire size less than 1200mm
2/output:700kg 20-80mesh crumb rubber,the scrap steel and textile is separated clearly and collected, the dust and ash is removed clearly,smoke and smell is absorbed.
3/Power needed:302KW(3 phase ,380V/50HZ )
4/Covering area:50x7x8m
5/Total weight:approx 46tons
7/Cooling method:Circular cooling water syste,Water tank needed:4x1.8x2m
