Cable Pulley for Construction Hoist Spare Parts/ High Performance Cable Pulley

Product Overview

Description

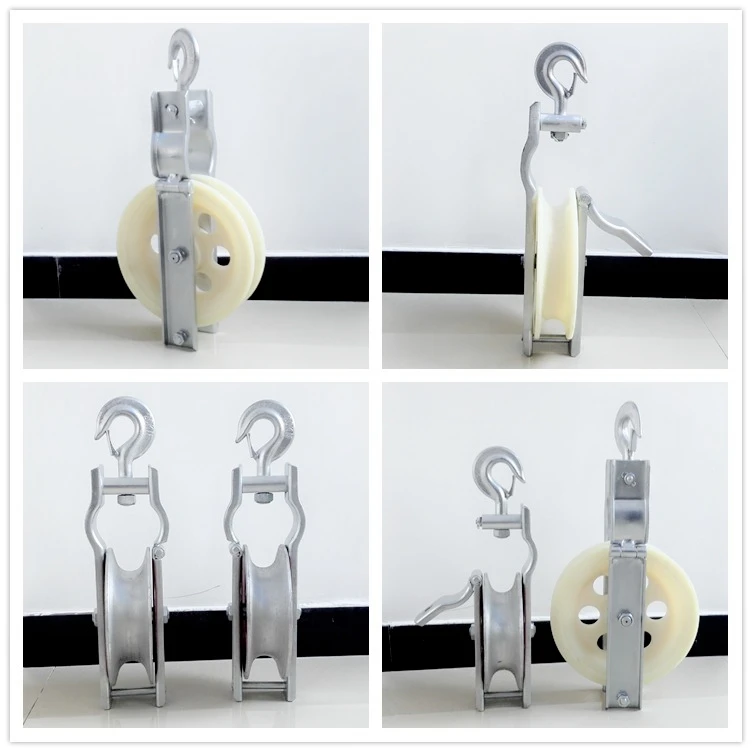

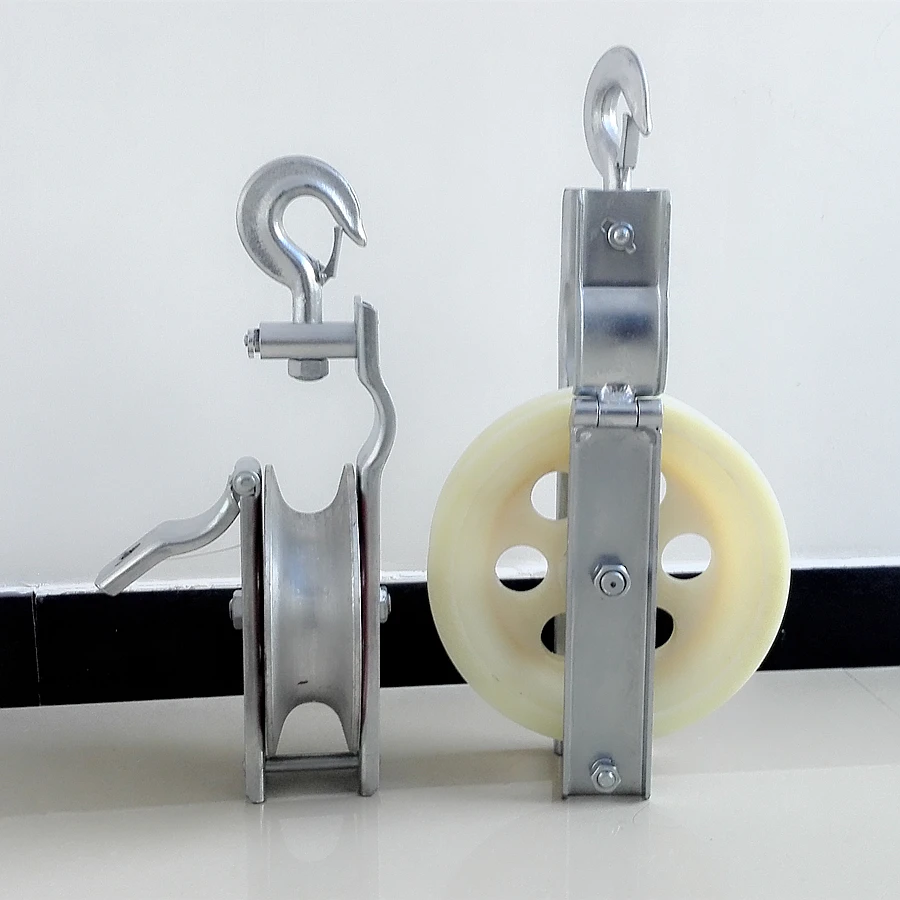

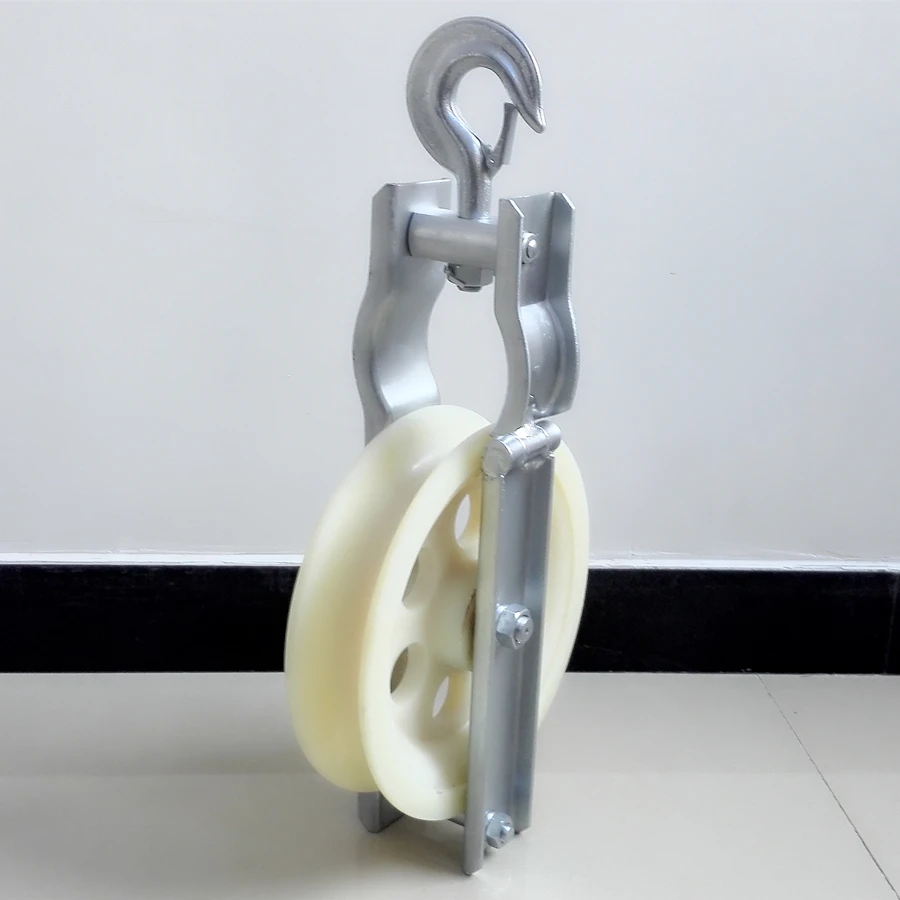

Hanging Cable Pulley Introductions

a. We manufacture a lot of models for different uses in the overhead transmission line construction.

b. They have are used to support conductors,OPGW,ADSS, communicatio lines.

c. The sheave of the pulley blocks are made from higth strength nylon,or aluminum materials ,and the frame of blocks are made of galvanized steel.The lateral ones are mounted on ball bearings.

Remarks:All kinds of pulley blocks can be manufactured according to the customers's requirements.

If any interested,please feel free to contact with us for more information,and we will try our best to comply with your requirements.



Hanging Cable Pulley specification

Size	Dia/Wid	Rate Load	Weight	Att
	(mm)	(KN)	(kg)
HCP -01	Φ80/50	5	1.9	Alum
HCP -02	Φ120/30	5	2.1	Alum
HCP -03	Φ160/40	10	2.5	Alum
HCP -04	Φ120/58	20	3.5	Alum
HCP -05	Φ80/50	5	1.4	Nylon
HCP -06	Φ120/30	5	1.6	Nylon
HCP -07	Φ160/40	10	2	Nylon



Application of Hanging Cable Pulley



Widely used in overhead power line construction. Used to release conductors. It can be passed by  connectors, swivel joints.

A block and tackle system which combined with many pulleys is often in conjunction with a winch, mast or other lifting equipments and it is usually used in construction and installation work like lifting tower, stringing, hoisting works. It can be also used in lifting and hoisting works of dock, shipyard, warehouse and so on.
