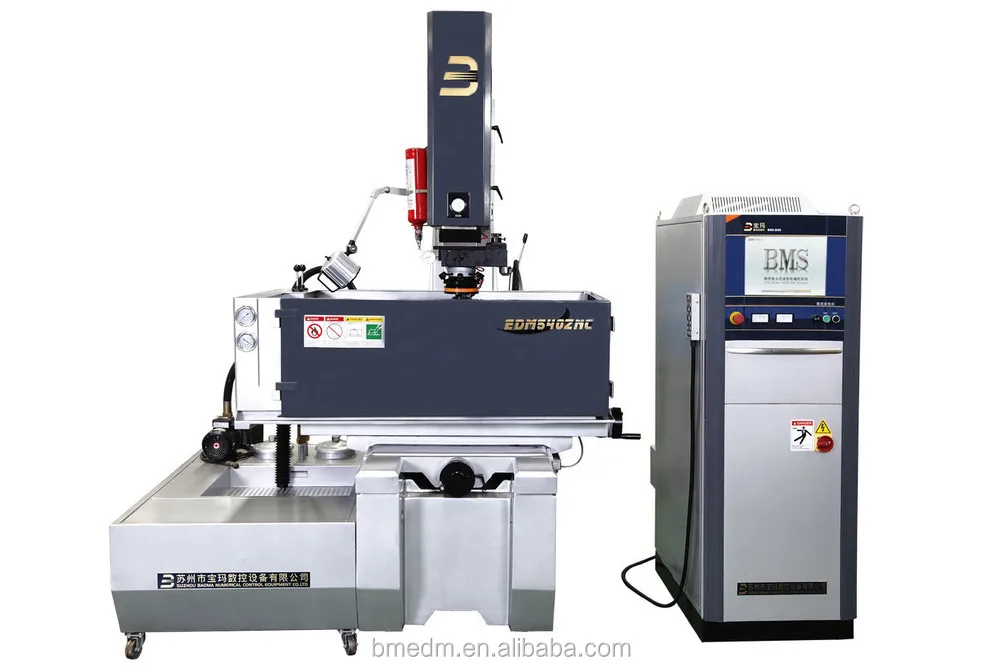

High Quality Spark Erosion Machine EDM Die Sinker EDM450ZNC

High Quality Spark Erosion Machine EDM Die Sinker EDM450ZNC

Features:

1. Adopt Japan SANYO DC servo motor.
2. Steady safety device, optical sensors, auto answer, fire extinguisher and power cut off.
3. Good machine structure , high rigidity ,high precision , adopt V slide design.
4. Adopt HT300 aging treatment casting ,keep precision long time.
5. Adopt high quality imported oil pump.
6. Three-axis linear scale.
7. For copper, graphite, steel, on the cavity, and special shape holes machining
8.  Lubrication system uses recovery mode, rail lubrication action at once, and keep the look clean.
9. Equipped with Taiwan IPC configuration, the parameters can automatic set up. LCD display.
10. The new design meets European CE safety standards. Can be dustproof, waterproof, anti-interference and improve the life of electronic board.

a)Spark Erosion Die Sinker Product Description

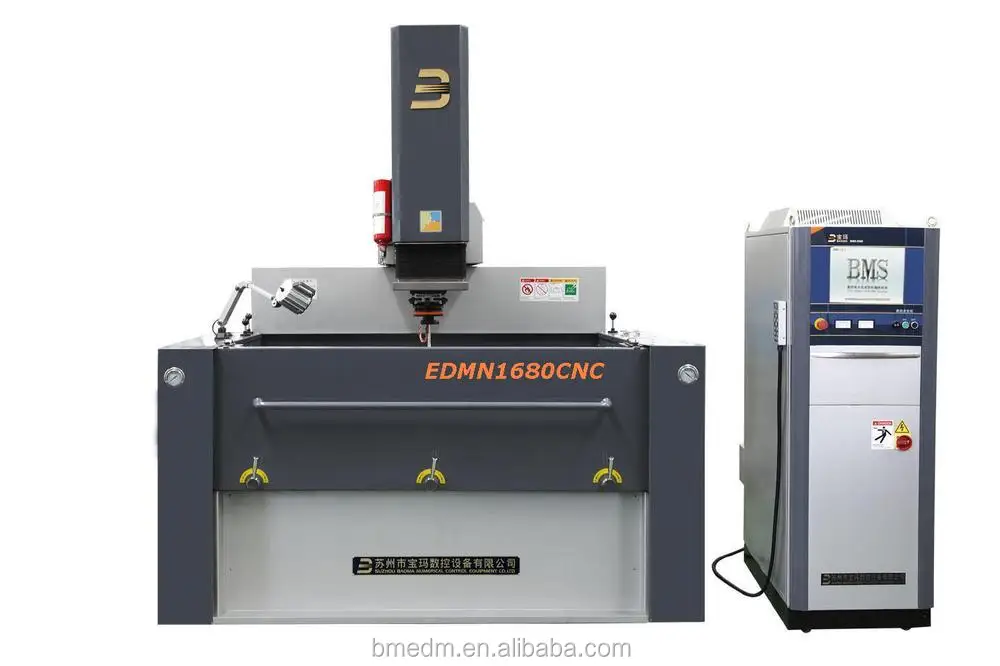

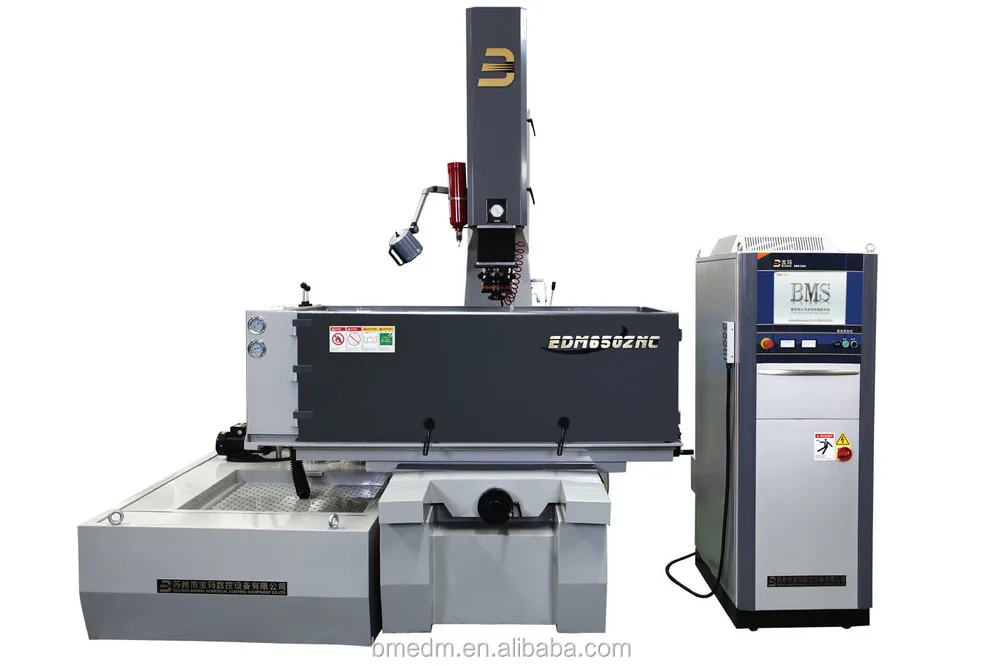

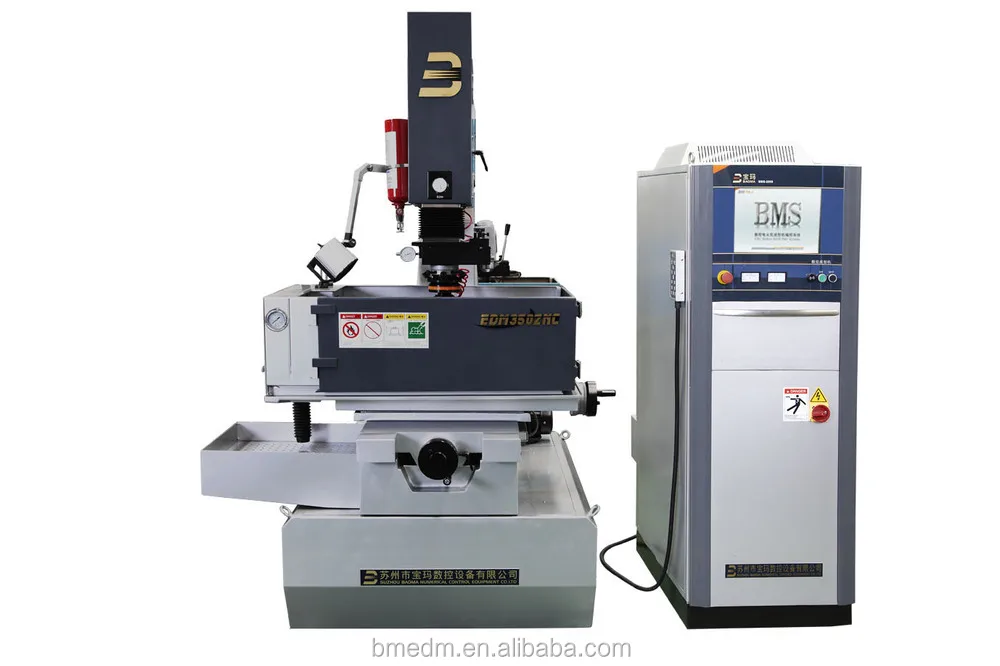

EDM Die Sinking Machine

A. There is automatical A. R. C carbon surveillant device to prevent destroying workingpiece.
B. Steady circuit of big area electrode.
C. High and low clearance individual circuit.
D. PWM servo system, standard DC servo motor.
E. Synchronous discharge system of high voltage superposited.
F. Square wave and equal energy output.
G. Circuits of super-fine process.
H. Capacity of mirror process (negative pole)

 Spark Erosion Die Sinking Samples:

Product Description

(1) EDM Sinker Main performance indexes and technical requirements
A. Machine is designed according to analyses of resistance to draw, resistance
To press and reaction by computer.
B. Casting is used FC-35 by national weathering and all kinds of treatment, it wears well and its precision is changeless.
C. Machine structure is reasonable without distortion, of good rigidity to insure process precision.
D. Rails are "V "shape, can move lightly under heavy load and good precision Zaxis is used Japanese "SANYO" DC servo motor.
E. High precision bears, the working table are used rails with "TAFULO" face.
F. Danish "GRUNDFOS" oil pump or Italy "GALPEDA" oil pump.
G. Three axes SINO grating ruler.
H. Can arbitrarily choose the methods of removing scrap iron, sweeping oil or sucking oil, also choose process that the workingpiece is not submerged in oil.
I. It suits to process cavity, hole and special shape parts in copper, plumbago, steel.
J. Lubricating system is used callback way, lubrication of rail is completed once, and retains cleanness of appearance.
K. PCB boards is moistureproof, anticorrosive, gold-filled.

(2) Sinker EDM CNC system technical performance
A. There is automatical A. R. C carbon surveillant device to prevent destroying workingpiece.
B. Steady circuit of big area electrode.
C. High and low clearance individual circuit.
D. PWM servo system, standard DC servo motor.
E. Synchronous discharge system of high voltage superposited.
F. Square wave and equal energy output.
G. Circuits of super-fine process.
H. Capacity of mirror process (negative pole process).
I. Capacity of voltage regulation is ± 20%.
J. Circuits of copper electrode and plumbago electrode are separate and individual process parameters.
K. Discharge parameters can be edited automatically, and there are rough, medium, fine, superfine process terms to be chosen.
L. Z axis is of super-precision process, process position can be affirmed repeatedly.
M. There are some safe devices in circuit.

A. Self-diagnostic system and LED state display, convenient to examine and repair
B. Oil level control, process device will be stopped automatically
C. Accelerograph control, if the display is OFF, process device will be stopped automatically
D. If temperature of working fluid is too high according to induction, the process will be cut off automatically
E. Temperature induction, fire extinguisher sprays automatically and cut off the power supply at the same time
F. Light induction, fire extinguisher spray automatically and cut off the power supply at the same time
G. Mist automatic fir extinguisher, security is the best without pollution, not destroy machine and mould

About EDM Sinker Machine:

Sinker EDM, also known as ram EDM, conventional EDM or plunge EDM, employs machined electrodes of varying shapes, sizes and materials to remove material from the workpiece. Electrodes are usually made from graphite, but copper, tungsten or brass as well as combinations of these materials are also used, and the geometric features of the electrode can be customized to reach the required specifications. In the sinker EDM process, both the workpiece and the electrode are submerged in a dielectric fluid of oil or synthetic oil and the machine guides the electrode toward the workpiece automatically using CNC technology. As in wire EDM, as the electrode approaches the workpiece, the strength of the electrical charges breaks the barrier of dielectric fluid and a spark is created, eroding away a small amount of material by melting and vaporizing microscopic particles. The process repeats hundreds of thousands of times per second, and as material is removed, the machine continues to direct the movement of the electrode until the desired dimensions are achieved. After the initial “roughing” pass, during which the bulk of the material is removed, we may perform additional 3-D orbiting passes in order to achieve the best surface finish and tightest tolerances possible. Sinker EDM allows us to machine complex 3-D shapes, blind cavities, intricate internal features, threads into hardened parts, and much more. In addition, sinker EDM has the ability to use multi-up electrodes for multi-up parts production—in some cases, we can sinker EDM 100 pieces simultaneously.
