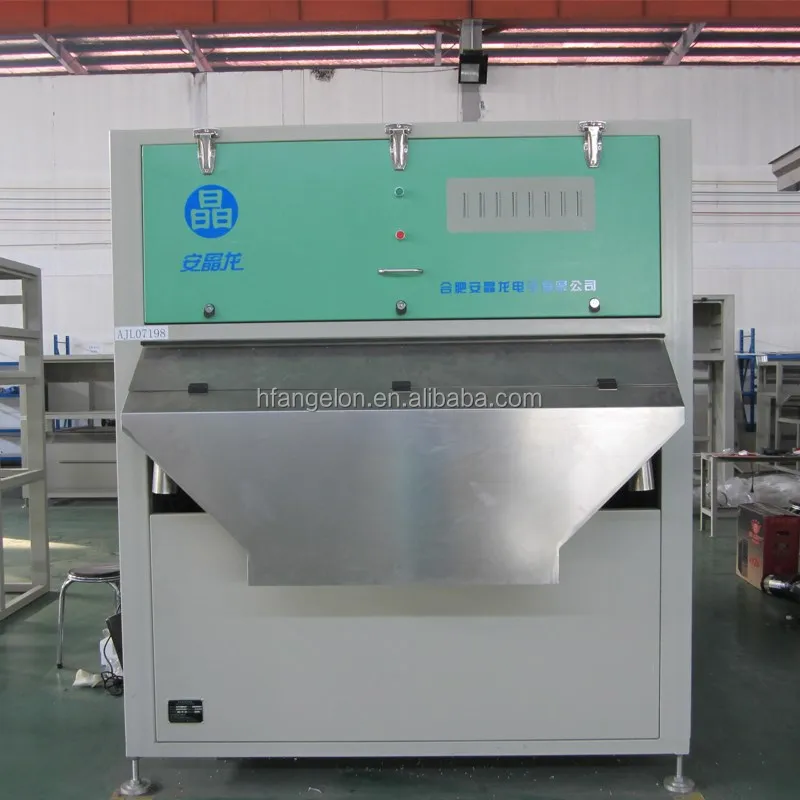

CCD belt type HDPE white flake color sorting machine/the best sorter for plastics

Product Overview

Description

 Milk bottle scrap color separating machine/sorting machine

Overview

Angelon mainly develop and manufacture belt-type color sorting machine. The strength of belt-type color sorting machine is high accuracy, low material damage ratio and carryover ratio. Many material can be sorted by chute-type color sorter, but the effect is unsatisfactory. Belt-type color sorting machine is superior in sorting material

 1. First manufacturer of belt type color sorter in China

2. China NO 1 belt color sorter manufacturer

3. Track CCD color sorter
4. High sorting accuracy and low damage ratio for material
5. Real-time monitoring on computer
6. Four Line LED light with longer service life

7.High capacity



Product Features



1. International first-class optical lens; the articulation up within 0.07 mm2 can recognise a subtle chromatism and tiny flaws.



2. By using high-speed parallel data processing chip, real-time efficient image acquisition and processing system, greatly improving the color separator working efficiency.High quality image processing algorithm:



3. Adopt international advanced image processing technology, can effectively identify small to 0.1 mm of tiny impurities, color choose higher accuracy, color choose than lower brought out.



4. Convenient computer operating system, could save many different sorting mode for clients in order to suit different materials.



5. Unique LED lighting system, Equipped with LED light source, and to ensure the high-definition image quality, can meet 1000 kinds of color separation, identify color changes.



6. Fan self-adaptive working temperature, ensure color separator in the high temperature environment also can work normally.



7. The incomparable eliminate accuracy, more perfectly sorting out finished with a defective; high resolution, big material nozzle; High frequency, long durability and long service life.



8. Easy for clients to install in factory. Unique double layer belt-type design could finish all the processing procedure at one time, and only need one elevator.

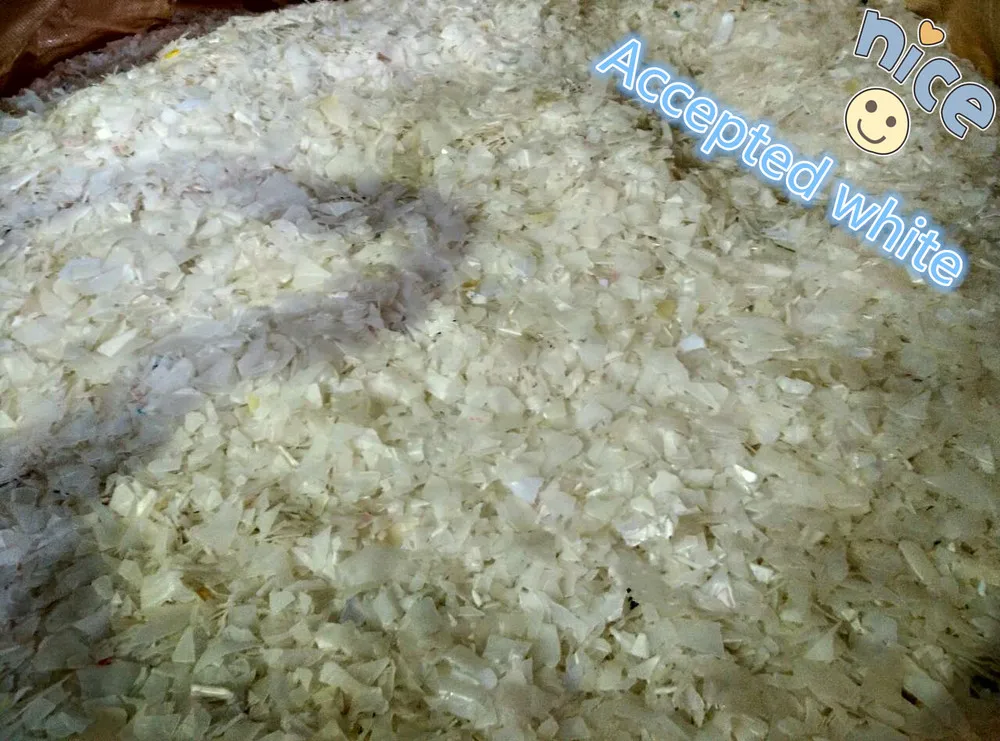

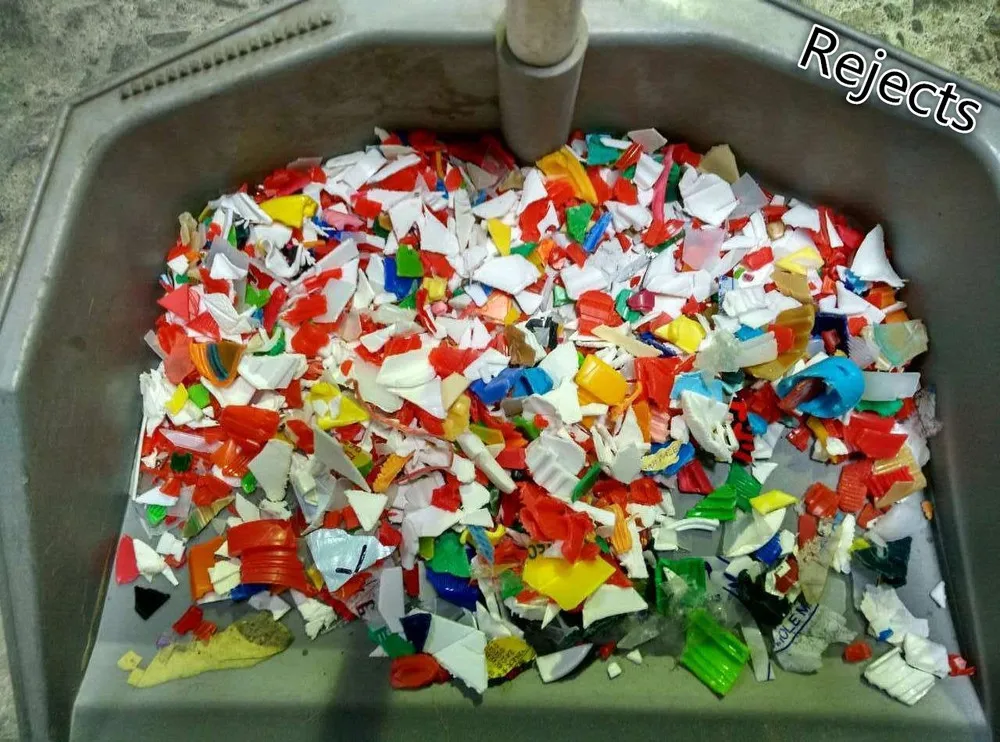

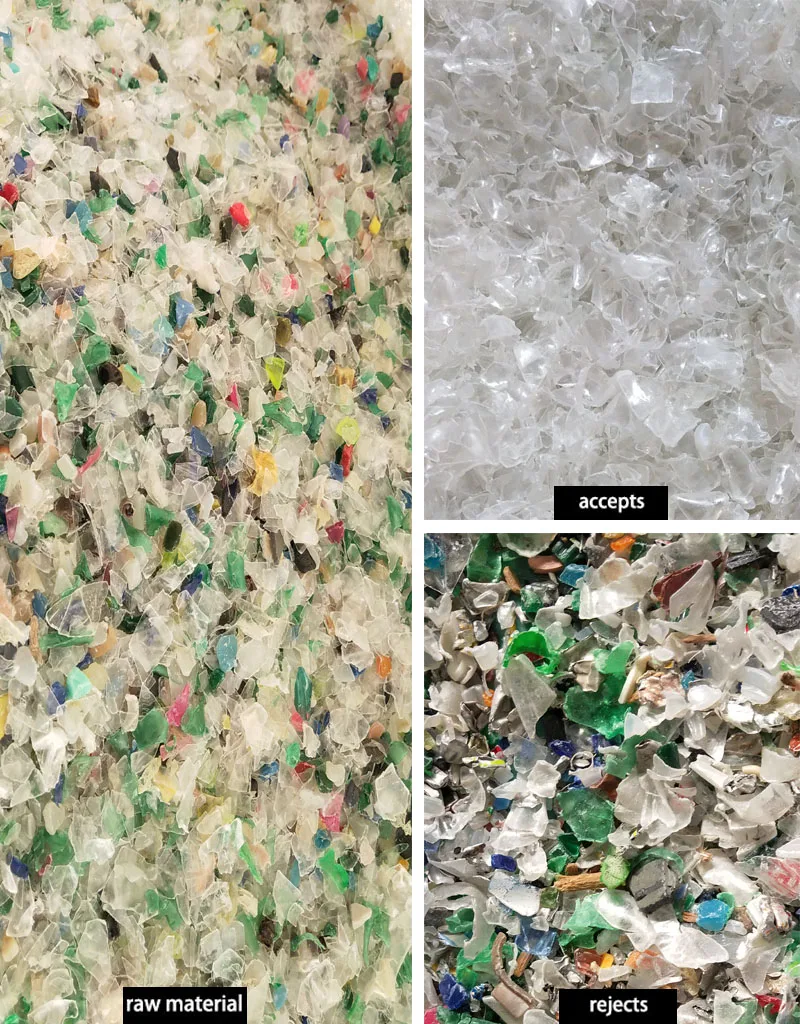

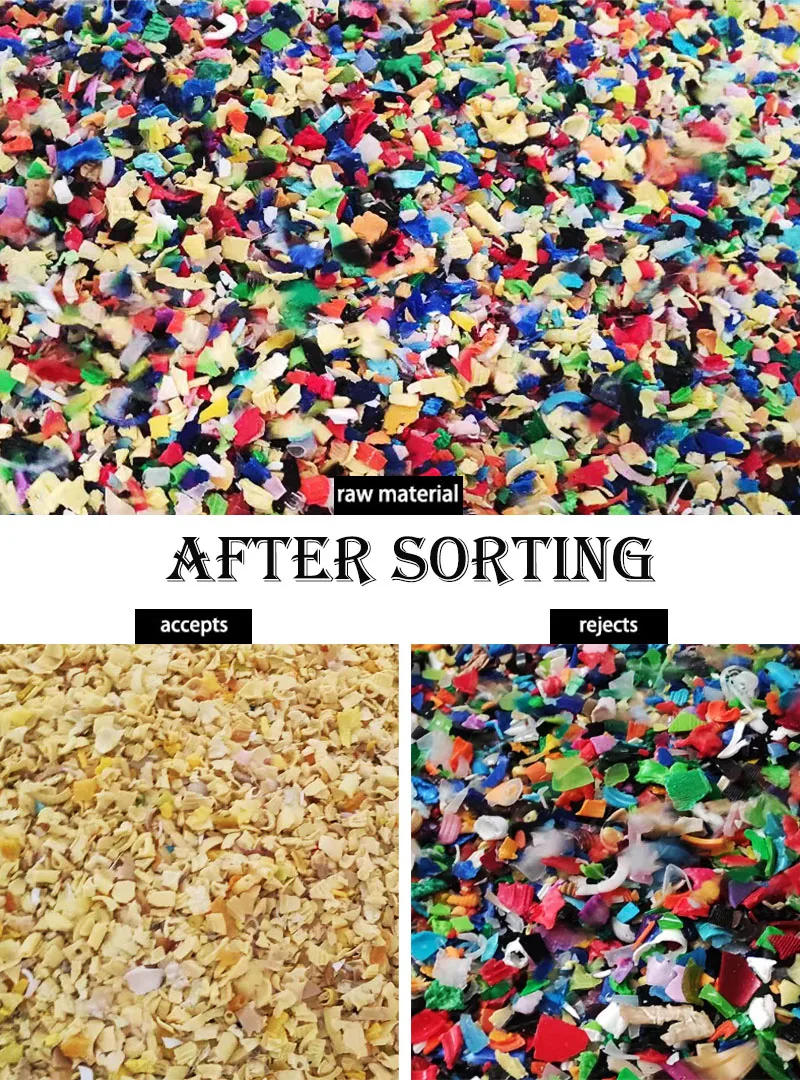

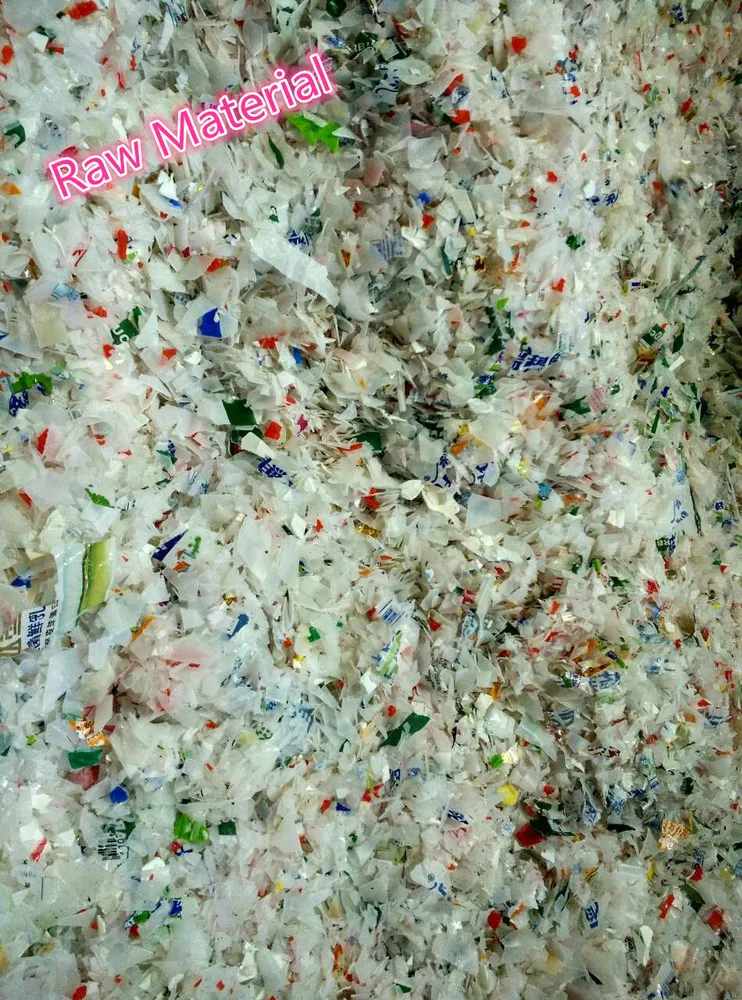

HDPE Real Sorting Result



Technical Parameters







Type		AL1K1C2-128,256
Channels		128,256
Output(t/h)		1-3
Sorting accuracy (%)		>99.98
Optimized carryover(bad :good)		>8:1
Voltage (V)		~220(50Hz)
Power of main machine (kW)		5.7
Air Pressure (MPa)		0.6~0.8
Dimension(L*W*H)(mm)		3080*1820*2150
Weight (kg)		1100



* Note: the technical parameters only refer to one kind of plastic color sorting machine. The real data is subject to change based on different conditions.
