Original Series M25 Liquid Tight Cordgrips plastic connector IP68 Strain Relief Gland

Product Overview

Description

Original Series M25  Liquid Tight Cordgrips  plastic connector IP68 Strain Relief Gland

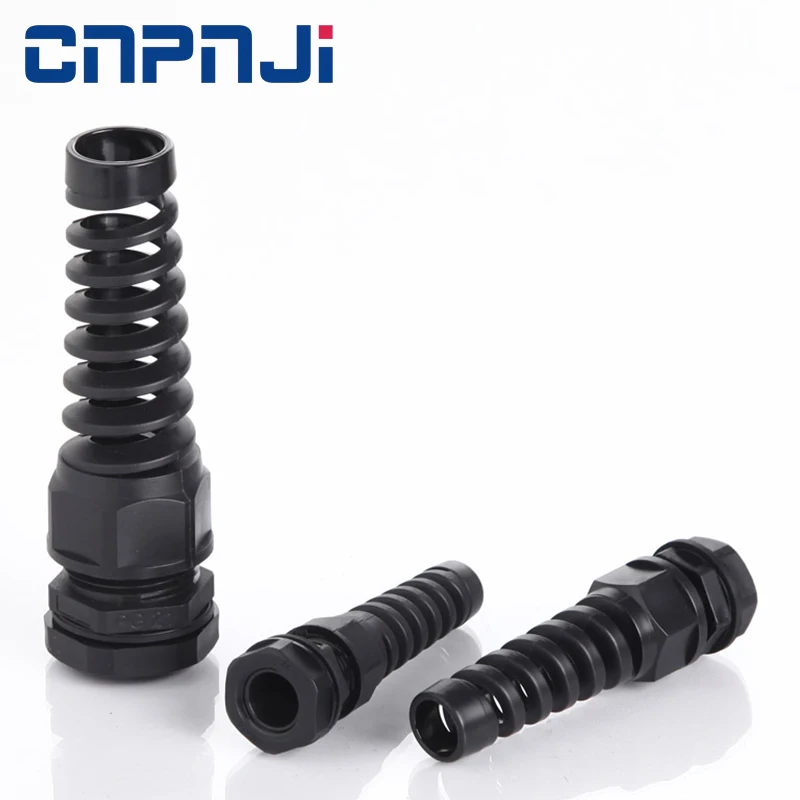

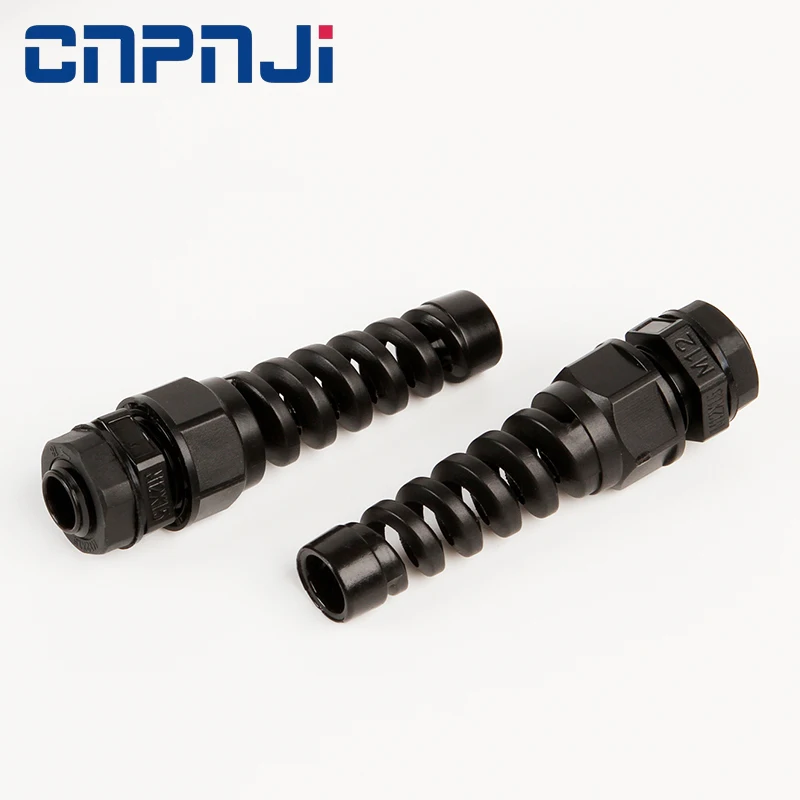

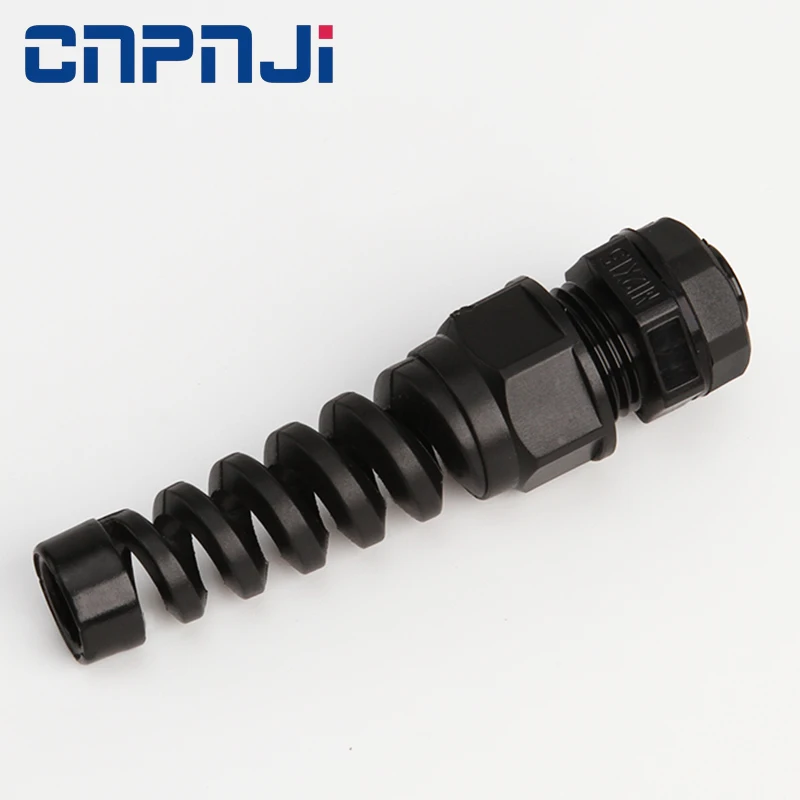

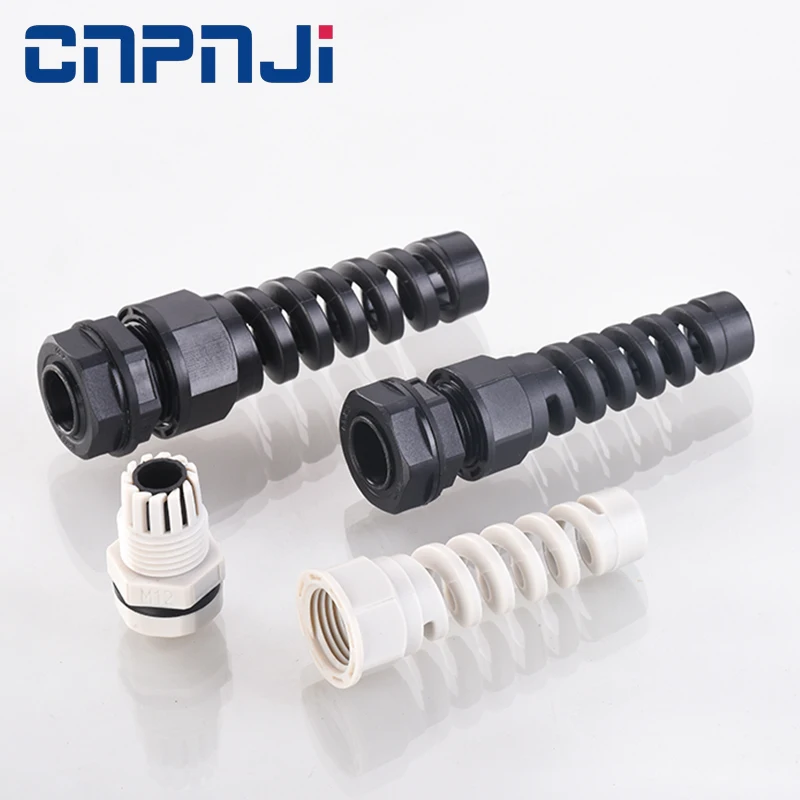

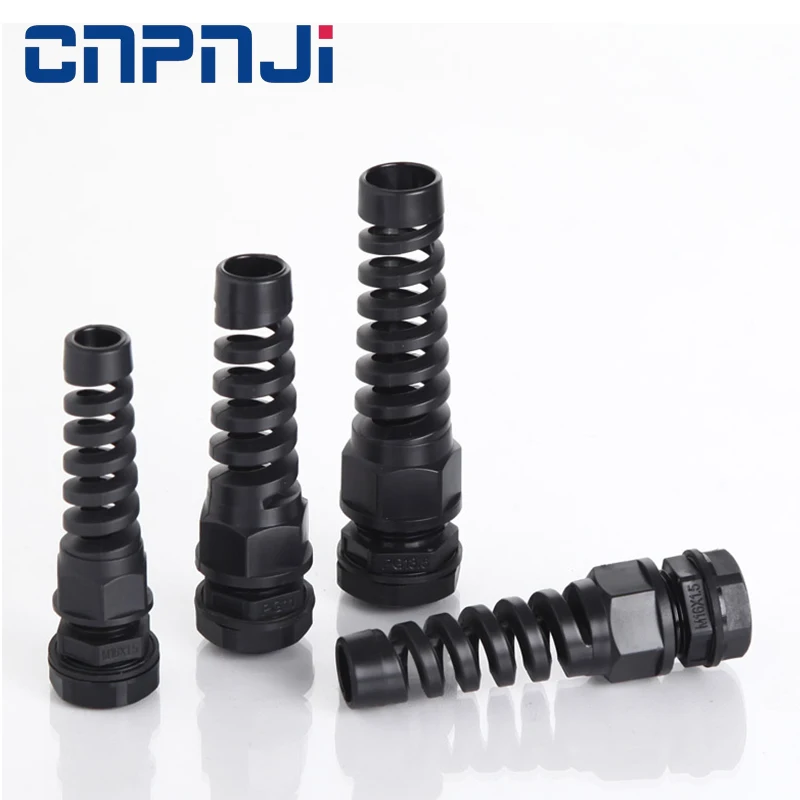

1. Pictures Of IP68 PG Cable Glands

2. Specification Of IP68 PG Cable Gland

Standard Thread	PG, Metric, NPT, G(PF)
Meterials	UL approved nylon PA66(Flammability UL 94V-2) for A,C,E,F parts; EPDM rubber for B,D parts
Protection Level	IP68
Working Temperature	EPDM Rubber: -40 to +100 °C Silicon Rubber: -50 to +200 °C
Feature	Different cable range for different cable diameter Different thread length for different junction box
Color	Black, Gray, White, Blue, Red (Special colorscustomizable)
EPDM Rubber	More waterproof; more durable; more weather resistant
Certificates	UL,CE,ROHS,SGS,IP68,Halogen-free,UV Resistant



 3. Exploded View And Applications Of Cable Gland



NPT Cable Gland Do Not Include Lock Nut
Size	Item	Cable Range	Thread O.D.	Thread Length	Spanner Size
	No	(mm)	C1(mm)	C2(mm)	F(mm)
NPT1/4"	NPT1/4-5.5	3-5.5	13.157	8.5	19
	NPT1/4-6.8	4-8	13.157	8.5	19
NPT3/8"	NPT3/8-7	3-7	16.662	10	22
	NPT3/8-10	5-10	16.662	10	22
NPT1/2"	NPT1/2-9	5-9	20.955	10	24
	NPT1/2-13	6-12.5	20.955	10	24
NPT3/4"	NPT3/4-13	7-13	26.441	15	33
	NPT3/4-18	12.5-18	26.441	15	33
NPT1"	NPT1-22	15-22	33.249	17	41
	NPT1-25	17-25	33.249	17	41
NPT1 1/4"	NPT1 1/4-25.5	17-25.5	41.91	17	52
	NPT1 1/4-31	24-32	41.91	17	52
