Машины для экструзии пластика и ламинирования полиэтиленовой пленки
- Category: >>>
- Supplier: Ruian Bonada Machinery Co. Ltd.
Share on (60283364505):
Product Overview
Description
Specifications
1.Laminated by PE,PP extrusion technology
2.Single lamination or double lamination
3.Non-woven fabric and OPP film lamination.
SJFM800/1800 Extrusion Lamination Machine
Main features:
Extrusion Laminating Machine adopts the casting technology, laminate the two layers materials together. made by compounding fluid, plastic film, woven cloth or aluminum foil into double layer, three layer or multi-layer new materials, which are used for packaging products of cement, chemicals, forage, food, medicine, adhesive tape cloth, plastic coating paper cups and fast food boxes, etc.
Application range:
Paper-plastic complex; Plastic-plastic complex; Aluminum-plastic complex; Paper-aluminumplastic complex; Non-woven fabric and BOPP film lamination.
Producing methods:
Single shower membrane comples ·Tree-level (sandwich) complex·Multi-level complex (with seven-level complex at one time).
Main Technical Variables:
ITEMTYPE | SJFM-800 | SJFM-1100 | SJFM-1300 | SJFM-1600 | SJFM-1800 |
length of mold lip | 900mm | 1200mm | 1400mm | 1800mm | 2000mm |
Width of finshed product | 400-700mm | 500-1000mm | 600-1250mm | 800-1500mm | 900-1700mm |
Max compounding speed | 100/150m/min | 80-110m/min | 80-110m/min | 60-110m/min | 60-110m/min |
Width of shower film | 0.01-0.1mm | 0.01-0.03mm | 0.01-0.03mm | 0.01-0.03mm | 0.01-0.03mm |
L/D ratio for screw | 32:1 | 32:1 | 32:1 | 32: | 32:1 |
Max.diameter for roll unwinding add rewinding | ø1200mm | ø1200mm | ø1200mm | ø1200mm | ø1200mm |
Overall size | 9600×6000× 3200mm | 9600×7000× 3200mm | 9600×8000× 3200mm | 9600×9000× 3200mm | 9600×12000× 3200mm |
Power | 60kw | 70kw | 80kw | 100kw | 130kw |
Compounding/mirror cool roll | ø510mm | ø510mm | ø510mm | ø510mm | ø510mm |
Applicable for base material | BOPP BOPET BOPA CPP CPE, Non-woven fabric, Aluminium foil etc. | ||||
TERMS OF PAYMENT:
T/T OR IRREVOCABLE L/C AT SIGHT . 30% AS DEPOSITE, REMAINING COST BEFORE SHIPPMENT.
DELIVERY TERM:
40 DAYS AFTER RECEIPT OF ORIGINAL L/C OR RECEIPT OF 30% T/T DEPOSIT.
DELIVERY PORT:
CHINA NINGBO PORT
INSTALLATION:
OUR COMPANY COULD SEND ECHNICIANS FOR INSTALLATION, ADJUSTMENT, TRAINING FOR CUSTOMER, IF THE BUYER BEAR ALL THE CHARGE SUCH AS ROUND TICKET, ACCOMMODATION, FOOD ETC. THE BUYER ALSO NEED PAY SALARY TO OUR ENGINEER 70USD/DAY/PERSON.
GUARANTEE SYSTEM AND MAINTENANCE:
ONE YEAR GUARANTEE FOR THE MACHINES EXCEPT THE SPARE PART, WE WILL SUPPLY LIFELONG TECHNOLOGY SERVICE TO SOLVE ANY PROBLEMS FROM U. DURING THE GUARANTEE TIME, NOT BCZ OF MAN-MADE SABOTAGE, WE WILL CHANGE THE PARTS FOR FREE,BUT THE DELIVERY COST NEED BY BUYER.
( SJFM800/1800 Extrusion Lamination Machine)Reference Video please kindly refer to:
//www.bonada-machine.com/videodetail/91.html

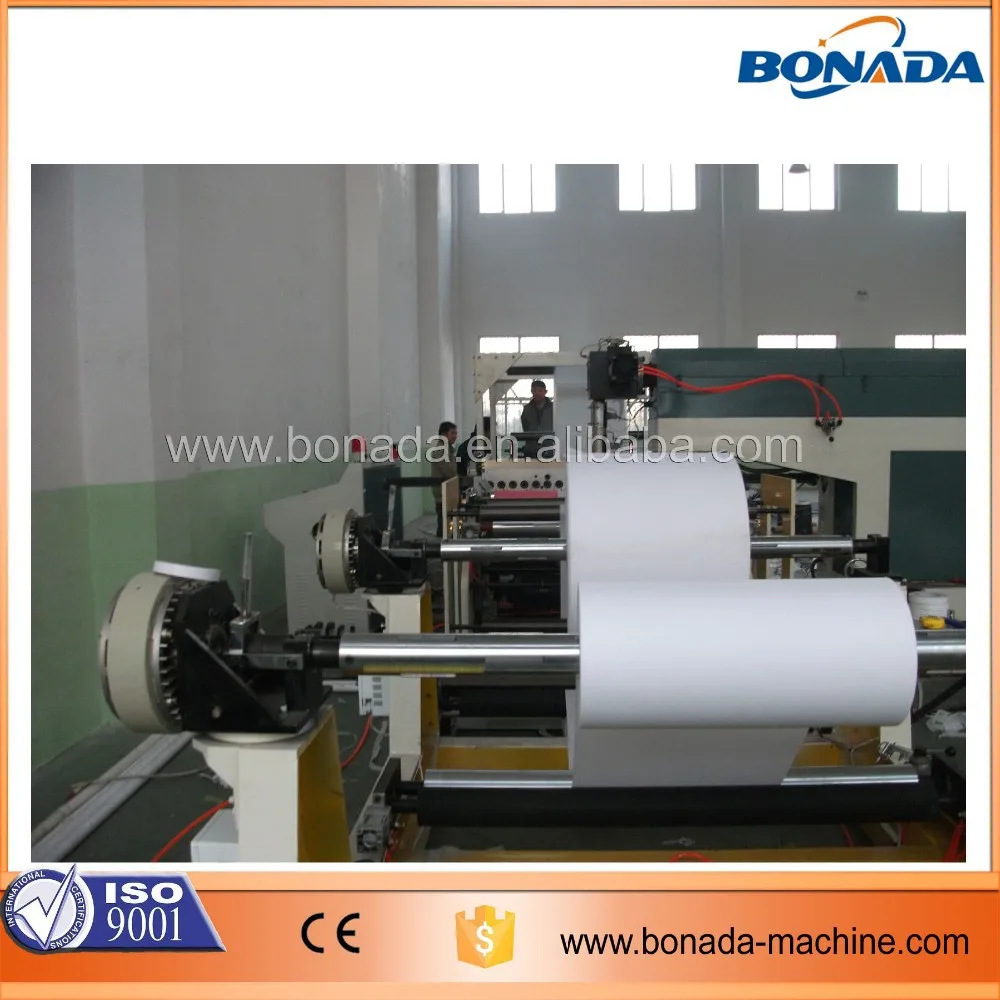

Ref. Photos:
film extrusion and laminating machine laminating and extruder manufacturer
fabric film hot melting coating and laminated machine paper film coating and laminated machine paper film extrusion and laminating machine laminating and extruder manufacturer plastic coating and laminated machine hot melting coating and film extrusion and laminating machine laminating and extruder manufacturer laminated machine fabric film paper film coating and laminated machine film extrusion and laminating machine laminating and extruder manufacturer paper plastic coating and laminated machine hot melting coating full automatic fabirc film extrusion and laminated machine non woven coating and laminated machine full automatic fabir full automatic fabirc film extrusion and laminated machine non woven coating and laminated machine c film extrusion and laminated machine non woven coating and laminated machine full automatic fabirc film extrusion and laminated machine non woven coating and laminated machine full automatic fabirc film extrusion and laminated machine non woven coating and laminated machine
