10 Вт Dc 6 в 12 В 24 в ход 25 мм нажимной соленоид для мини рамы
- Category: Needle Valves >>>
- Supplier: Zhongshan Landa Solenoid Co. Ltd.
Share on (60283452829):
Product Overview
Description

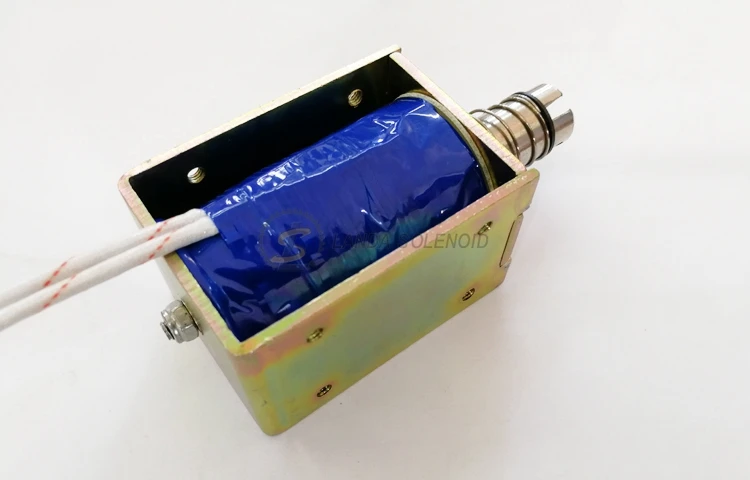

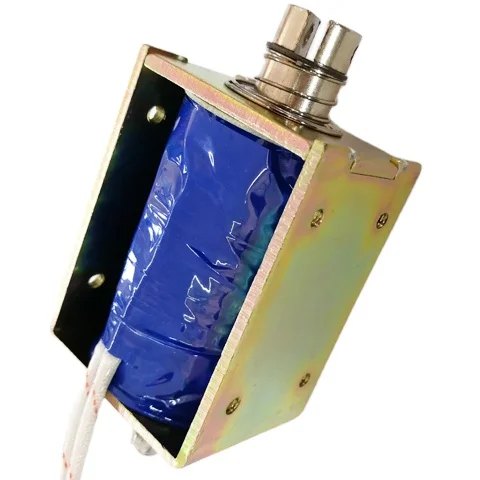

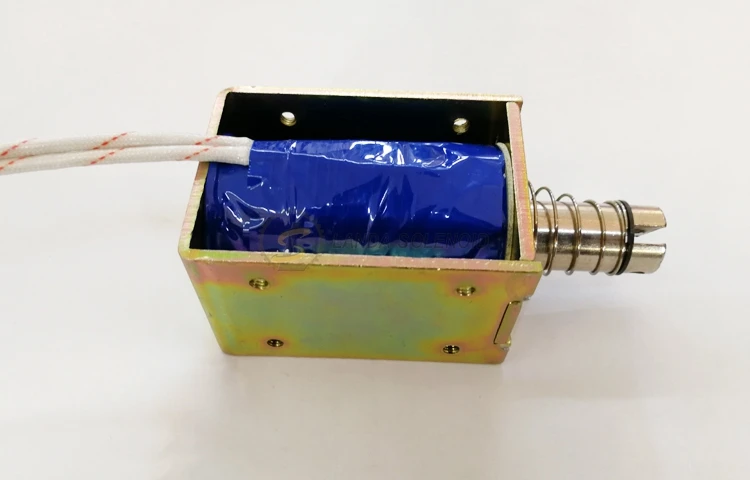

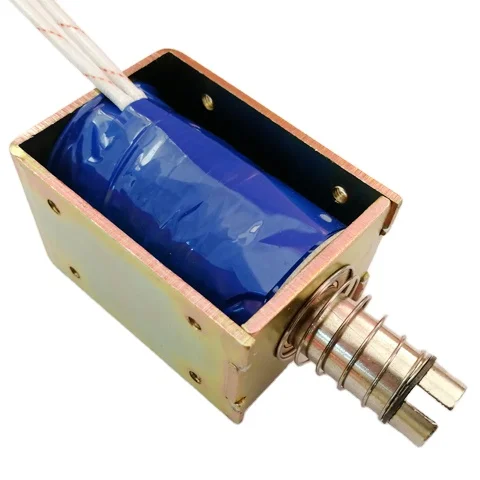

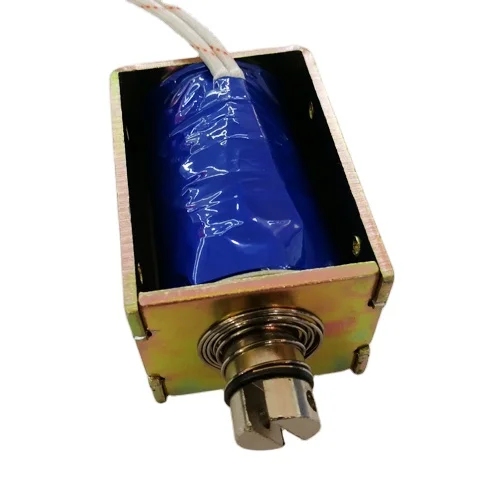

10W Dc 6v 12v 24v Stroke 25mm Push Pull Mini Frame Solenoid
Product Description

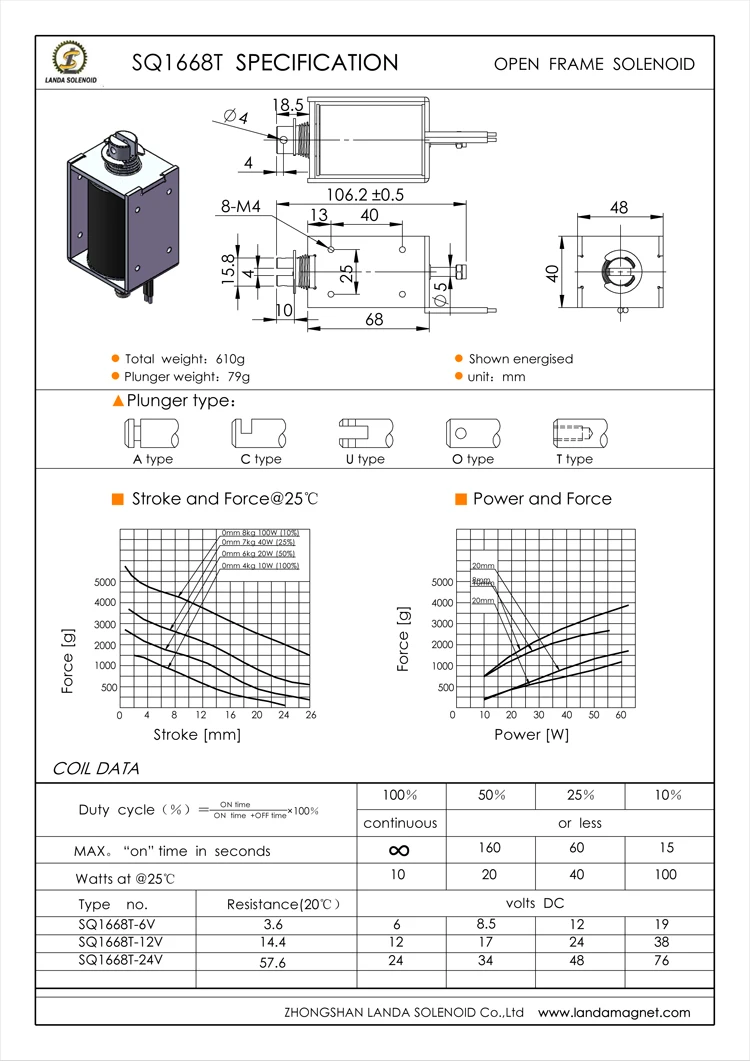

| Specifications | |||
| Brand | Landa | Product Name | mini frame solenoid |
| Model | SQ1668 | Voltage | DC 12v 24v |
| Power | w | Force | N |
| Stroke | mm | Duty Cycle | 10-100% |
| Cable Length | 200mm | Material | Metal, Electronic Parts |
| Action Form | Push pull type | Weight(N.W.) | kg |
| Install Style | Screw | Thread Size & Deepth(mm) | |
| Hi-Pot Test | AC 600V 50/60Hz 2s | Insulation Class | B |
| Packaging Details | |||
| Body Size | (mm) | Carton Box Size(Standard) | 350*310*180(mm), accepted custom |
Product Features

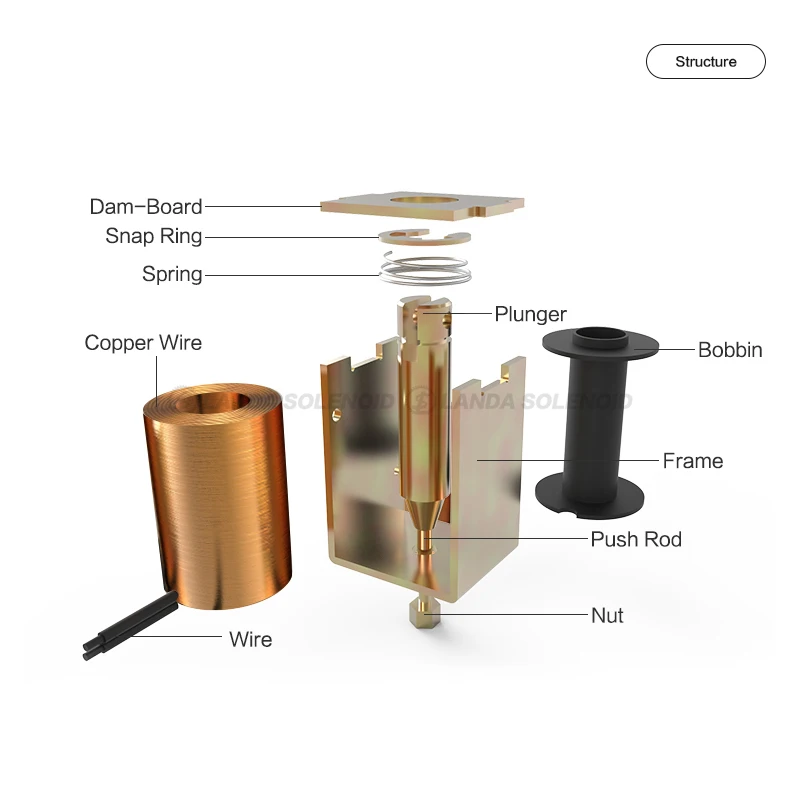

1. Push and pull type optional, linear motion, stroke optional, plunger spring reset (also you can choose not) , Dc power supply, Mini size, standard model voltage have 6v/12v/24v optional, we can custom the voltage as you need.
2.The solenoid works externally by pushing and pulling the plunger, and when energized, it works by pushing and pulling the plunger to connect the object.
3. The push pull mini frame solenoid are mainly used in vending machines, transportation equipment, office equipment, household appliances, machinery, etc.
4. Open frame structure with mounting holes, accepted custom as you needed.
Detailed Images
Customer Feedback
CONTACT US
Packaging & Shipping
More Solenoid
Company Information
Zhongshan Landa Solenoid CO.,LTD
Established in 2008, located in Dongsheng, Xiaolan Town, Zhongshan City, Guangdong Province, Landa Solenoid Co., Ltd.is an enterprise specializing in R&D-ing, producing and selling dc mini electromagnets, solenoids, solenoid locks, magnetic locks. Presently we have more than 90 staffs, and covers an area of about 6000 square.
We're one of the biggest mini dc electromagnets and solenoids source manufacturer in China. Experienced in designing and producing for 14 years, we passed ISO9001,got CE, ROHS, REACH, UL certifications. Our products are widely used in the area of automation, suitable to fire doors, marking machines, printers, home appliances, communications equipment, electrically door locks, amusement equipment, medical equipment, automibles etc.
Based on our best quality and service, we have a reputation around the world. We take quality as life, timely delivery, cost-effective dc mini electromagnets, solenoids, solenoid locks, magnetic locks products for global customers.Looking forward to become your trusted long-term partner and achieve win-win sitution.
FAQ
Q: Are you trading company or manufacturer?
A: We are original factory.
Q:How to choose a solenoid/electromagnet?
A:Following parameters should be provided: voltage(DC/AC), power, current, resistance, stoke, force, dimension limit, force, residual force, duty cycle, etc.
Q:How long is your delivery time?
A:Generally it is 3-10 days if the goods are in stock, or it is 15-20 days if the goods are not in stock. It is according to quantity.
Q:What is your terms of payment?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.
Q:Is there any extra charges if we want you to print our logo or company name on your products or the packaging?
A:There is no extra charges. Please offer us the LOGO files, and we will make it well on your product.
Q:Where is your factory located? How can I visit it?
A:Our factory is located in Zhongshan City, about 1.5 hours from Guangzhou Airport by car.
