(BS010WL) Smart White housing and lens motion sensor 12 volt, motion sensor light control

Product Overview

Description

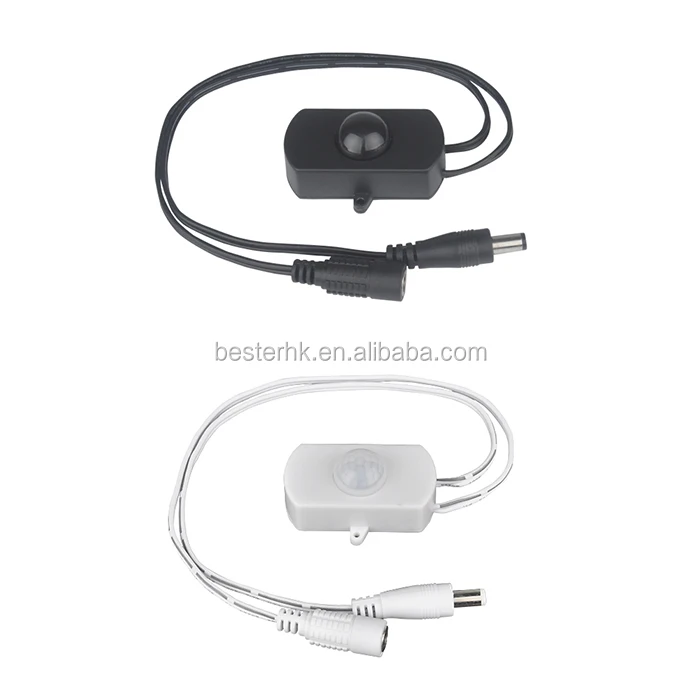

Smart White housing and lens motion sensor 12 volt,motion sensor light control (BS010WL)

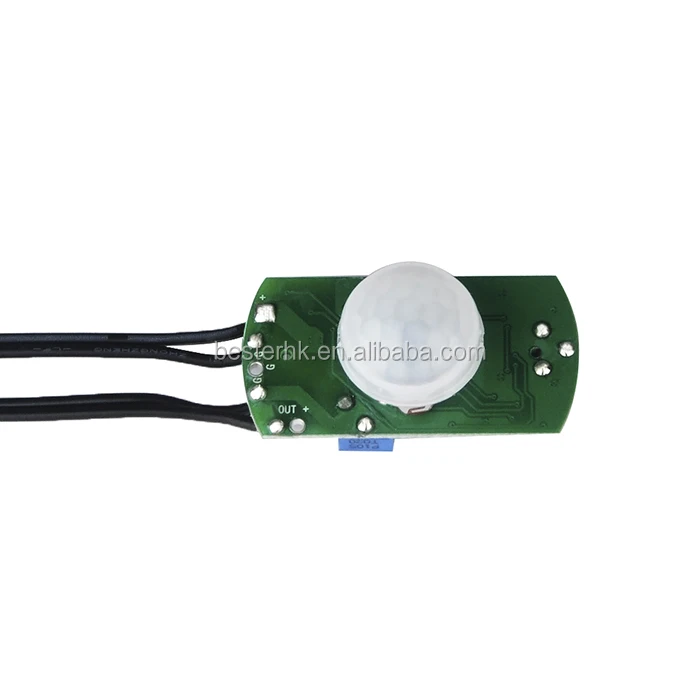

PIR(Passive infrared) Motion sensor is pyroelectric device can detect human movement by detecting Infrared ray emitted by human body.

Operating voltage is 5~25VDC, and output voltage is equal to input voltage. High sensitivity, easy for installing.

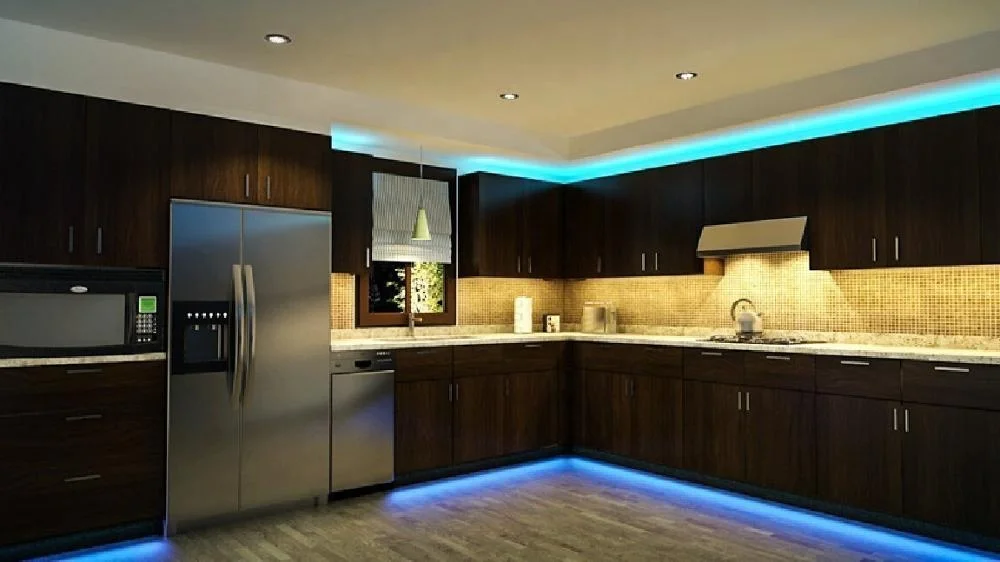

Widely used on the Motion-activated lighting, LED strips Security System, automatic sensory device and more.









1.  Automatic Induction: When people enter into the range of induction, it will output a voltage equal to input voltage, after the delay time, it will output 0V; during the delay time if motion detected, the delay time will reset, and start a new delay time.



2. Light sensor control function(for BS010L):It will trigger only in the darkness when environment brightness less than 20lux, otherwise, it’s will not triggered even motion detected.













Model No.	BS010	BS010W	BS010L	BS010WL
Color	Black housing, Black lens	White housing, White lens	Black housing,     White lens	White housing,     White lens
Operating voltage	DC 5V~25V
Output voltage	Equal to input voltage
Load current	<3A
Static power loss	≤ 50 uA
Delay time	Default setting 15±7sec(2~500 Seconds is adjustable)
light sensor	no		yes
Light sensitivity			default setting 20lux,10~300lux adjustable

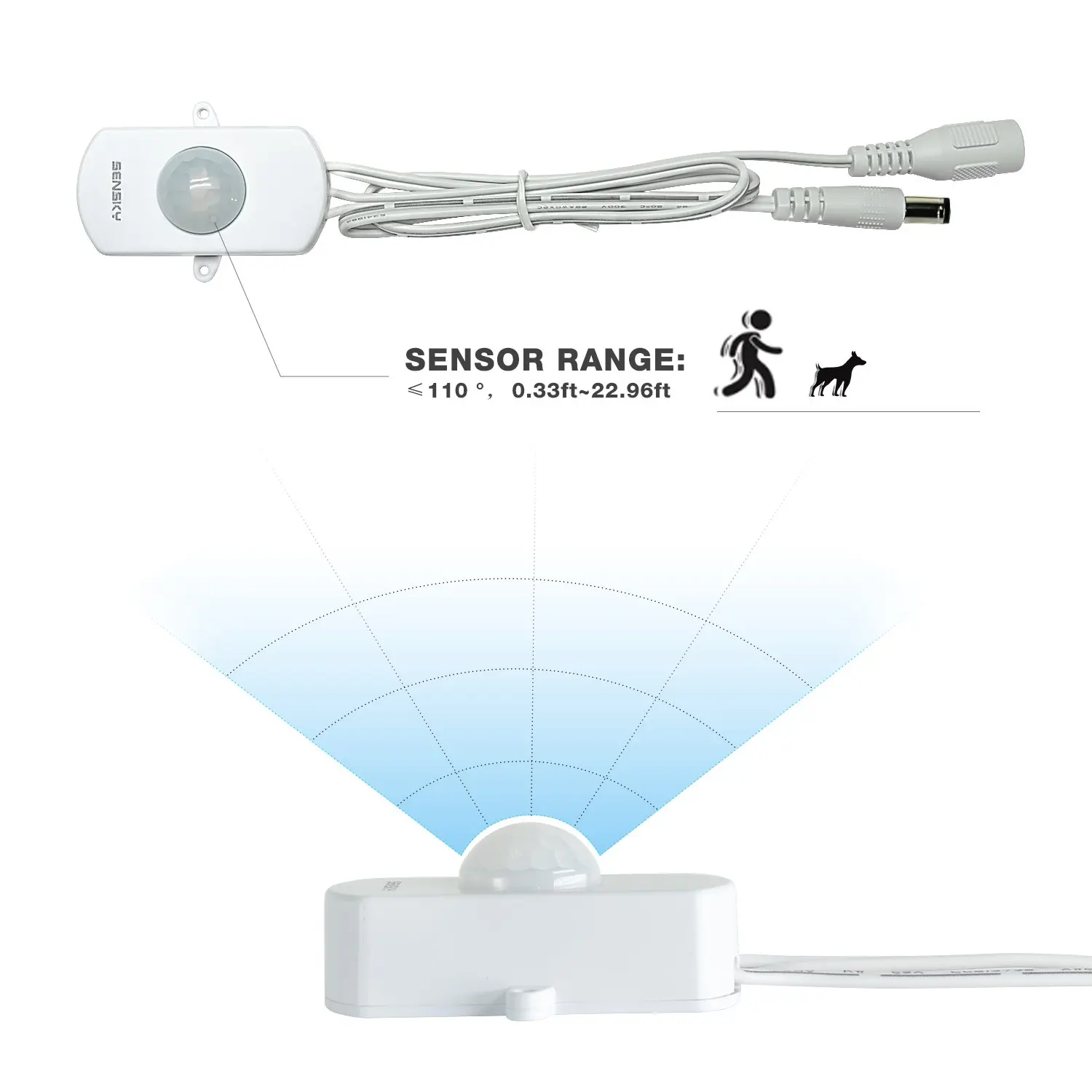

Detecting range	≤ 110 degrees cone angle, 5M-7M (10cm~7M adjustable)
Trigger way	continuous triggering

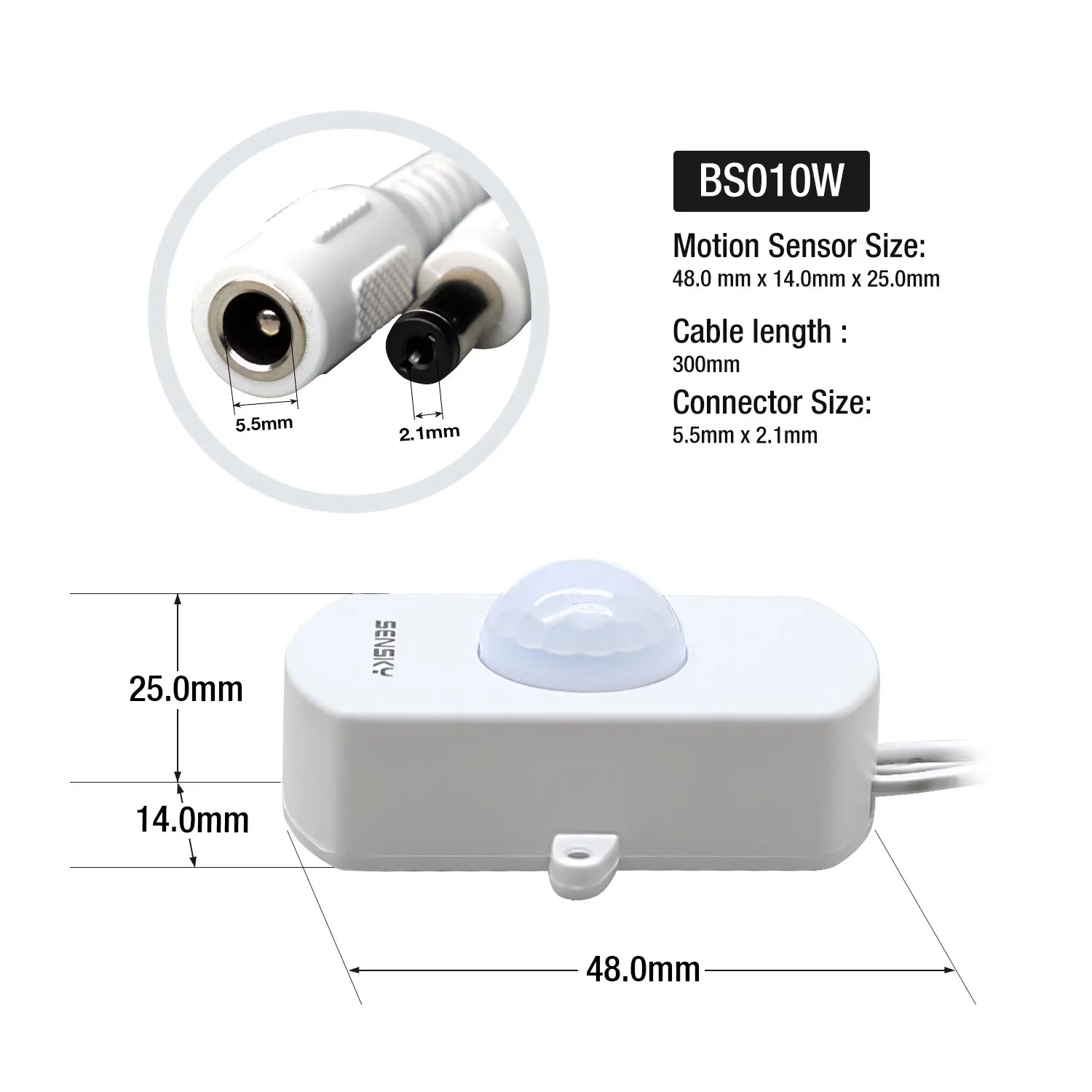

size	48*25*14 mm

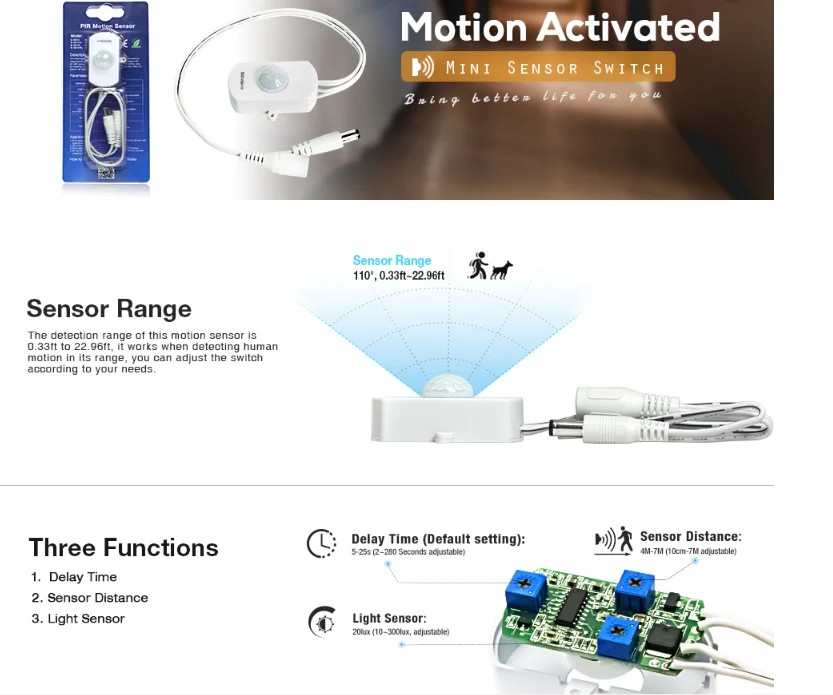

  Detect angle viewing

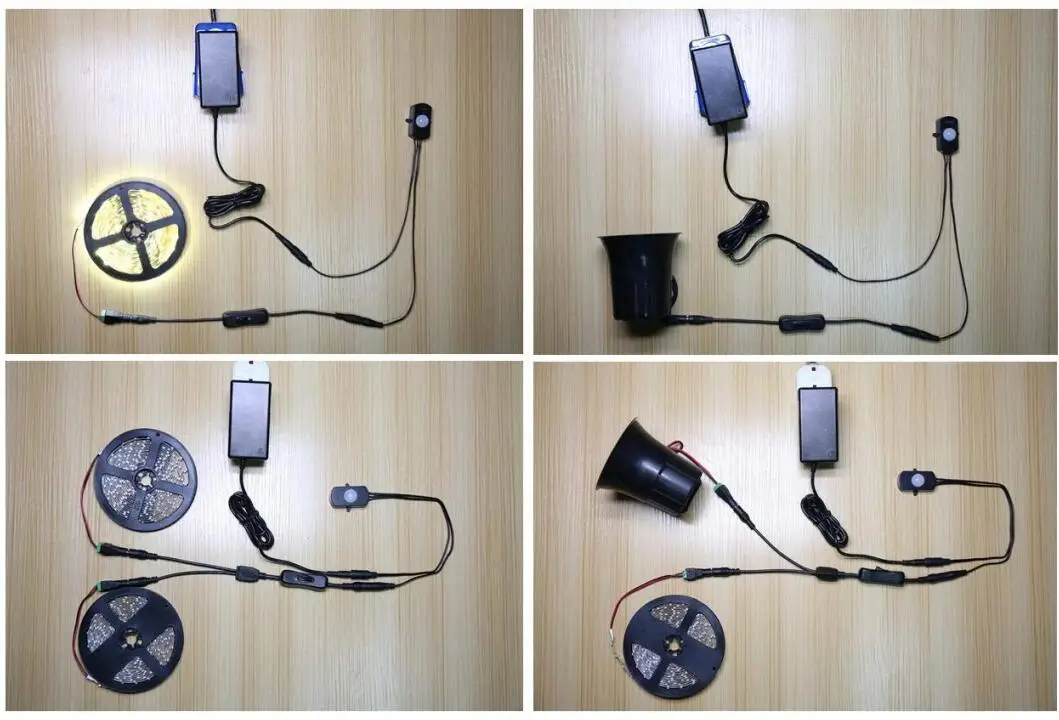

Connect





Input :5V-25VDC,Output=Input

Load current<3A

Clock-wise reduce the delay time and light sensor value

Anticlockwise increase the delay time and light sensor value































Notes



1. Don’t exposed to direct sun light or lighting, big wind, near a heater or air condition.





2. Don’t fix it at a place where there are obstructing material (eg. Glass, dense clothes) which IR cannot get though.



3. Don’t fix it in strong shock or vibration environment.



4. The PIR Sensor requires a ‘warm-up’ time in order to function properly, about 10s to1min,depend on the delay time; during this time, the signal triggered by the module is not stable, after one minute, it will be ready.



5. The sensitivity for left-right direction is better than up-down direction, make sure the installation direction is left-right.

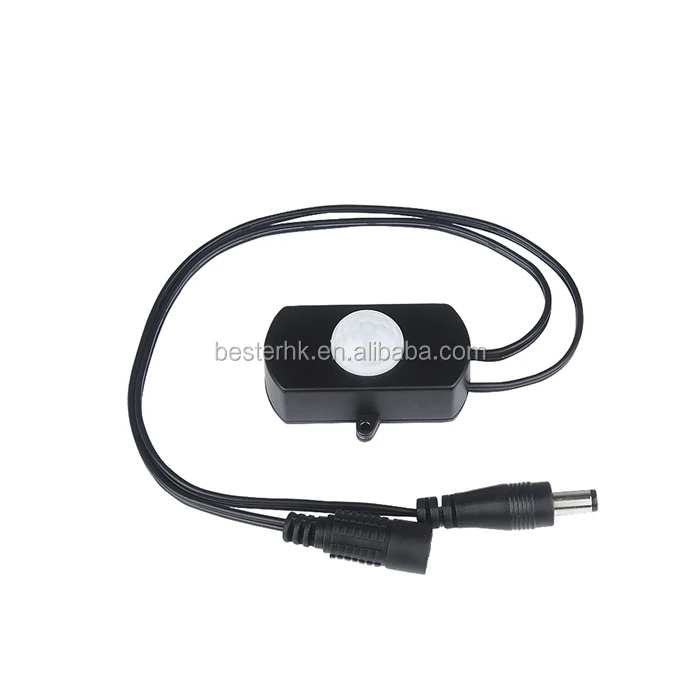

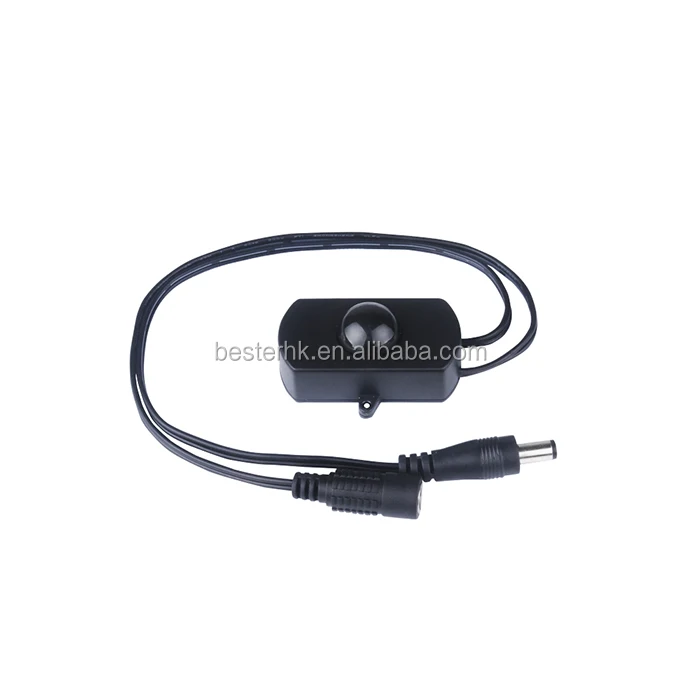

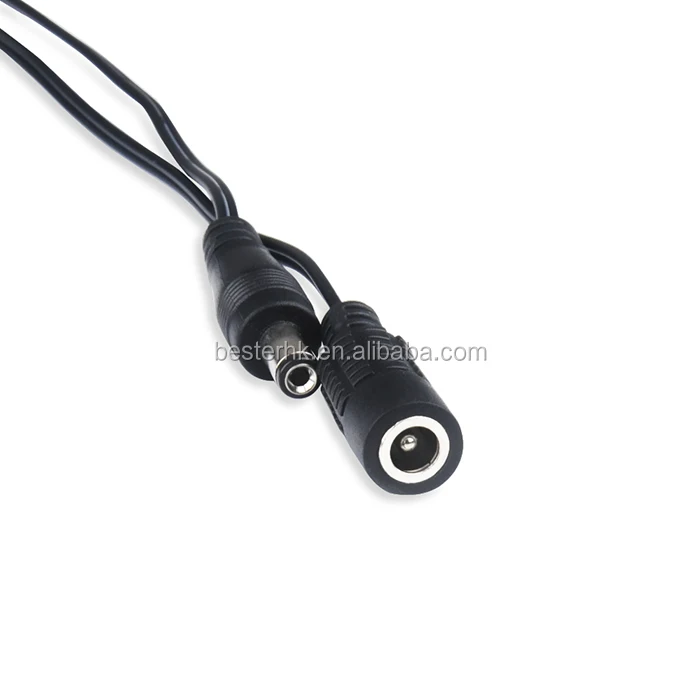

Product show









 MOQ: 100pcs



 Trade term: EXW Shenzhen



 Delivery time: 5-7 working days for sample order, 10-20 working days for mass order











1. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, BESTER will provide free/rework new products based on the proof-documents



2. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction, BESTER will provide paid maintance within warranty period.
