S-75-12 switching power supply 12V6.3A 12V80W 12V6.5A power LED monitoring
Product Description
Features
·Universal Input Range :AC85~220V
·Protection: Overload /Over voltage/Over temperature/Short circuit
·Efficiency75%(Min)
·LED power on indication
·Built-in EMI filter
·100% full load burn-in test 2H
·MTBF>50,000H
·1 year warranty
·Cooling:free air convention
Specifications
INPUT SPECIFICATIONS: OUTPUT SPECIFICATIONS:
AC Input voltage range…….AC220V Rise time……...............…….……..1S typ.@115VDC
Hold up time…….…......…….……..20mS typ.@115VDC
Frequency……………..……….47~ 63HZ Overload protection.….105% - 150% rated power,automatic recovery
Inrush Current……..……. 40A Max.@264VAC Over-voltage protection..……105% - 150% of the rated voltage
Isolation……….….Input to output=4242VDC
Leakage Current…………………………….3.5mA max
ENVIRONMENTAL CHARACTERISTICS: MECHANICAL OUTLINE :

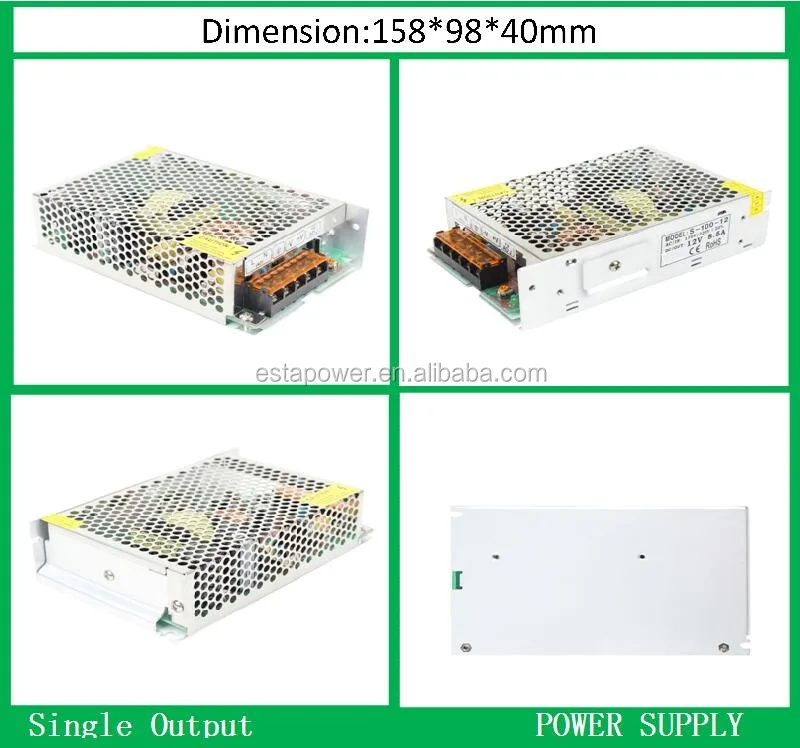

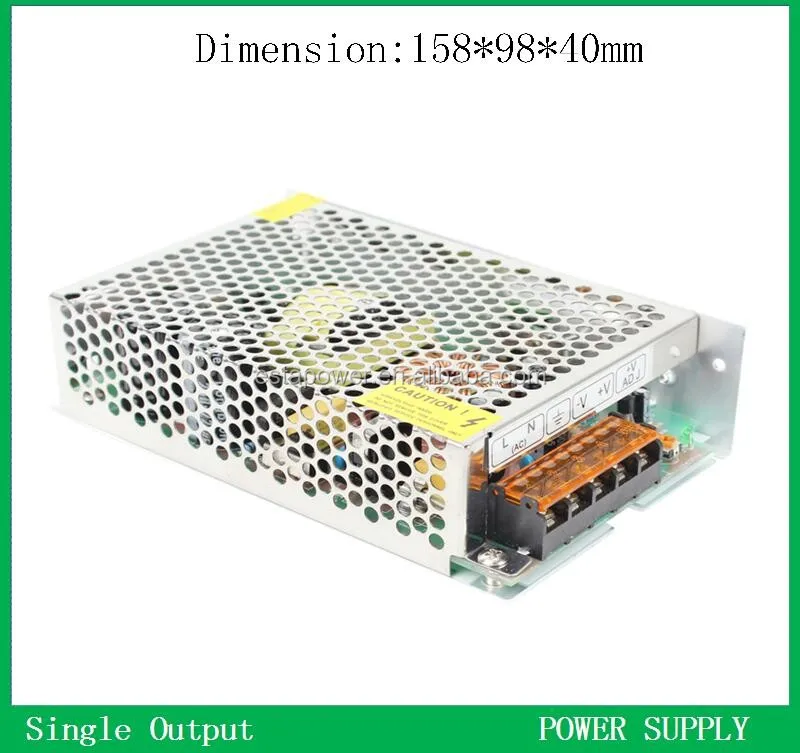

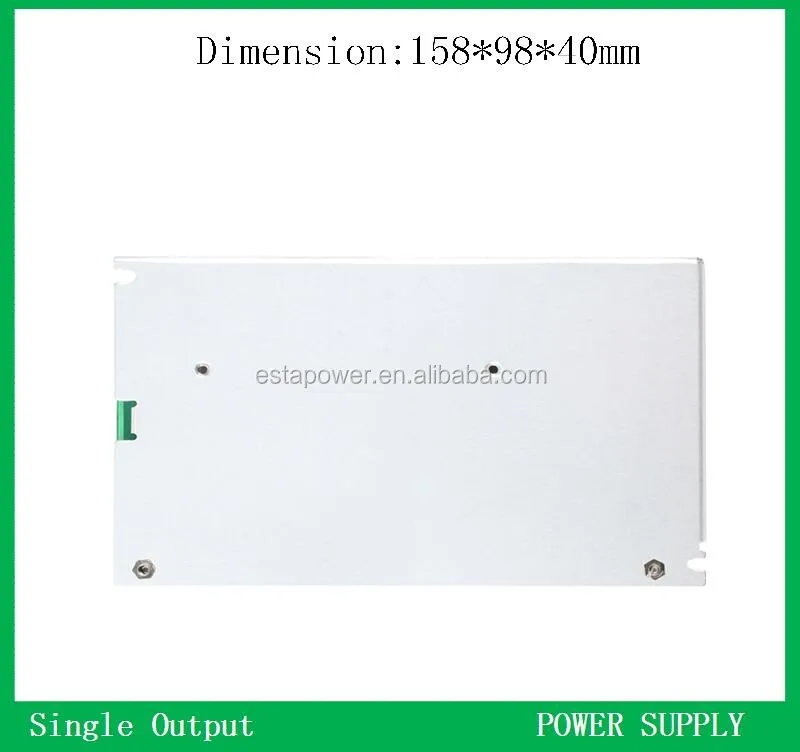

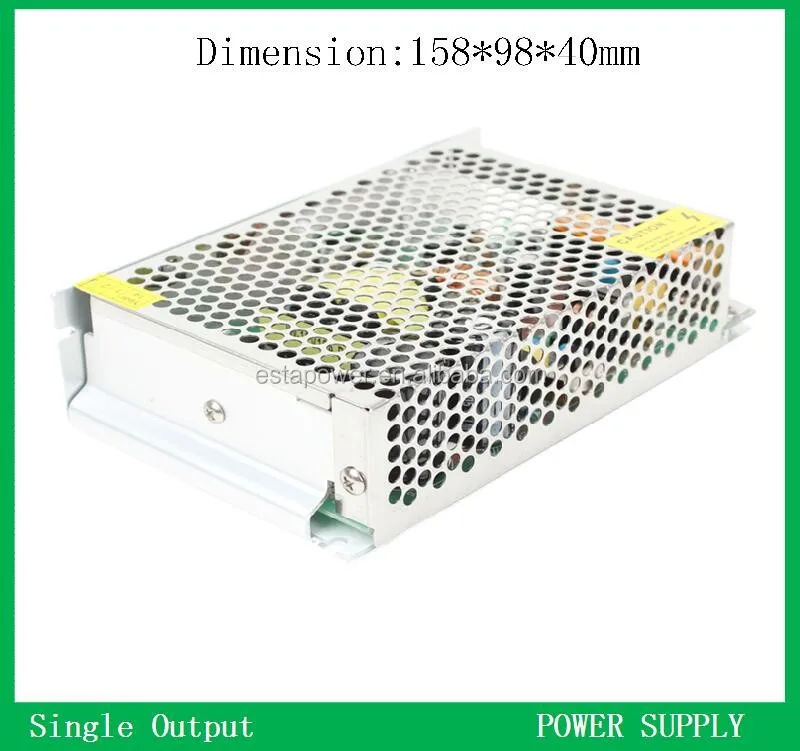

Operating temp&humidity … -20℃~+70℃, Dimensions..............................158×98×40mm
20%~93%RH(non condensing) Weight....................................... 0.50KG
Storage temp&humidity ……–40℃~+85℃,
10%~95%RH
Number | Output Voltage(V) | OUTPUT CURRENT(A) | MIN. LOAD(A) | RIPPLE & NOISE | VOLTAGE SETPOINT | LINE REGULATION | LOAD REGULATION | % EFF. (Typ.) |
ES-50-5 | 5V | 10A | 0A | 1% | ±1% | ±1% | ±1% | 75% |
ES-60-12 | 12V | 5A | 0A | 1% | ±1% | ±1% | ±1% | 76% |
ES-75-12 | 12V | 6.3A | 0A | 1% | ±1% | ±1% | ±1% | 78% |

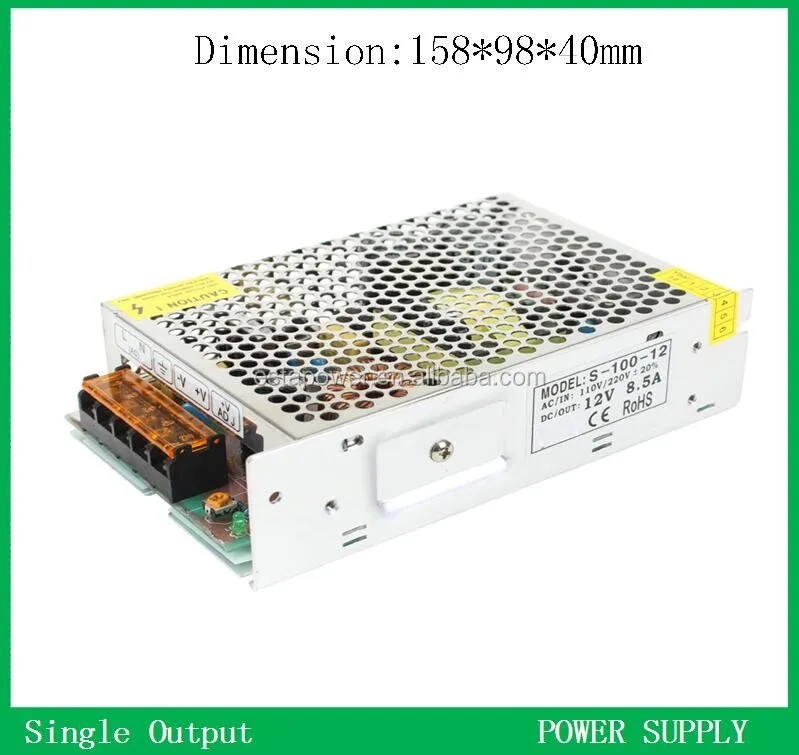

S-100-12 | 12V | 8.5A | 0A | 1% | ±1% | ±1% | ±1% | 80% |
S-120-12 | 12V | 10A | 0A | 1% | ±1% | ±1% | ±1% | 80% |
S-75-24 | 24V | 3A | 0A | 1% | ±1% | ±1% | ±1% | 78% |
S-100-24 | 24V | 4A | 0A | 1% | ±1% | ±1% | ±1% | 80% |
S-120-24 | 24V | 5A | 0A | 1% | ±1% | ±1% | ±1% | 81% |
Power introduction
Our products are widely used in many industries,such as LED lighting,CCTV,postal service,communications industry,power industry,semiconductor refrigeration and heating industry,medical equipment industry,monitor system industry,automatic control industry.
We can produce different AC/DC series of switching power supply.All of our products have been approved by CE,ROHS and other relevant certificate.If some customized demand and model can`t be found in our standard product lines,our R&D engineers can design and provide you samples in time as per your requirement.
Owing to high quality and good reputation,our products have been reached all over the world.Such as North America,South America,Australia,Europe,Southeast Asia.
Indoor Power Supply
Protection:short circuit protection,overload protection,over voltage protection,over temperature protection.
DC output voltage can be changed from 0-5V,0-12V,0-24V……..
High effiency,real long life,High Realiability.
100% high temperature full load burn-in test.
MTBF>50,000hours.
Green glass fiber PCB.
LED indicator for power on.
Certification:CE ROHS.
