Product Overview
Description

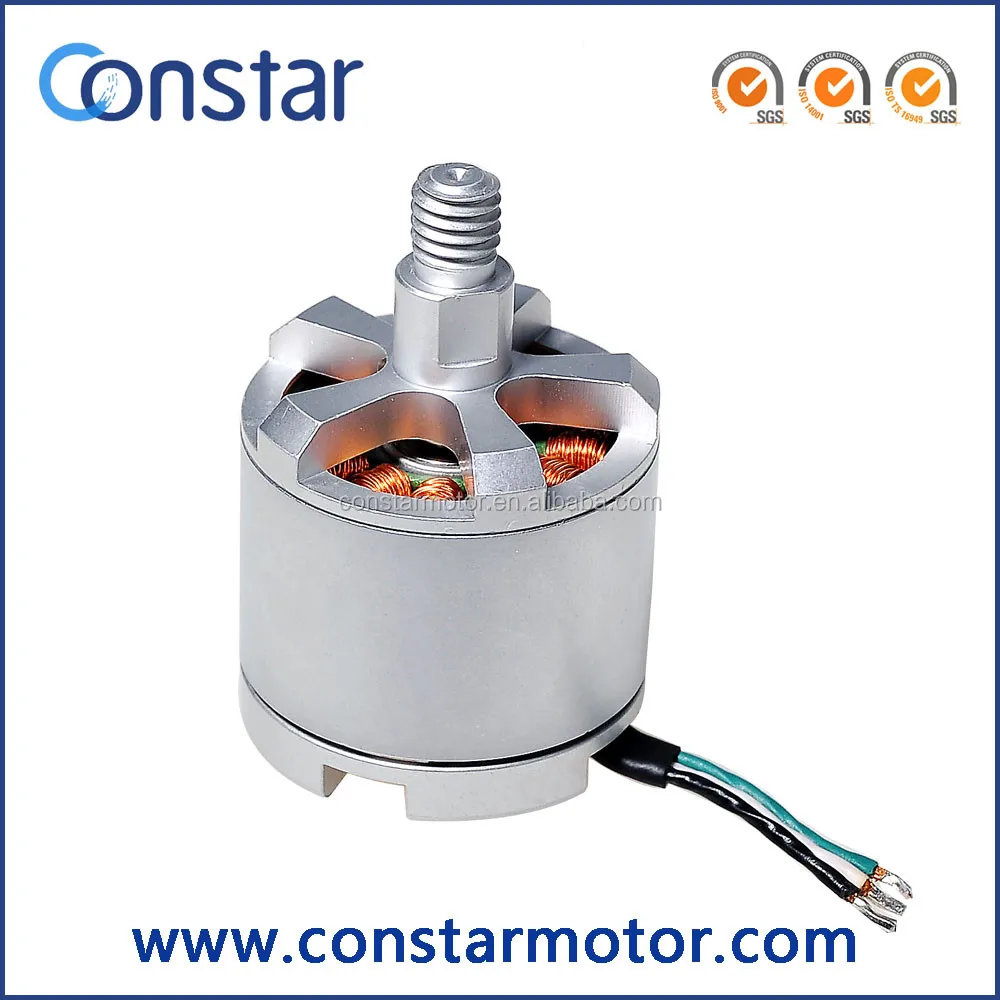

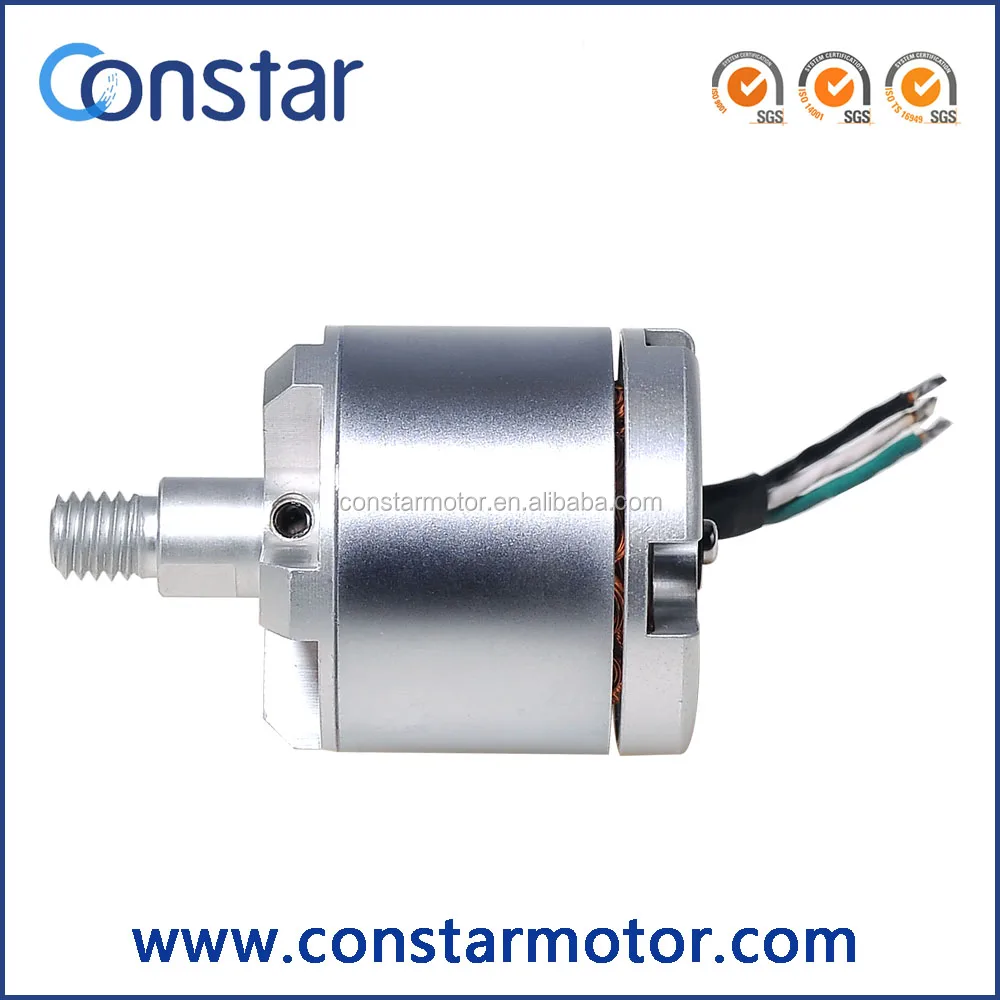

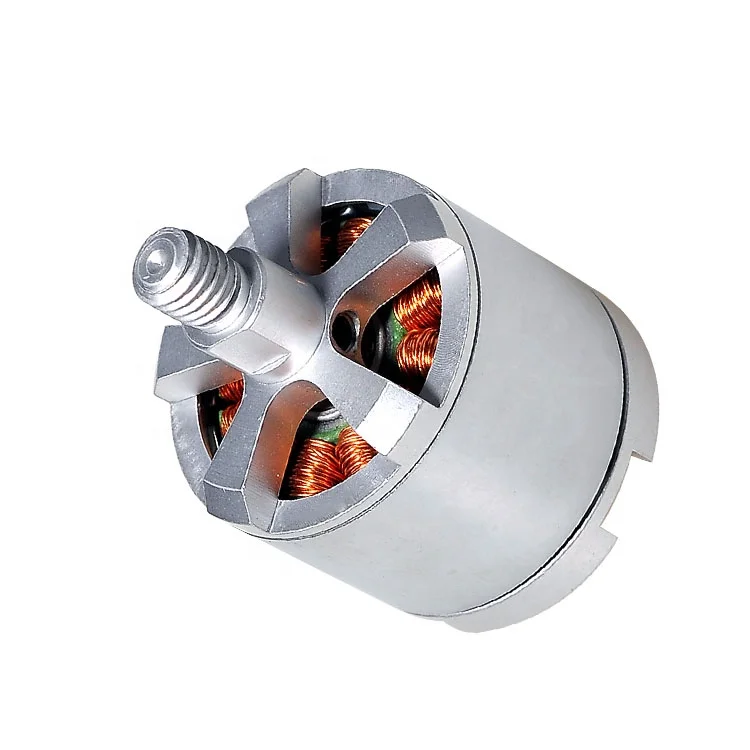

500W High Power Brushless Outrunner DC Motor, Bldc Motor Price
| CONSTAR MICROMOTOR | ||
 |
 |
 |
| PRECISION DC CORELESS MOTOR | BRUSHLESS DC MOTOR | SERVO MOTOR |
 |
 |
 |
| GEARMOTOR | STEP MOTOR | MINI CORELESS MOTOR |
2830ZWW-1 -14.8
APPLICATIONS: UAV, Aeromodelling, etc.
The following are our standard products, we also provide customized products and service
| -1-14.8 | |||
| 1 | Voltage | V | 14.8 |
| 2 | Terminal resistance | Ω | 0.1 |
| 3 | No-load speed | rpm | 13300 |
| 4 | No-load current | A | 0.75 |
| 5 | Nominal torque | mNm | 170 |
| 6 | Nominal speed | rpm | 11800 |
| 7 | Nominal current | A | 16.9 |
| 8 | Max. output power | W | 543 |
| 9 | Max. efficiency | % | 86 |
| 10 | Back-EMF constant | mV/rpm | 1.1 |
| 11 | Torque constant | mNm/A | 10.6 |
| 12 | KV Value | rpm/V | 900 |
| 13 | Speed/torque gradient | rpm/mNm | 8.5 |
| 14 | Rotor inertia | gcm2 | 39 |
| 15 | Weight | g | 68 |
| 16 | Thermal resistance housing-ambient | K/W | 2.2 |
| 17 | Thermal resistance winding-housing | K/W | 2.5 |
| 18 | Thermal time constant motor | s | 359 |
| 19 | Thermal time constant winding | s | 47 |
| 20 | Operating temperature range | ℃ | -40~+100 |
Lead wires length, Shaft length, Special coils, Gearheads, Bearing type, Encoder, Driver
Click here for more information

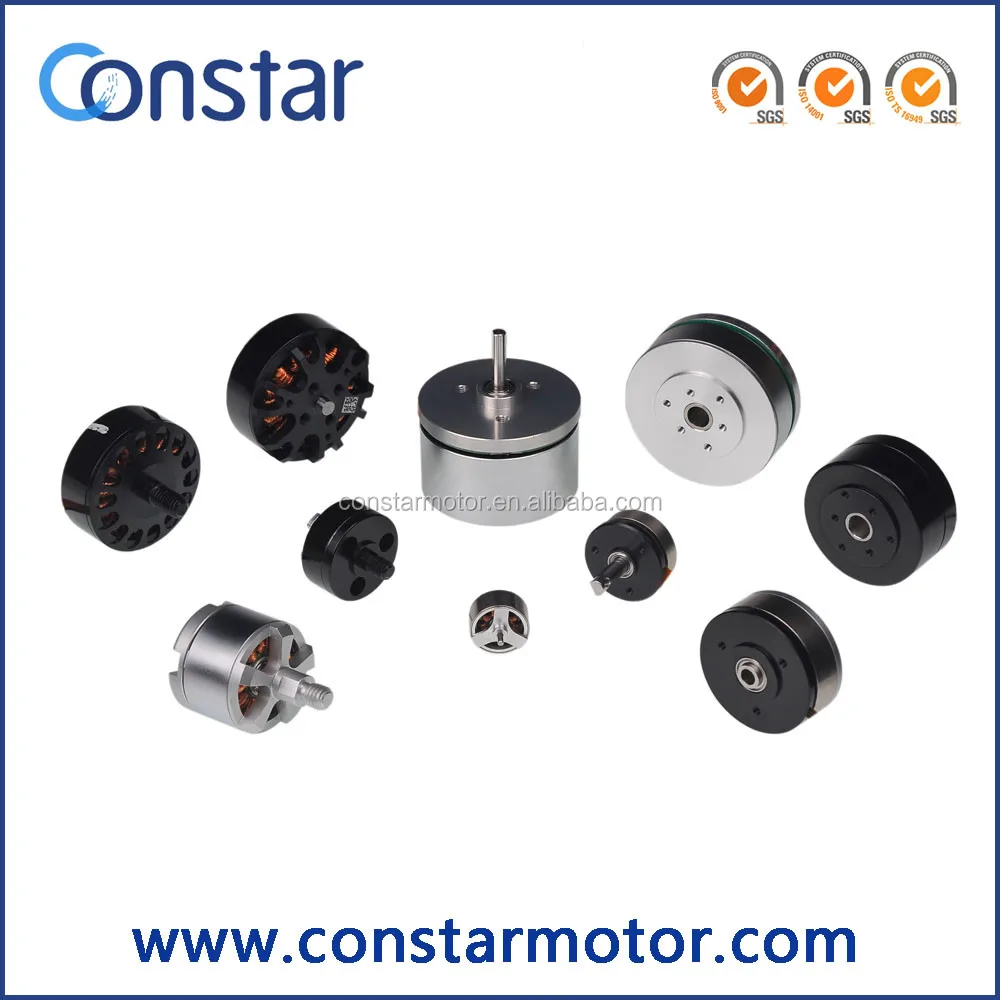

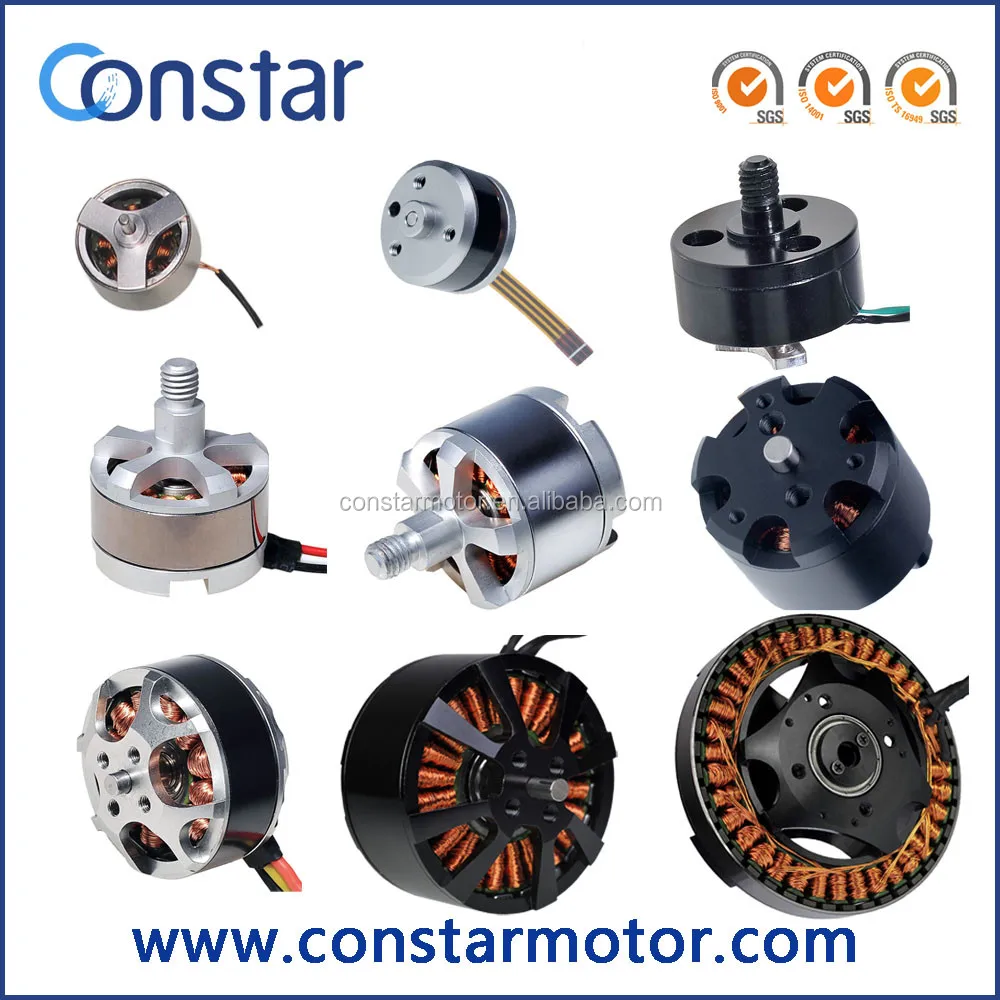

Customized Motor Solutions

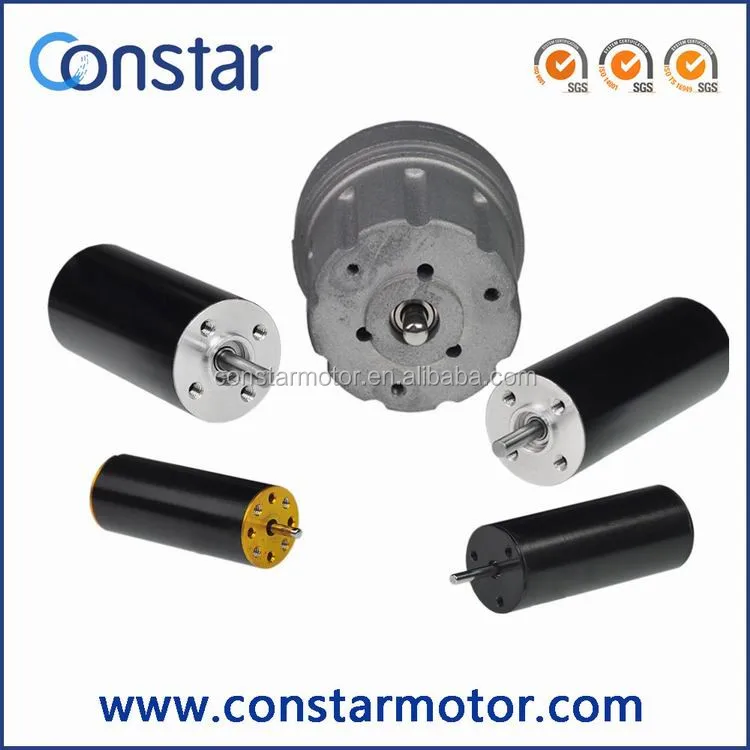

CONSTAR MICROMOTOR specialize in design, custom and manufacture electric motors,including DC Coreless Motor, Sonic Motor, Brushless DC Motor, Gear Motor, Servo Motor, DC Core Motor and Mini Step Motor.All of them can be fully and easily customized . We committed to offer high quality, high performance, cost effective options to meet customers specific demands. Choosing to customize one of the motors in our Product Categories now!
| Series | Dimension
(mm) |
Voltage
(V) |
No-load Speed
(rpm) |
No-Load Current
(mA) |
KV Value
(rpm/V) |
Torque Constant
(mNm/A) |
|---|---|---|---|---|---|---|
| 1308ZWW | Φ13*8 | 3.7 | 39000 | 700 | 10500 | 0.85 |
| 1511ZWW | Φ15*11 | 7.4 | 35000 | 400 | 4700 | 1.97 |
| 1709ZWW | Φ17*9 | 10 | 26000 | 110 | 2600 | 3.5 |
| 1814ZWW | Φ18*14 | 6.4 | 18500 | 270 | 2900 | 3.3 |
| Φ18*14 | 6.4 | 22000 | 350 | 3440 | 2.7 | |
| 1816ZWW | Φ18*16 | 7.4 | 12000 | 160 | 1620 | 5.8 |
| 2010ZWW | Φ20*10 | 10 | 24000 | 110 | 2400 | 3.9 |
| 2015ZWW | Φ20*15 | 12 | 11300 | 80 | 940 | 9.9 |
| 2316ZWW | Φ23*16 | 12 | 19500 | 450 | 1625 | 5.8 |
| 2414ZWW | Φ24*14 | 12 | 6400 | 40 | 530 | 16.7 |
| 2814ZWW | Φ28*14 | 11.1 | 22000 | 650 | 2000 | 4.8 |
| 2820ZWW | Φ28*20 | 10.5 | 13500 | 450 | 1290 | 7.4 |
| 2824ZWW | Φ28*24 | 11.1 | 10200 | 400 | 920 | 10.3 |
| 2826ZWW | Φ28*26 | 14.8 | 13500 | 550 | 910 | 10.4 |
| 2828ZWW | Φ28*28 | 14.8 | 13000 | 650 | 880 | 10.8 |
| 2830ZWW | Φ28*30 | 14.8 | 13300 | 750 | 900 | 10.6 |
| 2914ZW | Φ29*14 | 24 | 5500 | 100 | 230 | 40 |
| 2914ZWW | Φ29*14 | 24 | 5500 | 100 | 230 | 40 |
| 3212ZWW | Φ32*12 | 12 | 22000 | 500 | 1833 | 5.0 |
| 3216ZWW | Φ32*16 | 12 | 3200 | 500 | 270 | 35 |
| 3517ZWW | Φ35*17 | 24 | 4450 | 60 | 185 | 50 |
| 3518ZWW | Φ35*18 | 12 | 10000 | 500 | 830 | 11.3 |
| 3825ZWW | Φ38*25 | 14.8 | 10400 | 560 | 700 | 13.5 |
| 3828ZWW | Φ38*28 | 24 | 29000 | 700 | 1200 | 7.8 |
| 4316ZWW | Φ43*16 | 12 | 4350 | 180 | 360 | 26 |
| 4321ZWW | Φ43*21 | 24 | 6700 | 200 | 280 | 34 |
| 4326ZWW | Φ43*26 | 24 | 6100 | 300 | 260 | 37 |
| 4834ZWW | Φ48*34 | 22.2 | 10400 | 1300 | 470 | 20 |
| 6133ZWW | Φ61*33 | 22.2 | 6400 | 930 | 290 | 33 |
| 8724ZWW | Φ87*24 | 36 | 3600 | 200 | 100 | 95 |
500W High Power Brushless Outrunner DC Motor, Bldc Motor Price
