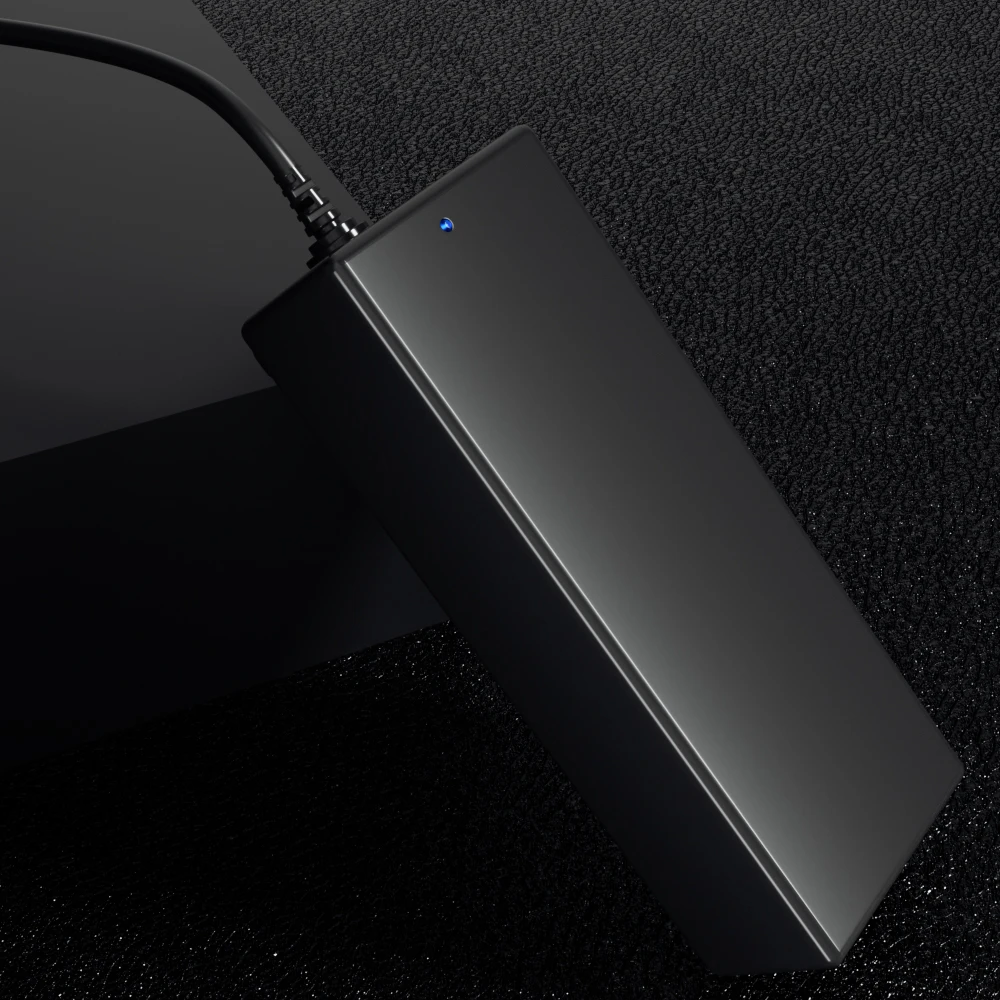

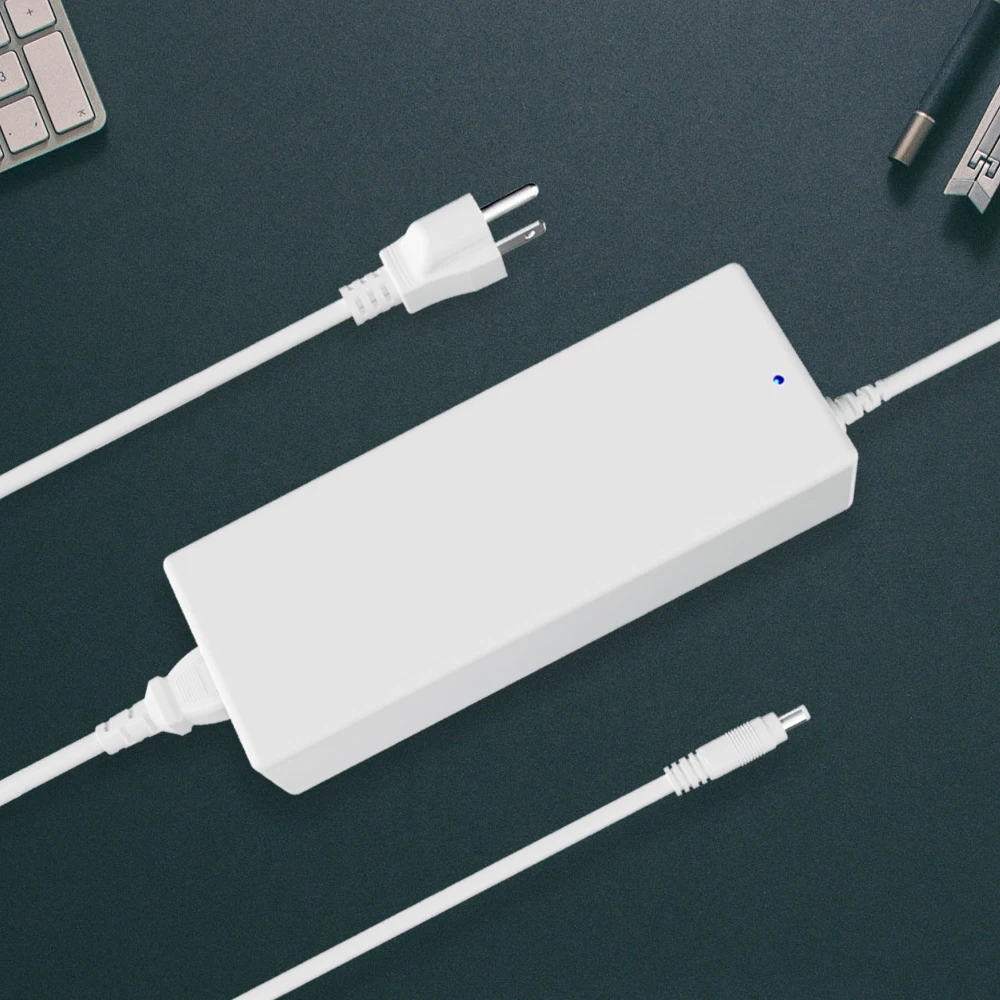

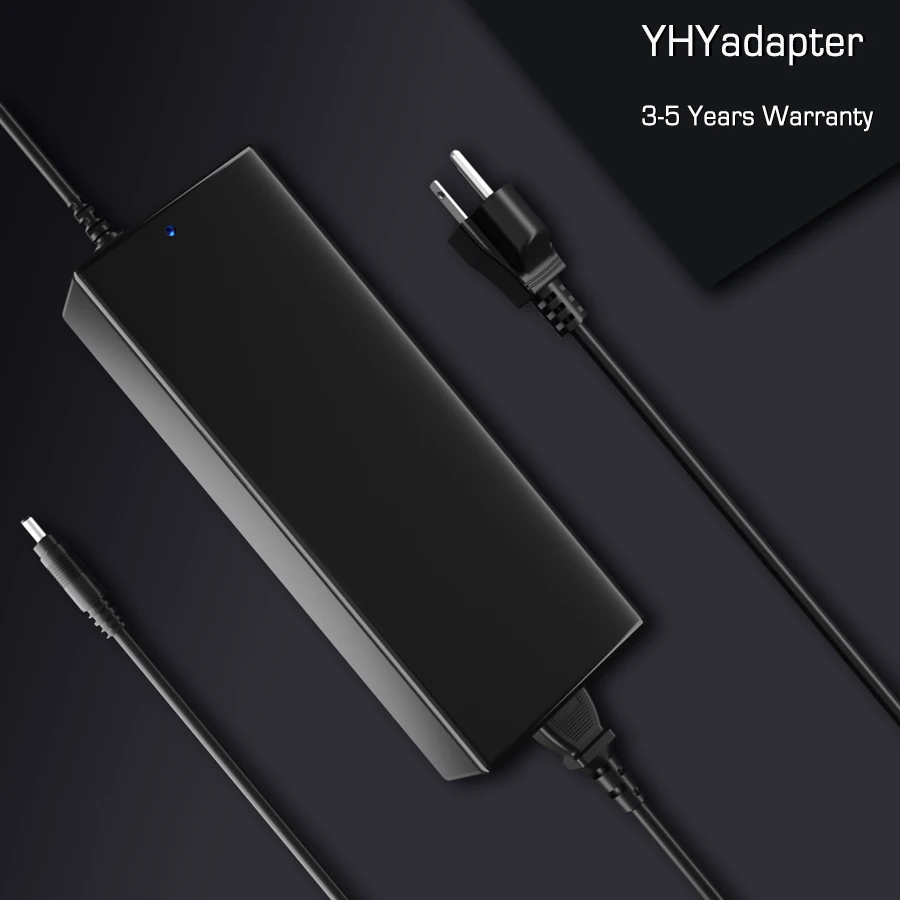

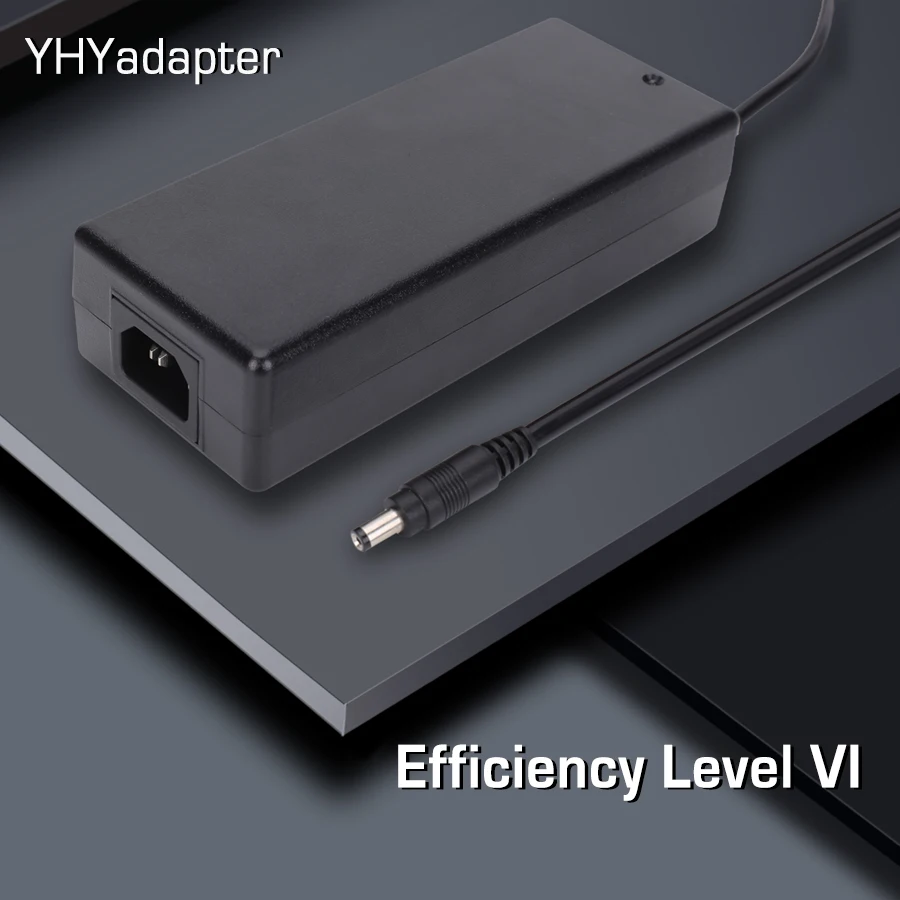

YHY 24004500 5521 dc jack output 24 volt 4.5 amp transformer adaptor ac power adapter 24v 4.5a power supply 24v4.5a
- Category: >>>
- Supplier: Shenzhen Yinghui Yuan Electronics Co. Ltd.
Share on (60283835686):
Product Overview
Description
Features
Meet ROHS
> Universal Input 100-240 VAC
> Modified and Custom Design Available
> Output with Low Ripple Noise
> 3Year Warranty
Electrical
> Isolation
> Burn-In Test
> Leakage Current
> Efficiency
> MTBF
3000VAC 2PIN/ 1500VAC 3PIN
100% full load
0.21mA
DOE VI
30000Hrs
> Voltage Range: 90-264 VAC
> Input Frequency: 47-63Hz
> Input Current: 200mA max
> Inrush Current: 30A max
> Efficiency: 88% min
DC Output
> Voltage Range: 24V+/-5%
> Current Range: 0-4.5A
> Inrush Current: +1% Voltage Max
> Power: 110W Max.
Mechanical
> Case Dimension (L*W*H mm)
Desk-top
170*72*49mm
ETL UKCA CE FCC PSE SAA C-tick CCC TUV-GS
Application
Desktop Switching Power Supply
* Meet relative safety request, energy label programs.
* Universal Input : 100 – 240V
* You can select desk top types C6/C8/C14 per your need.

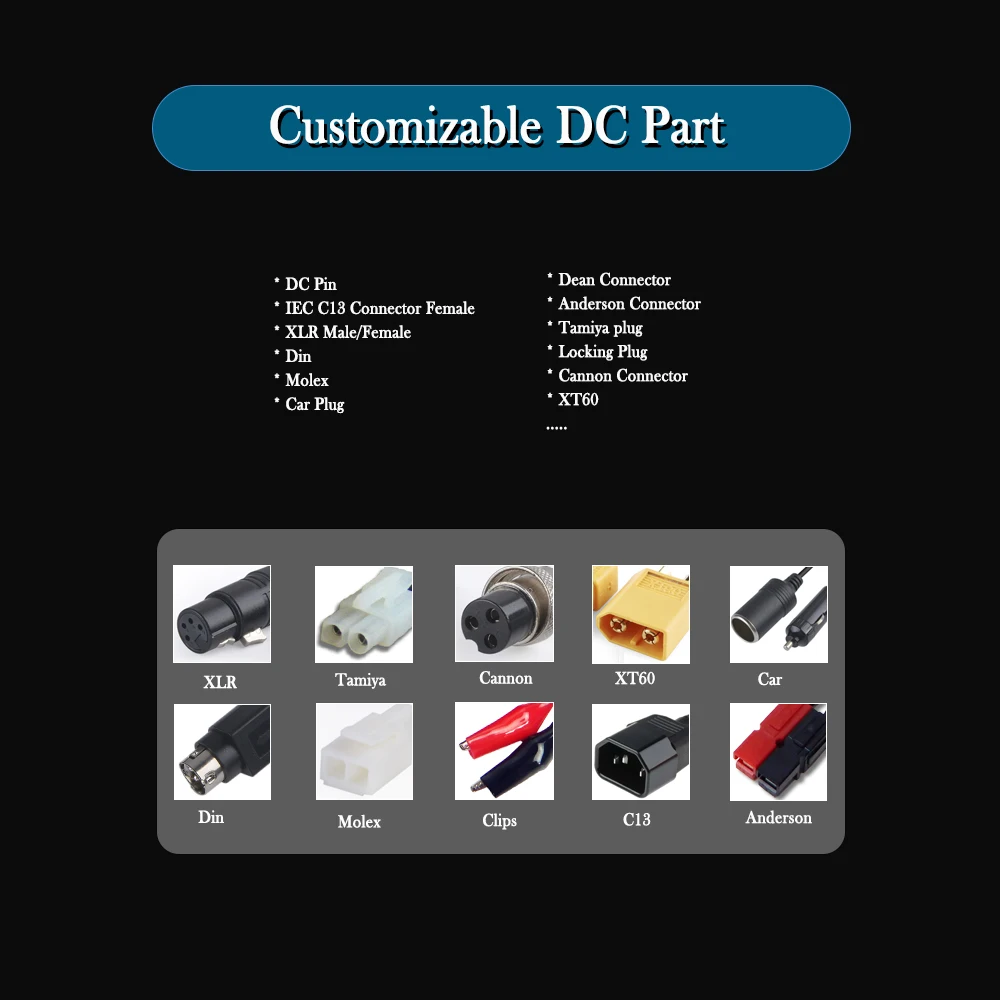

* Varied DC plug provided for customer to meet customer request.
* Usage : cell phone, small DC consumer electronics, pet relative appliances, required DC voltage / current- driven appliances, external hard drive, related computer peripheral equipment and other required information built-in power supply of related equipment.
Company Profile
Shenzhen Yinghui Yuan Electronics Co.,Ltd is a leading manufacturer of power supplies in China
-Since 2007
-Real Service From Real People
-Global certifications,ISO 9001 Quality management
-More Than 2000 clients from all over the world
Our products are widely used by led lighting,3D Printer,Laptop,loudspeaker box,digital products,house-hold appliances,security products,etc
