High Efficiency 12v 24v Brushless DC Motor, Light Weight Ectric Dispenser Cooler Water Pump

Product Overview

Description

Why choose TOPSFLO Factory?

♦   TOPSFLO is the only double certified enterprise by German TUV IATF16949 & ISO9001 in the pump industry

♦  16 years of industry experience.Independent research and development, national high-tech enterprise, multiple domestic and foreign invention patents
♦  Annual production capacity of 3,008,000 pieces
♦  4 laboratories that meeting the CNAS certification standard
♦  80% of the products are exported to high-end market in Europe and America









You want it, We all have !





Customers how to choose the pump?
1. first determine the voltage, current,water head and flow, diameter size, pump water head is generally the subject of the water does not flow when pumped up to the static head, if a customer requires pumping the water to a certain height and then to maintain a certain water flow, select the desired water head must be higher than the specified pumping height. This specific by the supplier according to the actual conditions. Can refer to lift flow graph.
2. to determine the dimension and form (threaded interface, inlet and outlet orientation, aperture size, etc.)
3. to determine the job requirements (temperature, medium, work time and frequency)
4. to determine the functional requirements (time control, pressure control, flow control, speed, etc



Brushless Mini DC water pumps work Note:

1. Power to DC Power Supply, reverse polarity is strictly prohibited, generally red positive power supply, black to negative
2. pumps in addition to immersible work can be identified, the rest can not be immersed in water, or they will cause a short circuit burned.
3. pumps is prohibited by the strong shock, fall from a height on the ground and other external damage.
4. pumps can not take strong acid and other corrosive liquids and granular solids with a tiny hard. Can not cycle more thick viscosity liquids, such as oil, high concentrations of oil and other fluids vast.
5. pumps was not long-time stall, causing the motor burned.
6. pumps can not withstand high voltage shock.



TL-B03 12V 24V Brushless Water 12v dc water pump manufacturer





Application:Instant filtered boiling,Coffee maker/coffee machine, Water cooler/water dispenser, Beverage dispenser Water purifier/water dispenser, Tea maker, Milk dispenser, Laboratory

Medical treatment, Fountain, aquariums,Computer CPU cooling circulation,Water heating mattress,hot water circulation,General purpose pump











Product Features:

•.High efficiency brushless DC motor with long lifetime 20,000hours
•.Heavy duty work,can sustain continuous 24hours work
•.Special designed high efficiency closed-impeller for low power consumption
•.Motor widely voltage designed suitable for battery,Power supplying with peak-low voltage damply

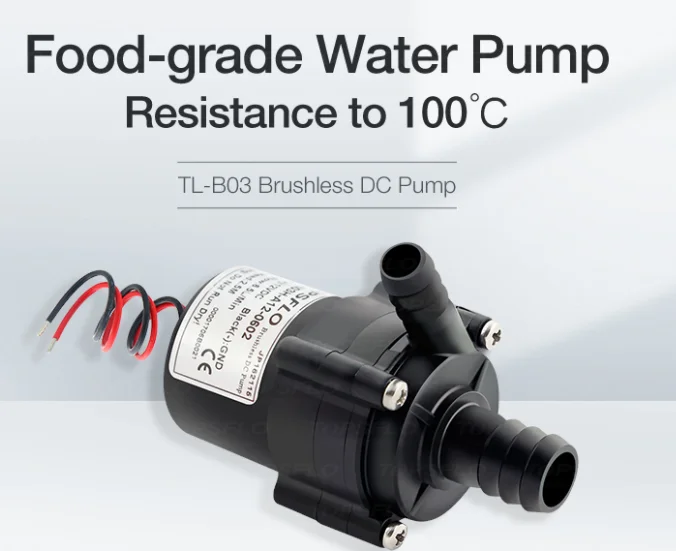

•.All wetted materials food grade approved to be safety usage
•.Durable permanent magnetic rotor/impeller and fine ceramic shaft
•.Low or no maintenance
•.Blocked protection

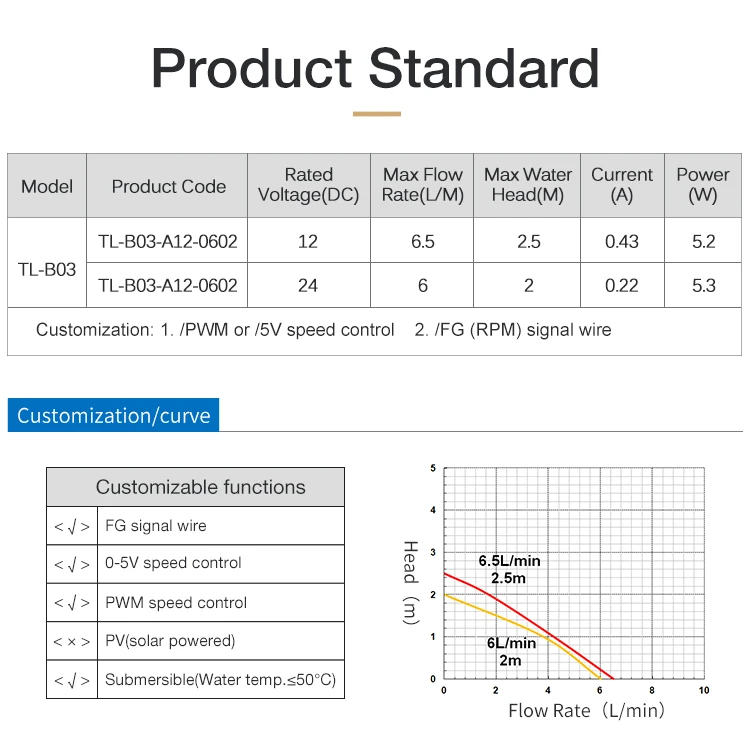

Product Specification:

Model	Product Code	Max Water Flow (L/Min)	Rated Voltage(DC)	Rated Current (A)	Max Water Head(M)	Rated Power(W)
B03	TL-B03-A12-0602	6.5	12	0.43	2.5	5.16
	TL-B03-A24-0602	6	24	0.22	2	5.28
	TL-B03-A12-0501	4.8	12	0.2	1.2	2.4
	Customization: 1. /S Submersible, liquid ≤50°C 2. /FG (RPM) signal wire 3. /PWM or /5V speed control





Product Characteristics:



Max Flow Rate	6.5L/MIN
Max Water Head	2.5 M
Rated Voltage	12V/24V
Working Voltage Range	6V-18V /12V-28V
Motor Type	Brushless DC motor
Liquid Temperature	0-105°C

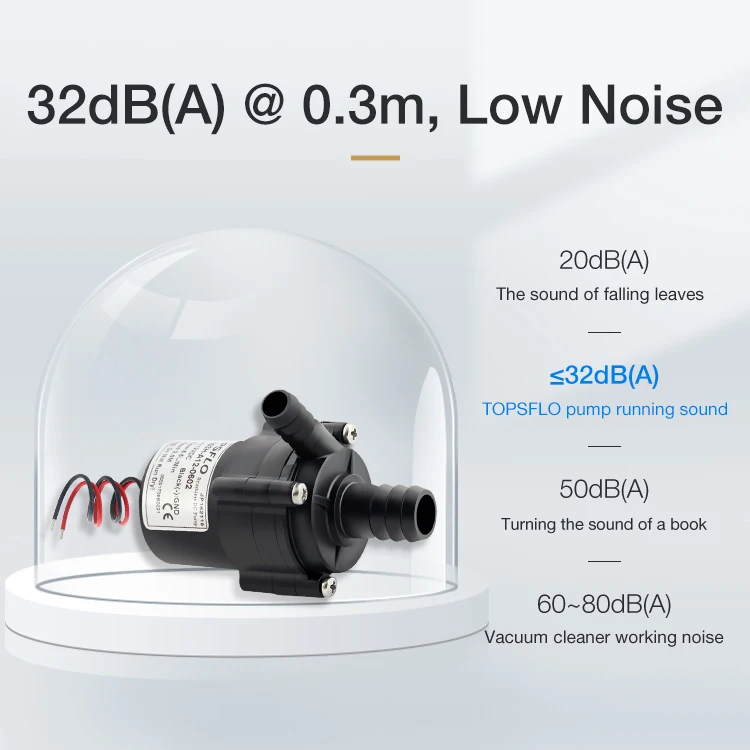

Noise Class form 0.3M	37dB /Max
Ideal Life Time	20000 Hours
Working Mode	Continuous
OD of Inlet/Outlet	14 mm/9.4mm
Max pressure / Continue work Pressure	1.8Mpa / 0.5Mpa
Working liquid	Pure Water,antifreeze,etc
Power Supply	DC power supply, battery
Remarks	Can’t dry-running, not Self-priming





Usage Note:
Dry-running is prohibited.
Reverse polarity is not allowed (except customized).
The pump if dropped or with heavy vibration do not use.
Liquid contain impurities or magnetic particles are not allowed.
Liquid temperature over 80°C is not allowed (except high temperature models).
Acidic or alkaline liquid is prohibited (except customized).
