Sheet metal cutting and bending machine
- Category: >>>
- Supplier: Yingkou Longshun Machinery Manufacturing Co. Ltd.
Share on (60283995552):
Product Overview
Description
Sheet metal cutting and bending machine
Product Description
Specification:
Sheet metal cutting and bending machine LS 1000-800
1.Ready product.
2.Easy operating and repair
3.Cheaper price.
Advantage of our Roll Forming Machine Building Sheet Arch Machine:

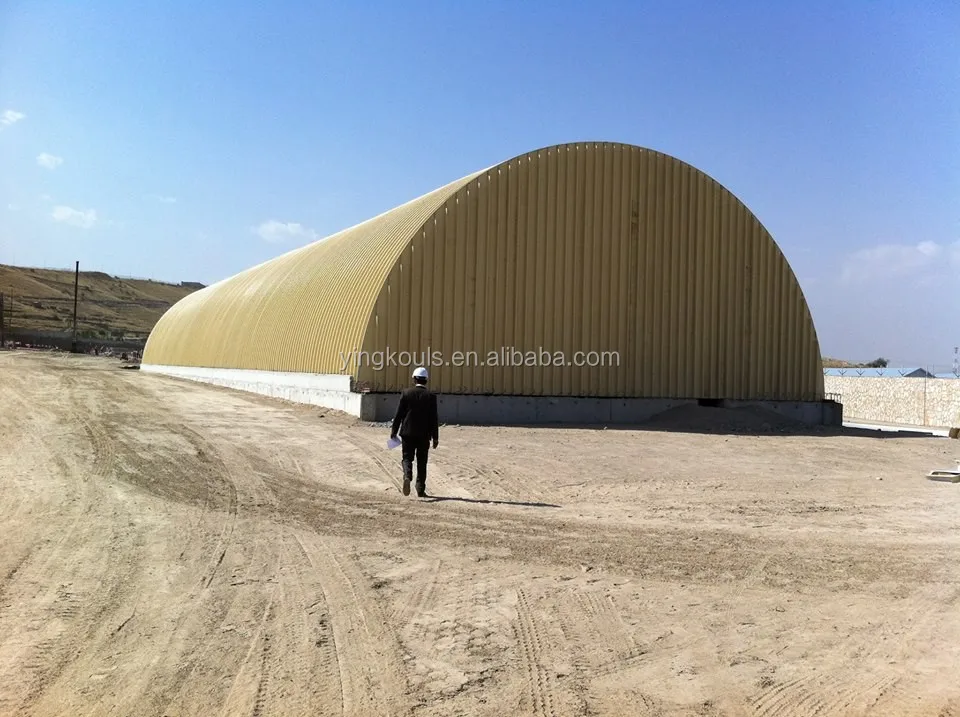

HIGH SPEED OF CONSTRUCTION

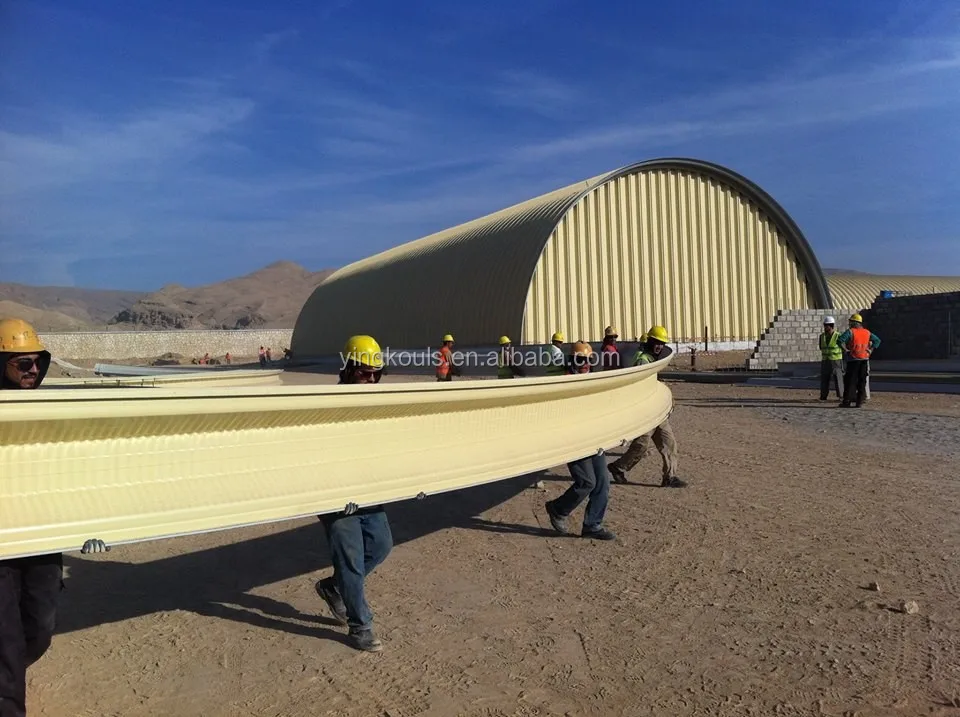

With our MBM Mobile Factory, a 1000-square meter structure can be built in 24 hours. Using the high speed of fabrication and seaming of panels,a crew of 10 to 12 workers can fabricate and erect nearly 100 arched panels in one day.
LOW COST
Due to the above reason, the cost of construction of a MBM Building is less than that of conventional and prefabricated buildings.
ON-SITE MANUFACTURING
The Mobile Factory is taken directly to the construction site and the building is fabricated completely on-site. No costs of shipping of building components from a fabrication shop are incurred.
MOBILITY AND ACCESS TO REMOTE AREAS
Our trailer-mounted MBM Factories can be easily towed by and ordinary vehicle to any remote part of the country and put into operation the moment it arrives at the site without any delay whatsoever.
NO STRUCTURAL COLUMNS, BEAMS OR TRUSSES REQUIRED
The arches are designed to be totally self-supporting and do not require any support structure such as is needed in standard steel frame buildings.
SAVINGS IN MANPOWER
Our crew of approximately 10 to 15 trained men can erect a 1000 square meter building in a single day. You can build your buildings in either steel or aluminum, prepainted in an unlimited range of colors. We also stock most of our coils and immediately ship with our unit to the site.
Main technical specification:
Size:8800mm × 2230mm × 2350mm
Total Weight: about 10000KG
Main Motor Power: 18.5KW
Forming power is 7.5kw ; bending power is 4.0kw;
cutting power is 4.0kw; conical power is 3.0kw
Working Speed: Straight sheet: 15m/min
Arch sheet: 13m/min
Sewing: 6m/min
Material of rollers: 45# steel
Material of roller shafts: 45# steel, adjusted
Material of cutting blade: Cr12 steel
Step of rollers: 13 steps
Feeding Width: 1000 mm
Effective Width: 800 mm
Operating factor of the panel: 80 %
Proper span: ≤14m
We provide you all the relevant accessories for free, with which you can begin to do projects immediately.

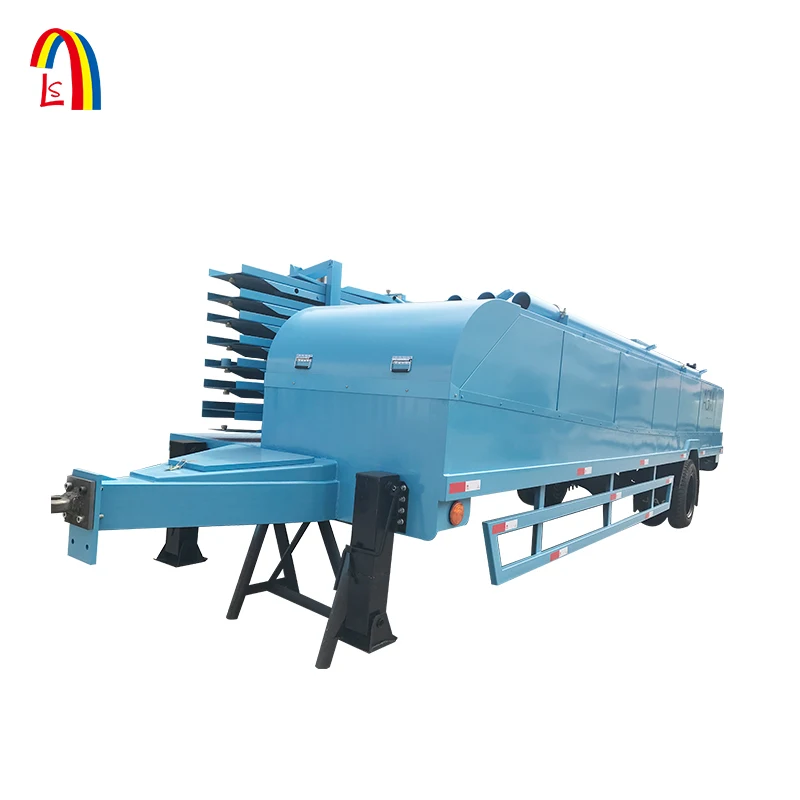

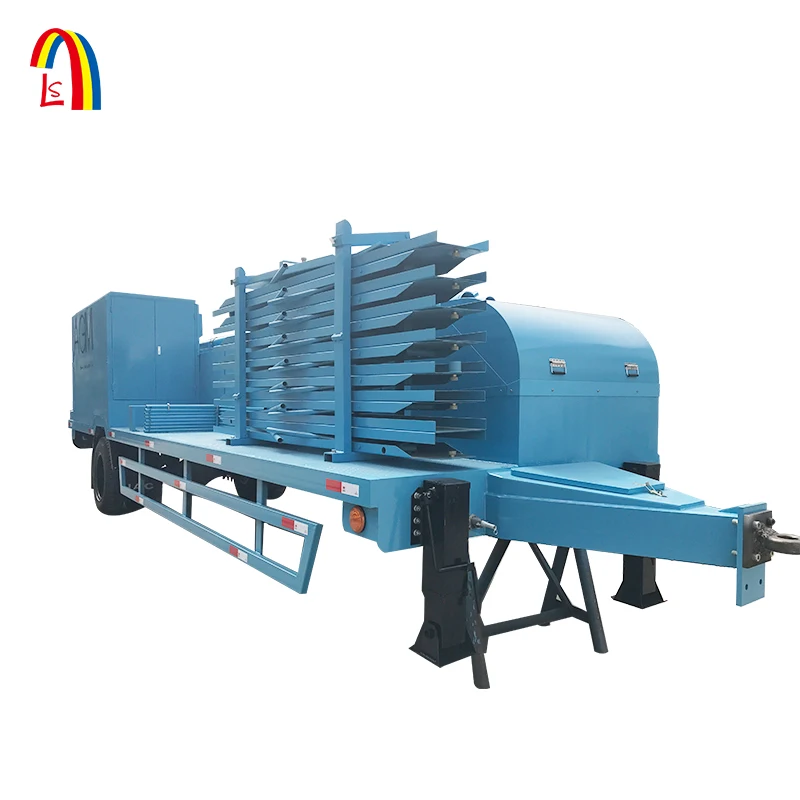

Machine show,

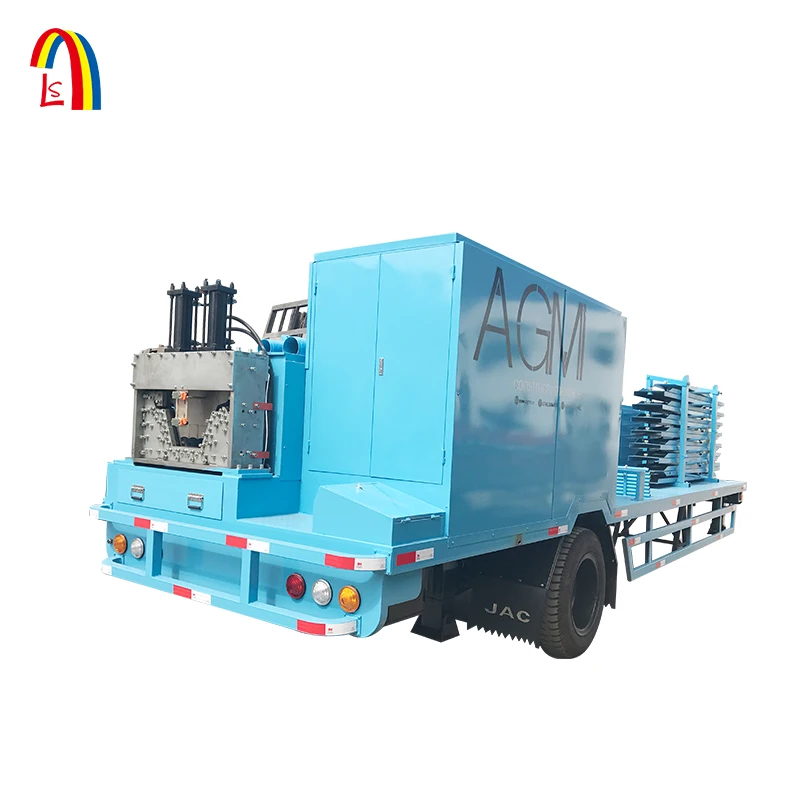

Machine detail parts,
Package and delivery:
Payment | 30% T/T prepaid and balance should be paid before loading |
Packaging | standard seaworthy packing |
Delivery | within 25 days |
Guarantee | 18 months free service |
Installation and training | If buyers visit our factory and check the machine, we will teach how to install and use the machine, and also train your workers/technician face to face. to teach you to install and operate. please arrange board and lodging and other necessary things. |
Our Services
Guarantee: 18 months service for free, paid service for whole machine life
Service : If you come to our factory for visiting and checking, we could teache you how to install and operate the machine, if you do not plan to come, we will send user manual and video to show you hao to install and operate. If you need our engineer and technican for local installation and we could go to your place also, but you need to pay the return tickets and accommodations in your place.training Engineers available to service machinery overseas
FAQ
A:- Are you the trading company or the factory?
- We are the factory, my engineer has been in this field for more than 20 years.
All parts of the machine (shafts, rollers, frames, etc) are produced by ourselves, except electrical parts.
B:- What service can you provide before order?
- About the presale service. We provide you answers of all your questions on our machines, such as technical parameter, price, payment terms, etc. If you wanna visit our factory and check the machines, we also can send you invitation letter and give you our warmest welcome.
C:- Can you finish the machine during the delivery time?
- We will finish the machine in time according to determined lead time.
D:- Can you provide some spare parts?
- Yes, of course. The quick-wear parts are sent to you together with the machine.
E:- What is the after- sale service?
- About the aftersales service. We can send technician to your country to fix the machine.The buyer should bear all the cost including: visa , Round trip ticket and suitable accommodation, also buyer need to pay some commission.
The warranty is one year. and we will provide the technical support for the whole life. It is free to maintain the machine the first year after buying, including changing the main components.
F:- Any other service?
- We can manufacture, design, installation and debug various roll forming machines including standard and customized machines.
It is free to assemble machine and train your works, but the buyer should pay for the round-trip airplane ticket, and arrange accommodation during that time.
G:- Can you accept OEM?
- OEM is welcomed here.
Certifications
Kindly notice:
1.All above parameters are for your reference, if you want other parameters we could customize as per as your requirements.
2. We provide you all the relevant accessories for free, with which you can begin to do projects immediately.
M.B: 0086-187 4178 4699
Skype: yklongshun6
