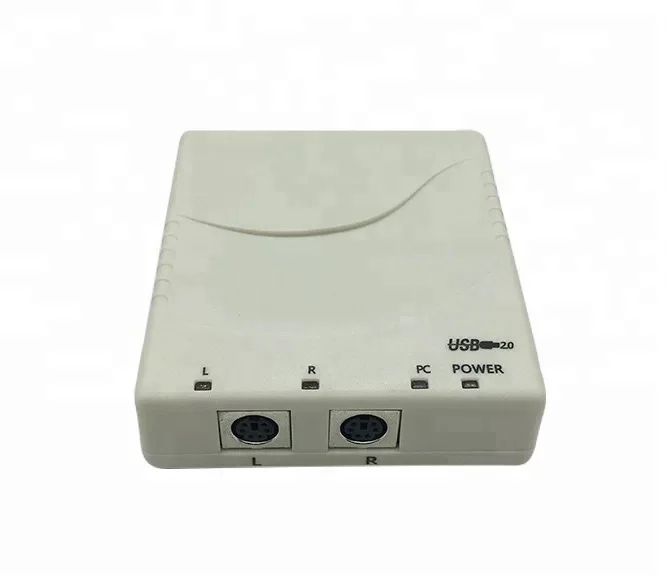

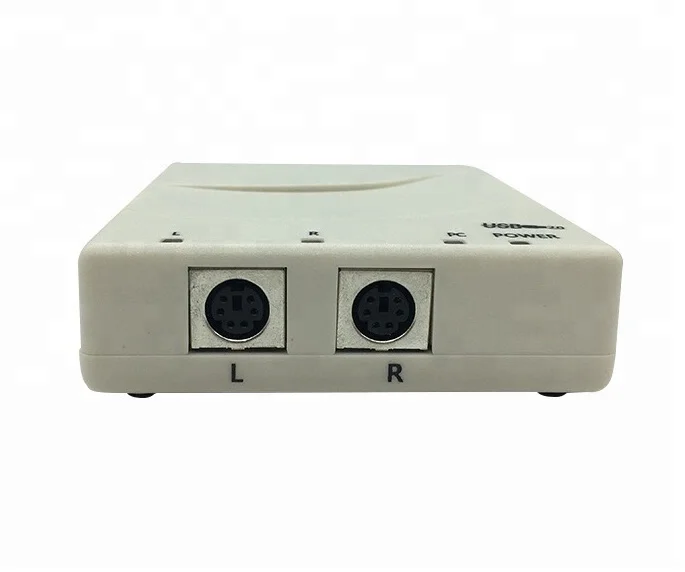

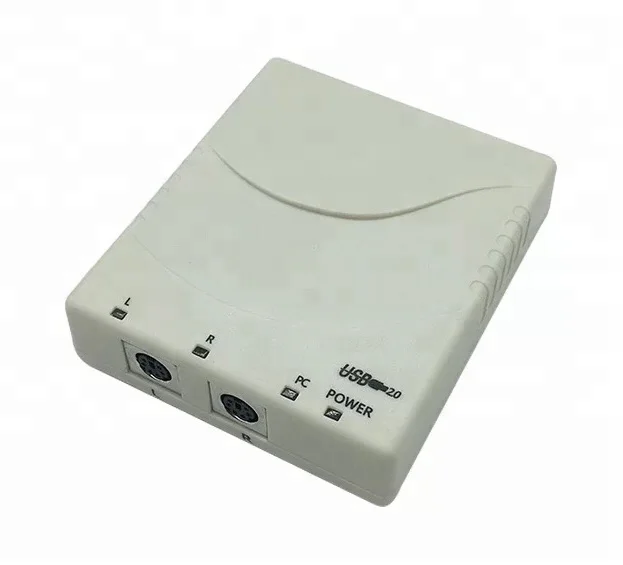

Digital hearing aid programmer for programming all brand hearing aid

Model

    mini pro

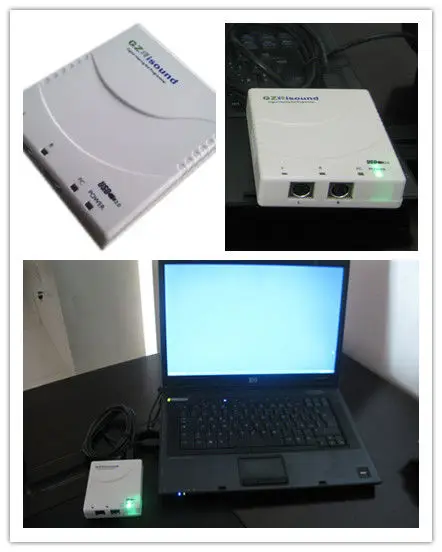

PC computer

    USB communication: USB 2.0 full speed (USB 1.1 compatible)

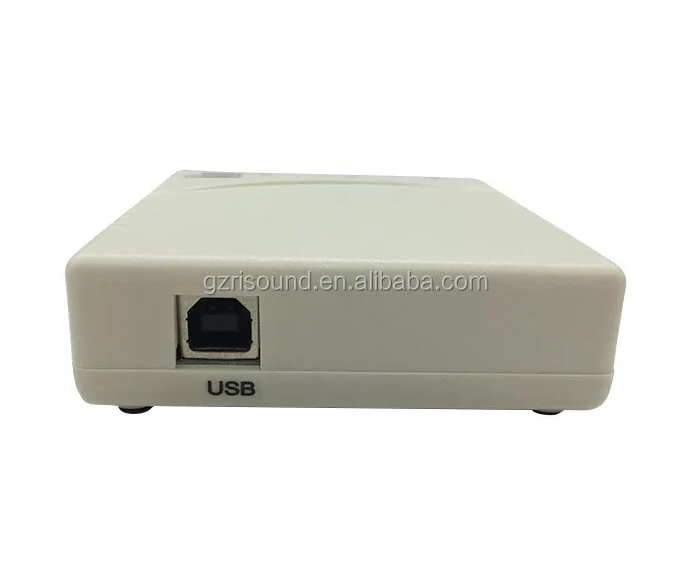

    USB Connector Type: "Type B" connector (on the programmer unit)

HP equipment

    Rated Voltage: 3.8V - 9V


    Maximum current consumption: <500 mA(2.5W)


    Minimum current consumption: <500μA(2.5mW)
Rated output
    Fixed battery supply(PIN1), left and right side


    1.35V, 10/50 mA (Rated current control fitting software)


    Programmable battery power supply (PIN5) for the left and the right


    -3.50V - ±3.50V, 30 mA (Voltage control fitting software)

Working environment
    Temperature: +5℃  -  + 40℃

    Relative humidity: 30% - 90%, non-condensing

    Preheating time: <20 seconds


    Air pressure: 600hPa - 1060hPa


Permanent damage may be caused when operating <-20℃ or >+60℃

Storage:

    Temperature: -25℃ - +70℃

    Relative humidity: <90%,non-condensing

    Air pressure: 500hPa - 1060 hPa

Size and weight

    Product Size(L*W*H) 82 mmx94mmx27mm

    Net weight: 120g ±5%

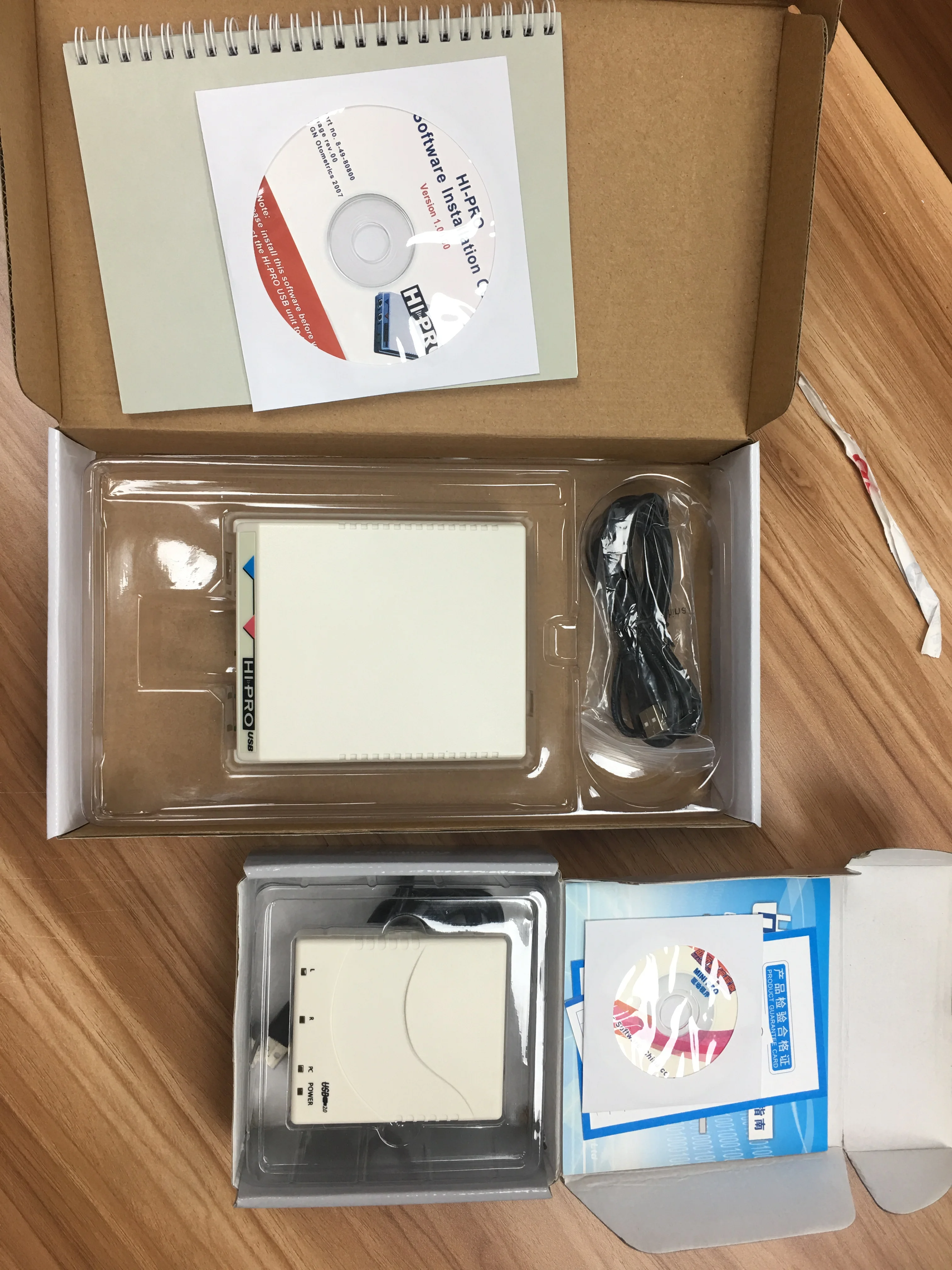

Package Contents

1 Mini Pro

1 USB Cable

1 CD

Product using period
    10 years

Standard

    Safety and System: GB9706. 15-1999

    Radiation: GB9706. 12-1997

    Electromagnetic compatibility: YY0505-2005
