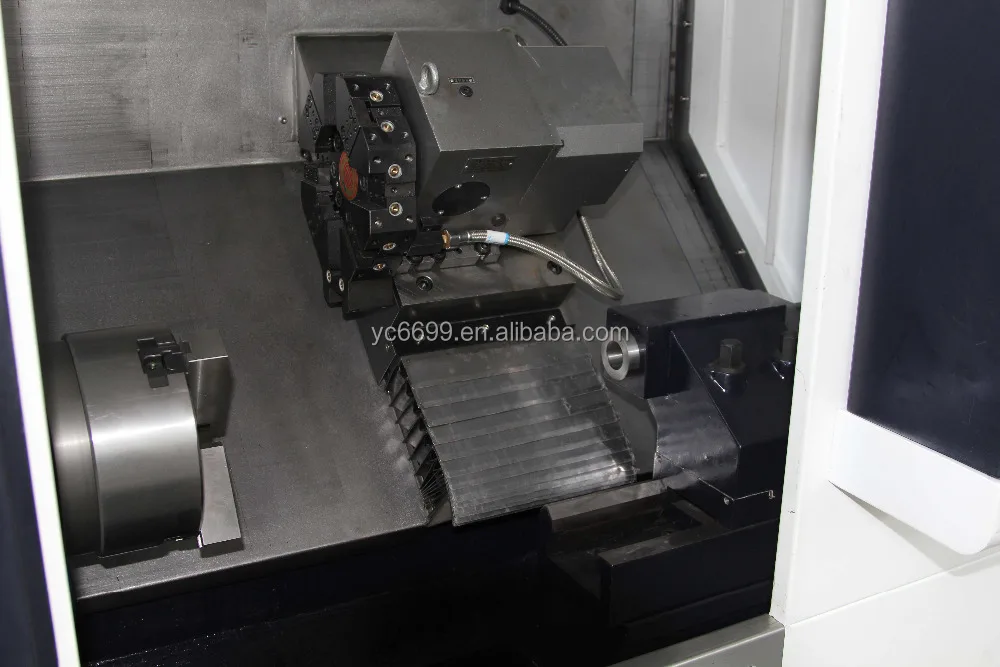

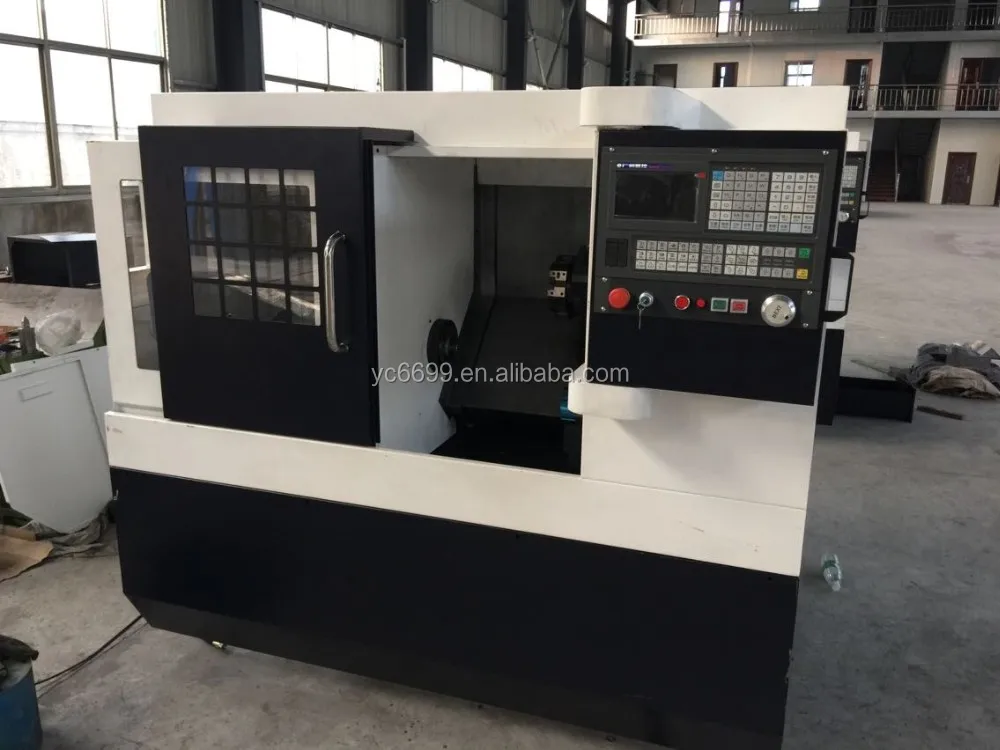

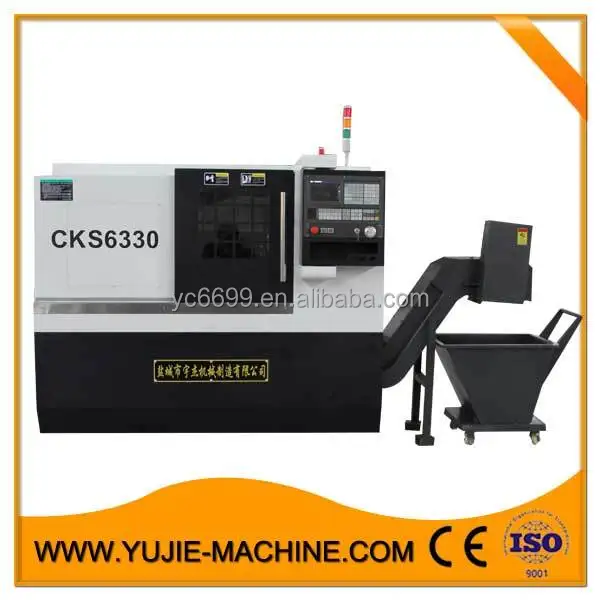

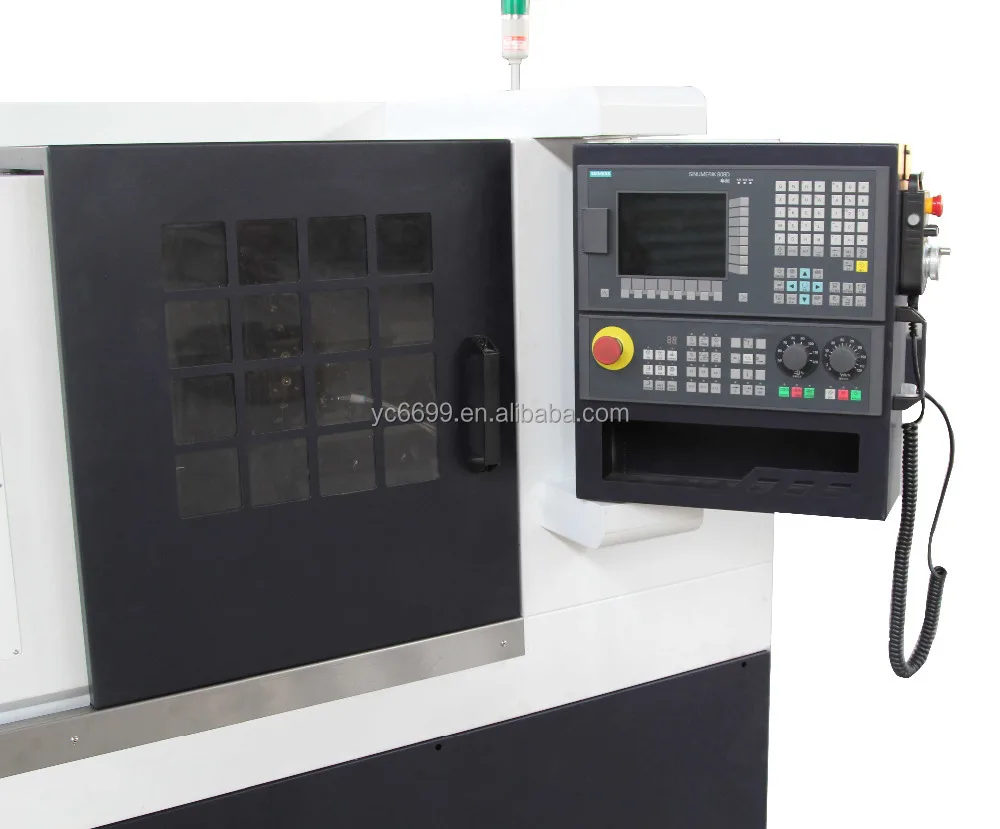

CKS6330 high quality cnc lathe slant bed lathe

Price:RUB 1,040,579.40 - RUB 1,486,542.00

Quantity:

CNC .png

Paramaters As Following

specification
Item	Unit	CKS6330		CKS6330A
Max. swing over bed	mm	300
Max. swing over carriage	mm	120
Max. work piece length	mm	300	400
Travel for X axis	mm	260	280
Travel for Z axis	mm	300	400
Re- Positioning accuracy for X,Z	mm	X:0.007;Z:0.008		0.01
Rapid feeding for X,Z	m/min	15	6
Tool numbers	PCS	6
Tool Type		Gang-tool
Tool size	mm	20*20
Main motor	KW	3kw converter motor / 2.2kw servo motor for option
Spindle Nose		A2-5	A2-5/MT5#
Max. spindle speed	r/min	4000	3200
Spindle bore	mm	48
Cannula bore	mm	40
Size	mm	145013001600	11007001150
Weight	KG	1100	1200
Railway		Linear Rail		Hardfacing Rail

STANDARD ACCESSORIES:	OPTIONAL ACCESSORIES:

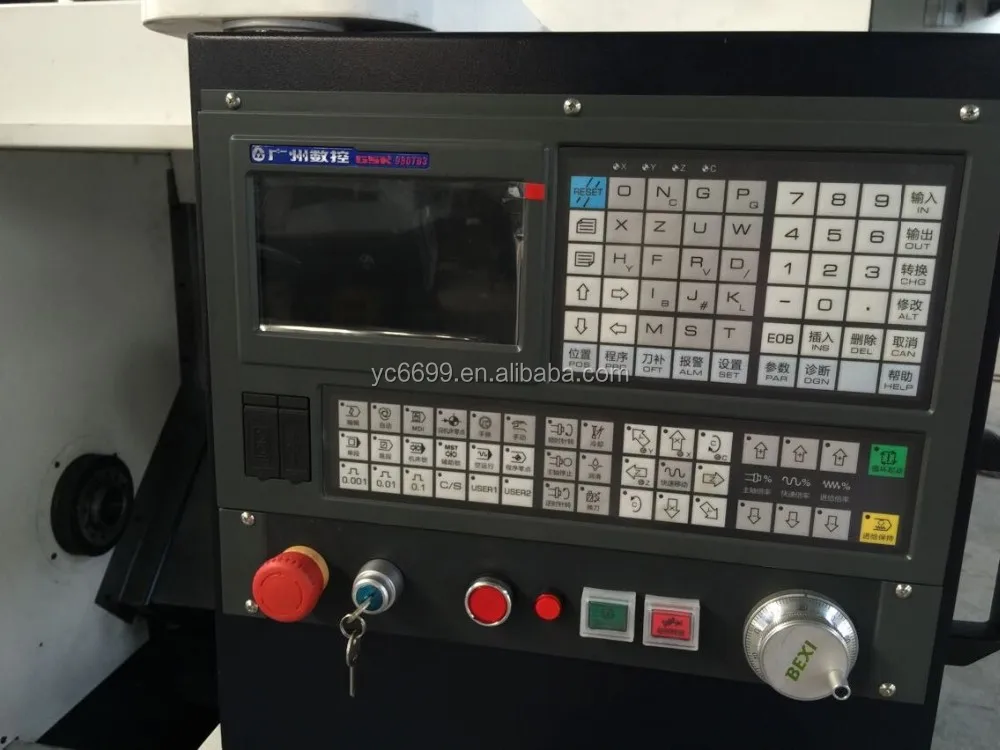

GSK980TDc CNC system	FAUNC Oi mateTC ,SYNTEC 6TA or Siemens 801 CNC system

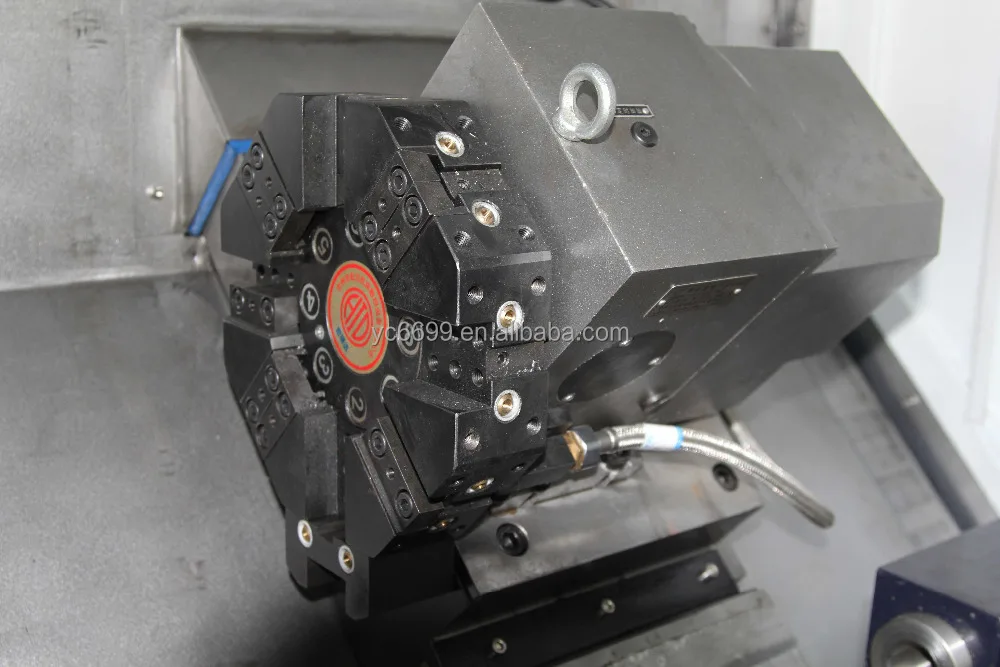

8-position hydraulic turret	10-position server power turret

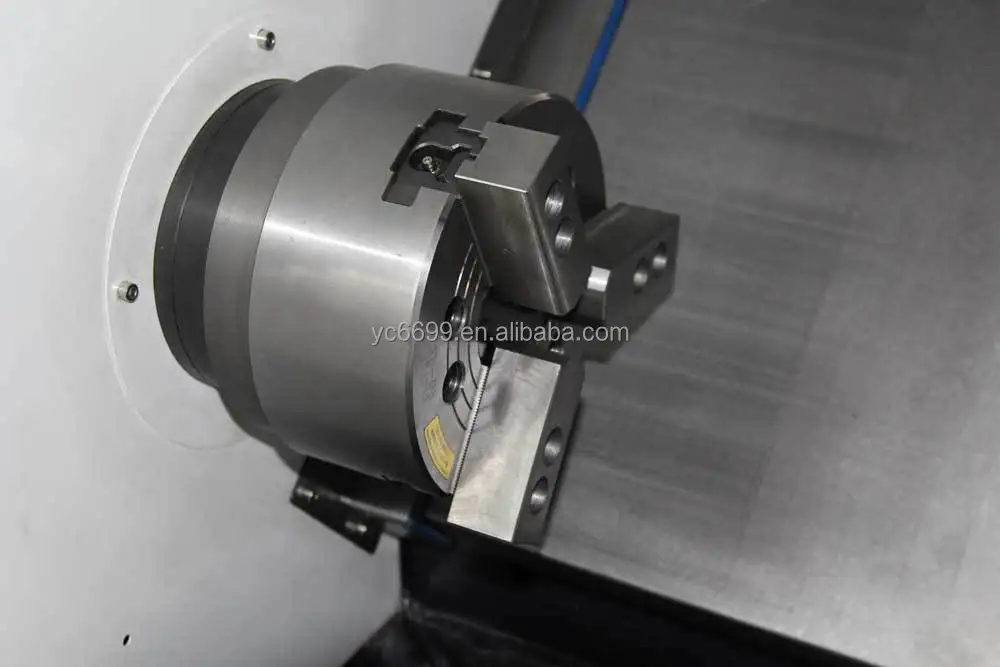

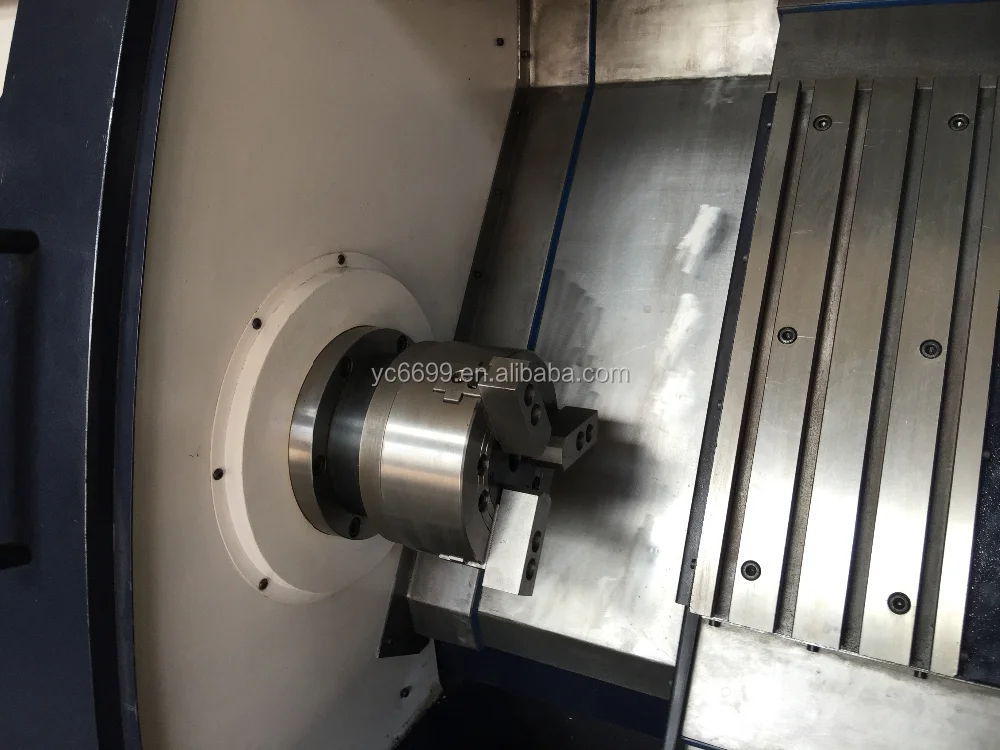

3 Jaws hydraulic chuck( 8″)	Manual chip removal device.
7.5 KW Servo spindle motor	Spring chuck
Auto chip removal device.
Hydraulic tail-stock

Features As Below

This machine is applied to precision machining of shaft, disk type parts.

With the 45°overall high strength cast iron slant bed, smooth chip removal, good rigidity.

Precision high-rigidity linear rolling guide.

6 stations of hydraulic turret, the nearest tool change.

High speed spindle unit (4000rpm).
