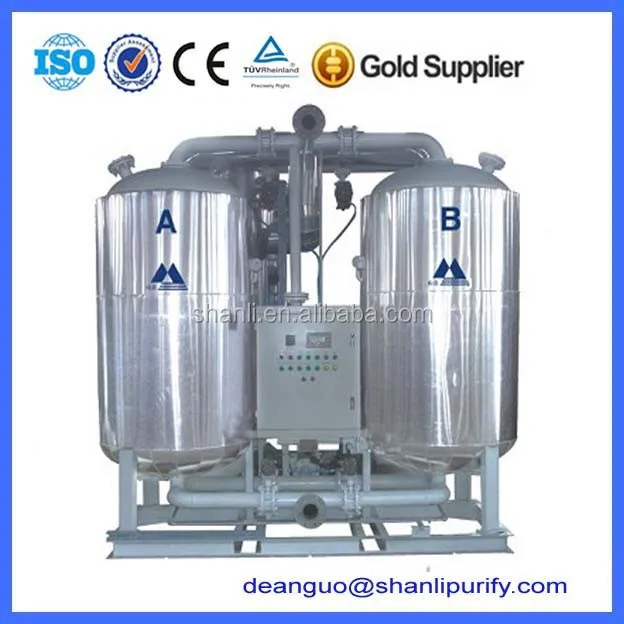

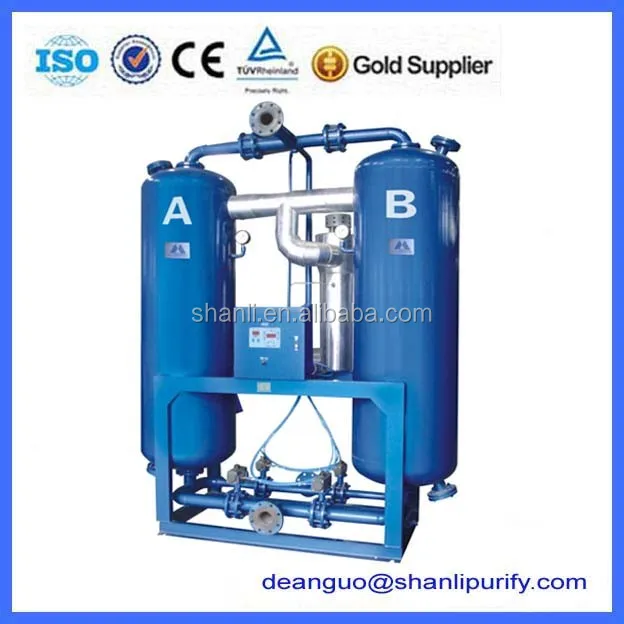

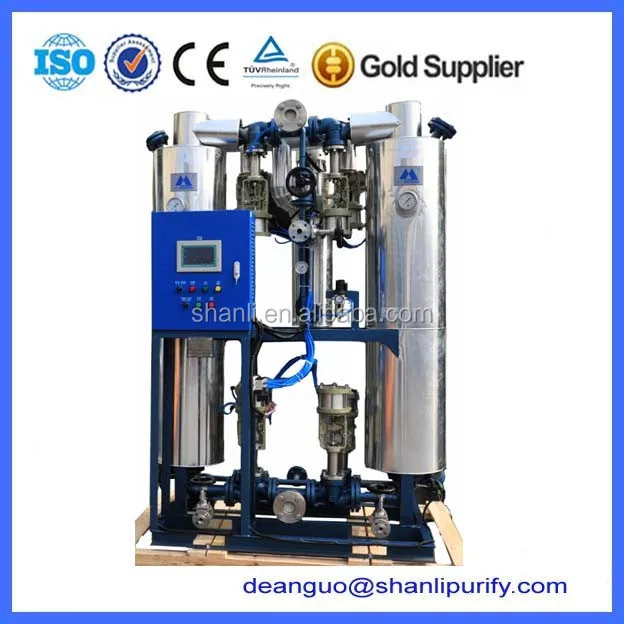

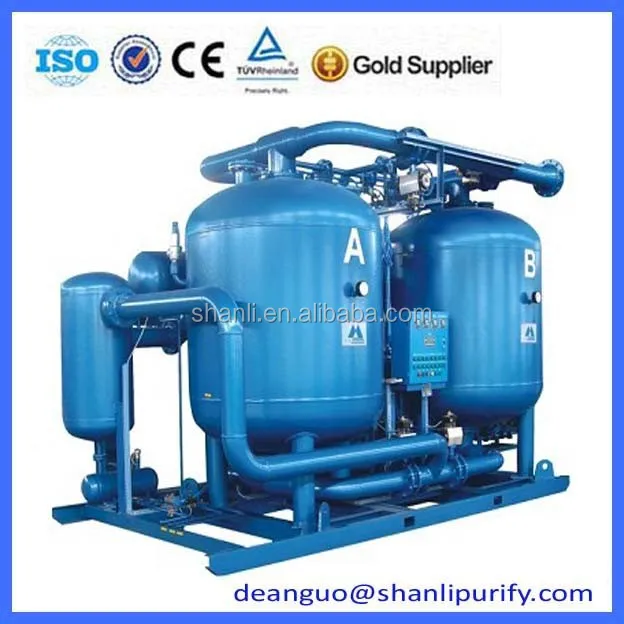

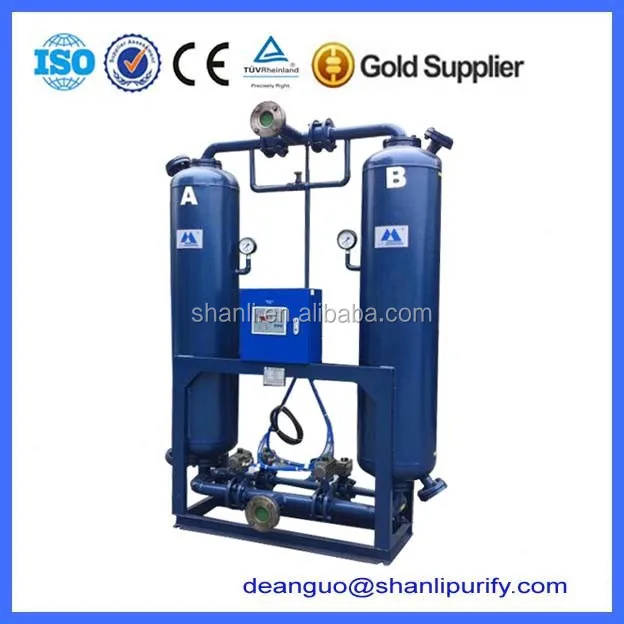

SLAD 40MXF activated alumina or molecular sieve desiccant air dryer

Product Overview

Description

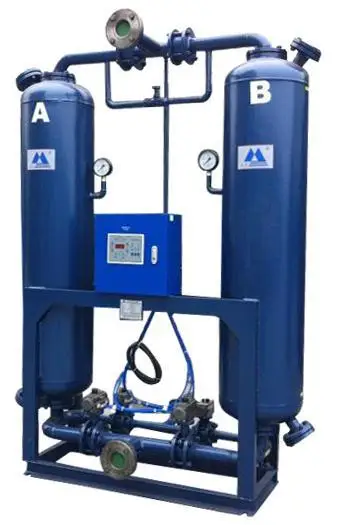

Heatless or Heated Desiccant regeneration adsorption compressed air dryer

1).This dryer has a twin-tower structure. Its designed adsorption priniple is simple,robust and flexible.

2).Continuous drying is accomplished by the operation of two desiccant towers.

3).Compressed air is dried through one tower while the other desiccant tower is being regenerated.

4).The regeneration cycle is performed by using a flow of dried compressed air which is taken from      the outlet to ensure accurate dew point performance.

5).By using proven engineering technology and components,this equipment is extremely reliable. And a lower, steadier dew point can be reached.



Features:

1) low pressure drop and steady dew point

2) Easy to install and maintain

3) Ideal for high environmental temperature

4) Microprocessor control

5) Suitable for a range of air compressors

6) Custom designs welcome





Main technical specifications:

1. Designed pressure dew point:-40^oC (-60^oC optional)
2. Air handling Qty: 1.2-310 m³/min
3. Inlet air temperature: ≤45°C
4. Inlet air oil content: ≤0.1ppm
5. Working pressure: 0.6-1.0MPa
6. Regeneration air flow: ≤14% (of total compressed air)
7. Pressure loss: ≤3% of the total working pressure
8. Operation cycle: T=10min

9. Desiccant:activated aluminum oxide or molecular sieve

10. Power supply:220V AC,50Hz

11. Fully automatic,interlocked operation controlled by PLC on a fixed 10min time cycle.



Product model and parameter selection:

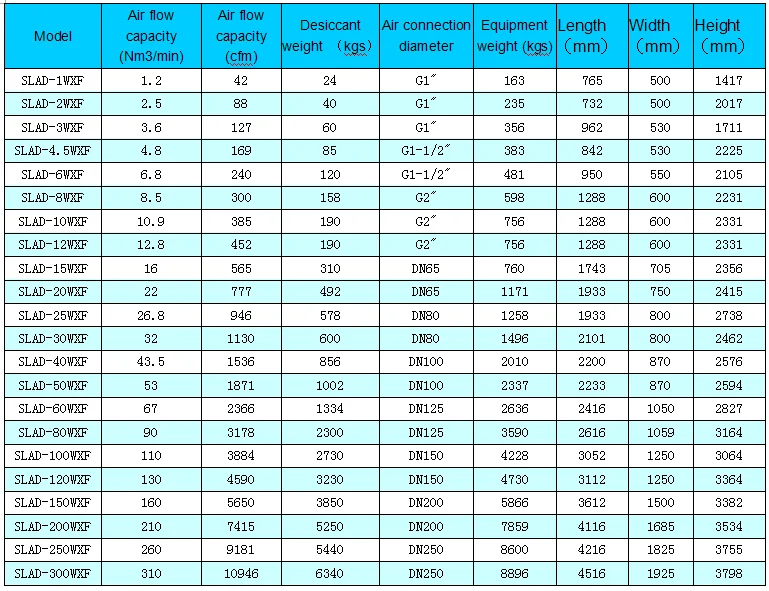

Heatless Desiccant air dryer:

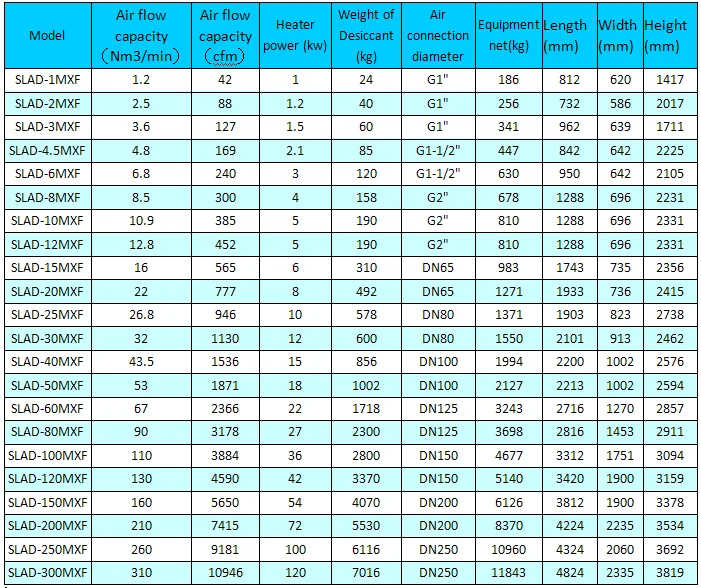

Heated desiccant air dryer:



Product certificates:





Compressed air configuration Chart:
