daikin air cooled water chiller HYS 750AT3

Product Overview

Description

3 Modes Air cooled Multi-function Chiller unit

--- Superior performance







1.The main International advanced semi-closed screw compressor in which electric motor and compressor are organically integrated to ensure no leakage of the shaft sealing.



2.Control programs for start and stoppage are applied to double or multiple compressors so as to balance the load and extend the service life of each component.



3.Several refrigeration circuits are provided for double or more compressors. When one circuit needs maintenance, other circuits can work properly as alternative circuits.



4. The compressor is started with unloading and decompression to avoid the impact to the power grid.



5.The vortex and propeller of the compressor is designed to ensure extremely low noise.



6. H/W structural design, favourable thermal radiation.



7.Heat exchanger has the national pressure vessel certificate.





1. Cooling capacity: 90kw~760kw



2. Measuring noise spot: 2m ahead and 1.5m high in front of chiller with average measurement on four dimensions.



3. Semi-closed 5:6 asymmetric twin-screw compressor from world-renowned brand, trouble-free operation over 100000hours.



4 Fluoride-resistant high-performance motor from French.



5. Use PLC microcomputer control from Germany SIEMENS LCD touch screen, both English and Chinese human-machine interface.



6. Accept orders for special requirements

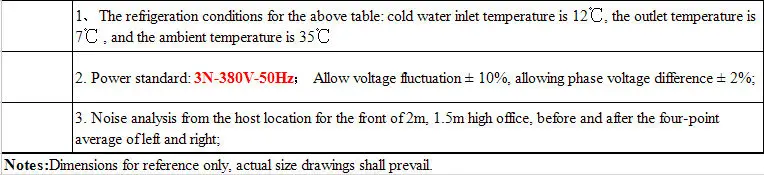

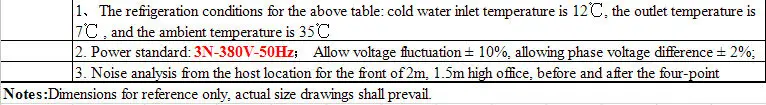

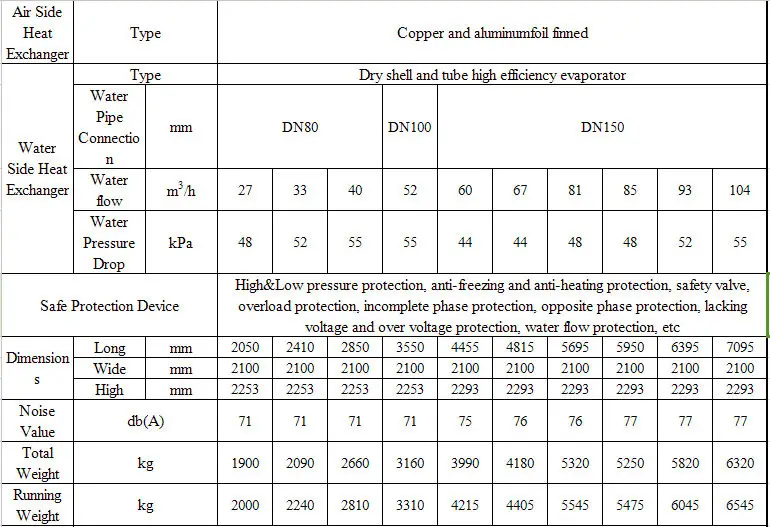

--- Parameter Table:

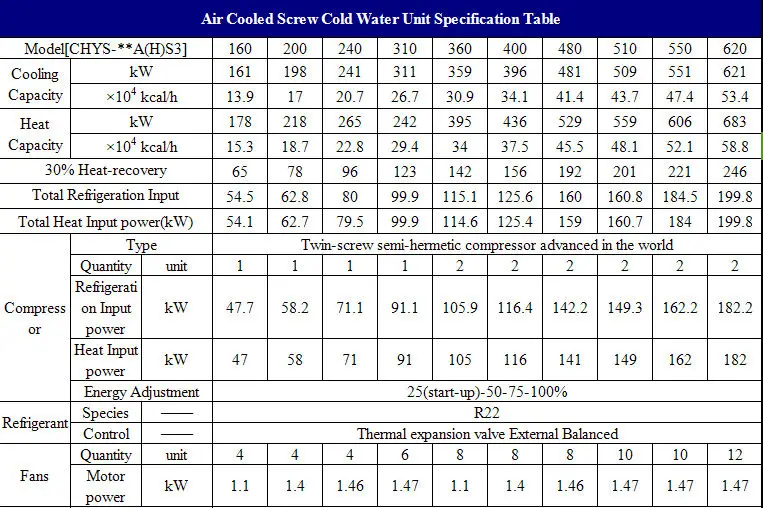

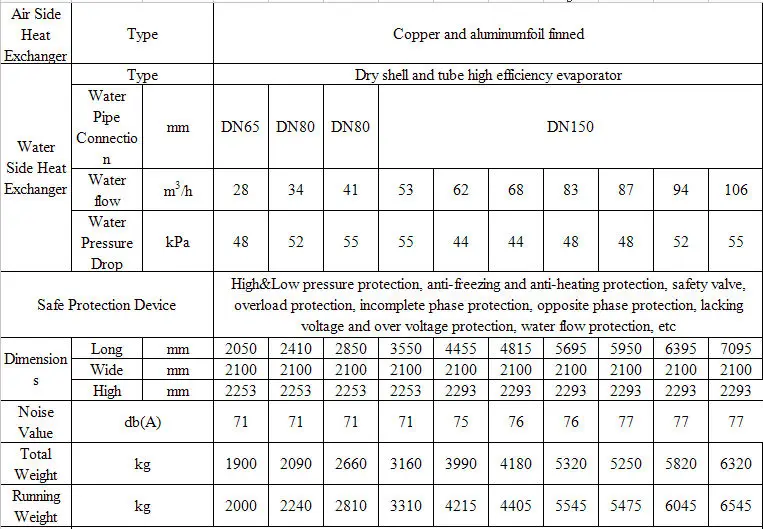

1. R22 (1-2 compressors, 7°C)

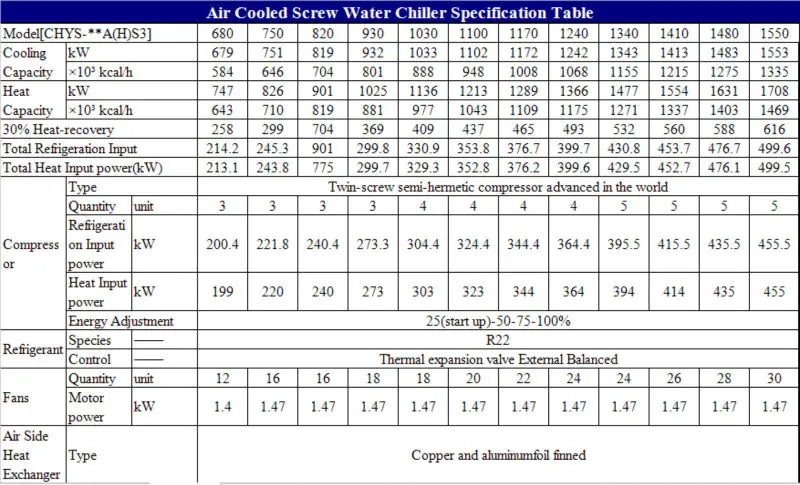

2. R22 (3-4 compressors, 7°C)

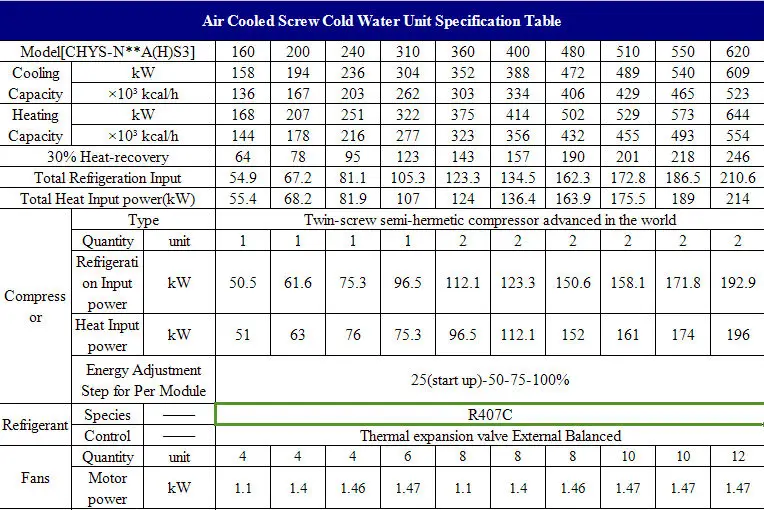

3. R407C (1-2 compressors)

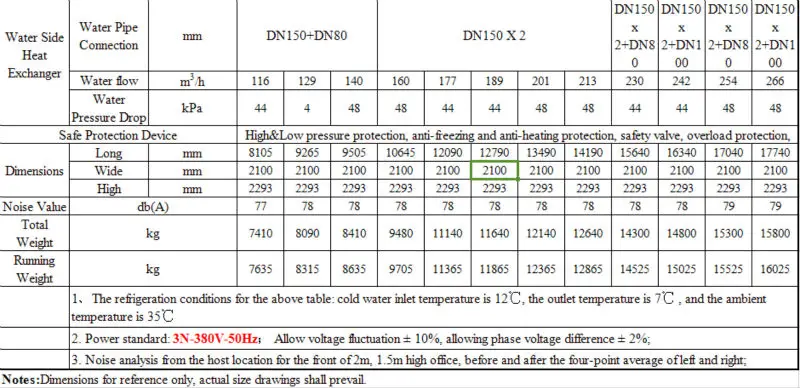

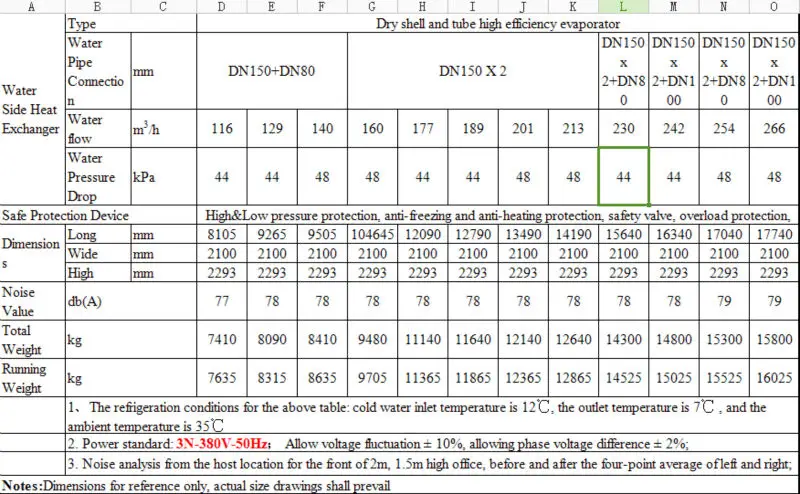

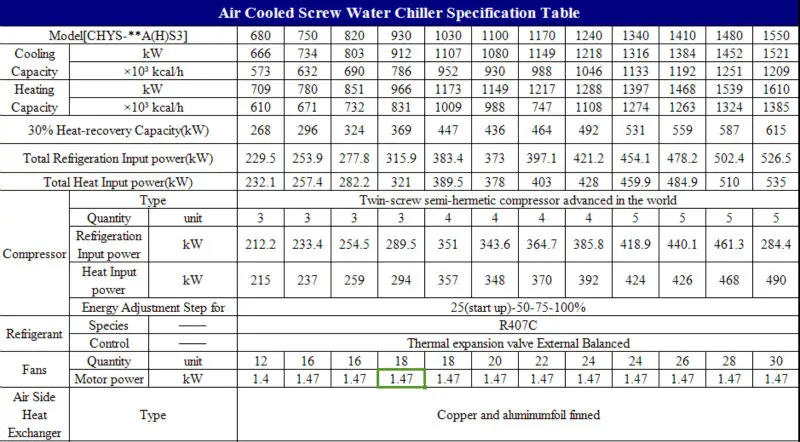

3. R407C (3-4 compressors)





---Photos of company

HAYE has two factories in China. (More than 80,000m²)

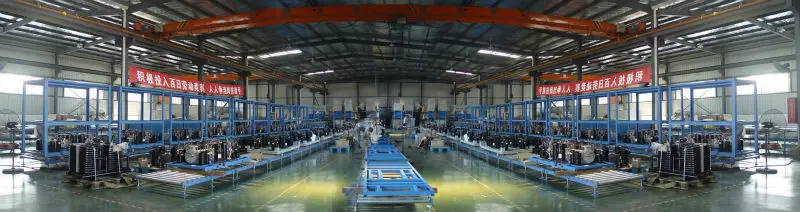

--Production Line







---National-level Testing Center
