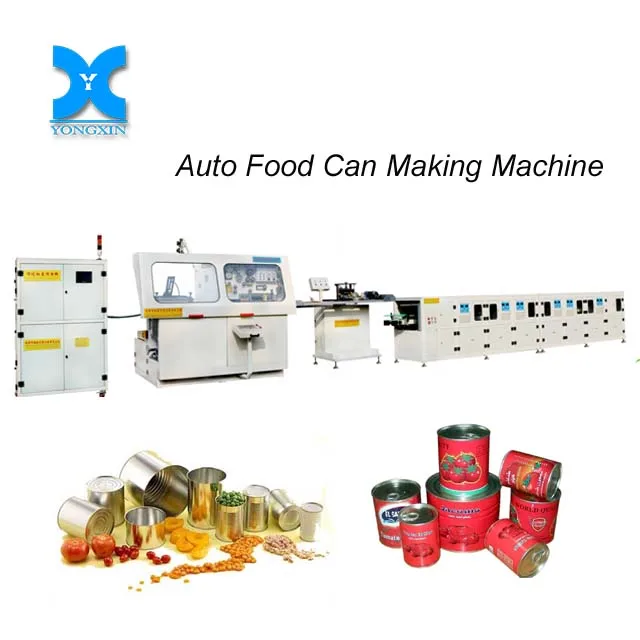

Machines to make tin box can container for Food tomato paste can equipment
- Category: >>>
- Supplier: Jiujiang Yongxin Can Equipment Co. Ltd.
Share on (60284784551):
Product Overview
Description
Name: Machines to make tin box can container
GT1B5 gang slitter
for steel or other metal shear volume iron,for the canning jar-cover or cans.
The main technical parameters:
Adaptability:Max.Sheet Thickness | 0.4mm |
Max.Sheet Width | 1050mm |
Min.Sheet Width | 44mm |
Using Motor | 1.1kw |
Net Weight | 1400kg |
Dimension | 1500*1600*1105mm |
Rolling forming machine
| Capacity | 40 cans/min |
| Can Height | Max.420mm |
| Power | 0.25kw |
| Weight | 50kg |
| Dimension | 700mm×400mm×840mm |

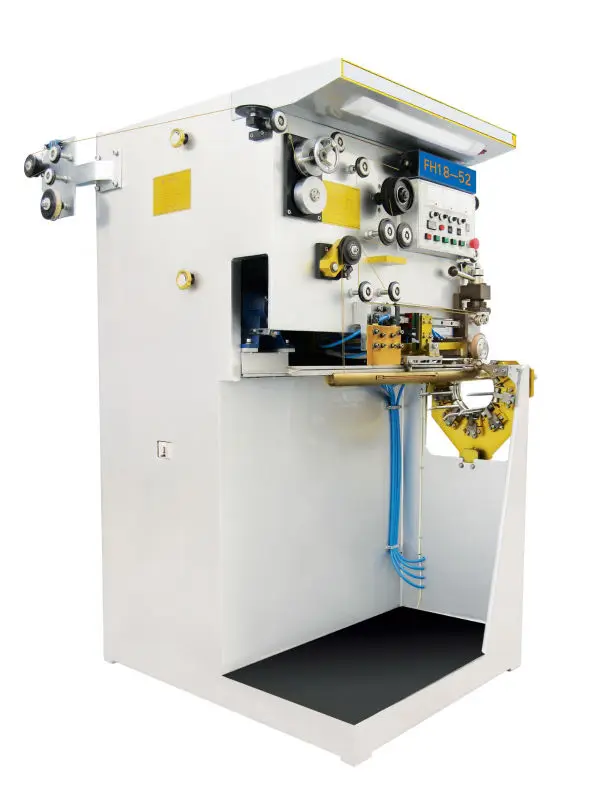

FH18-52 semi-Automatic can body welding machine
The main parameters
Linear rate of welding | 6-18m/min |
Production capability | 20~80Cans/min |
Applicable can diameter | ø65~ø286mm |
Applicable can height | 70~420mm |
Applicable material | Tinplate steel-based Temper:T2.5-DR8 |
Applicable material thickness | 0.18~0.42mm |
Seam welding landing | 0.4mm 0.6mm 0.8mm 1.2mm |
Seam point distance | 0.5~0.8mm |
Applicable copper wire diameter | ø 1.38mm ø 1.5mm |
GT-200F Internal & External Coating + Drying Machine
| It's used for can body internal & external coating and drying. | |
| Transmission Speed | 6-24m/min |
| Capacity | 80 cans/min |
| Applicable Can Diameter | Φ73-Φ176mm |
| Applicable Can Height | 100-250mm |
| Applicable Can Body Thickness | 0.15-0.35mm |
| Drying Room | 8pcs |
| Power | 16KW |
| Weight | 2000kgs |
| Dimensions | 1300*200*160mm |
GT3B27 beading machine
| Model: | GT3B27 | |||
| Capacity: | 15-35cans/min | |||
| Diameter: | 73-153mm | |||
| Height: | 124-189mm | |||
| Power: | (speed regulating motor)2.2kw | |||
| Net Weight: | 800kgs | |||
| Dimension: | 1570x980x1140mm | |||
Automatic flanging machine for food or paint can making.
GT3B2(3B5) Flanging machine
The machine is used for automatic flanging of tinplate or paper composite cans
| Productivity | 60~80 cans/ min |
| Model | GT3B2(3B5) Flanging machine |
| Applied can’s drive | diameter 40~180mm |
| Power consumption | 1.1kw |
| Size | 1200×670×1500mm |
| Weight | 900kg |
GT4B2B Automatic sealing machine
| Model: | GT4B2B | |||
| Capacity: | 42cans/min | |||
| Diameter: | 52-105mm | |||
| Maximum Height: | 52-280mm | |||
| Power: | 1.5kw | |||
| Net weight: | 1200kgs | |||
| Dimension: | 1210×1460×1900mm | |||
Sample cans
Company Information
Packaging & Shipping
Production Flow
Related Products
Certifications
Our customer
FAQ
FAQ
Q:Why choose us?
A:Cause we have leading edge technology for giving the best machines for a wonderful can.
Q:Does our machines available for Ex works and easy to export?
A:That’s a big convenience for buyer to come to our factory to get machines cause our products all don’t need
commodity inspection certificate and it will be easy for export.
Q:Is there any spare parts for free?
A:Yes! We can supply free quick-wear parts for 1 year,just rest assure to use our machines and themselves are
very durable.
Q:How can the price be most reasonable?
A:We handle the price to a reasonable level and it can be adjust according to customer's needs.Then, the price will
eventually based on request.
Q:What if I want to see the production process?
A:That's not a problem,we have many video from our customer's company.If you want to see it right front you,we will
contact our customer over the world and let be there to have the visit.
Q:Is it possible send engineer overseas to fix the machines?
A:Of course yes! This will be our after-sales service.
We provide the following series of products:
Automatic Food Tin Can Production Lines
Automatic Aerosol Tin Can Production Lines
Automatic Chemical Round/Square Tin Can Production Lines
Automatic Tin Ends Production Lines
Automatic Tea/Buscuit/Candy/Gift Tin Can Production Lines
Semi-automatic 1-4L Round/Rectangular Tin Can Production Lines
Semi-automatic 10-25L Paint Can Production Lines
Semi-automatic 18L Square Tin Can Production Lines
Semi-automatic Tea/Buscuit/Candy/Gift Tin Can Production Lines
If you want to know more information about this machine,Please contact Miss Demi!
