Agm sealed lead acid 12v 7ah battery for ups solar lighting systems in China
- Category: >>>
- Supplier: Zhengzhou Kanglida Electronic Power Co. Ltd.
Share on (60284934154):
Product Overview
Description

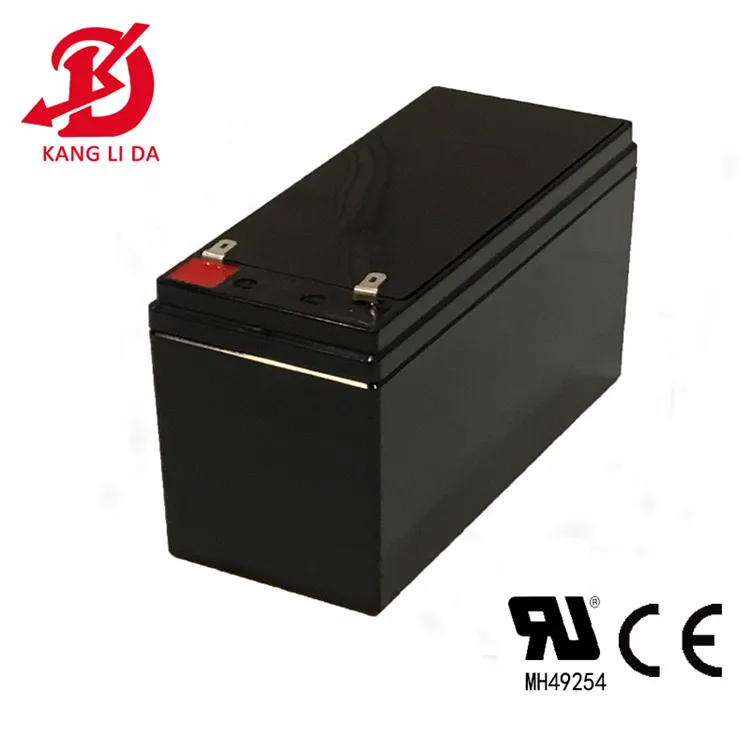

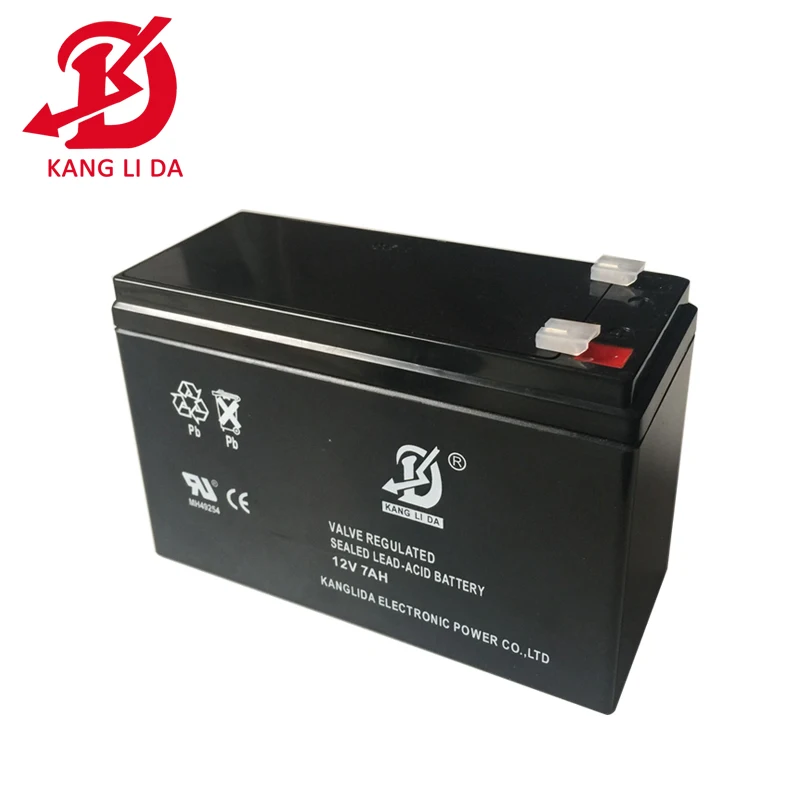

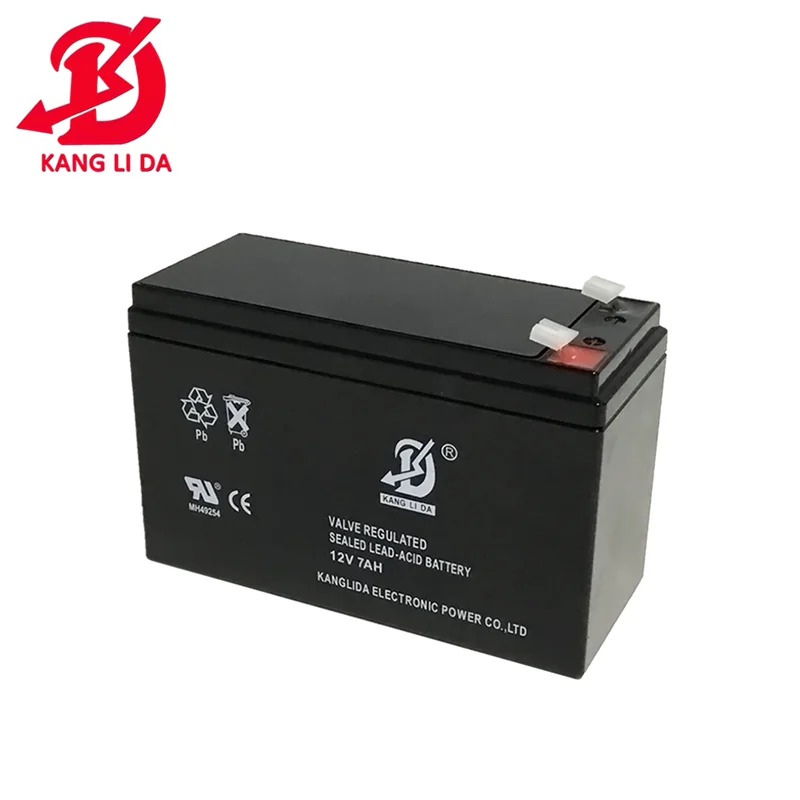

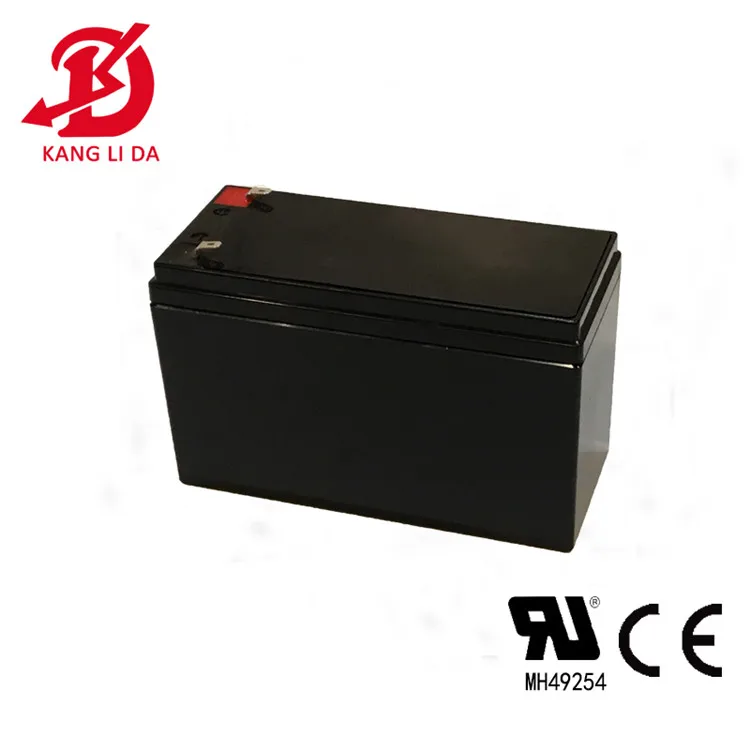

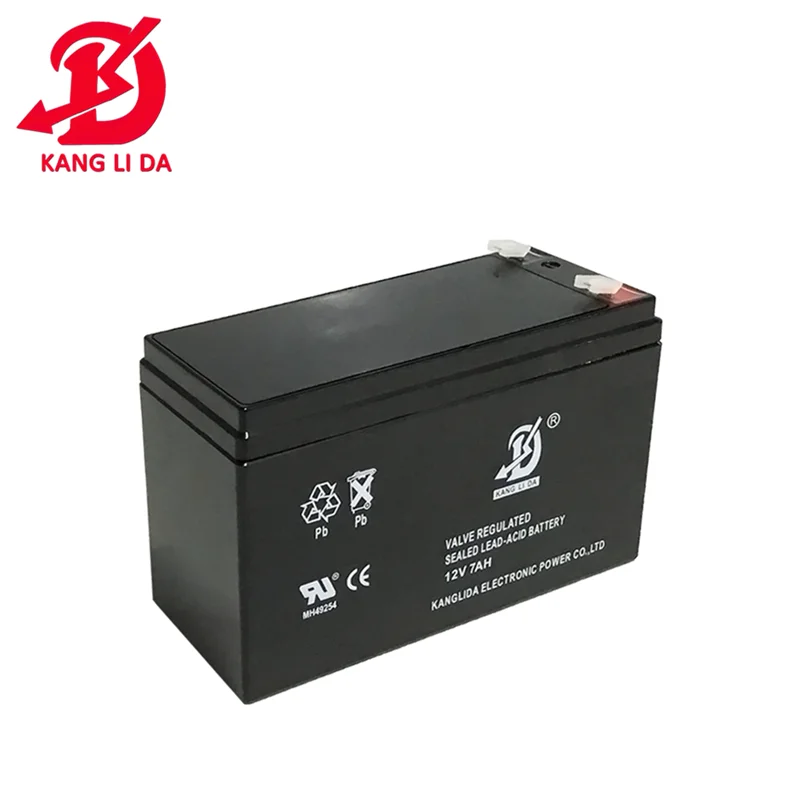

Agm sealed lead acid 12v 7ah battery for ups solar lighting systems in China
lead acid solar battery 12v7ah is 1.Lead acid battery 2.Use of safety 3.Long service life 4.Rechargeable battery
Product Description
Agm sealed lead acid 12v 7ah battery for ups solar lighting systems in China
specification
Specifications of 12v7ah electric power accumulator,accumulator cell
| model | size | Dimension of terminal | weight |
| 12V7AH-3 | 151*65*94 | 187-250 | 1760 |
| 12V7AH-C | 151*65*94 | 187-250 | 1800 |
| 12V7AH-C | 151*65*94 | 187-250 | 1750 |
| 12V7AH-SC | 151*65*94 | 187-250 | 1880 |
| 12V7AH-K | 151*65*94 | 187-250 | 1950 |
| 12V7AH | 151*65*94 | 187-250 | 2050 |
battery characteristic | ||||
Nominal voltage | 12V | |||
Nominal capacity(20h rate) | 7Ah | |||
Size | Total height | 102mm | ||
length | 151mm | |||
width | 65mm | |||
height | 95mm | |||
Weight | 2.075kg | |||
Rated capacity 25°C(77°F) | 20 hour rate(0.35A) | 7.0Ah | ||
10 hour rate(0.64A) | 6.3Ah | |||
5 hour rate(1.19A) | 5.95Ah | |||
1 hour rate(4.2A) | 4.2Ah | |||
Internal resistance | in full charge status 25°C(77°F) | 45mΩ | ||
Capacity at different temperature(10h) | 40°C(104°F) | 105% | ||
25°C(77°F) | 100% | |||
0°C(32°F) | 85% | |||
-15°C(5°F) | 65% | |||
Self discharge 25°C(77°F) | capacity after 3 months | 91% | ||
capacity after 6 months | 82% | |||
capacity after 12 months | 64% | |||
Mode of charge (constant voltage) 25°C(77°F) | cycle-use | initial charging current less than2.10A , voltage14.10-14.40V | ||
float-use |
Initial charging current less than 1.05A voltage13.5-13.80V
| |||
structure of battery
The structure of the 12v7ah electric power accumulator,accumulator cell
Battery Structure | |||||||
Unit | Positive pole | Negative pole | Shell | Safety Valve | Terminal | Separator | Electrolyte |
Material | PbO2 | Pb | ABS | Rubber | Pb | Fiberglass | Sulfuric Acid |
MODEL | APPLICATION(Usage field ) |
4v4.5AH | Electronic Balance |
6v1.3AH | Attendance Machine, Alarm and Instrumentation |
6v4AH | ZBV, emergency lamp, camera,Electricity theft, Electronic balance and Children toy car |
6v5AH | floodlight projector, emergency lighting, guard against theft, alarm system, electric tool, Emergency starting,Electric toys,Electronic weighing scales,signal lamp and Flashing lights |
6v7AH | electrical scooter, Parking Lot Barrier and Hook scale |
6v12AH | Distribution control, Solar garden lights, and Electric toys |
12v1.3AH | Access control, alarm, Instrumentation, lawn lamp and Electronic Fences |
12v2.3AH | fire control cabinet, Automatic ramp door, Security alarm and medical device |
12v2.6AH | beacon light, warning light, Camping lantern, Automatic car cover, Audio, and Elevator emergency lighting |
12v3.3AH | Alarm, and Mineral detectors |
12v4AH | ups power supply, electronic instruments, Electric toys, Alarm, Magnetic lock, Electric lock and automatic door |
12v7AH | Agricultural electric sprayer, Security, inflatable, Flashing lights, signal lamp and camera |
12v7AH-C | Children's toys, Automatic parking lock, and ups power supply |
12v7AH-SC | Inflatable, Security alarm host, Flashing lights, signal lamp, electric sprayer, and access control system |
12v9AH | Security alarm host, Security alarm, Electric toys, Flashing lights, signal lamp, inflatable, Burglary Alarm Master Panel, device of driving birds, and Automatic forklift |
12v12AH | Automatic parking lock, Wall type fire-fighting device, sells the food machine, and Vehicle flow detection machine, |
12V15AH | Dry lotus battery,Automatic parking lock, Wall type fire-fighting device, sells the food machine, and Vehicle flow detection machine, |
12v24AH | Elevator emergency system, fire alarms, wind power system, Solar Power System,and Vehicle flow detection machine |
12v33AH | Sweeper, plant protection machinery, |
12v40AH | Elevator emergency system, Elevator leveling system, street lamp, fire alarm, Ups, Light Box,DC power supply, wind power system, and Solar Power System |
12v65AH | ups power supply, Lamp power supply, DC power supply, wind power system, and Solar Power System |
12v100AH | ups power supply, monitoring equipment, Solar street light,Lamp power supply, wind power system,and Solar Power System |
12v120AH | ups power supply, monitoring equipment, Solar street light,Lamp power supply, wind power system,and Solar Power System |
Assembly
Factory Real Shot
After 20 years of continuous change and growth, with high-quality products and first-class services, kanglida has not only become a well-known brand in the domestic industry, but also successfully entered the foreign battery market.In 2017, KAGNLIDA battery became WODAFONE's battery supplier in Ghana.
Exhibition
Packing&Shipping
FAQ
1. Could you do OEM?
Yes, we can OEM for you and submit the law of intellectual property rights.
2. Are you a factory?
Yes, our factory located in Huizhou city, Guangdong province, PRC. and we have 2 sales offices, one is in Zhenzhou city, Henan province, and the other one is in Shenzhen city, Guangdong province.
3. What is your product warranty?
the warranty is at least 1 year, free replace battery in the warranty, but, we supply service from start to end
4.Can you supply free sample?
for low price battery, we can supply free sample, for high price battery, the sample cost can be returned to you in following orders.
5.Are your batteries pre-built and stored on shelves before being shipped to the buyer?If so,how old are these batteries?Are they built to order?
No,our batteries were fresh produced based on customers order,especially for the big capacity battery.The lead time is almost 20 days,because all fresh batteries must be 100% pass whole test before shipment.Our batteries can storage 6 months without charging.
 |
 |
