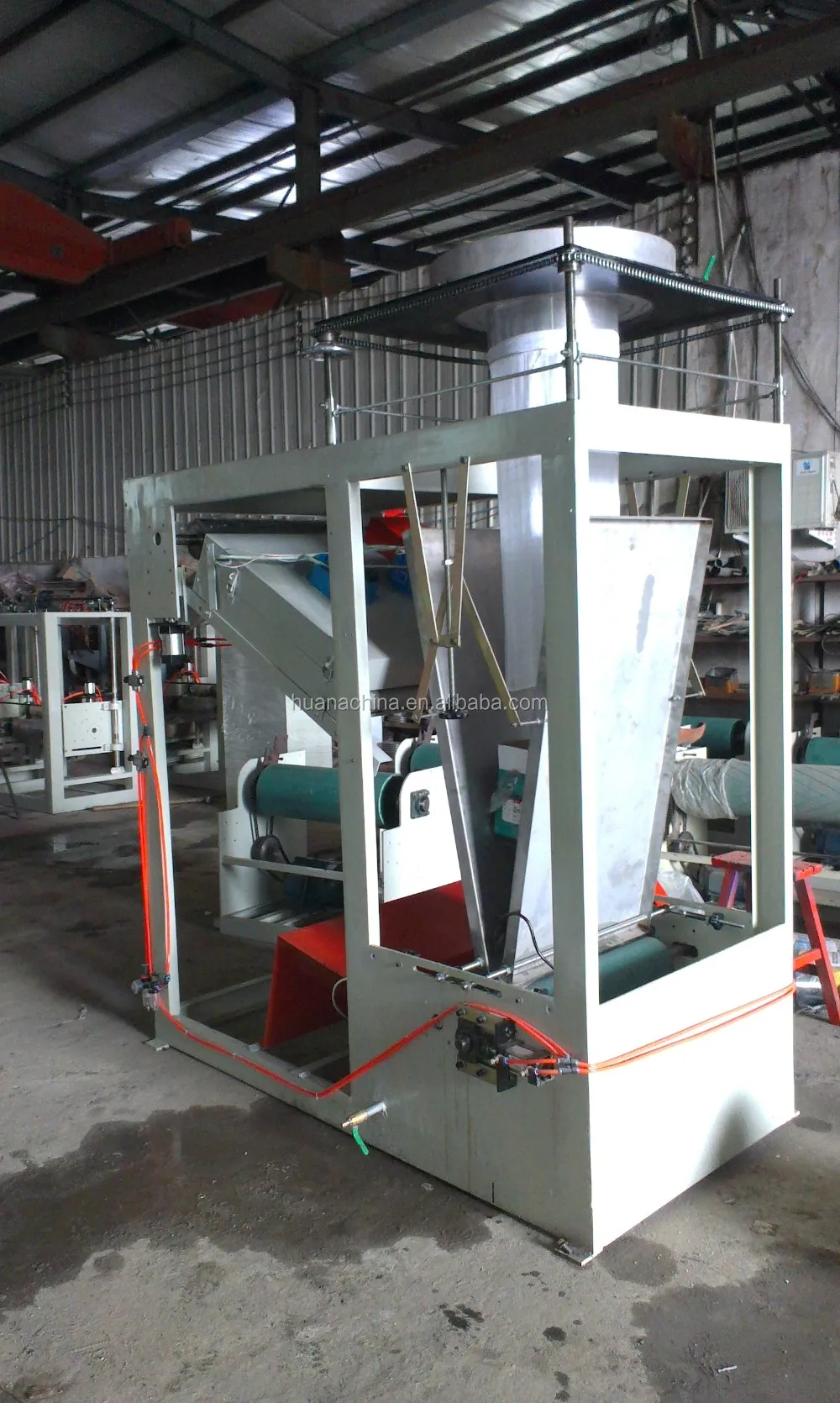

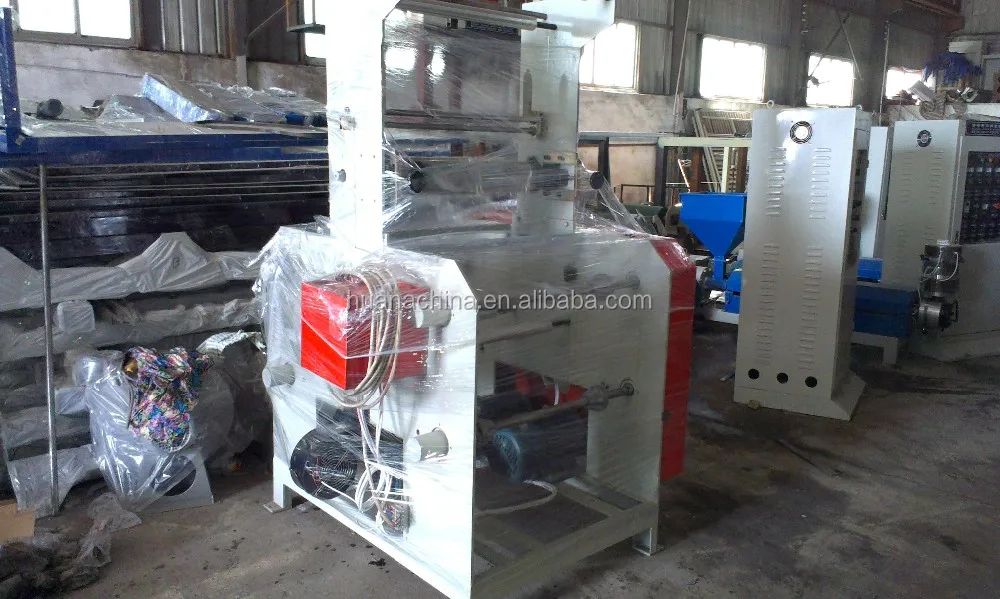

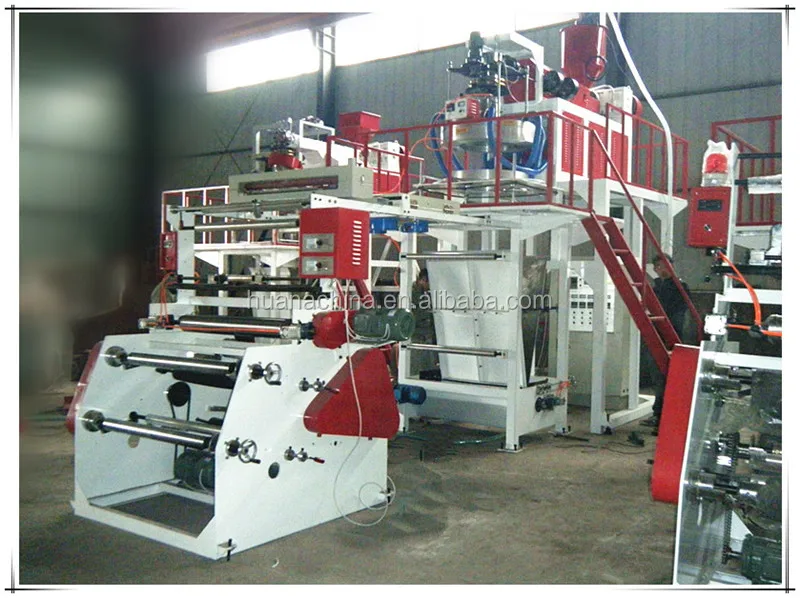

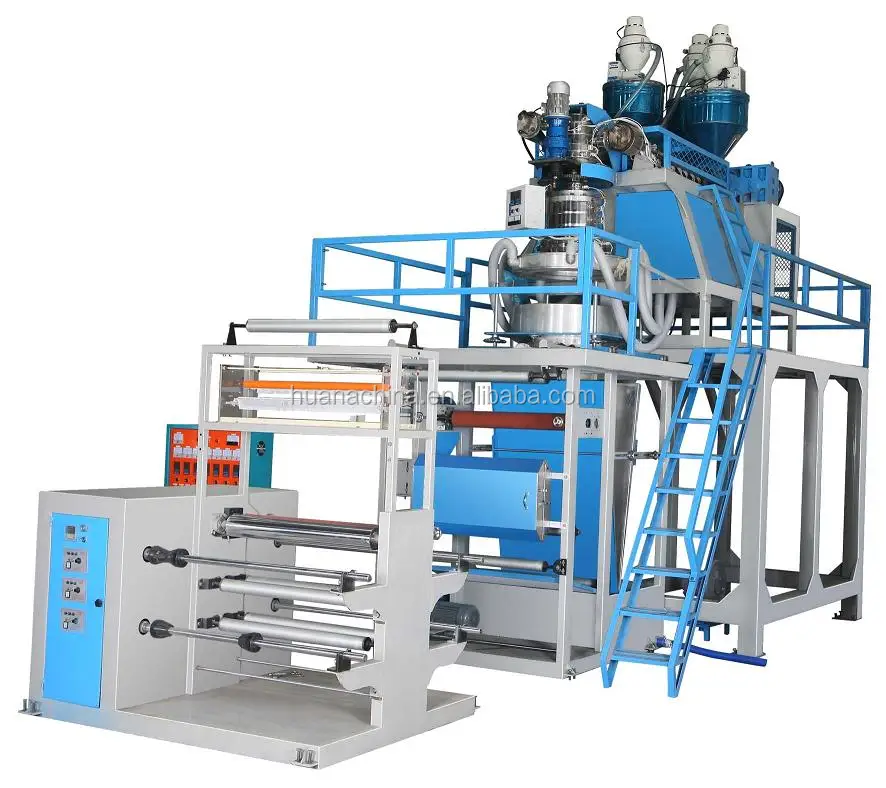

SJ50 FM700 PP BOPP OPP PE plastic extrusion film blowing machine
- Category: >>>
- Supplier: Ruian Huana Machinery Co. Ltd.
Share on (60284946886):
Product Overview
Description
SJ50-FM700 PE PP BOPP OPP plastic extrusion film blowing machine
Optional Equipment:
1.Auto Loader
2.Film Surface Treater
3.Air Compressor

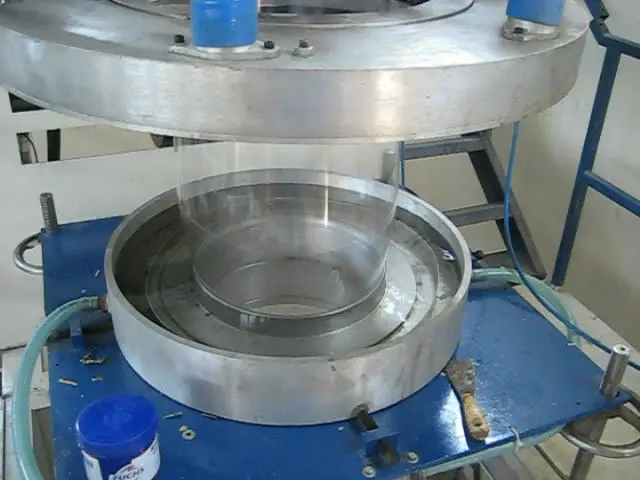

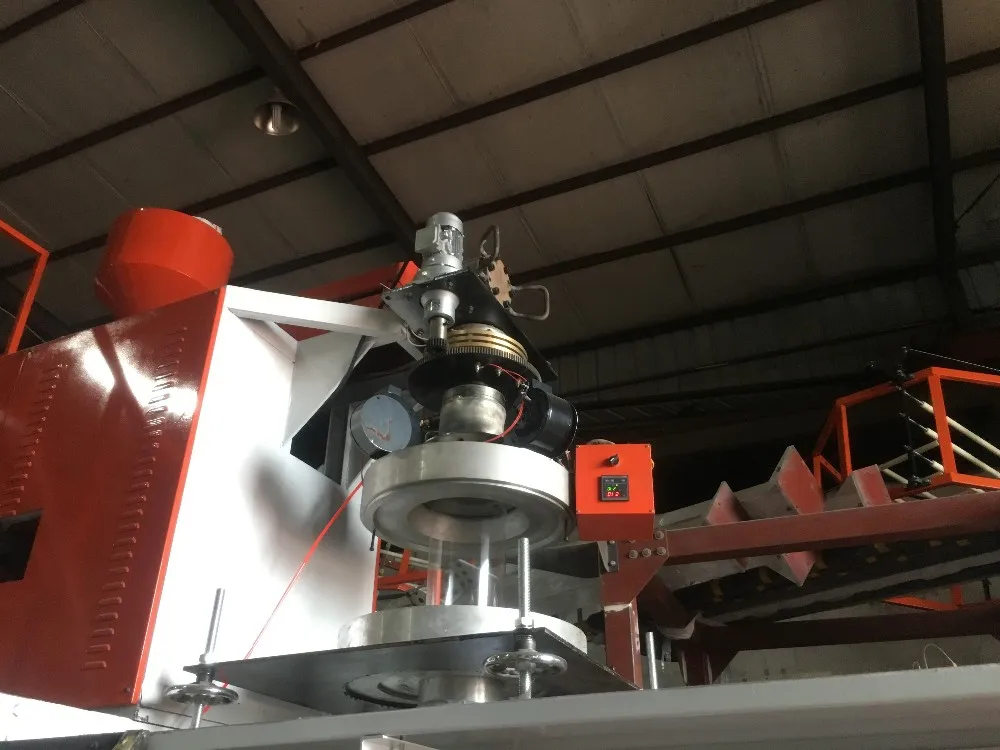

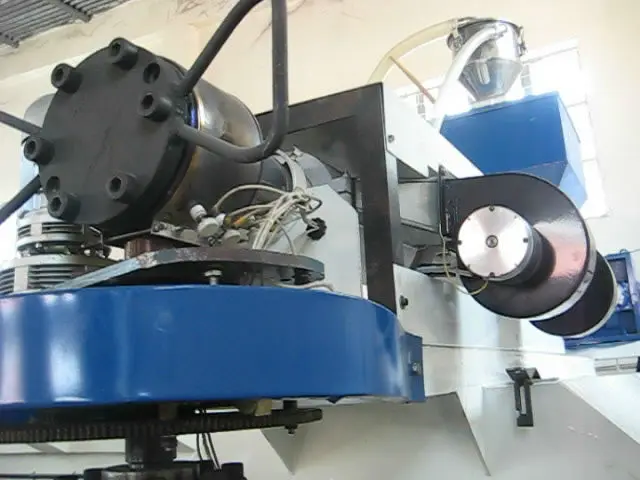

Rotary Die Head
Main Technical Variables:
Model | SJ-PP50 | SJ-PP55 | SJ-PP65 |
Suitable Material | PP | ||
Film Width | 100-500mm | 150-600mm | 200-800mm |
Film Thickness | 0.01-0.10mm | 0.01-0.10mm | 0.03-0.11mm |
Max Extrusion Output | 35kg/hr | 45kg/hr | 60kg/hr |
Screw diameter | Φ50 | Φ55 | Φ60 |
Screw L/D Length | 30:1 | 30:1 | 30:1 |
Barrel Cooling | 120w×1 | 120w×2 | 370w×3 |
Main Motor | 15kw | 18.5kw | 22kw |
Die Size | Φ200 | Φ220 | Φ250 |
Air Blower | 1.5kw | 1.5kw | 2.2kw |
Roller Width | 600mm | 700mm | 800mm |
Take-up speed | 5-60m/min | 5-60m/min | 5-60m/min |
Take-up motor | 0.75kw | 0.75kw | 1.5kw |
Winding motor | 10N.m×2 5N.m×1 | 10N.m×2 5N.m×1 | 16N.m×2 10N.m×1 |
Winding speed | 5-60m/min | 5-60m/min | 5-60m/min |
Voltage | 380V,50HZ,3PHASE | ||
Overall dimension(L×W×H) | 3.2m×2m×3.5m | 4.2m×2.5m×4m | 4.6m×2.8m×4.5m |

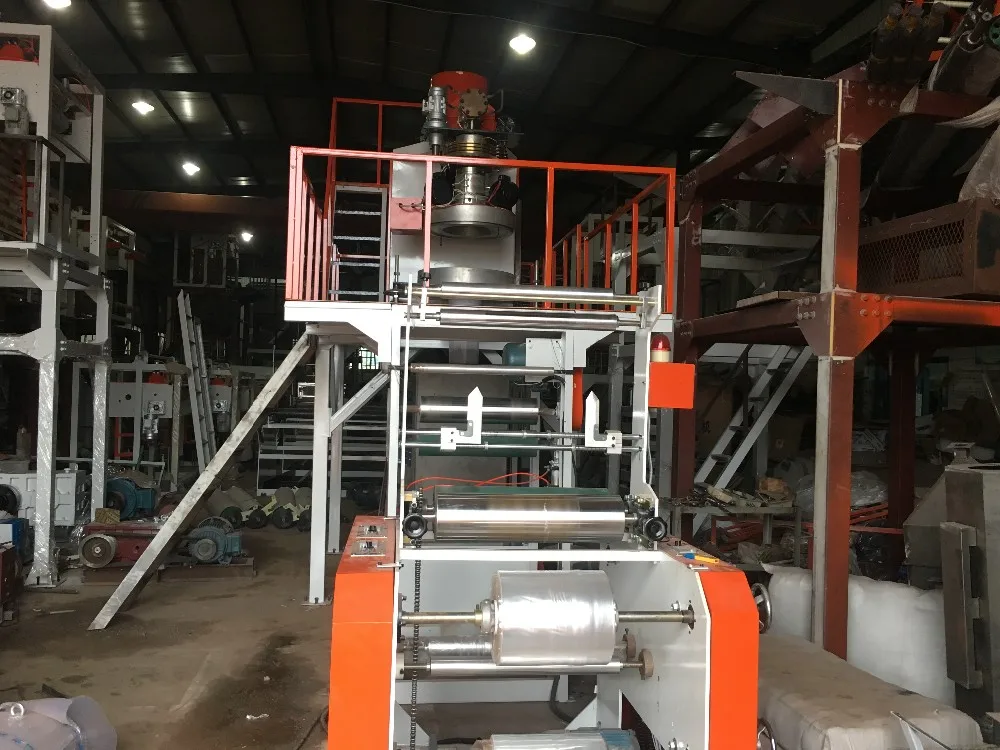

Products show:
...........................................................................................................................................................................................................................
...
We deeply know that we cannot succeed without every client
Have any require ,you could contact with us:
Add:Xiachang Street, Feiyun Villiage,Ruian Town, Zhejiang Province, China.
Name:caril
