Product Overview

Description

popular amazing quality trolley mounted pump

What is the features of our product?

1. Professional manufacturer with over 20 years' experience, high quality, best service and competitive price, offer multiple choices of product to meet different requirements.
2. Strong capability, high & far throw range, wide coverage area, achieve precise volume spraying, high efficiency and spray speed.
3. Micro fog droplet, form a wet mist touching the floating dust, high speed knock down the dust.
4. Flexible power: three-phase 380V and diesel generator power supply optional
5. Flexible installation, fixed on the concrete platform or diesel generator-powered vehicles optional.
6. Flexible, safe & reliable to use. Remove control & manual control operation. Easily adjust the spray angle of horizontal rotation.
7. Compare to tank car, water consumption save 70% ~80%, wide coverage area

Product Features

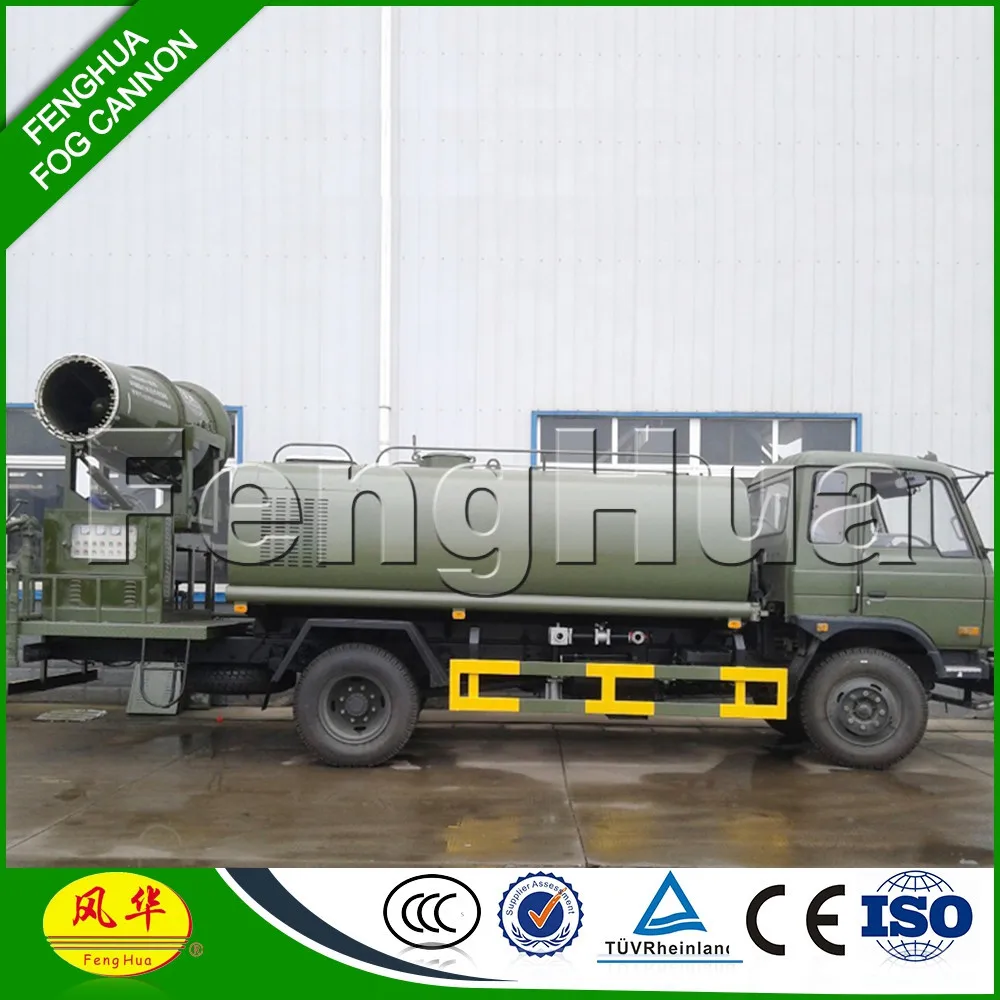

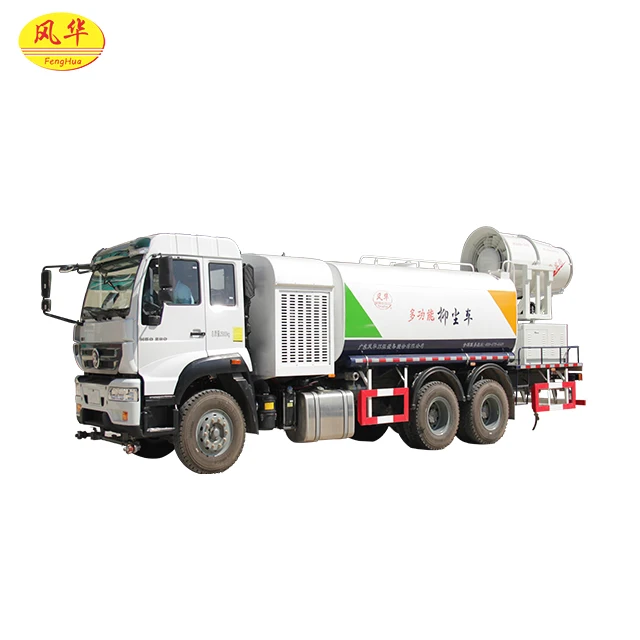

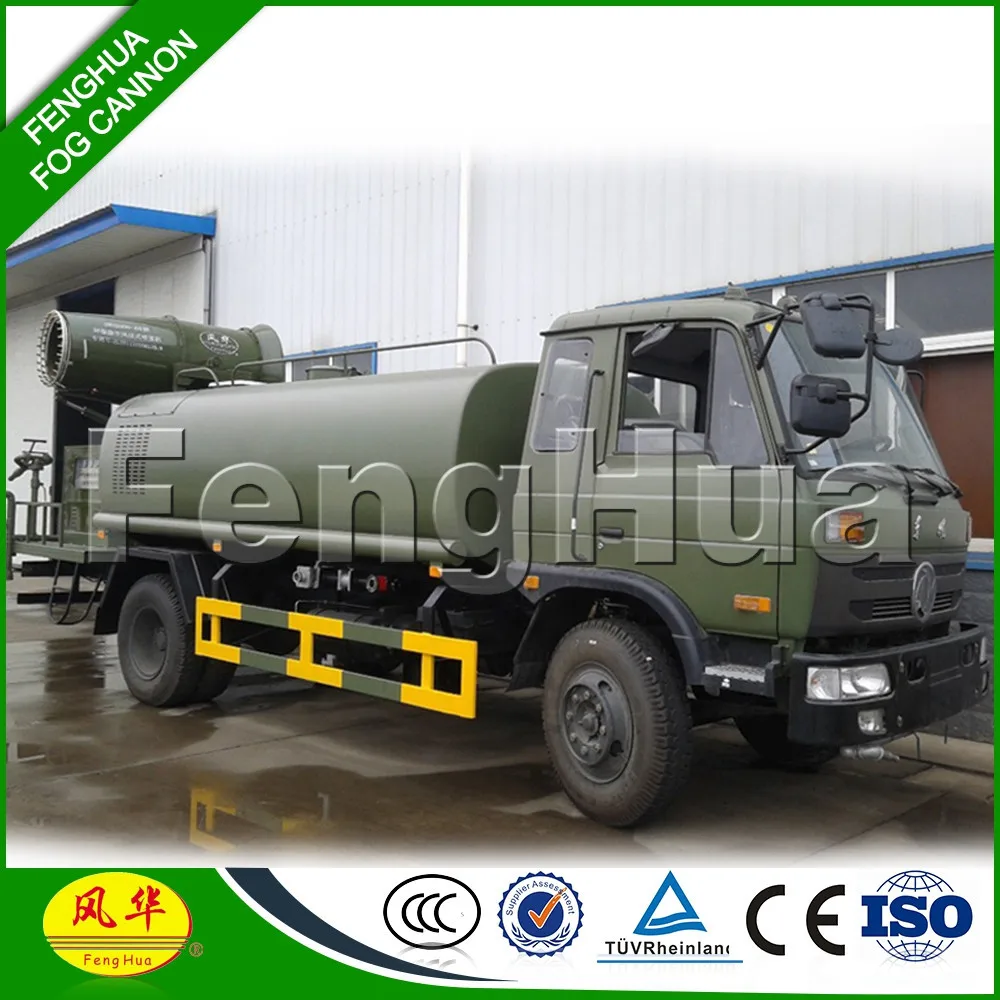

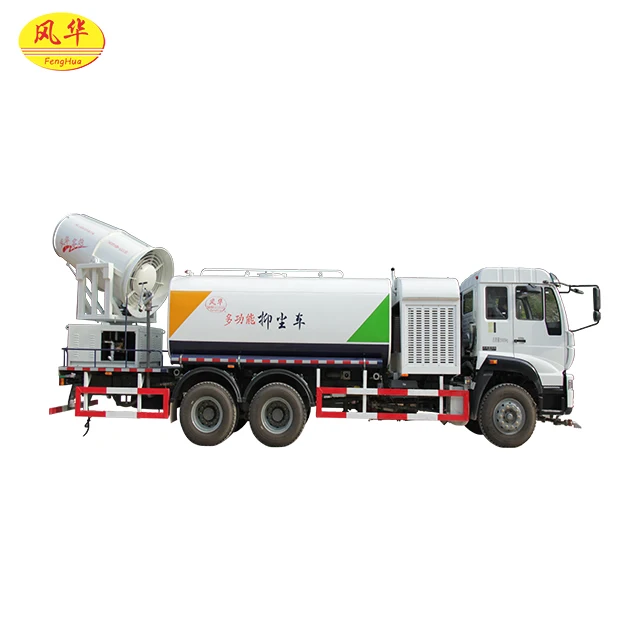

DS-60T Truck technical data sheets

Main Configuration	Detail	Note
Truck	Muti-functional dust suppression truck	With forward and sprinkle function
Truck Chassis model	Dongfeng brand	Dongfeng bridge chassis
Diesel generator set	120~180kw(Optional)	Overall support
Dust suppression sprayer	DS-60	Fenghua brand
Water tank	5~20 CBM (Optional),  Steel material	Meet the needs of continuous operation  for two hours
Truck overall dimensions	Subject to final shipment
Truck fuel standard	Diesel
Truck protective guard	Equipped
Warranty time	12 months	Engineer available to service  machinery overseas
Delivery time	30-40 working days

DS-60 Dust Suppression Sprayer Technical Data&Configuration

Technical Data	DS-60	Note
Water consumption(L/min)	70-80	According to the actual need to adjust
Work pressure(M Pa)	1.0-3.5	Optional
Droplet size(um)	30-200	Similar size between fog droplets and dust particles
Max Throw(m)	60	Without wind
Pitching angle	-10°~+45°	Expand the coverage
Horizontal angle	320°	Truck-mounted type
Total power(kw)	30 KW
Protection level	IP55
Spraying dust suppression agent	application	Can be spray dust suppression agent
Noise level	≤91db
Control way	Radio remote control	Within 100meters
Operation Environment	0-45℃	-30-45℃(Heating system optional)

1. Adopt vehicular cluster engine to supply power and via automatic voltage regulator adjust the output voltage of electric generator and dispense with manual operate.

2. Adopt environmental protection and dedusting mist sprayer makes the structure compact, the firing range distant, the mist slight and cover area large and all the operations can be done by hand or by telecontrol.
3. Use the micromotor, the mist sprayer can rotate left and right and driven by hydraulic system, the angle of pitch can reach to -10o~40o. The speed of angle transfer is fast which ensure the working efficient.
4. The truck has emergency stop button and makes the operation safe and reliable.
5. The truck uses the self-suction centrifugal pump and the pump is driven by chassis engine .
6. The truck has front spraying, rear spraying and front washing functions. It’s not only can use as watering but also can humidify, dust falling and road-cleaning.
7. The truck is equipped with left-middle and right-rear columnar flankers, the nozzles can adjust flexible of left and right, up and down.
8. The rear high-pressure water gun controls flexible. It not only can use to spray washing various height object, can clean out some uneasy blind corner but also used to fire fighting and greening watering. The gun can adjust to columnar flanker and vaporific.
9. The structure of the truck is compact and reasonable. As the volume of tank is large, the working time is long.
10. Switch control valves and water sprinkler system pipes are made by anti-corrosion material. The tank is made by high strength manganese steel and inside is processed by special fabrication.
11. Water tank is equipped with low water level sensor alarm system, alarm automatically when water level is low.

What is the Details of our product?

1.Where does dust suppression water truck?

bulk podwer transportation ;slag yard;coal storage yard ;construction site ;coal transportaion ;open air podwer site .etc.
2. What are the compositions of dust control water truck ?
chassis ,insulation tanker ,spraying systerm ,operating systerm ,controlling systerm ,heated systerm ,measuring systerm ,etc
3. What are the advantages of dust fighter water truck ?
dust suppression and water spraying function. spraying rod and lifting rod use electric lifting which substitute hydraulic system, so ,it is easy to control;especially for good for winter days

What is the application of our product?

1.Environmental protection: City pm2.5/10 dust control, Disinfection epidemic prevention, City Demolition,Odor control at waste disposal & landfill sites,Humidifying, cooling and dust control on construction site, etc.
2.Industry dust suppression:Open pit mining blasting/digging/ load&transport dust , Port material storage yard dust , Wharf Bulk Ships loading&unloading dust, Iron & steel plant stockpile & slag disposal dust, Power plant coal storage yard dust, Conveyor belt blanking point dust, Coal mine crushing dust,Haul roads dust,Storage and handling of bulk materials dust, etc.
3.Agriculture protection:The sprayer can used for pest control in agriculture, orchard, garden areas,farmland, forest, road greening, grassland, pasture ,etc.

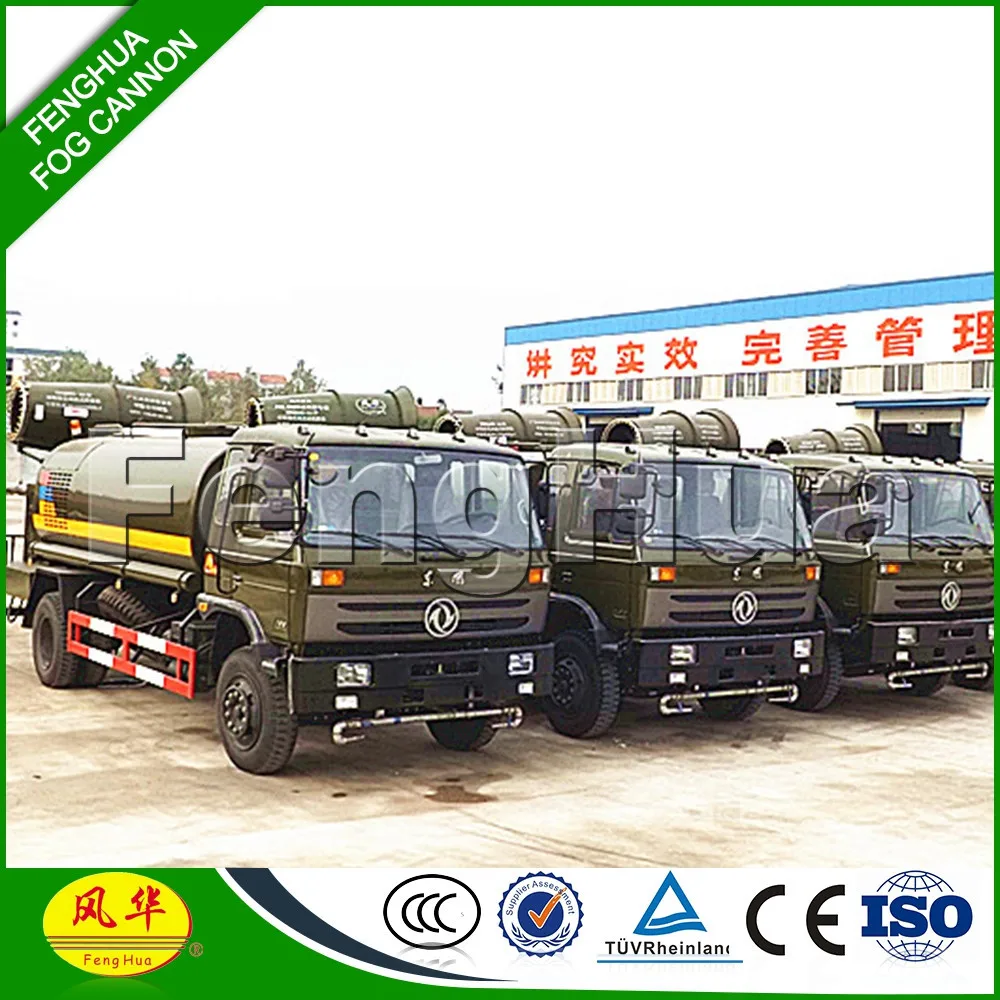

The worksite of our product

 Pre-sales Service

Customization:
For any special requests, please go to ask us for the details, we can customize the products for you if your order quantity is considerable! (Such as spare parts, water tank, material, output, pump.)

After-sales Service

1. Warranty time is 12 months from the date of commission, or 18 months from the factory delivery, the first shall prevail.
2.Special Operation and maintenance vedio guide for the Customers.
3.Technical person work-site commission service support.
We can send engineers to support you to install large sprayer machine.
4.Help you do worker training
5.On-line support every day.
1. Outside package: standard export plywood case
2. Inner package: air bubble film and screwed to the pallet.
3. Different design need different shipping way:LCL or FCL.(one set DS-60 Sprayer fitted into general container, LCL)

The placing order process

Please confirm below details before you place the order:
1) Application area,special requests
2) Quantity
3) Payment terms(Port and type of shipping)
4) Kindly provide your detail contacts(name, duty, company name& address, telephone number and post code etc,the more detailed, the better!)
5) The import licenses and other certifications for custom clearance

The parment terms

1) L/C at sight ( high cost, not very advise)
2) T/T 30% deposit in advance, T/T 70% before shipment.
3) We accept TT, L/C etc. according to which one is convenient for you!

FAQ

1.Q:Are you a factory or trading company?
A: We are a factory since 1996.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Meizhou City, Guangdong Province, China, near to the Guangzhou City, Shenzhen City and Jieyang City. You can fly to Meixian airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:What is the material of your products?
A: The material is Steel A3. We can also choose material as customers’ requirements.
4.Q: What is the warranty time of your products?
A: The warranty time is 12months from the date of the commissioning, or 18months from the factory delivery, the first shall prevail. All quick-wear spare parts will be provided for free within the warranty period. After the warranty, we also can ensure that you can buy any necessary spare parts with favorable price within 5 years.
5.Q:How does your factory do regarding quality control?
A:"Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001:2008 authentication.
