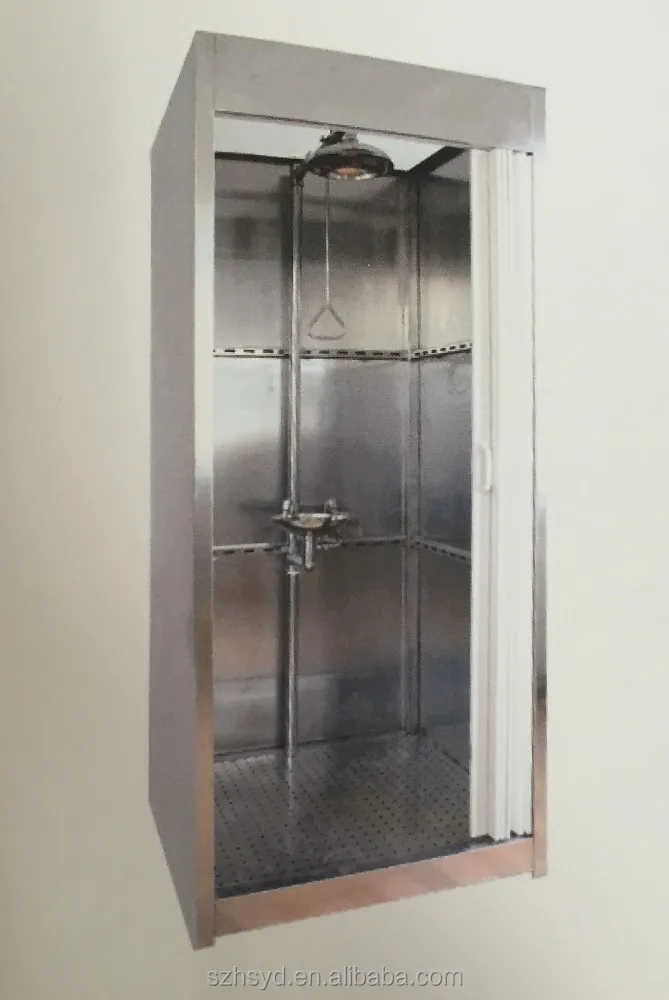

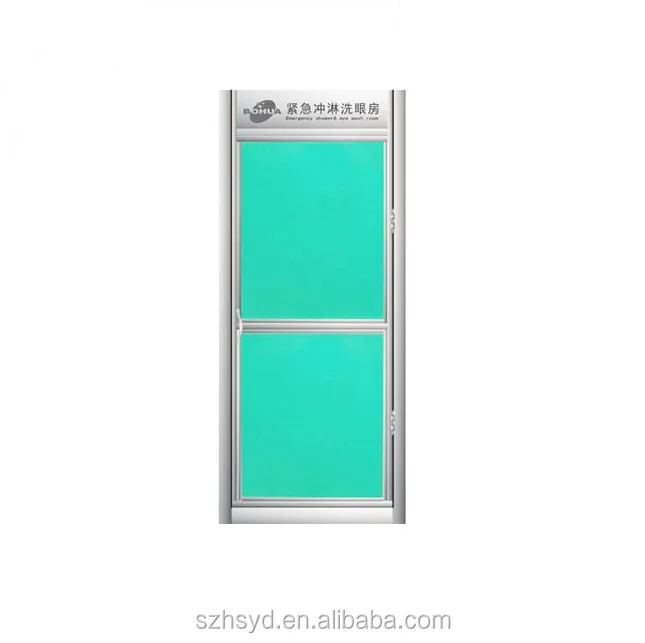

Histay stainless steel Enclosed Emergency safety equipment eyewash and shower room for eye wash and shower

Product Overview

Description



Histay stainless steel Emergency safety equipments shower room for eye wash and shower



Material:	304 stainless steel
MOQ:	1PC
Custom Service:	OK



Suitable  for purification plant installed in the electronics industry use,

and centralized sewage treatment needs to be the venue.

Shower room with shower and eye wash spray nozzle for washing contaminated body parts.

Shower, the bottom plate and sewerage catchment interfaces.



Application: electronics, clean room, petroleum, petrochemical, chemical industry, etc.



Original Water

Drinking water or clean water



Hydraulic Pressure and Flow Rate

If the pressure exceeds 0.2-0.6MPA, please install the relief valve. Shower flow rate: 120~180L/Min, exceeding ANSI standard 75.7L/Min; eyewash flow rate: 12~18L/Min exceeding ANSI standard 11.4L/Min



Technical Parameter

l  External Dimensions: W1000mm*D900mm*H2360mm

l  Main Material: 304 stainless steel

l  Valve: 304 stainless steel ball valve. It can be activated within 1 second.

l  Supply 1 1/4 FNPT

l  Waste: 1 1/4 FNPT



Features:

l  Inserted spring ball can help drain off waters inside the pipe. Water contacting the air directly in the eyewash head are easily oxidized and decontaminate the water inside the pipe and cause secondary damage on eyes when using the device. It’s necessary to drain off the waters inside the pipes.

l  Soft dust proof covers fixed type eyewash dust proof cover can avoid missing and protect eyes from secondary damage when accidents happens

l  Funnel type base help collect and drain off the waste water.



How to use it?

1.       Open the emergency shower booth door by pushing it

2.       Push the hand board to activate eyewash system. Eye rinsing water will come out within 1 second. After using, pull back the hand board to close the eyewash valve and reset the dust cover.

3.       Pull down the shower lever to activate safety shower system. Body washing water comes out within 1 second. After using the shower lever must be re-set.







1.FOB shanghai .

2.Term of payment:30%deposit,70%balance before ship.



About sample

We are willing to supply sample to customer test the products quality

Sample fee and shipping cost, buyer afford,



About Quotation Validity Date

Our company quotation validity time is 30 days from the quotation day.



About Payment Term

Our company accept T/T, L/C, D/P and another payment term



About Production Time

Different products and quantity have different production time
