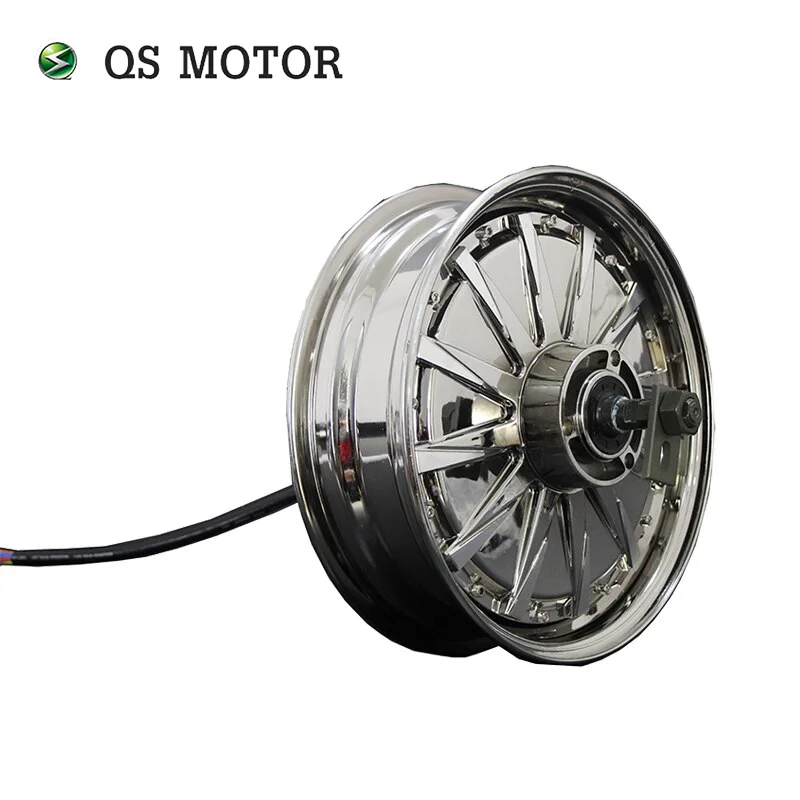

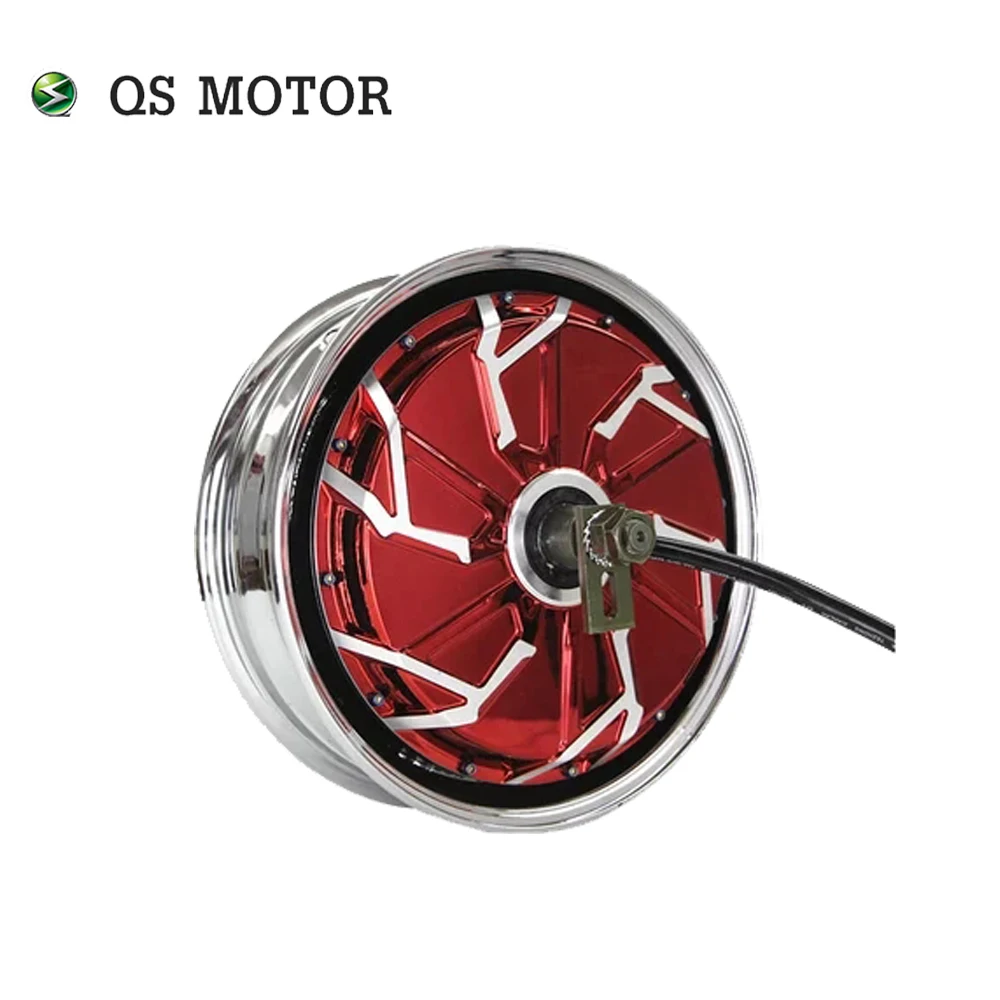

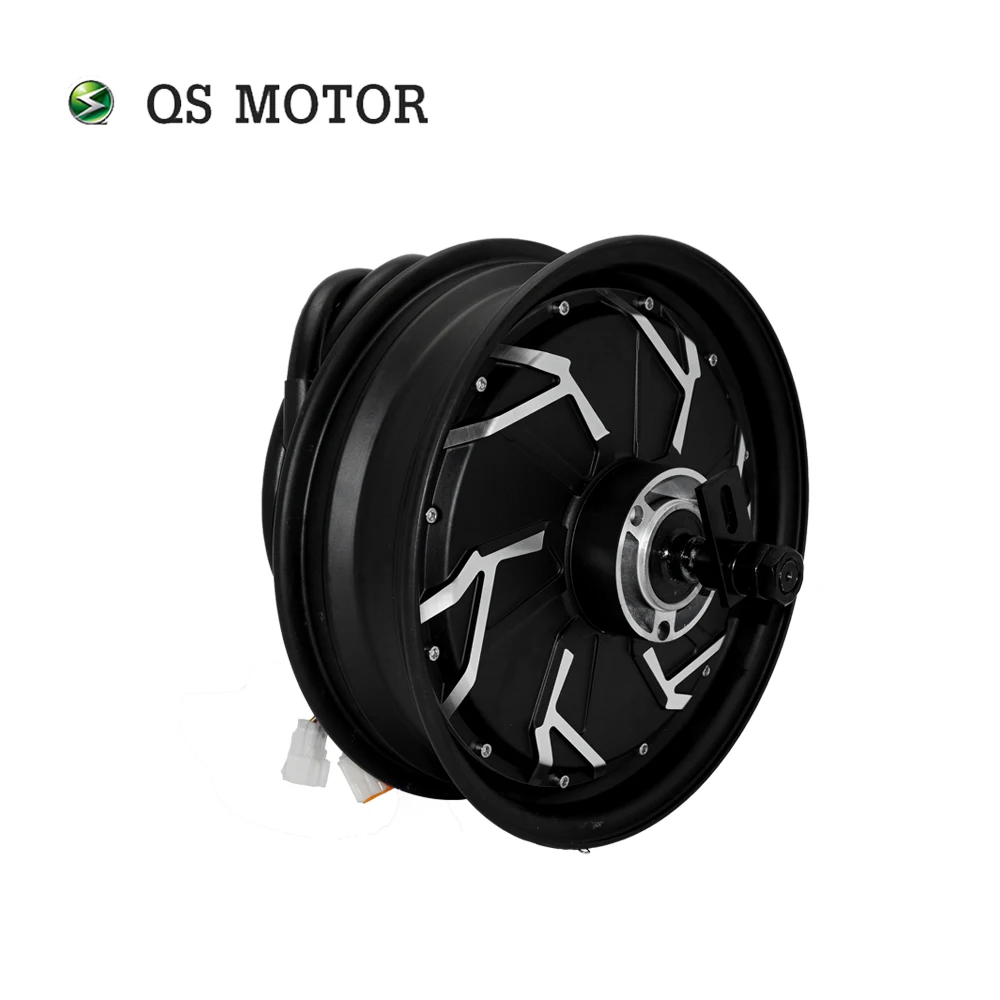

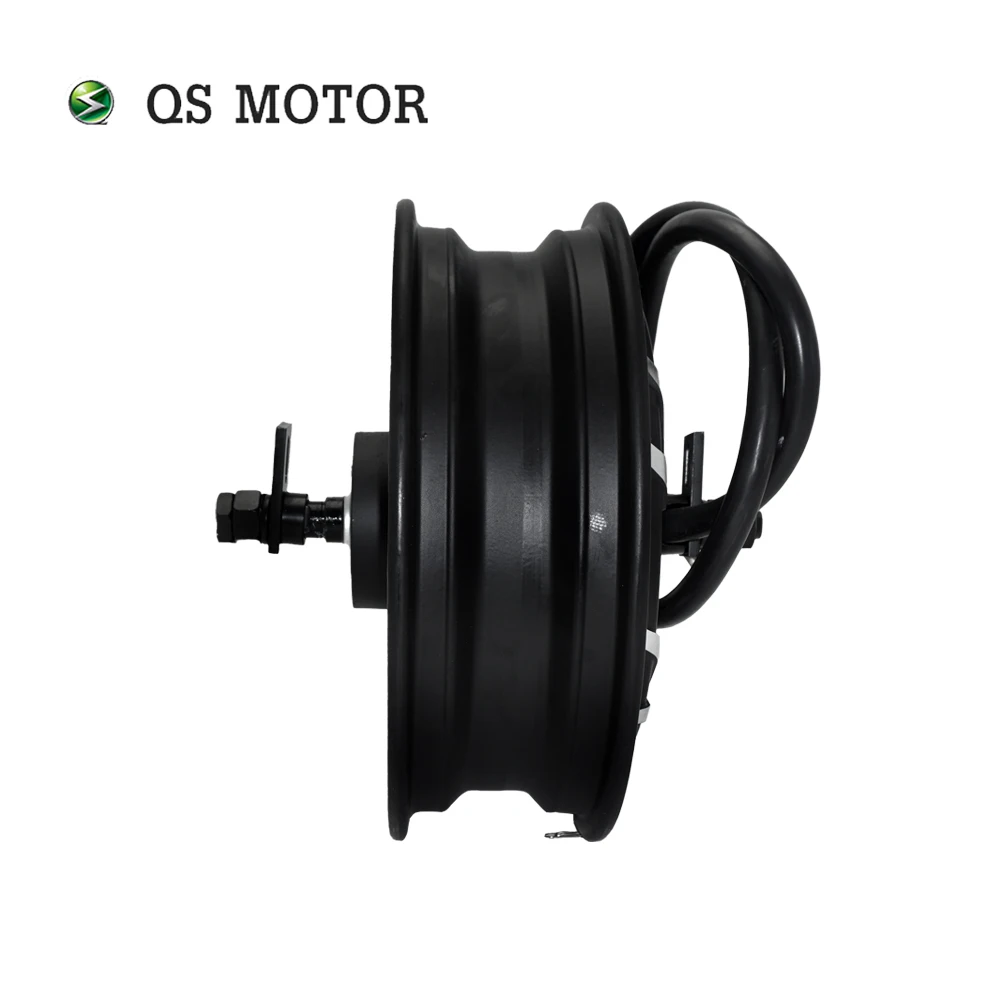

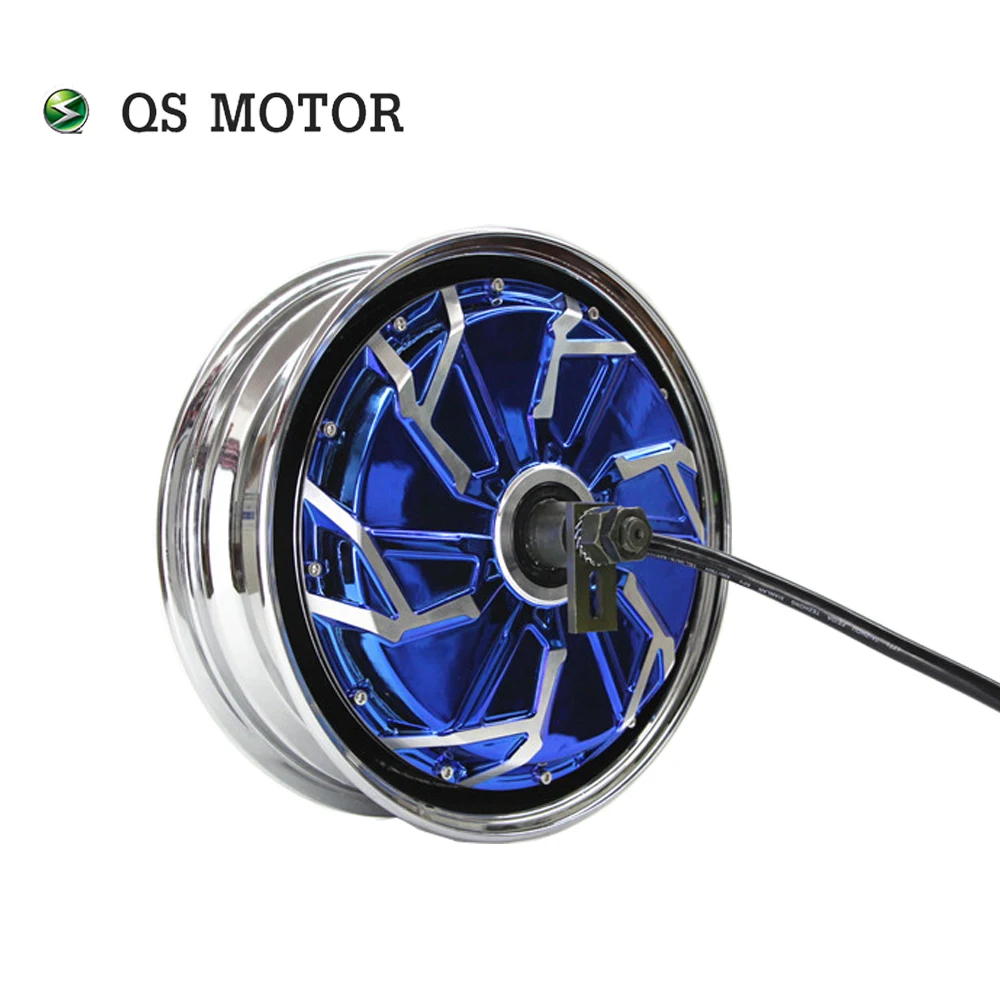

QS 3000W 260 12*3.5inch V4 85kph 260 40H Electric Scooter Motorcycle Hub Motor High efficiency
- Category: >>>
- Supplier: Taizhou Quanshun Motor Co. Ltd.
Share on (60285199021):
Product Overview
Description
QS 12inch 260 3000w V4 80kph~100kph fast speed electric in wheel moped hub motor for scooter
PS.1). Above quotation base on 260 12inch electric scooter wheel hub motor, 48V~72V.
2). Above configuration is suggested for mass production,
for EV enthusiast, V2 & V3 motor could be over-voltaged to gain more speed/performance (customizable).

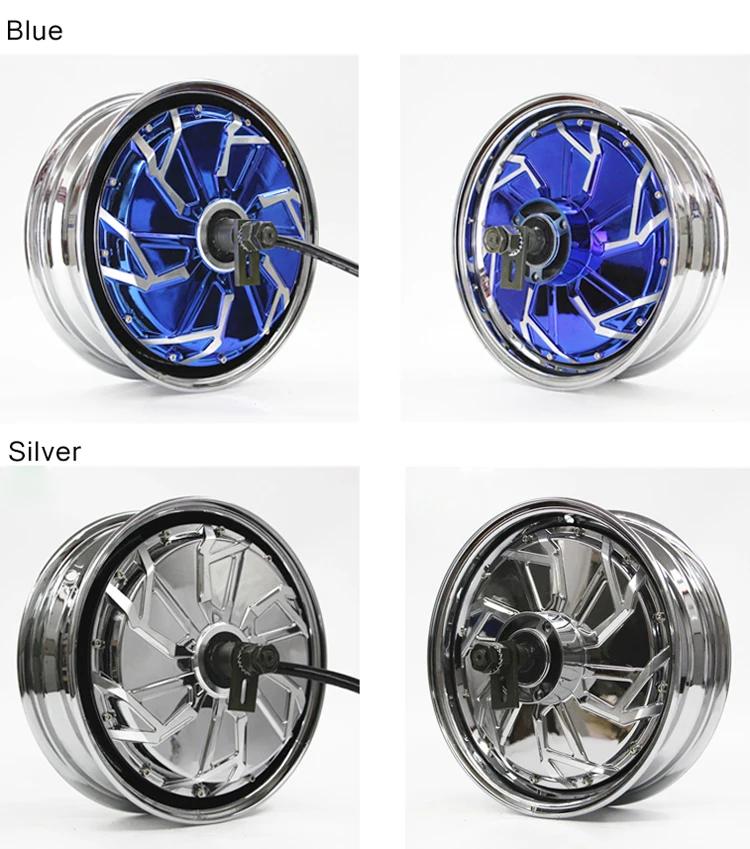

Electricplating cover, additional cost is $26.0/pcs
Key Features
1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.
2). It could be installed in the rear to save more space for battery.
3). Support regenerative braking
4). High efficiency: 85~92%
Product description
1. Genearlly Spec:
Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor
Brand: QS Motor, QSMOTOR
Motor Design: Double axle with 12inch moped rim (integrated)
Rim Size:12x3.5inch(Narrow Tire as default), matched tire:130/90-12, 120/70-12
Magnet Height: 40mm, 16 pole pairs
Stator: Aluminum Core
Rated Power: 3000W
Speed: 50kph-106kphKPH, pls see below speed list.
Work voltage range: 48V-96V, will be 72V as default.
Max Torque approx 207.0N.m
Thermic Probe: KTY83-122 (as default, optional)
Max Efficiency approx 88%
Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58mm
Drop-outs: 200mm
Dual Halls with waterproof connectos(One for spare, in case of damage)
10mm² Phase Wire
Waterproof Grade: IP54

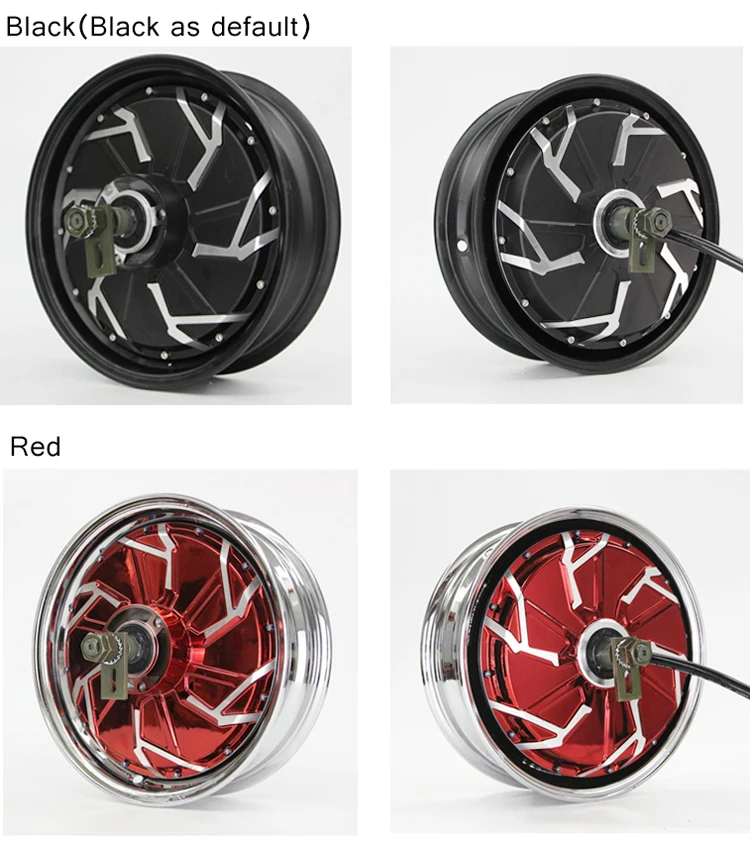

Color: Black (As default)

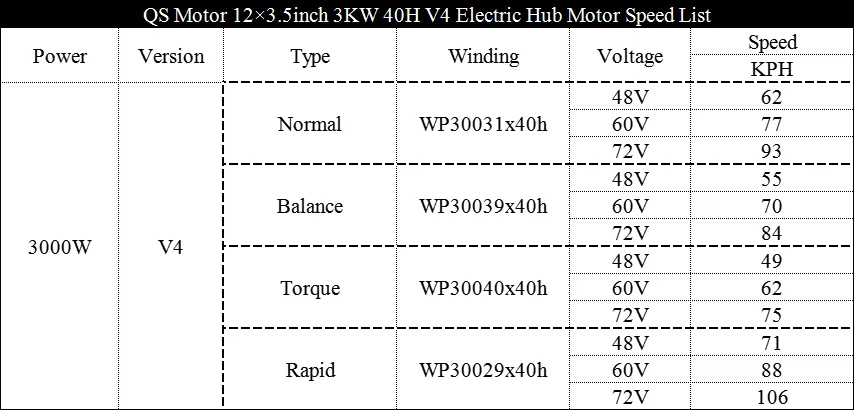

2. Speed List

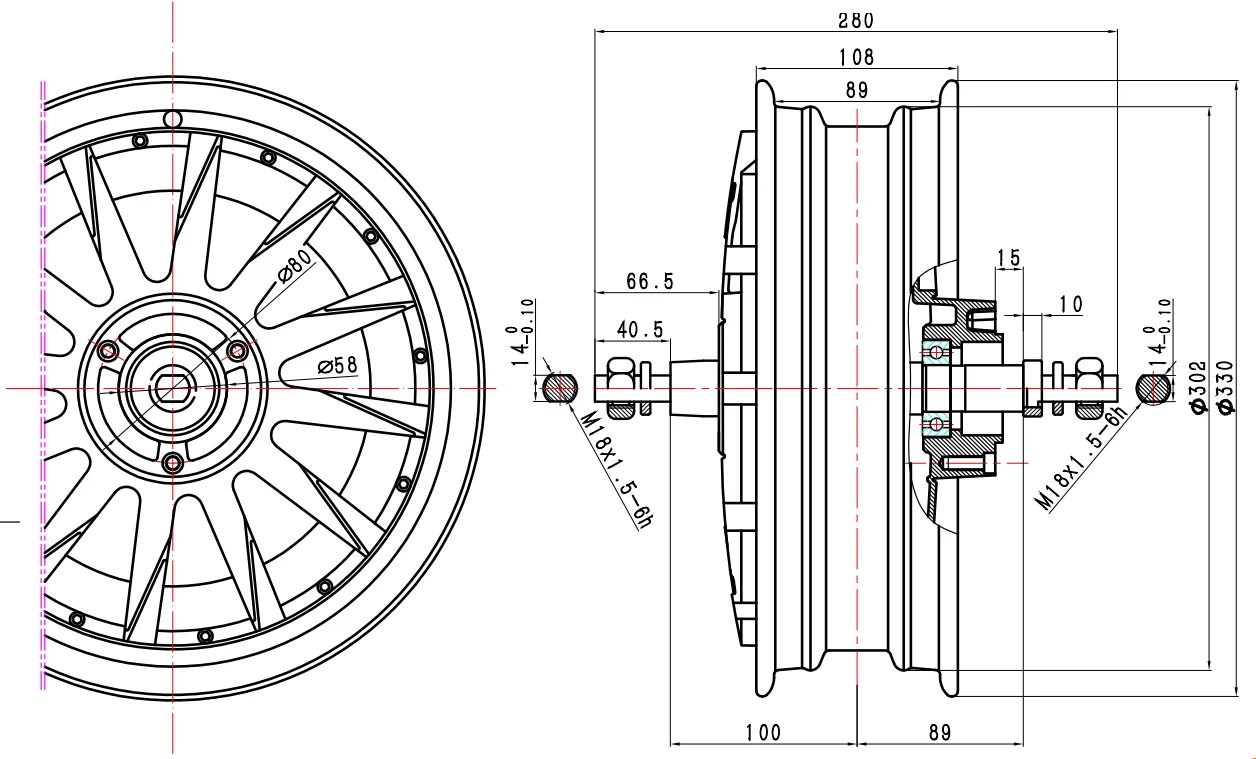

3. Drawing

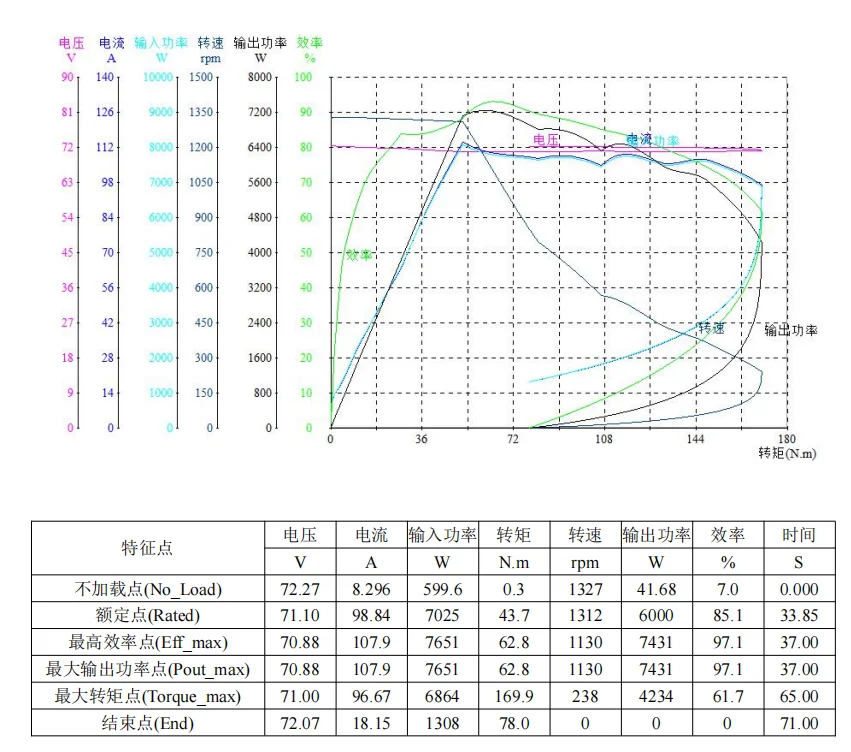

Test report
12*3.5 3kw V4 + Far driver SIAYQ72120 controller @1300RPM
Please noted:
Optional appearance, drawing, performance curve/test report are available.
If you need more technical information, please feel free to contact us.
We will give you reply in 12hours.
