5 ton light duty yellow paint workshop steel jib crane
- Category: Jib Cranes >>>
- Supplier: Henan Dongqi Machinery Co. Ltd.
Share on (60285264073):
Product Overview
Description
5 ton light duty yellow paint workshop steel jib crane
Product Description
5 ton light duty yellow paint workshop steel jib crane
Product Feature
light duty yellow paint workshop steel jib crane product feature
1. Light Dead Weight
2. Small Occupied Space
3. High Working Performance
4. Easy Operation
5. Safe and Reliable
6. Low Operation and Maintenance Costs
In general
Reasonable design, strong rigidity
Adjusting speed with converter function, steady travelling
Choosing according to different needs
Mechanical Feature of light duty yellow paint workshop steel jib crane
Material Q235B or Q345B
Rectangular tube legs or welded by superior steel plates
10.9 class High tension bolts mounting between girder and legs
Trinity-drive system or traditional drive by motor and reducer
Smoothly moving, effectively braking, long service life
Choosing according to different needs
Electrical System of light duty yellow paint workshop steel jib crane
Trolley conductor or angle steel conductor power supply
All hoist and crane movements are independent and can be run simultaneously.
Electric hoist mobile power supply is constituted by flate cables or special cables, galvanized slippery course and small cable pulley
Smoothly moving, beautiful appearance
Choosing according to different needs
Safety Protection of light duty yellow paint workshop steel jib crane
Rain cover for outside hoist, driving units, electrical cubicle
Warning indicator: anti-collusion device and flashing lights and warning sound.
Parameter & Drawing
Parameter of light duty yellow paint workshop steel jib crane
| BZ Type 5 ton light duty yellow paint workshop steel jib crane | ||||
| Lifting height | h(m) | 4 | 4.5 | 5 |
| Effective radius | R(m) | 4.5 | 5 | 5.5 |
| Lifting speed | m/min | 8 | 8 | 8 |
| Travelling speed | m/min | 20 | 20 | 20 |
| Rotating angle | ° | arbitrary | arbitrary | arbitrary |
| Rotation speed | r/min | 0.7 | 0.7 | 0.7 |
| Overall height | H(m) | 6.052 | 6.522 | 7.022 |
| Overall length | L(m) | 5.44 | 5.94 | 6.44 |
| Total weight | kg | 4020 | 4224 | 4430 |

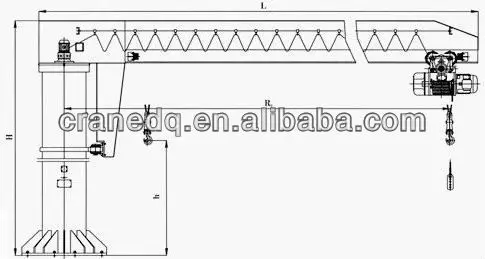

Drawing of light duty yellow paint workshop steel jib crane

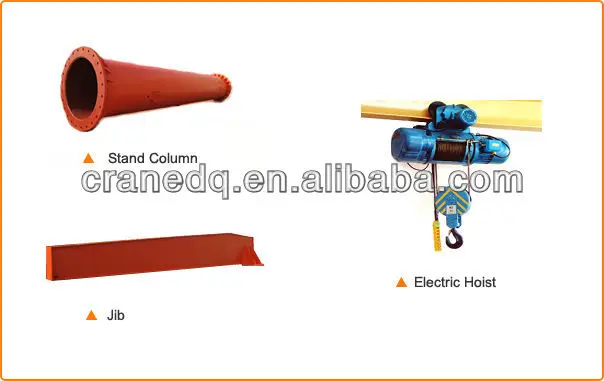

Stand Column:full numerical control blanking ensures smooth camber curves.shaped grid boxing technology ensures small deformation.
Electric Hoist:high quailty perfect hoist.traveling model can be single speed or double speed.flexible structure meet your different request.
Jib :using high quality Q235BI-type steel.standing large yield stress
The production process of light duty yellow paint workshop steel jib crane
The packing and shipping of light duty yellow paint workshop steel jib crane
Certifications
Company Information
HENAN DONGQI MACHINERY CO., LTD is a Sino-New Zealand joint venture, which is located in Changyuan, the Chinese crane hometown and covers an area of 240,000 square meters; total investment is 240 million RMB, and registered capital 108 million RMB. There are over 3600 employees, among them 500 technicians,and over 70 senior engineers at present. All kinds of manufacturing and detection devices total 2000 sets. Our company establishes research and development laboratories based on technical backbones, applies high-end design software and high scientific and technological achievements to develop products meeting market demand and market segmentation. The company brings in advanced European technology which allows kinds of nonstandard design to meet various work conditions.We are committed to providing the beat design plan and customize distinct cranes with high technology and economic index.
Customer visit
We have formed a partnership with more than 80 companies all over the wrold,such as Pakistan, the United Kingdom,India,Australia,Saudi Arabia,Bolivi and so on.The customers were conquered by our strength.
2015 CTT in Russia
Order process of light duty yellow paint workshop steel jib crane
FAQ
1.Is your product customized?
Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick and accurate quotation.
2.What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.
3.How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!
4.What’s the max lifting capacity of the crane?
Thanks for your question. The max Lifting capacity of our standard crane are up to 450 ton. If this can’t satisfy your working requirement. Please contact us for special customized.
5.The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
6.Can the crane work in hazardous environment?
Thanks for your question. This type product is just for application in general manufacturing workshop.For hazardous environment, please consult our professional sales manager.
7.Do your side can provide lift tools?
Thanks for your question. Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
CONTACT US
Notice:
As this kind of crane is customized, in order to offer you most suitable design and best solution, please confirm following information when you send inquiry.
1. lifting capacity.
2. span length.(rail center to rail center)
3. lifting height.(hook center to ground)
4. Have you installed the rails? Do you need us supply the rails? How long is it?
5. Power supply: Voltage.Hz.Phase.
6. Working condition: which material to lift? temprature?
7. Would be better if you have drawings of your plant.
Don't hesitate to contact us!
