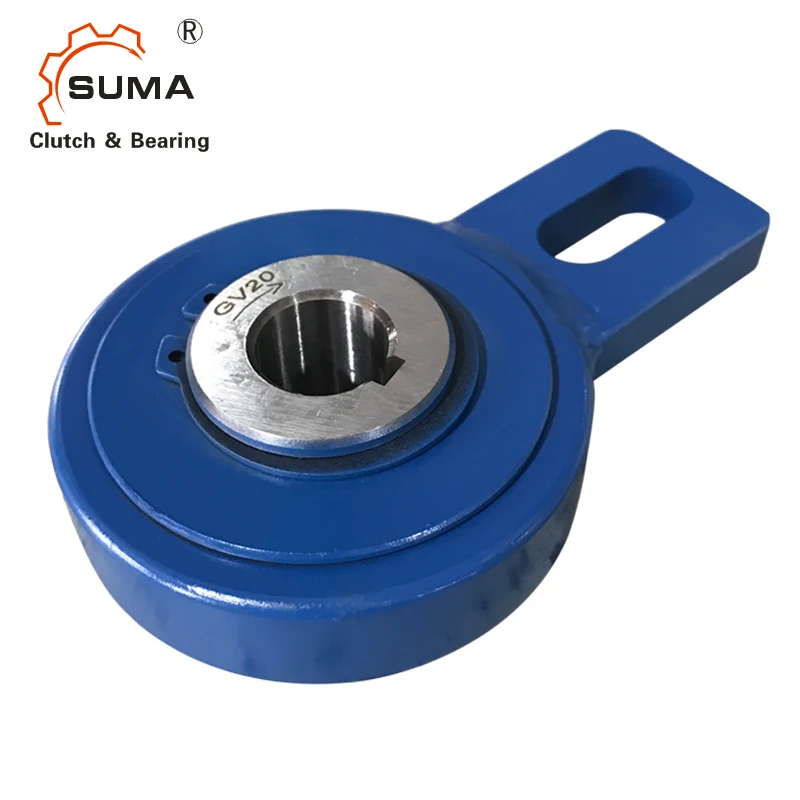

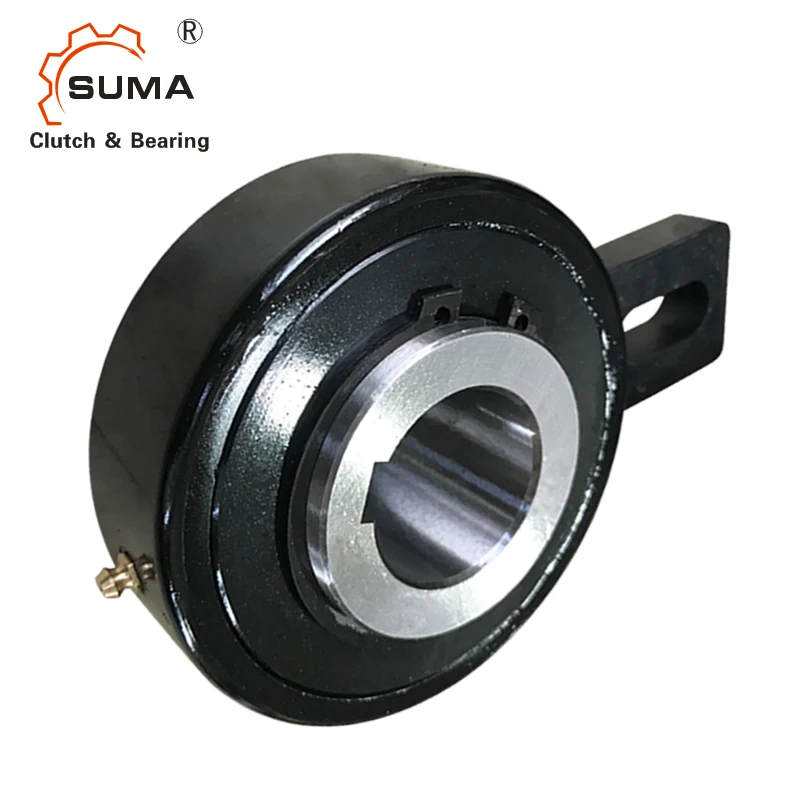

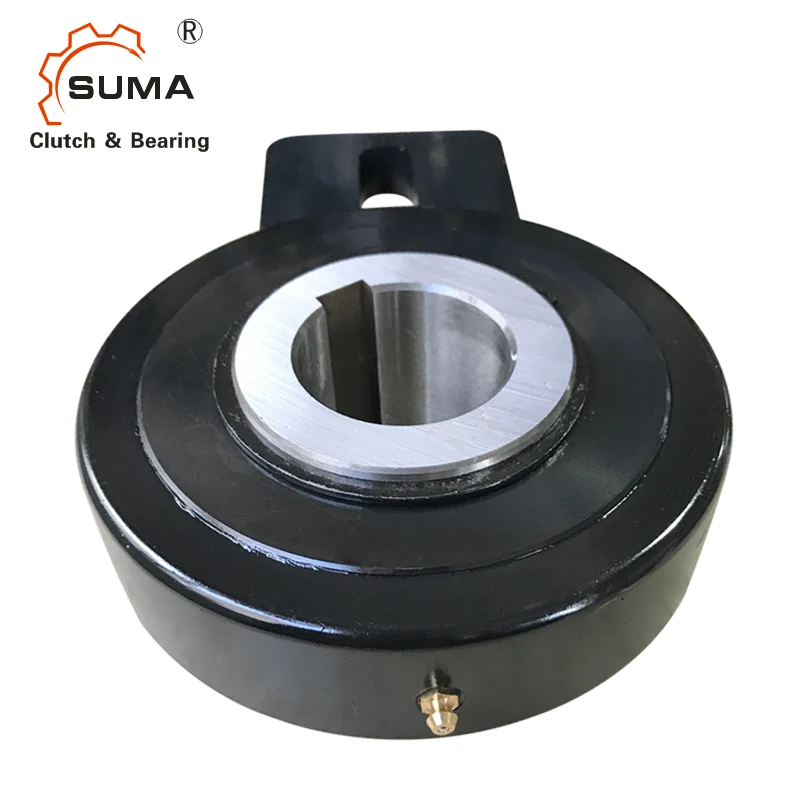

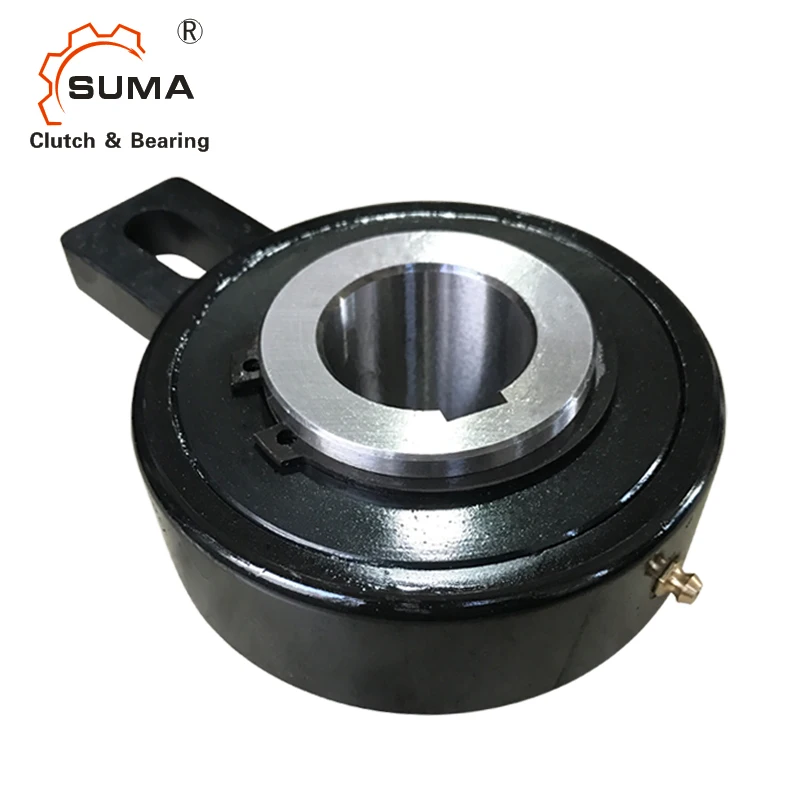

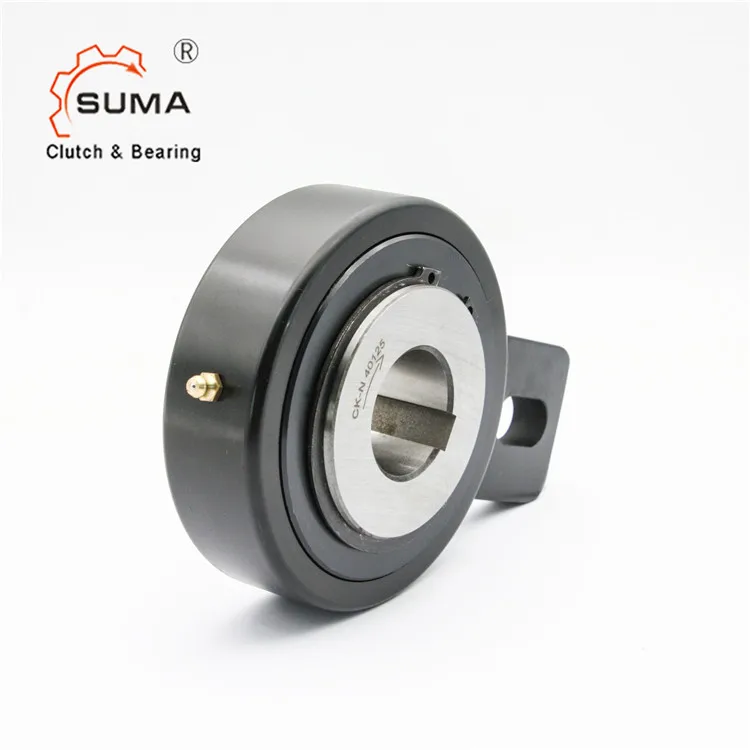

RSBW 50 RSBW50 One Way Sprag Cam Clutch Backstop Bearings
Product Description
Features of RSBW40 Sprag freewheel clutch
Structure: RSBW one way clutch bearing is a sprag type freewheel. It is self-contained, centered by plain bearings for low rotational speeds, and sealed using shield protected metallic labyrinth seals.
Application: Primarily used as backstop
Package detail: radial spherical plain bearings are delivered grease lubricated, ready to install in a vertical or horizontal position.
Caution: the torque arm and bearings must not be pretressed.
Product name | One way clutch bearings |
Model | RSBW50 |
Torque capacity | 1295Nm |
Overrunning speeds | 300 min -1 |
Inner diameter | 45mm |
Outer diameter | 132mm |
Material | GCr15 |
Thickness | 52mm |
Weight | 4.6kg |
Application | Fishinery machinery, Reducer, household appliances |
Package | Carton Box |
Payment terms | TT, L/C, D/A, D/P, Western Union |
Delivery time | 5-7 days after order confirmed if no stock |
Catalogue of RSBW45 One way clutch bearings for your choice
| Type | Size | Torque | Overrunning Speeds | DIMENSIONS | Weight | |||||||
| RSBW | dH7 | TKN1) | nimax | D | L 1 | F | E | B | N | L | bH11 | |
| [mm] | [Nm] | [min-1] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | |
| 20 | 375 | 400 | 106 | 35 | 113 | 102.5 | 40 | 35 | 15 | 18 | 2 | |
| 25 | 606 | 400 | 106 | 48 | 113 | 102.5 | 40 | 35 | 15 | 18 | 2.6 | |
| 30 | 606 | 400 | 106 | 48 | 113 | 102.5 | 40 | 35 | 15 | 18 | 2.5 | |
| 35M | 375 | 400 | 106 | 35 | 113 | 102.5 | 40 | 35 | 15 | 18 | 2 | |
| 35 | 606 | 400 | 106 | 48 | 113 | 102.5 | 40 | 35 | 15 | 18 | 2.4 | |
| 40 | 1295 | 300 | 132 | 52 | 125 | 115 | 60 | 35 | 15 | 18 | 4.6 | |
| 45 | 1295 | 300 | 132 | 52 | 125 | 115 | 60 | 35 | 15 | 18 | 4.5 | |
| 50 | 1295 | 300 | 132 | 52 | 125 | 115 | 60 | 35 | 15 | 18 | 4.5 | |
| 55 | 1295 | 300 | 132 | 52 | 125 | 115 | 60 | 35 | 15 | 18 | 4.4 | |
| 60 | 2550 | 250 | 161 | 54 | 140 | 130 | 70 | 35 | 15 | 18 | 6.5 | |
| 70 | 2550 | 250 | 161 | 54 | 140 | 130 | 70 | 35 | 15 | 18 | 6.4 | |
| 80 | 4875 | 200 | 190 | 70 | 165 | 150 | 70 | 45 | 20 | 25 | 9.9 | |
| 90 | 4875 | 200 | 190 | 70 | 165 | 150 | 70 | 45 | 20 | 25 | 9.8 | |
Detailed Images
Company Information
Changzhou Suma Precision Machinery Co., Ltd is a manufacturer specialized in Producing Various One way bearing, One way clutch, Backstop clutch, Overrunning clutch, Needle roller bearing and other bearings with high technology.
Production Flow 1
FAQ
Q: How do you pack the goods?
- Total less than 25 KG : Each in white box + 19*18*9cm box + 29*28*19CM carton box
- Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet
Q: Can i get the samples from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the goods in time?
- Small items: In stock.
- Medium Items: 10-15 Days
- Big items: 20-25 Days
