DFQ 100W Portable Borehole Drilling Machine Price Drilling for Groundwater 100m DFQ 100W Bore Well Drilling Rig 105 150mm Diesel
- Category: >>>
- Supplier: Zhengzhou Defy Mechanical & Electrical Equipment Co. Ltd.
Share on (60285461469):
Product Overview
Description
Product Description

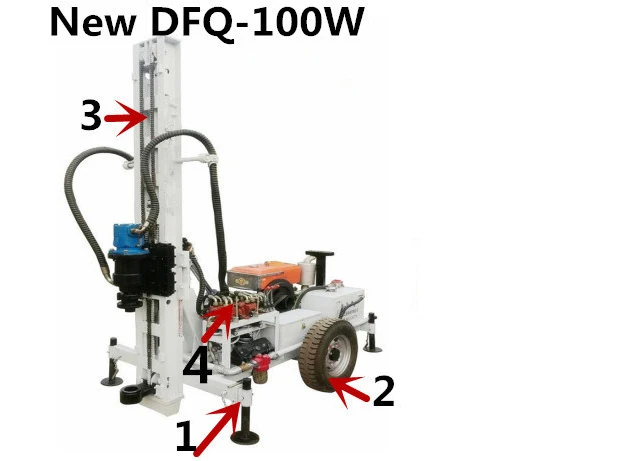

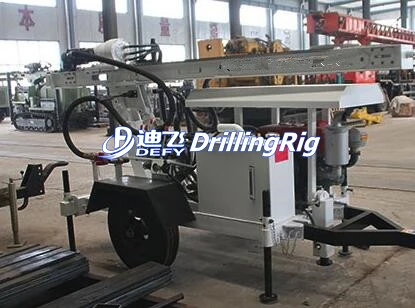

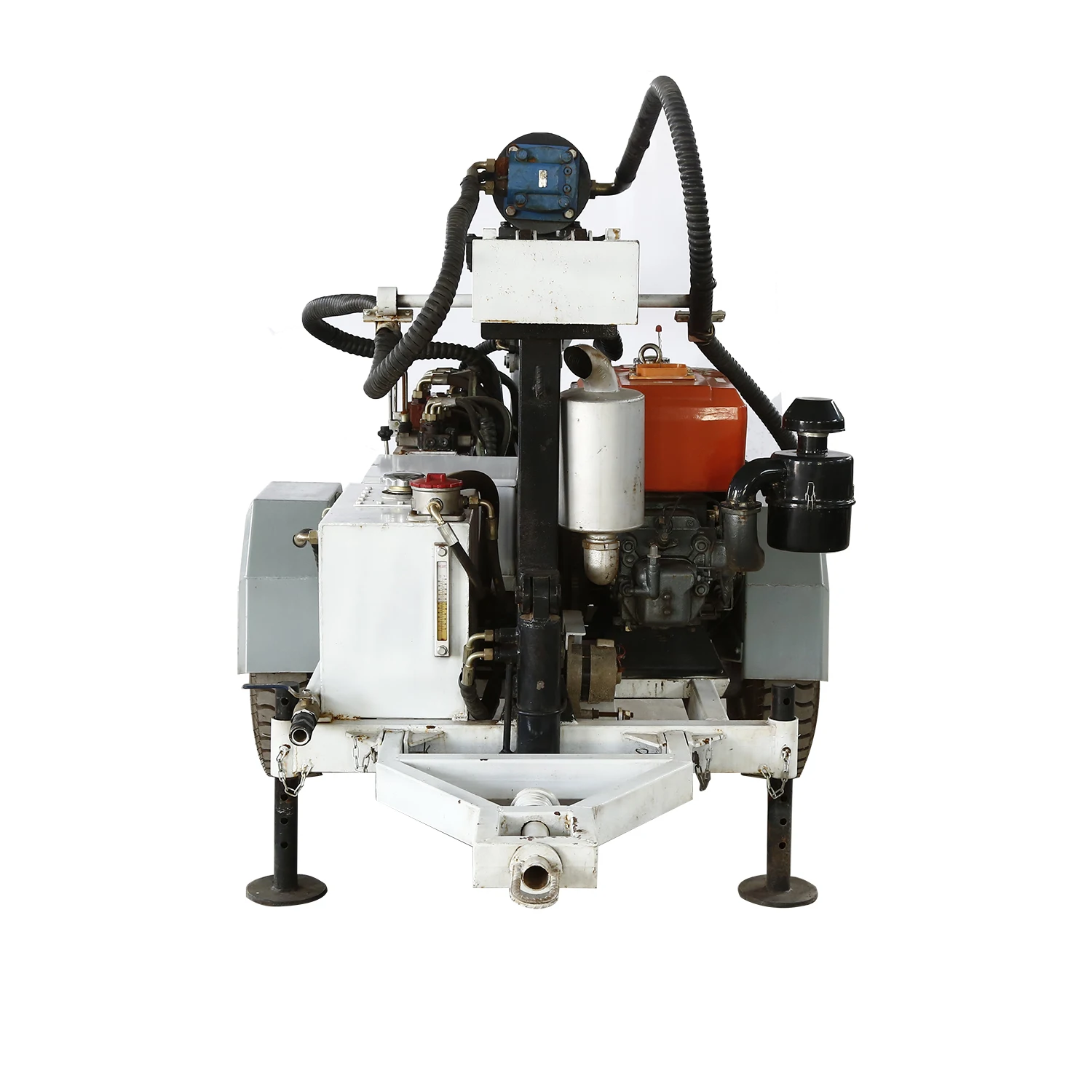

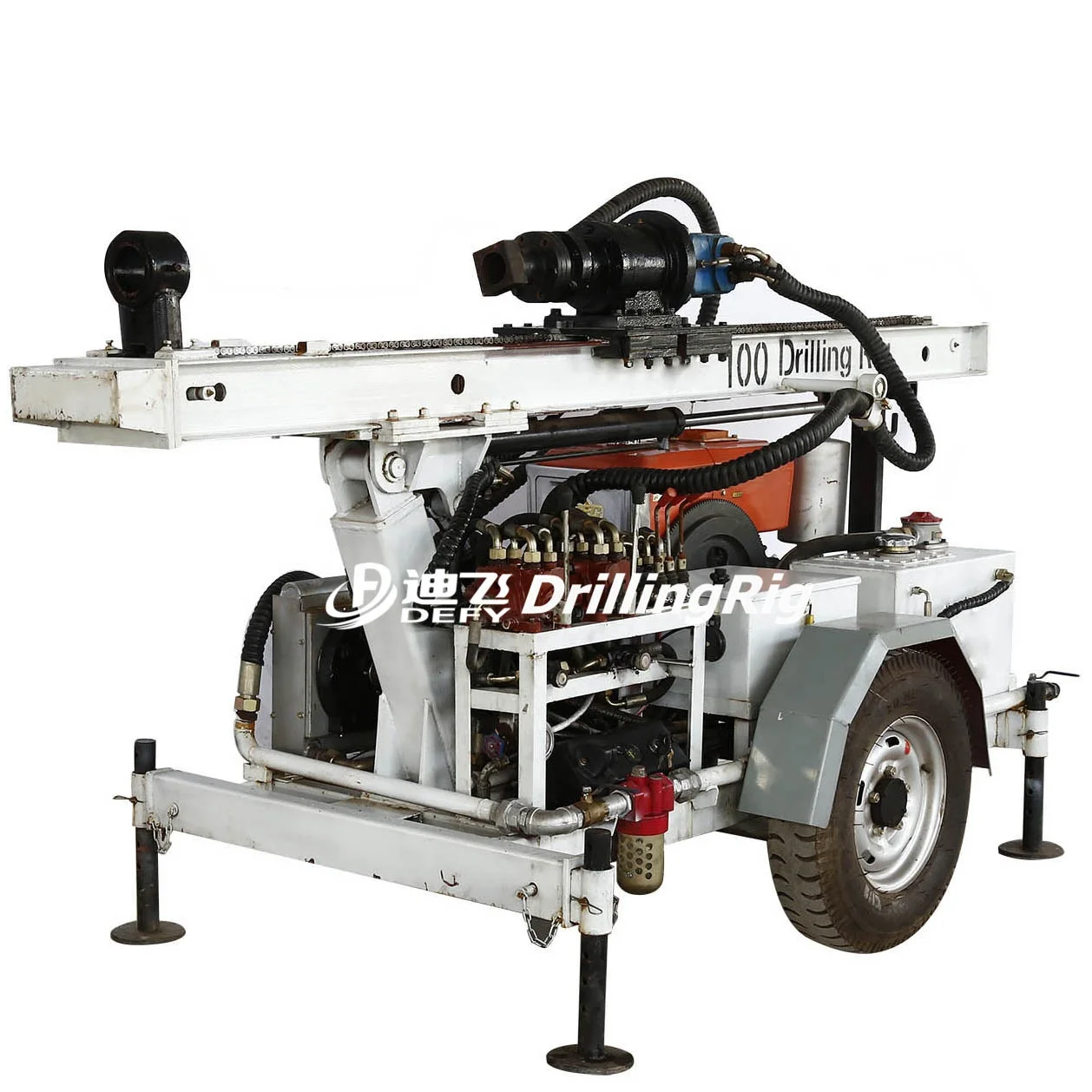

DFQ-100W Portable Borehole Drilling Machine Price
It is widely used for water well drilling,geothermal air conditioning project and other boreholes,
especially applicable to mountain area and rock formation water engineering.
No. | Item | Parameter |
1 | Drilling caliber | Φ105-150mm |
2 | Max. drilling depth | 100m |
3 | Diameter of drill pipe | Φ60,Φ63.5 |
4 | Gas consumption | 15~18 m³/min |
5 | Power | 24Kw/2300rpm |
6 | Walking speed | 0~1.5 Km/h |
7 | Leg cylinder stroke | 600 mm |
8 | Propulsion | 5.0 tonf |
9 | Lifting force | 8.5 tonf |
10 | Fast 135 rpm | |
Slow 91 rpm | ||
11 | Rotary torque | 1050N.m |
12 | Weight | 2200 Kg |
Main Features
1. Fully hydraulic controlling system,highly automated with high working efficiency.
2. Powerful cylinder,strong propulsion and lifting force for drilling deep holes.
3. Innovative embedded idler pulley structure,carriage stroke is increased to handle the drill pipes more easily.
4. Centralized control of the hydraulic control console, convenient to operate.
5. Chassis can be wheels ,crawler or tractor for choice.

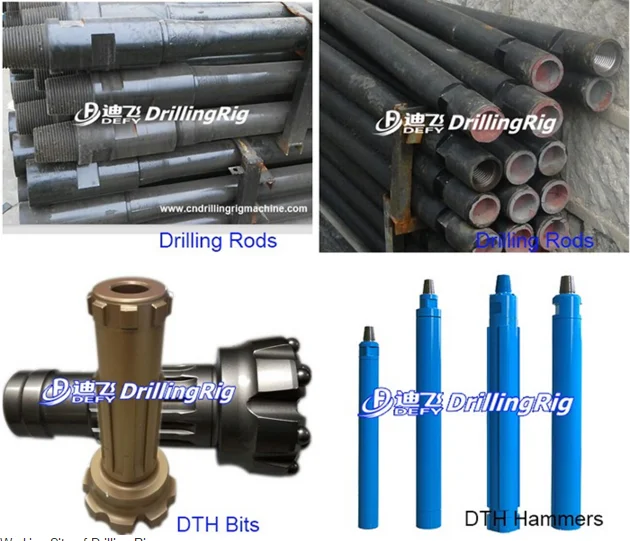

6. DTH Hammer rotary drilling method,making it more easily and efficiently to drill Rocky ground.
7. Works with air compressor and mud pump.
Packing & Delivery
DFQ-100W and air compressor can be packaged in one 40 feet container
DFQ-100 Working site
