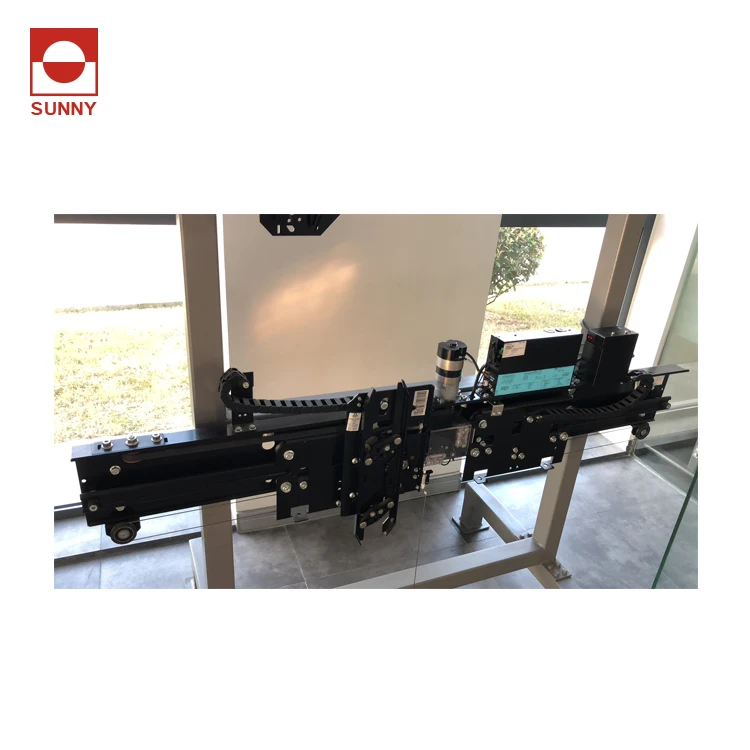

Automatic 2 Panel Elevator Door Operator Lift Control System (SN CORE)

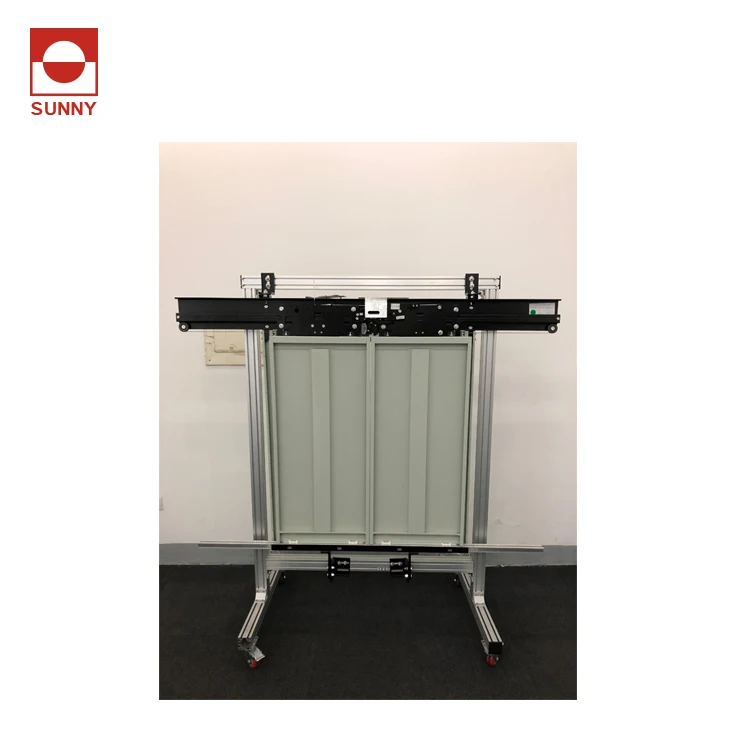

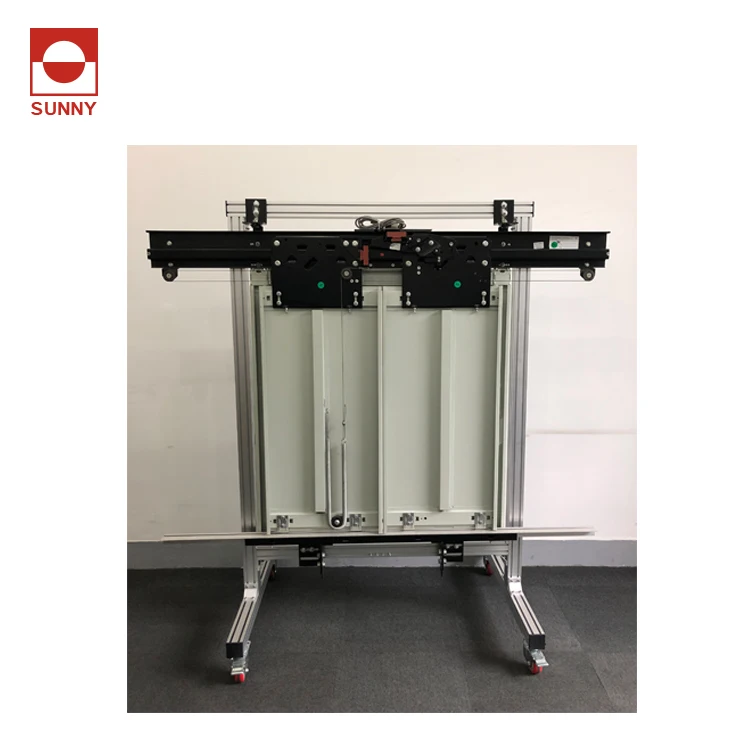

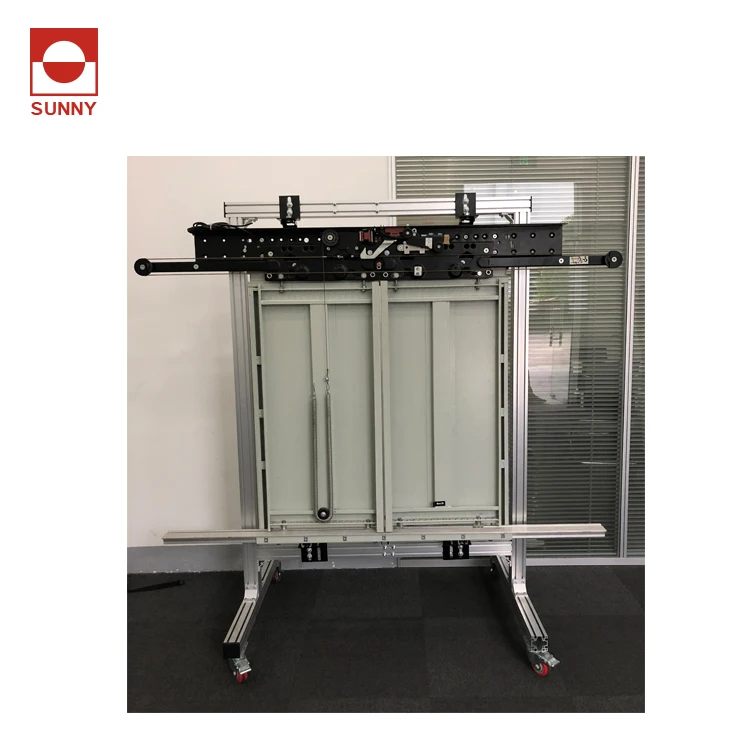

Landing door +door panel+ door jamb+sill
SAFETY
· Anti-dropping hooks on the door panel for sill (patented) and back of truck
PERFORMANCE
· Bearings mounted on all truck, synchronisation and counter rollers
· Arc-shaped, double rail guiding profile
· High-performance PA landing lock rollers
RELIABILITY
· Trapezoidal rail support increases radial force resistance
· Black electrophoresis treatment for all key parts in the landing door hanger
EASY INSTALLATION
· 3D adjustable interface to panels
· Single adjustment for lock rollers
· Light weight and reduced number of parts for fast installation
· Asymmetric bottom shoes
· Integrated reclosing device
· Hook for mechanism
EASY MAINTENANCE
· Most components are assembled with screws and replaceable including brackets on side frames
· All components are easily accessible

PRODUCT PARAMETERS & RANGE

Door Type	C2
Sill Depth	40  mm
Side Frame Dim.	50  mm × 40  mm
Top Frame Dim.	50  mm
Options	Grout Guard
Sill Load	400 Kg
Lift Speed	up to 2.5 m/s

CO mm	700	800	900	1000
CH mm	2000-2100

CO = Clear Opening
CH = Clear Height
