DC 80s DC drum gear or motor for belt or roller conveyer

Product Overview

Description

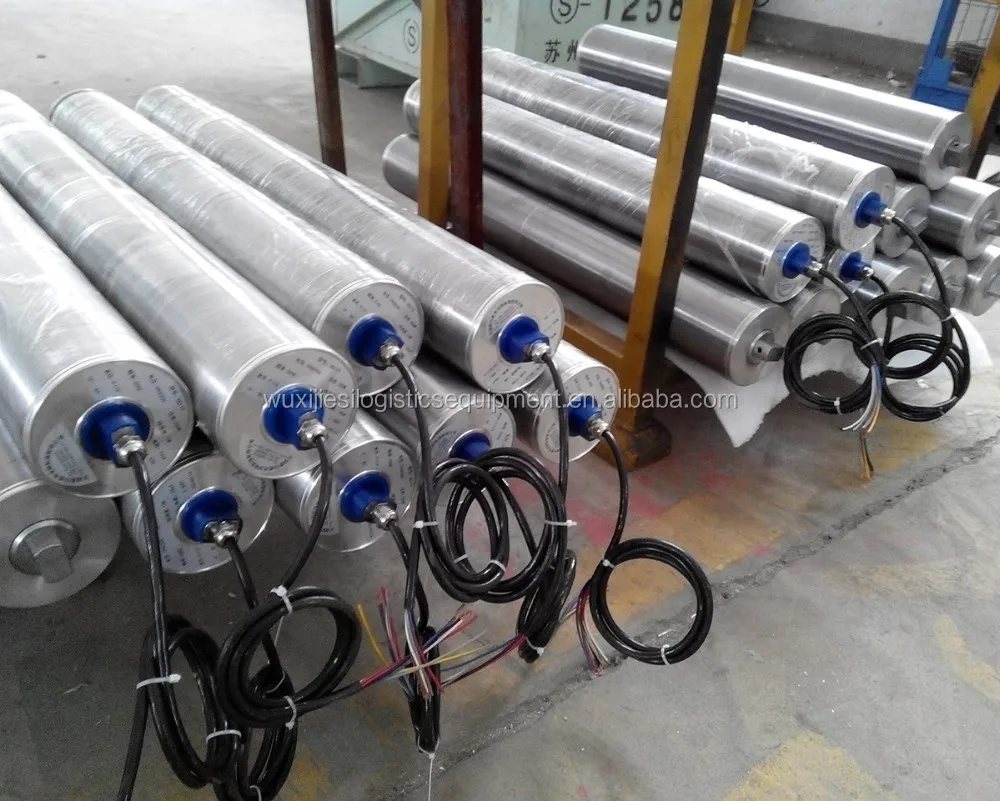

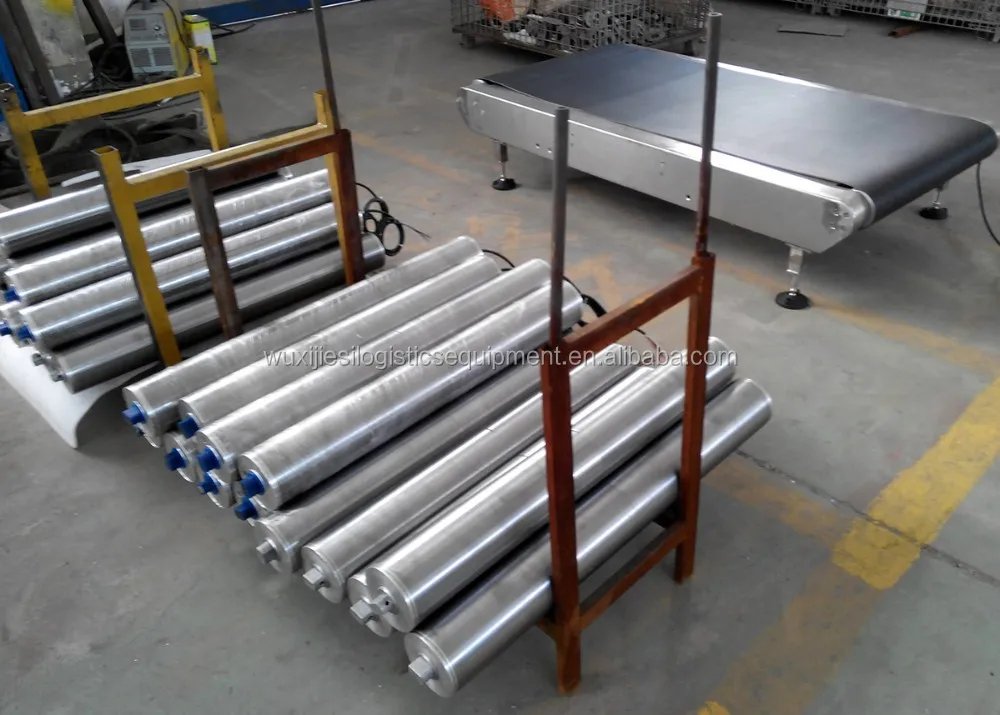

Name:  DC 80s-DC drum motors for belt conveyer

Introduction:

1.Diameter:Φ82.5mm,24V DC voltage with standard power 44W ;  It is ideal for small conveyor drive source.

2.It  adopts planetary gearbox, plastic alloy gear and metal gear collocation mixed use. It runs very quietly for most occasions.

3.Tube material:carbon steel or SUS304

4.It is mainly used in X-ray machine, supermarket scanners, and other confidential equipment .



Standard configuration:

Special surface treatment: rubber, RL can be custom made



Two seal-protection class: IP 66



 Bearing seat: cast aluminum



 Shaft end cover : cast aluminum



 with brush DC voltage of 24V, more secure, 300 percent increase starting torque



 Insulation grade of motor winding: E



 It uses straight and curved universal cable outlet,  Cable length:1.25 m



 20 times per minute, start and stop operation



 It is only used for horizontal installation,if necessary, vertical or inclined installation, please consult.



 Lifelong free maintenance free, oil lubrication.



 Health grade motor roller can be filled with food grade certified oil



>>Drawing





>>Parameter list





>>Picture



If you are interested in this product,please do not hesitate to contact us,

Sales manager Robert will give you detail information promptly.
