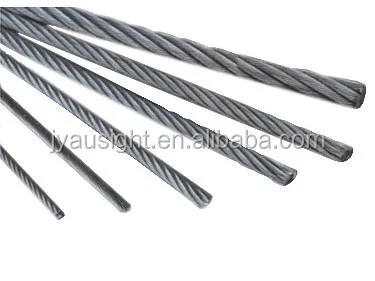

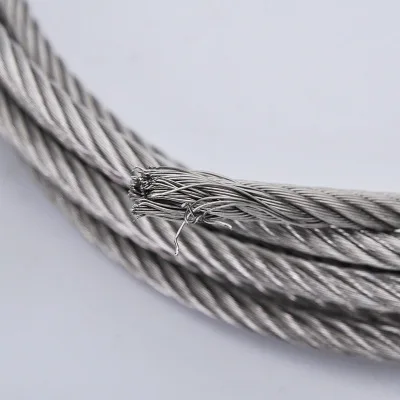

304/316 stainless steel wire rope for control cable
- Category: >>>
- Supplier: Jiangyin Ausight Metals Co. Ltd.
Share on (60286269112):
Product Overview
Description
Product Description
Surface:ungalvanized and galvanized
Standard:ISO,GB/T,BS,DIN,JIS,ASTM,AS,AISI.
T/S:1570MPa-2160MPa
Size:5mm-80mm
Steel Grade:steel
Standard:AISI,ASTM,BS,DIN,GB,JIS
Wire Gauge:5mm-80mm
Alloy Or Not:Non-alloy
Application:lifting,drawing,bunding,elevator,shiping
Main Construction: 1X7, 1X19, 7X7, 7X19, 6X7+FC/IWS, 6X19+FC/IWRC, 6X19S(W)+FC/IWRC, 6X37+FC/IWRC, 6X36WS+FC/IWRC, 19X7, 18X7+FC etc.
2) Length: 10m—2000m / reel
3) Lay: right hand regular lay or left hand regular lay
4) Core: fiber core & steel core
5) Package: soft coil, carton, wooden or plastic reels, wooden case
6) Nominal tensile strength: 1270Mpa -- 1570Mpa
Diameter mm |
Tolerance On Dia |
Approx.weight |
Approx.weight |
Minimum Breaking Load(KN) |
in | in | Kg/1000′ | Lb/1000′ | lb |
3/32 | 0.012 | 7.89 | 17.40 | 920 |
1/8 | 0.014 | 13.15 | 29.00 | 1760 |
5/32 | 0.016 | 20.40 | 45.00 | 2400 |
3/16 | 0.018 | 29.48 | 65.00 | 3700 |
7/32 | 0.018 | 39.00 | 86.00 | 5000 |
1/4 | 0.018 | 49.90 | 110.00 | 6400 |
9/32 | 0.020 | 63.00 | 139.00 | 7800 |
5/16 | 0.022 | 78.50 | 173.00 | 9000 |
3/8 | 0.026 | 110.20 | 243.00 | 12000 |
