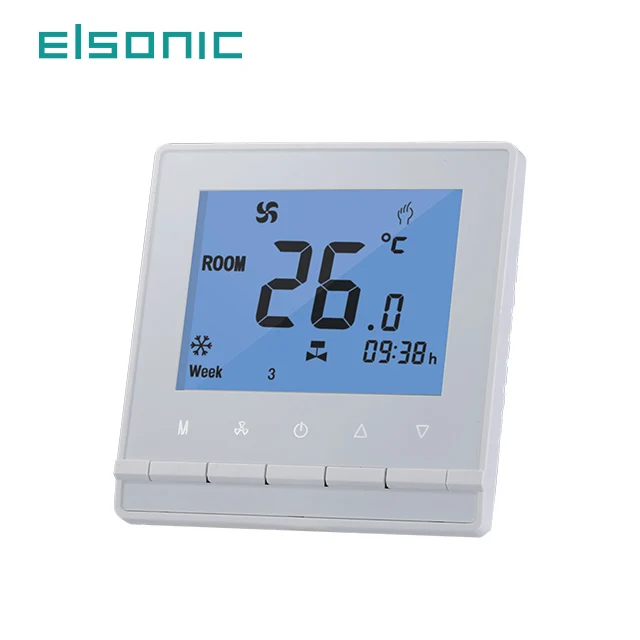

AC330 FCU Air Conditioning Thermostat

AC330 is an Internet WIFI Thermostat which allows user to control room temperature locally or remotely via Mobile App. By comparing between measured temperature (by internal temperature sensor) and preset desired temperature, it realizes the auto control of motorized valves and fan motor to keep a constant room temperature. It applies to the control of 2-pipes and 4-pipes Fan Coil Unit.

1.Load Current: 1A(Inductive Load) 2A(Resistive Load)

2.Dimension: 86mm*86mm*15mm(H*W*T)

3.Power Supply: AC100~240V  50/60HZ

4.Temperature Control Accuracy:  ±1°C

5.Self-power consumption: <1.5W

6.Temperature Range:10°C~30°C

7.Sensing Components: NTC

8.Time Error: <1%

1.Room temperature compensation and correction(by panel directly).

2.With WIFI module. able to connect to Home Router by WIFI.

3.Supports locally contol or remotely control via Mobile App.

4.Time display function, free choice of various modes.

5.Monitor room temperature, adjustable setpoint.

6.Multi-functions and easy operations.

7.Apply to 2/4 pipe FCU system.

8.Large-screen LCD display.

9.High reliability MCU.

10.Blue back-light.

11.Easy applictaion.

12.Succinct design.

13.Acrylic frame.
