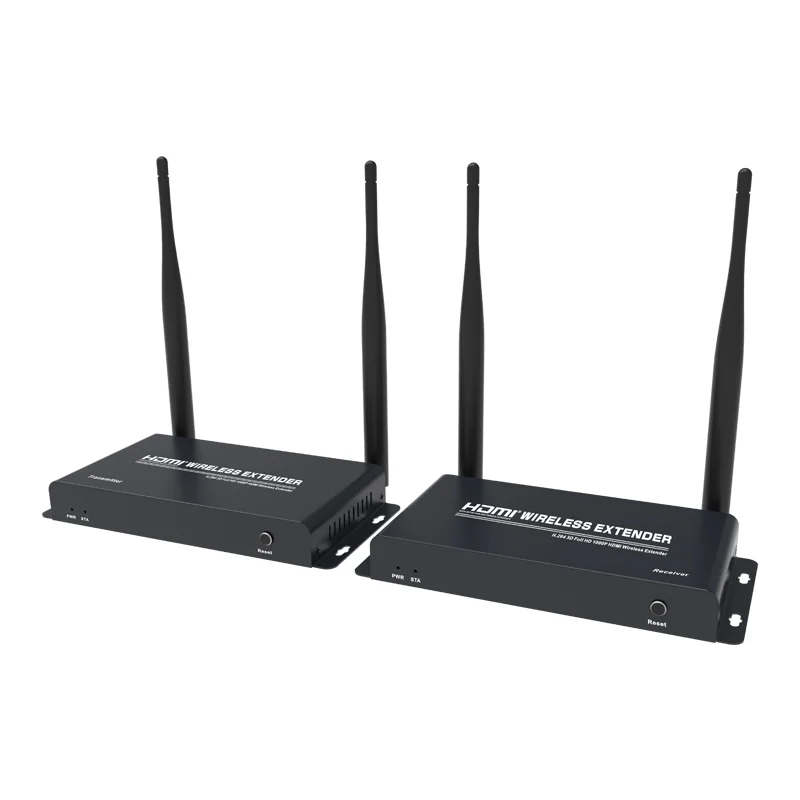

Wireless HDMI transmitter and receiver 200m wireless HDMI extender

Product Overview

Description

Wireless HDMI transmitter and receiver 200m wireless HDMI extender





Packaging accessories:
1. HDMI transmitter   1 Pcs
2. HDMI receiver      1 Pcs
3. 5V DC Power Adaptor  2 Pcs
4. IR RX Cable - 1 Pcs
5. IR TX Cable   1 Pcs
6. User Manual  1 Pcs



Specification:



Parameter		Description
Video	Standards	HDMI 1.3; HDCP 1.2
	Compressed format	H.264
	Maximum pixel clock	165MHz
	Maximum data rate	6.75Gbps
	Resolution	Max: 1920X1080p@60Hz
	Connector	HDMI-A
	Impedance	100Ω
	Recommend HDMI maximum input/output range	Less than 5 meters, when 1920 x1080p @ 60 Hz
IR	Interface	3.5mm Stereo audio socket
	Signal direction	Unidirectional
	Signal type	Digital
	IR frequency	20-60kHz
WIFI	Radio Frequency power	13dbm
	Wireless standards	802.11ac
	signal direction	Unidirectional
	Radio frequency	5.8GHz
	Transmission distance	200M
Other	Power	Adapter:DC 5V
	Power dissipation	MAX 15W
	Temperature	Operating:-5℃ ~ +70℃
	Humidity	Operating:5% ~ 90%
	Size	100*100*25mm
	Warranty	1 year free warranty





Connection:



Transmitter Panel

DC/5V ---------------------------DC Power input port
Power -------------------------------------Power status
Status -----------------------------HDMI signal status
Reset --------------------------------------Reset button
HDMI Input ---------------------------HDMI input port
HDMI Output --------------------HDMI Loopout port
IR-TX -------------------------------------IR transmitter



Receiver Panel

DC/5V ---------------------------DC Power input port
Power -------------------------------------Power status
Status -----------------------------HDMI signal status
Reset --------------------------------------Reset button
HDMI Output ----------------------HDMI output port
IR-RX ----------------------------------------IR receiver

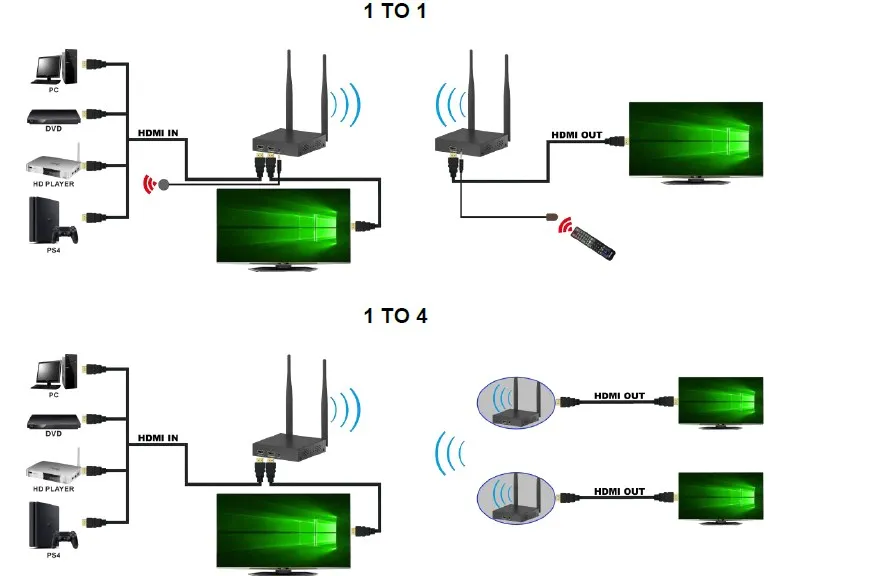

Connection diagram:

ONE TO ONE AND ONE TO FOUR



1 The HDMI source access HDMI extender sender;
2 Connect the HDMI extender the receiver to a display device (such as
high-definition TV, splicing screen, etc.);
3 Configure infrared to control function: send infrared line link extender
transmitter, the receiver of the infrared receiving line access extender,
And aim the infrared emission head needs to control device of the
infrared receiver mouth;
4 Confirm the transmitter and the receiver is placed within the effective
distance Steer clear of obstructions;
5 To the sender and the receiver connected to the power, when the light is
normal lights up, normal operation of system.

 Installation and Precautions

To avoid electric shock , product damage and to protect your safety , please notice the following:
1.Please slowly plug or unplug signal cables and do not often plug , unplug , or shake them.
2.The equipment should not be placed under the sun , rain and damp or unventilated environment.
3.Liquid items should not be placed on the equipment.
4.Do not install the equipment near heat sources such as fire , power , or other amplifiers that produce heat.
5.Do not insert the metal or other objects to the equipment in addition to connecting cables to ports.
6.Do not demolish the equipment by yourself ; it should be maintained by professional maintenance staff.
