Wedge Wire Screen consists of Surface Profile(Profile Wire/Wedge wire ) and supports Fin(Support Rod) welding. The distance between surface profiles is called slot and it filters impurities.
Wedge Wire screen is being utilized in a wide variety of industrial area(Ground water development, Water treatment, Refining & Petrochemical, Pulp & Paper, Food & Beverage, Mining Industry, Architecture & Construction etc.)

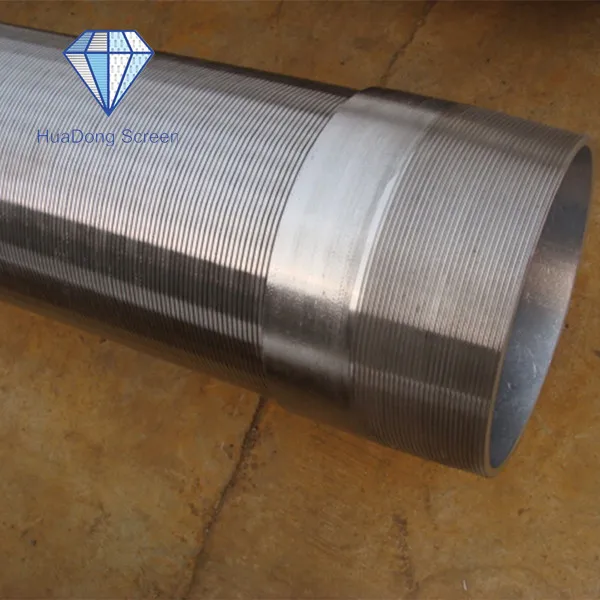

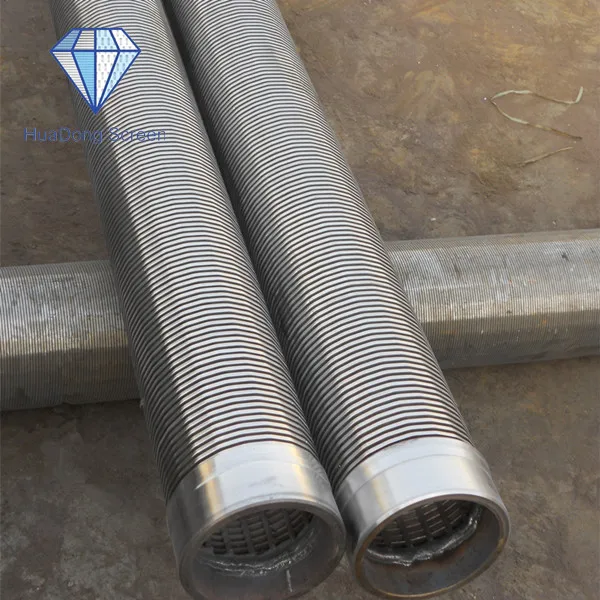

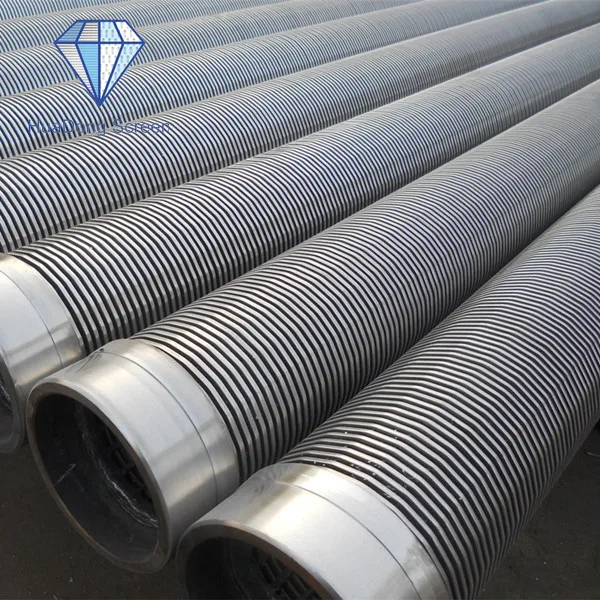

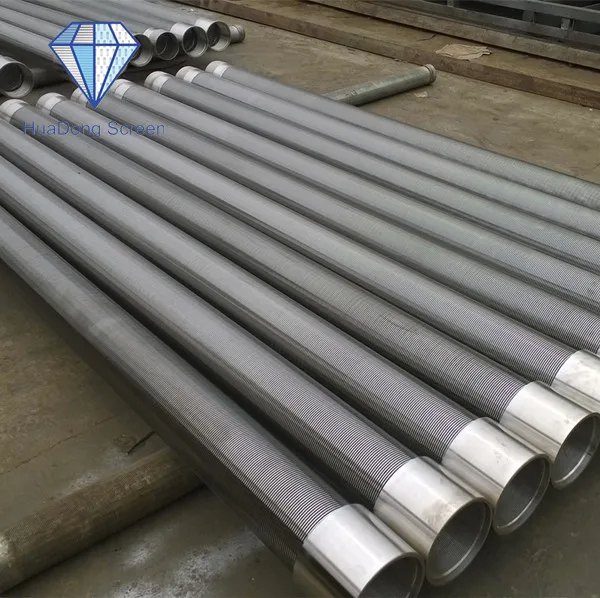

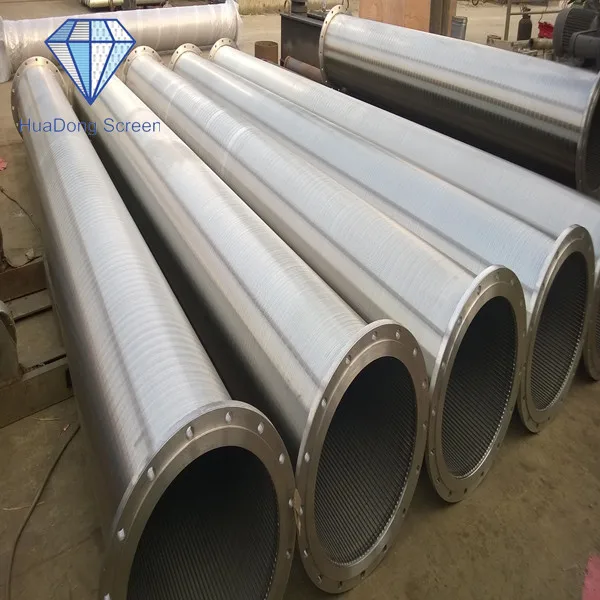

It’s considered as optimal choice for substitution of existing metal mesh filers.We Huadong provide Cylindrical type of Wedge wire Screen products with a wide variety of slot sizes ranging from 0.05mm to 2mm and serves various stainless steels(304,304L,316,316L) to meet customer’s needs.
Wedge wire screen consist of V-shape profile wire and the longitudinal support rods.the wire is welded to the rods and produces a rigid unit that has high strength and minimum weight.
Johnson Screens Vee-Wire Profile wires range in widths from 0.020in.(0.508mm)to 0.195in.(4.953)and heights ranging from 0.040 in. (1.016 mm) to 0.363 in. (9.220 mm). Other wire shapes (Tri-Wire, Iso-Wire, Iso-Grizzly Wire, Grizzly-Wire, and more) also available.
Package details: Single with bubble bags and then put into wooden cases(fumigation certificate). Each case is clearly marked with: Name & identification mark of manufacturer-Huadong Brand Johnson screens Batch number Date of manufacture Safe heating & application temperature
FAQ
1.Q: You are the manufacture or the trade company?
A: We are the direct factory sice 1996,with the rich manufacturing experience.
2.Q: Can you support the technical data or advice before the customers purchase the products?
A: We will fisrst aks you the detail technical data of your water well and then advice you the suitble products according to your well.
3.Q: How can we get the price in the short time?
A: Before sent us your enquiry,you'd better sent us the detail technical data both your water well and your item products.For example. The OD/ Materail / Rod size / Wire wrapped size / Materail / Unit length / End connection . Also with the technical drawing is the best.
