Holykell OEM Cryogenic Pressure Transducer Turbocharger Pressure Sensor
- Category: Pressure Sensors >>>
- Supplier: Holykell,Technology,Company,Limited,[Hunan,China]Holykell
Share on:
Product Overview
Description

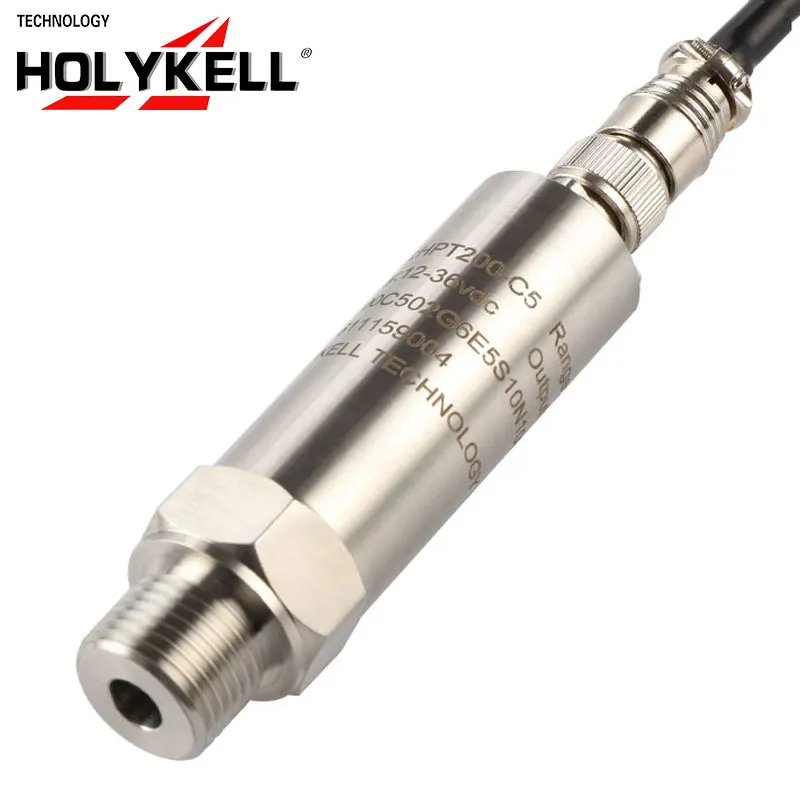

Cryogenic Pressure Transducer Turbocharger Pressure Sensor
Product Description
We provide a set of family package, Which can be save $30~70.00 for you buy each one .
Why choose our pressure transudcer?
1.a.All welded 316L housing
2.Imported Germany Silicon sensors, 5-10 years life design
3.Military level of printer PCB board, Anti-Jamming enhanced 300%, Stability of Circuit>10 years
c.Linear Amplified Output
d.Automatic temperature compensation -40~80℃,Temperature drift Automatic modified linear ≤0.01%FS
e.Superior Long term Stability
f.Excellent Repeat ability/Hysteresis
g.EMI/RFI Rejection
h.Low power consumption
i.Ten million cycle life expectancy
J.Outstanding shock& vibration performance
Saving Money
How much money do you save ?
Holykell pressure sensor have above five years quality assurance . If 10pcs used for your Industrail equipment manufactures .A long stability (above 5 years) Pressure sensor used in equipment manufactures can saved $2000.
Core Competence
Specification

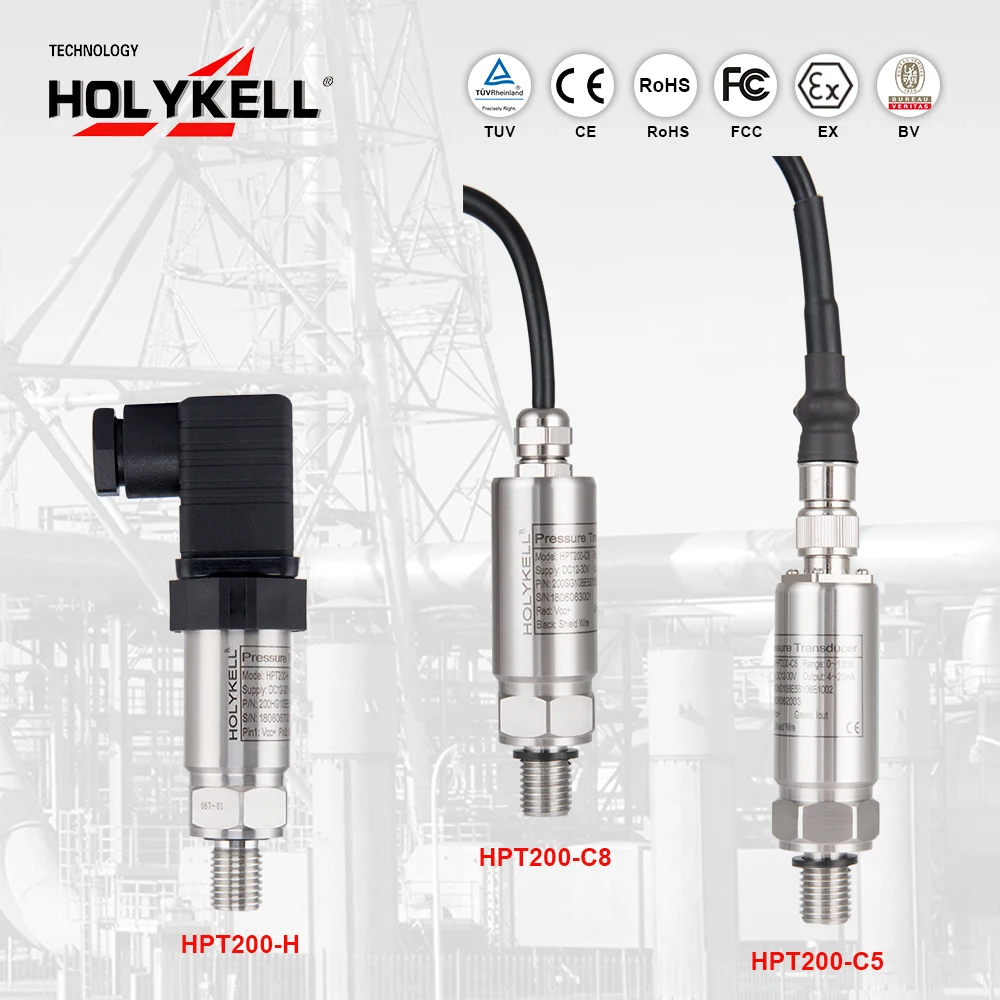

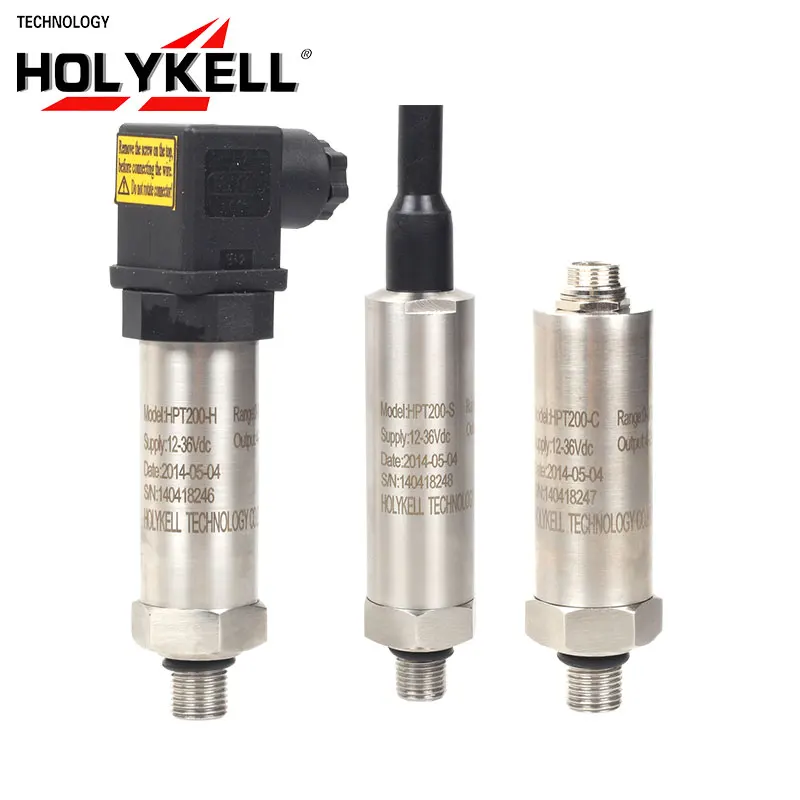

Model | HPT200-H/S8/C5 | ||||
Pressure Range | -1 Bar-1 Bar; 0-0.1Bar.....1000 Bar / 0-2 Psi…15000 Psi Optional | ||||
Pressure Type | Gauge pressure; Absolute pressure; Sealed gauge pressure; Negative pressure optional. | ||||
Output | 4~20mA Or 4~20mA+HART | 4-20 mA or Double 4-20mA | 0~5V ,1~5V, 0-10V | RS485 | 4~20mA +Temp (Ω) |
Power Supply | 12~36 Vdc | 12~36 Vdc | 8~36Vdc/15-36Vdc | 10~30 Vdc | 12~36 Vdc |
Accuracy (Linearity Hysteresis Repeatability) | ≤ ±0.5%F.S; ≤ ±0.25%F.S ≤ ±0.1%F.S (Customized) Including non-lin., rep. and hys. Optional | ||||
Working/Storage Temp | -30℃~85℃ | ||||
Tempe Compensation | -10℃~60℃(standard); -20℃~60℃; -20℃~80℃(customized) | ||||
Safe Overload | 200% F.S.(standard) | ||||
Burst Pressure | 300% F.S. (standard) | ||||
Total Error Band | 0...50 °C max. ±0.5 %FS; -10...70 °C max. ±1.0 %FS | ||||
Medium compatible | Compatible with 316 Stainless Steel or 1Cr18Ni9Ti stainless steel | ||||
Zero Temp. Drift | 0.03%FS/℃(≤100kPa), 0.02%FS/℃(>100kPa) | ||||
Body materials | 316 stainless steel (standard); 1Cr18Ni9Ti stainless steel optional | ||||
Filling oil | Silicon oil (standard); Fluorocarbon oil (Oxygen Services) | ||||

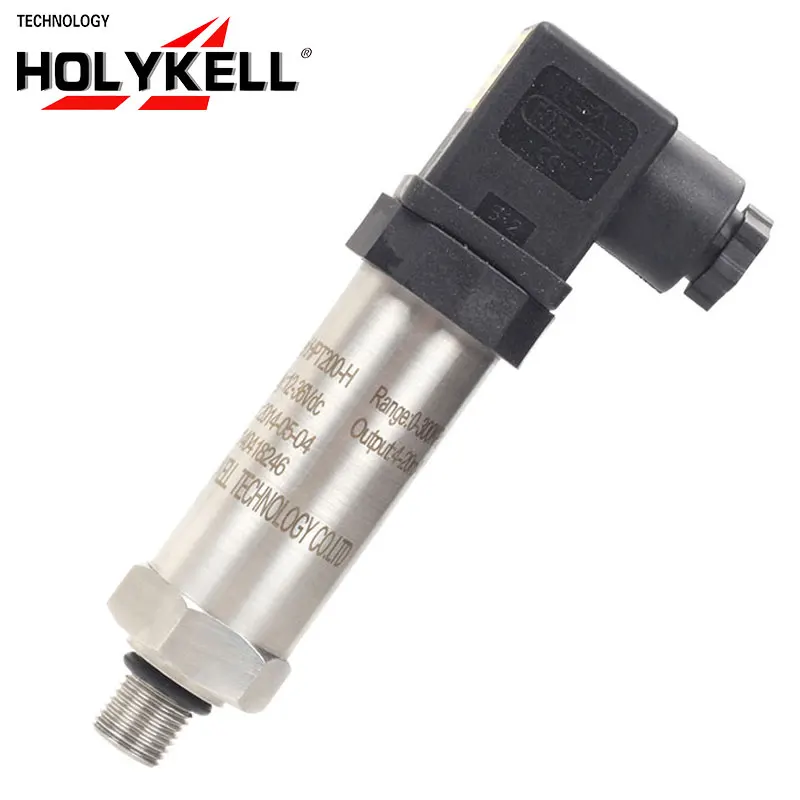

Electronic connection | -DIN43650 Hirschman Connector, 4-poles and IP65. -Plug: M12 (4-poles) Type IP67; - Directly Outlet Cable Type IP68 optional. | ||||
Pressure connect port | G1/4’’male, G1/2’’male, 1/8’’NPT male, 1/4’‘NPT male, 1/2’‘NPT male and female optional. (by customized) | ||||
Dimension | Length: 120 mm (standard); Body diameter: 27 mm (standard). *special size by requested* | ||||
Order information : Pressure range :0-10 bar , Output :4-20mA , Power supply:12~36VDC ,
Process connection: 1/8"NPT male ,Electronic Connector:Directly cable
