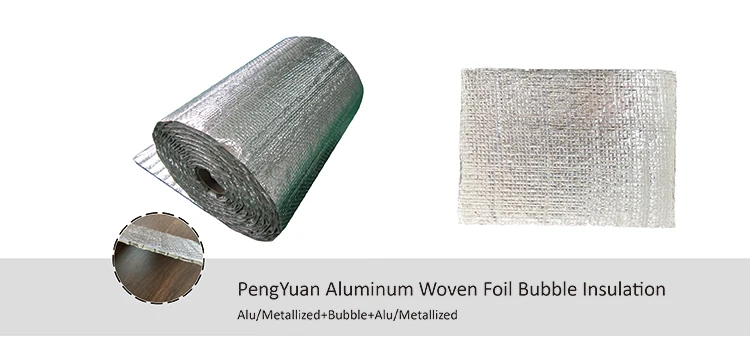

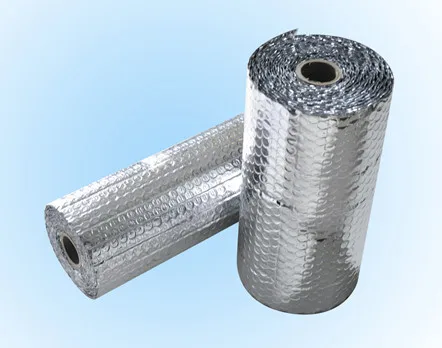

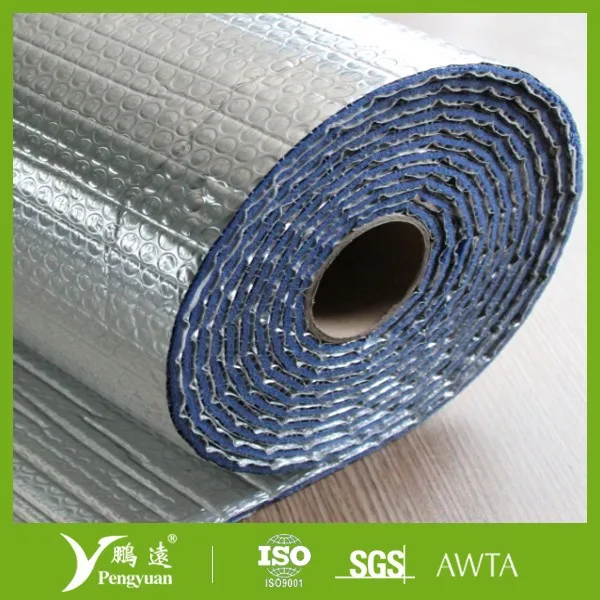

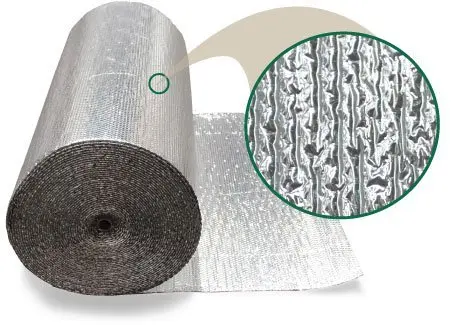

Aluminum thermal reflective foil insulation,double bubble foil insulation
- Category: Heat Insulation Materials >>>
- Supplier: Zhejiang Pengyuan New Material Co. Ltd.
Share on (60286583650):
Product Overview
Description

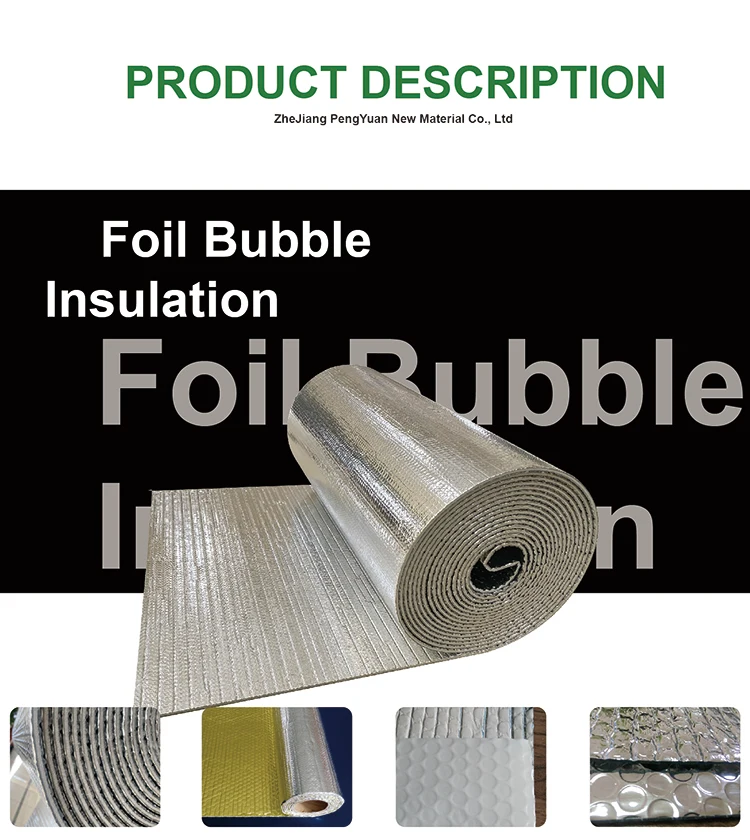

Product Description
Specification

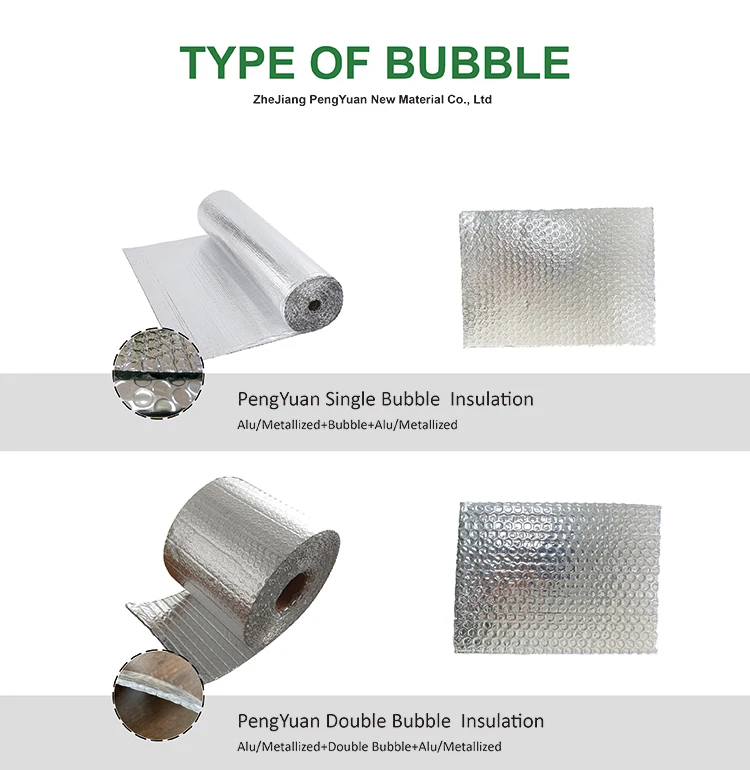

Dimension of Bubble*Thickness: | ||
10*2.5 mm | 10*4mm | 10*5 mm |
20*6mm | 20*7 mm | 20*8mm |
Regular Roll size (Width * Length / roll): | ||
(1).1.2m* 30 m /roll | ||
(2).1.2 m*40 m / roll | ||
The size can meet your demand. | ||
Technical Features
Temperature range | -76F ~+212F (ASTM C411) |
R-value | 2.0~11.2 |
Fire-proofing | Class A/Class 1 |
Emissivity | 0.03-0.04 COEF |
Thermal Conductivity | 0.032 -0.036W/m0 |
Apparent Density | 54.8 kg/m3 |
Reflectivity | 96-97% |
Vapor Transmission | 0.012 g/m2kpa |
Corrosion | Doesn’t generate |
Tensile Strength(MD) | 13.43 Mpa |
Tensile Strength(TD) | 14.58 Mpa |
Features
1.91%-97% high thermal reflectivity

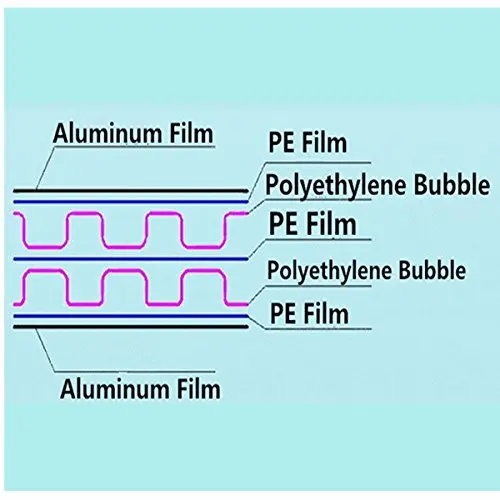

2.0.3-0.9 low emissivity PE (Polyethylene) material
3.Zero Moisture Absorption
4.Hypoallergenic
5.Fibre-free
6.Clean and easy installation
7.Environment friendly.recyclable
8.High tensile strength application
9.Waterproof
10.Optional features available upon request:
Fire Retardant
Anti-glare
Antioxidant
Hot Products
Application
1. To laminate or coat EPE,XPE,IXPE,Kraft as good
Building / construction Thermal Insulation Material to reduce summer heat and keep warm in winter.
(1)Roof,Attic,Underlay & floor Insulation Under Concrete & wood.
(2)Crawl Space,Stud Wall,Metal Frame Building Insulation
2. Wrapping
(1)Protective coating of ventilating pipe,HVAC Duct & Pipe;

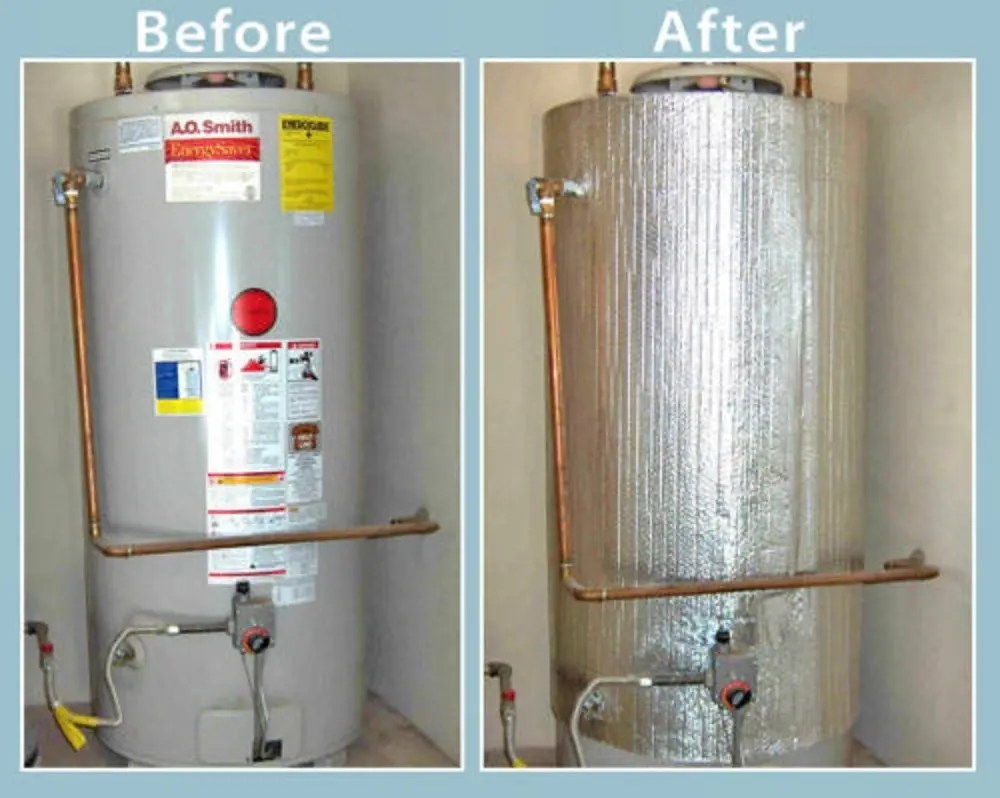

(2)Shells of air conditioner and water heater;
(3)Wrap house & pipe
(4)Industrial & commercial sheds.
3.To make Bubble mailer,Bag,tray cover.
