Full Electric Aerial work platform 10m scissor lift
model: SJJ
Platform height:10m
Max. work height:12m
Lifting heigth 6~11.8m
1. Product details:
Canbus technology
Proportional controls
Safety brackets
low voltage alarm
Emergency down button
Charger protection
Controller temperature protection
Over loading protection
2.Technical Parameter:
| Model | SJJ0608 | SJJ0810 | SJJ1214 | |
| Capacity | kg | 300 | 300 | 300 |
| Working height | mm | 8000 | 1000 | 13800 |
| Platform height | mm | 6000 | 8000 | 11800 |
| Overall length | mm | 2400 | 2400 | 2400 |
| Overall width | mm | 1150 | 1150 | 1150 |
| Overall height | mm | 1190 | 1315 | 1565 |
| Platform size | mm | 2270*1150 | 2270*1150 | 2270*1150 |
| Ground clearance | mm | 20 | 20 | 20 |
| Min. turning radius | mm | 2100 | 2100 | 2100 |
| drving motor | VDC/KW | 24/3 | 24/3 | 24/3 |
| Up/Down speed | sec | 40/50 | 40/50 | 40/50 |
| Batteries | V/Ah | 4x6/210 | 4x6/210 | 4x6/210 |
| charger | V/A | 24/25 | 24/25 | 24/25 |
| Wheel | mm | Φ381x127 | Φ450x122 | Φ381x127 |
| Weight | kg | 190 | 2080 | 2760 |

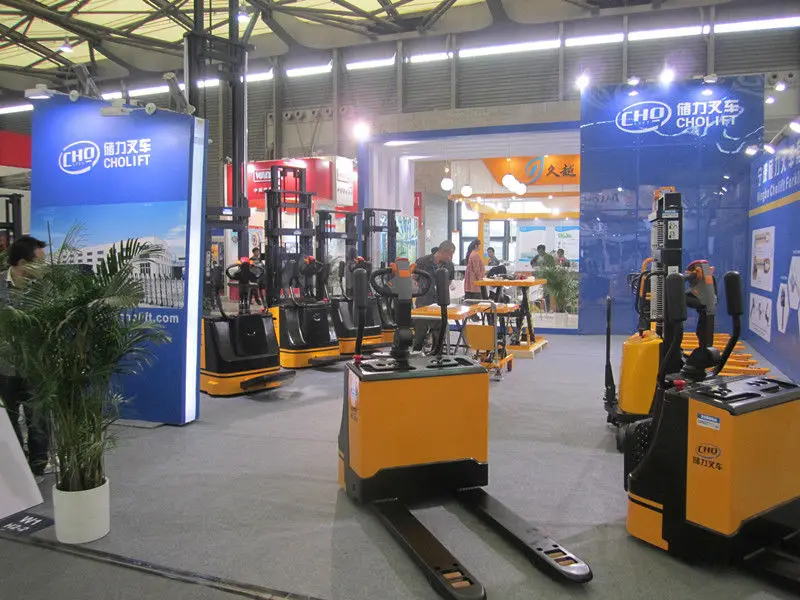

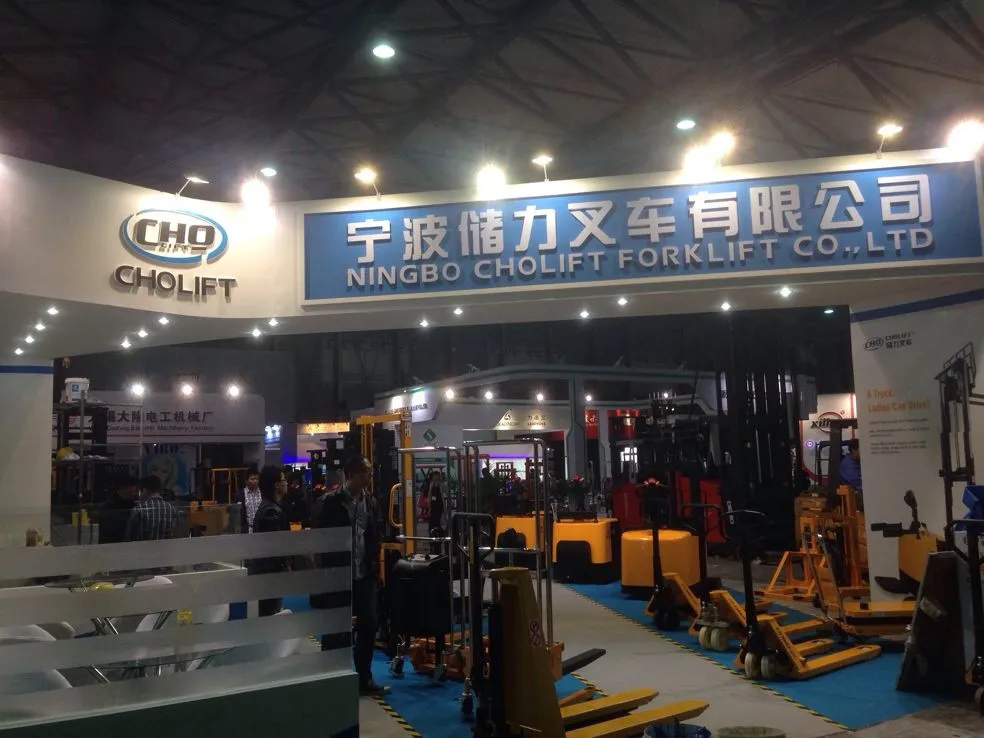

We take part in US promat Show , Asia Cemat Show, canton fair and get good feedback from customer both in China and overseas
