ELP 2MP 125 degree low distortion Widel Angle usb camera 1080P OV2710 for industrial automation ELP USBFHD01M H120
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd
Share on (60286709205):
Product Overview
Description
ELP 2MP 125 degree low distortion Widel Angle usb camera 1080P OV2710 for industrial automation ELP-USBFHD01M-H120
Product Description
Features:
* 2MP full hd USB Camera module with 125 degree low distortion lens
* 1/2.7” omnivision OV2710 Color CMOS sensor for high quality image
* High frame rate - 640*480@120fps, 1280*720 @60fps, 1920*1080 30fps
* With HD 125 degree low distortion lens
* Support IR CUT & IR LED for no color distortion image day & night
* MJPEG/YUY2 dual video format optional

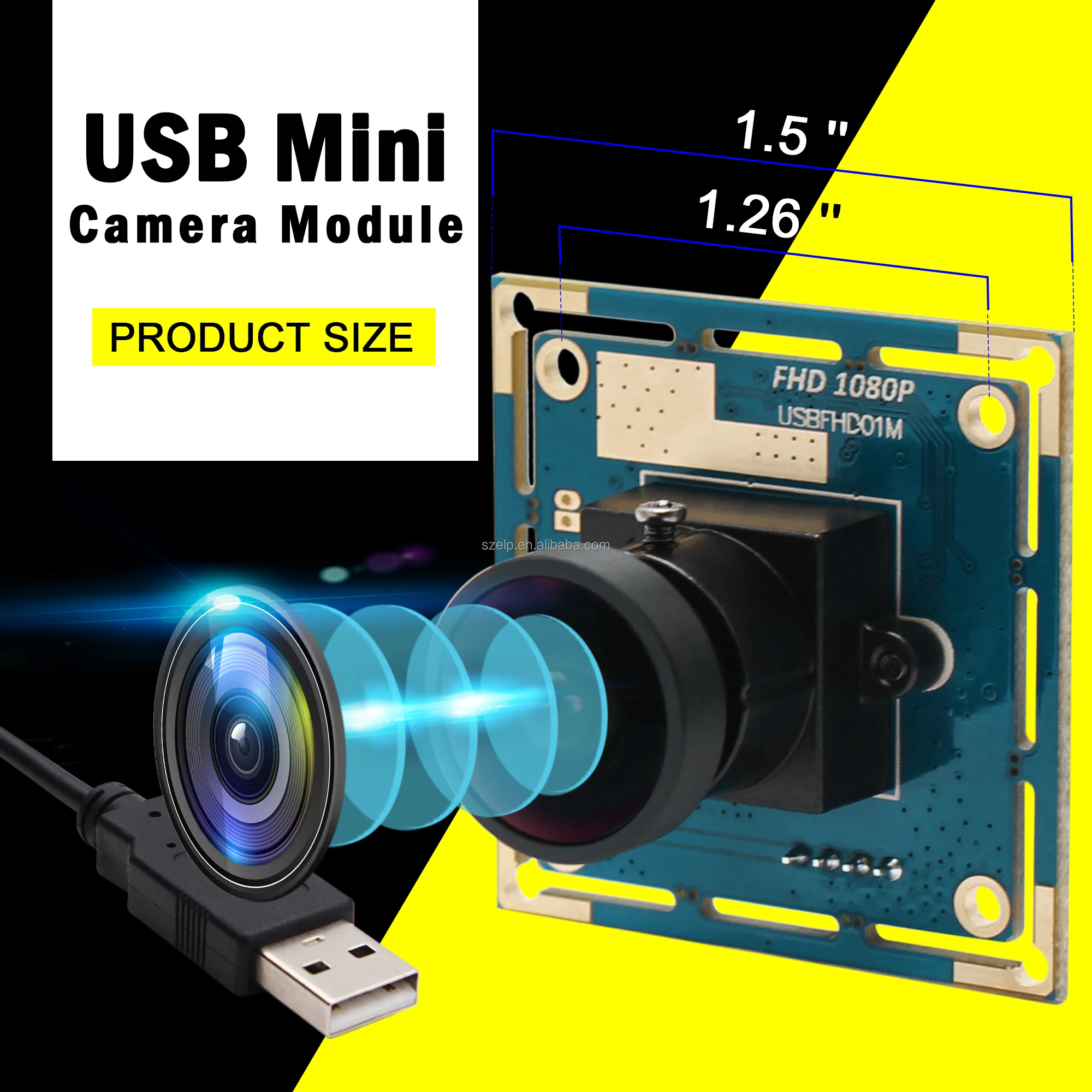

* Mini size 38x38/32x32mm for embedded application
* High speed USB 2.0 plug&play port suitable for any PC with USB 2.0 interface
* Low power consumption - ideal for portable equipment.
* UVC compliant - support Windows, Linux, Android system with UVC
* Support USB2.0 OTG Protocol - Can be external camera for mobile phone, Tablet and other device which support OTG
* Application: Scanner, 3D printer, Simple surveillance, Robot, ATM, Kiosk etc.
Specification:
Model | ELP-USBFHD01M-H120 |
Sensor | OV2710 |
Lens Size | 1/2.7 inches |
Pixel Size | 3.0um X 3.0um |
image area | 5856 µm x 3276 µm |
Max. Resolution | FULL HD 1920(H)X1080(V) |
Compression format | MJPEG / YUV2(YUYV) |
Resolution & frame | 320X240 QVGA MJPEG @120fps/ 352X288 CIF MJPEG @120fps |
Special function | Lens correction/ Defective pixel correction/ Black sun cancellation |
Mini illumination | 0.05lux |
Shutter Type | Electronic rolling shutter / Frame exposure |
Sensitivity | 3.7V/lux-sec@550nm |
Connecting Port type | USB2.0 High Speed(Support USB2.0 HS/FS, USB2.0 OTG) |
USB Protocol | USB2.0 HS/FS USB1.1/USB1.0 |
Connecting Port type | USB2.0 High Speed |
OTG Protocol | USB2.0 OTG |
Free Drive Protocol | USB Video Class(UVC) |
AEC | Support |
AEB | Support |
AGC | Support |
Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White balance, Backlight Contrast, Exposure |
Lens Parameter | With 120 degree Low distortion lens (HFOV 125degree, VFOV 87degree) |
Night vision | Support, need to equipped IR sensor 850nm or 940nm lens and IR LED Board |
LED board power connector | Support 2P-2.0mm socket |
Power supply | USB BUS POWER 4P-2.0mm socket |
Voltage | DC5V |
Working current | 120mA~220mA |
Working temperature | 0~60℃ |
Storage temperature | -20~75℃ |
Board size /Weight | 38X38mm(Compatible 32X32mm)/ about 30g |
Cable | Standard 1M (optional 2M,3M,5M) |
Operating system request | WinXP/Vista/Win7/Win8 |

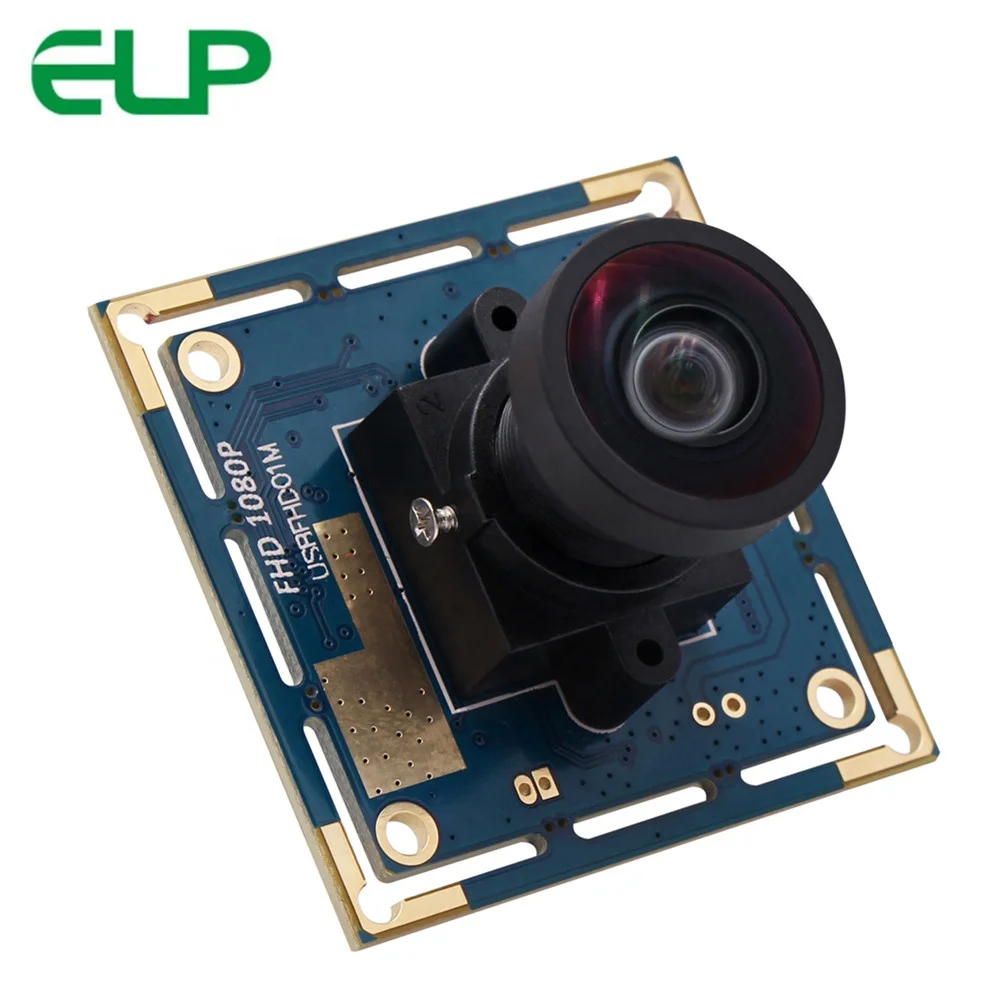

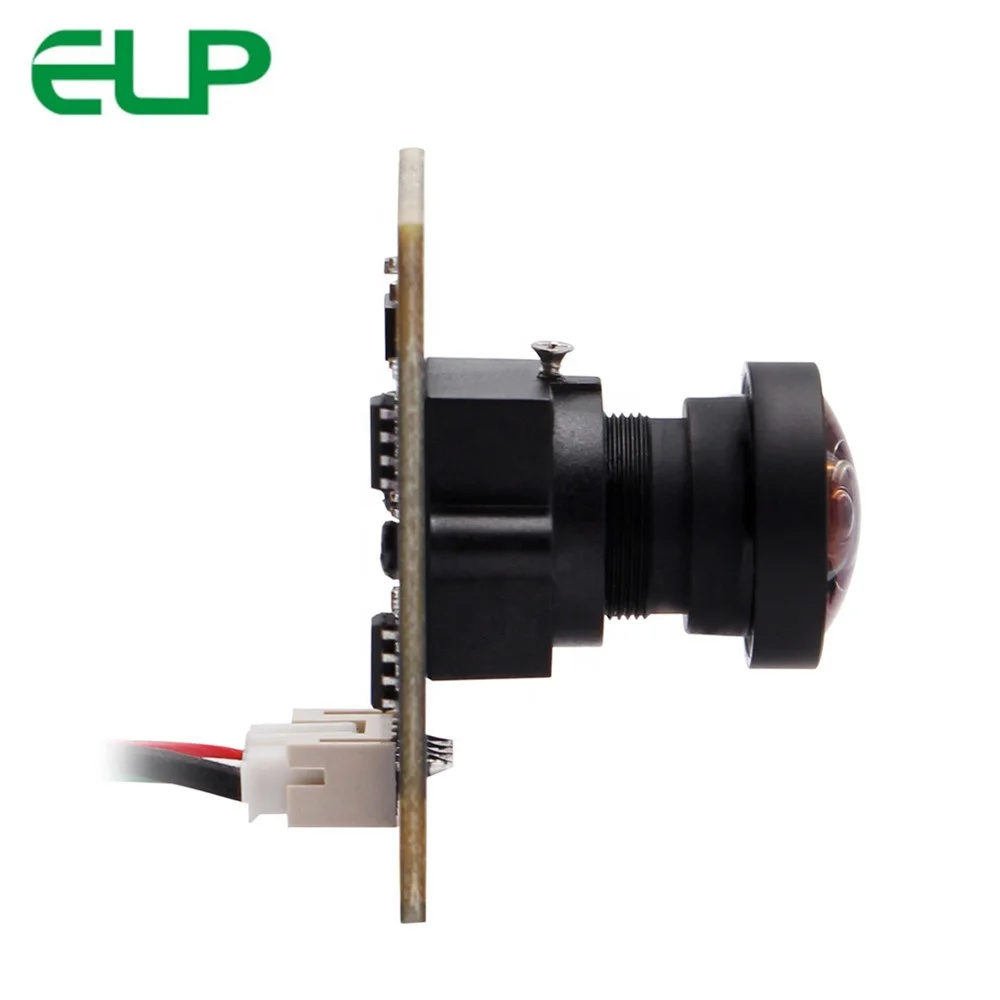

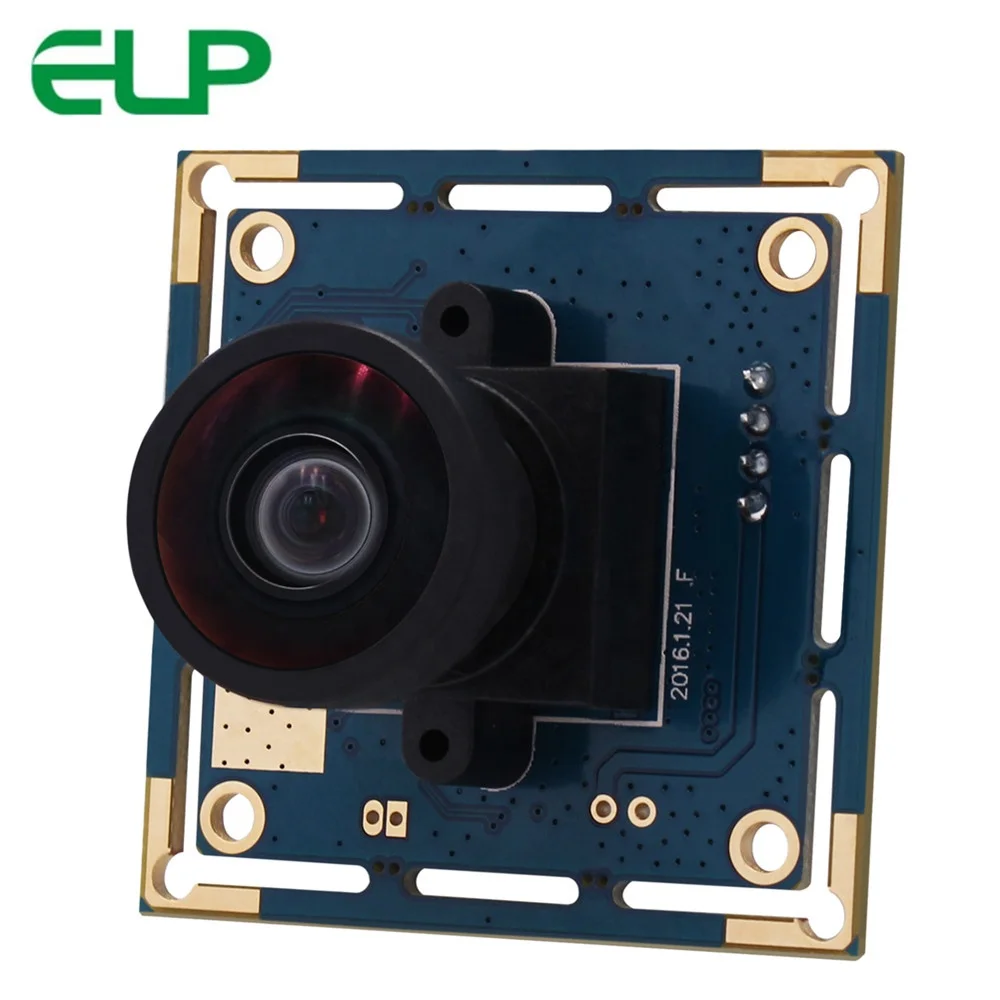

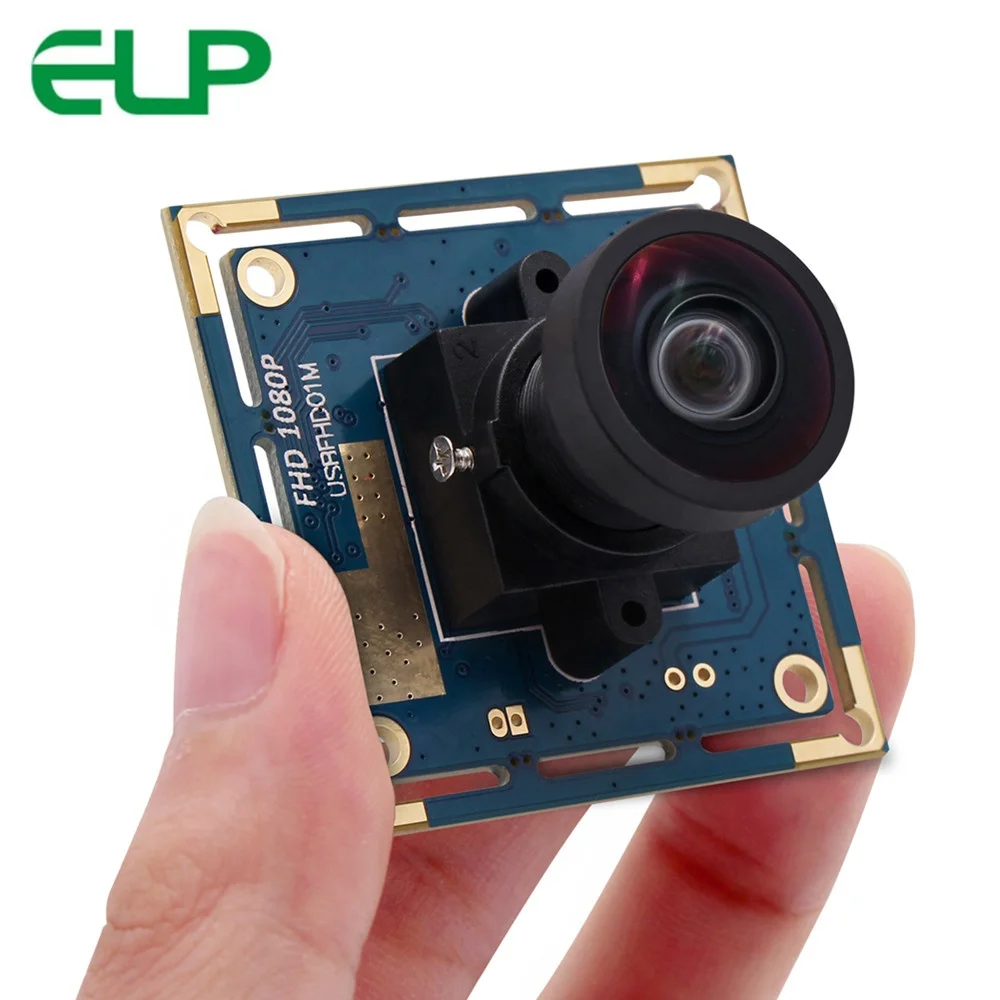

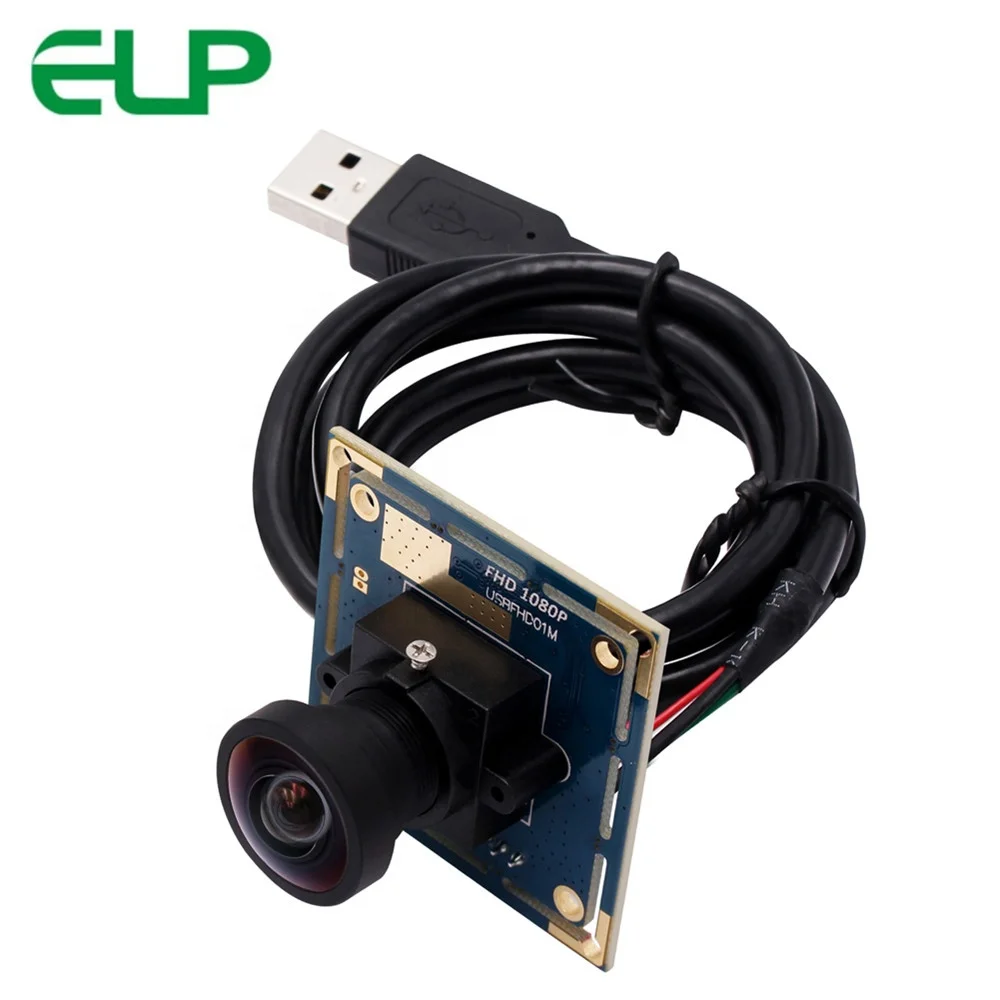

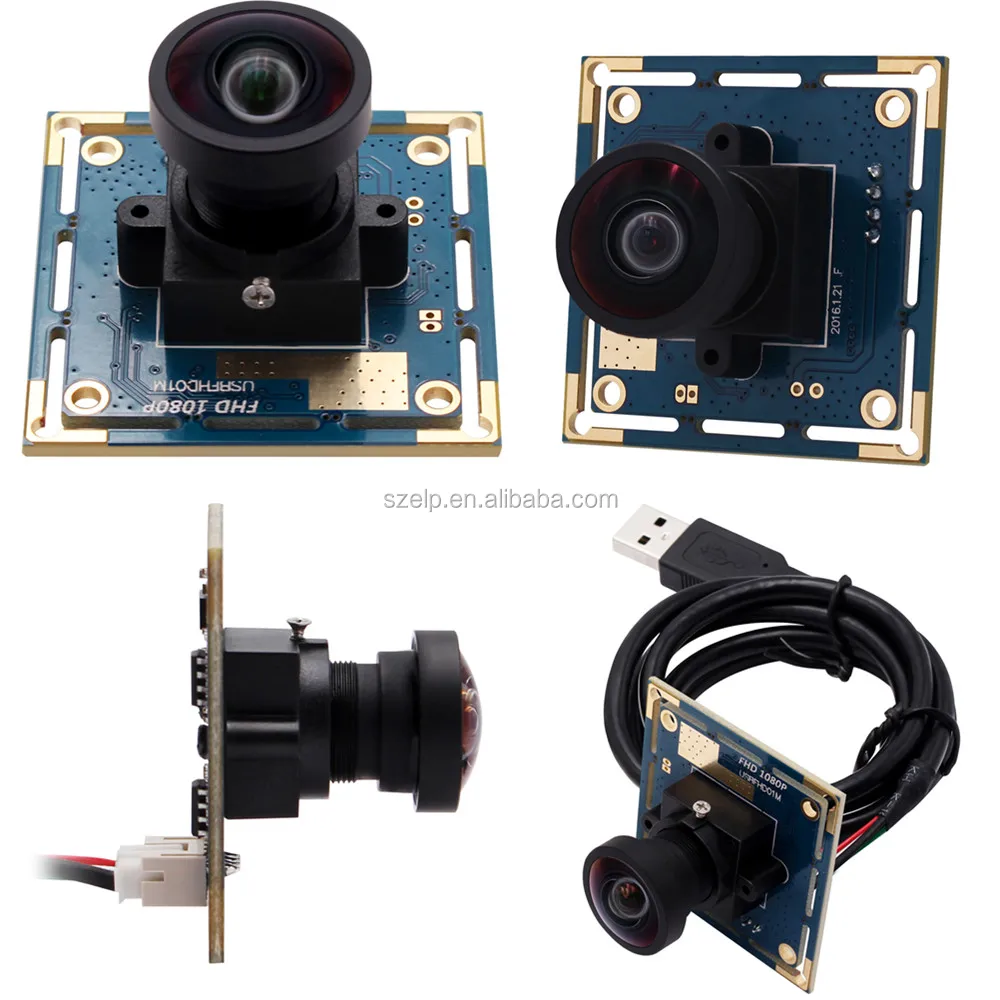

Products pictures:
Related Products
Our USB Camera includes VGA 640X480,1MP,1.3MP,2MP,3MP,5MP and 8MP resolution.
Some features are showed as below. Just click and check !
Company Information
FAQ
♦Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module for more than 12 years
♦Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
♦Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
♦What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
♦What operating system your cameras support?
Android, Windows and Linux System
♦What certificate your products have?
CE, FCC, partial have RoHS and UL
♦Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
♦Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
♦Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
