marine boat ship use life raft for ship with 20 person

Product Overview

Description





marine boat ship use life raft for ship with 20 person SOLAS approved 20 person marine throw over life raft
Model No.	ATOB - 20
Shape	Rectangular octagon
Capacity	20
Material	Neoprene coated fabric (buoyancy tube), water-proof cloth (canopy)
Cylinder	6L x 2
Gas composition	CO2 and N2
Lighting system	1 interior lighting lamp, 1 exterior indication lamp
Battery life	≥12hrs
Ballast system	8 x 60.5L water pockets for better stability
Temperature inflating range	-15 — +65°c
Max stowage height	18 - 50M from water surface
Use	Suitable for offshore cruising or open sea longer voyages
Standard	It meets the China MSA- "Regulations for the Statutory Surbeys of Ships and offshore Installations---Technical Regulations for the Statutory Surveys of Sea-going Ships Engaged in Domestic Voyages"2004, and its 2008 Amendments, Part4, Ch.3. and SOLAS(74/96) LSA, MSC.81(70), MSC.226(82), MSC.218(82), MSC.293(87),ISO15738(2002)
Equipment outfit	Solas A/ B pack
Life raft dimension (mm)	4304x2974x1600

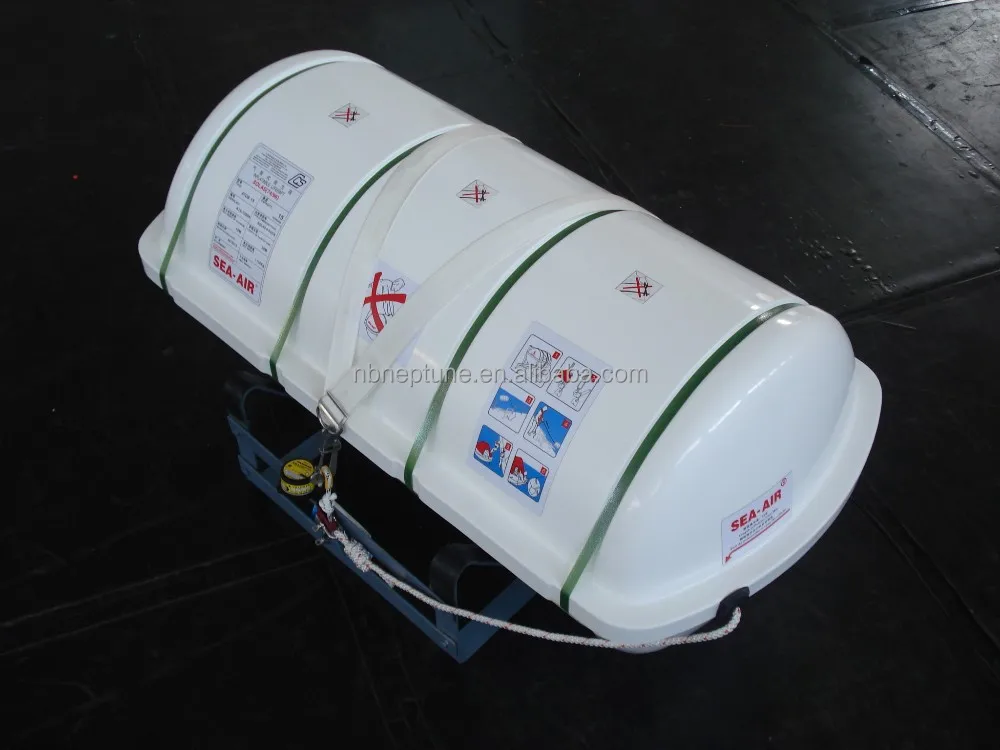

Canister dimension (mm)	1335x696x620   (Solas A Pack)
	1285x670x670   (Solas B Pack)
Outer package dimension (mm)	1400x750x740   (Solas A Pack)
	1320x720x680   (Solas B Pack)
Weight (kg)	≤160
Conveyance:
Solas A Pack	Solas B pack
Qty/ 20'FCL: 33units	Qty/ 20'FCL: 40units
Qty/ 40'FCL: 69units	Qty/ 40'FCL: 83units
Qty/ 20'HQ: 87units	Qty/ 20'HQ: 104units
