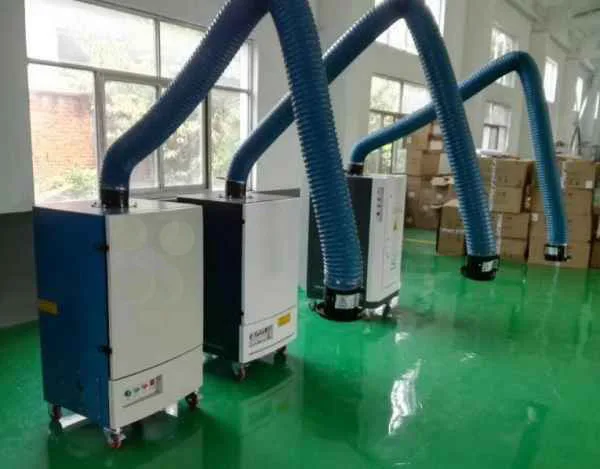

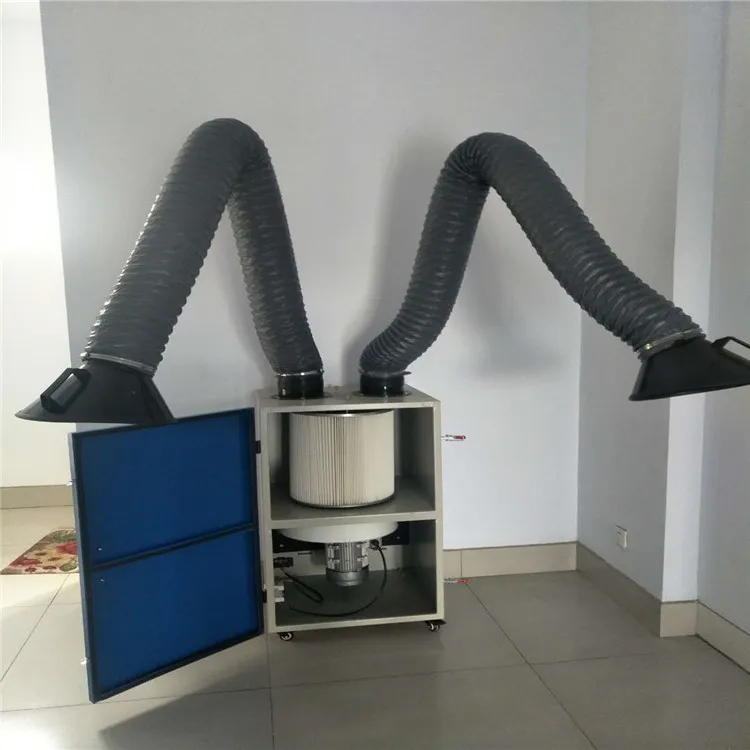

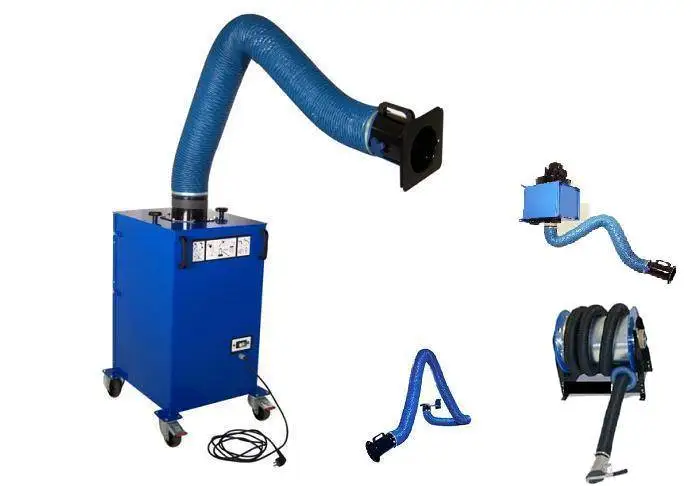

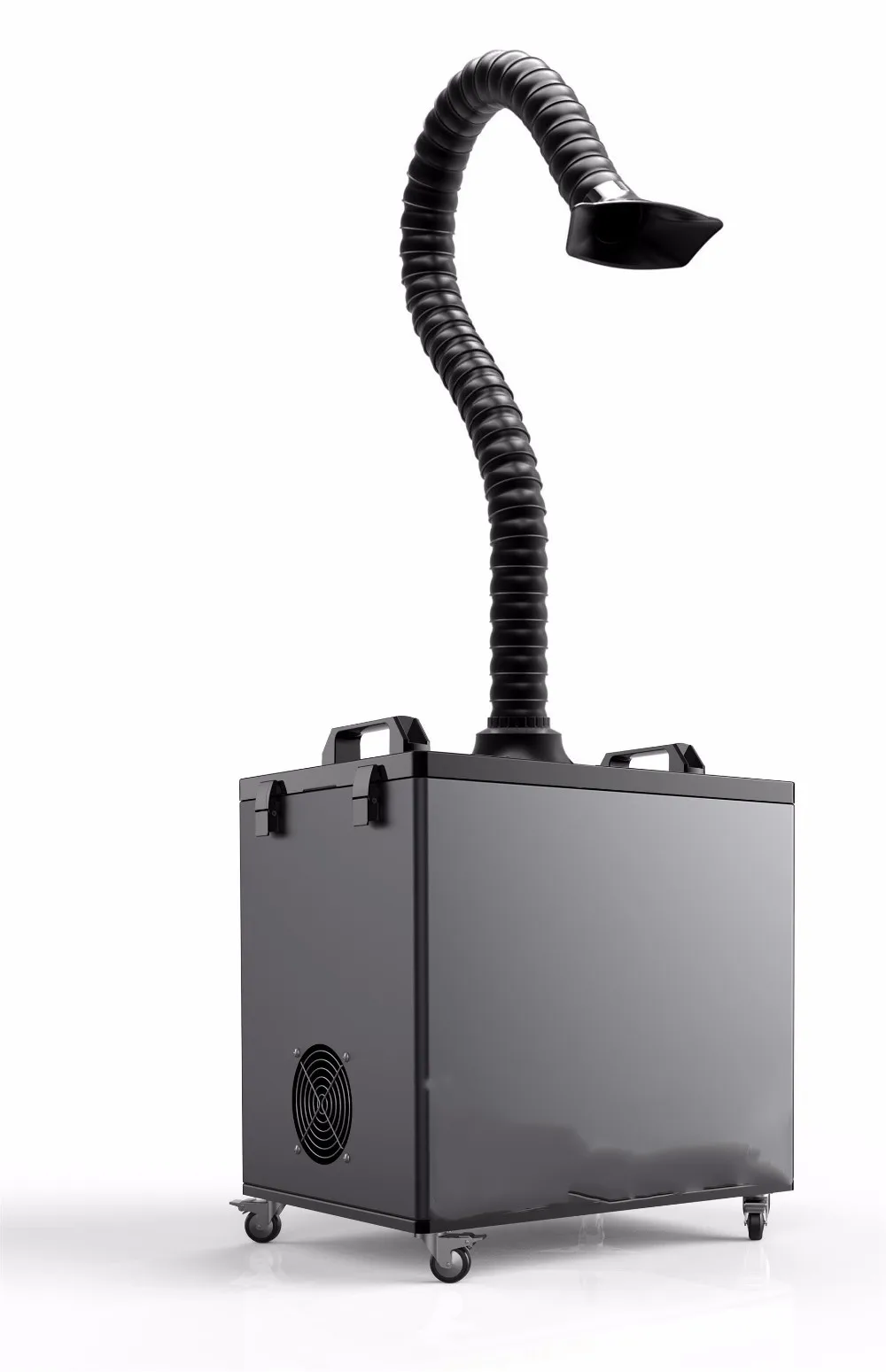

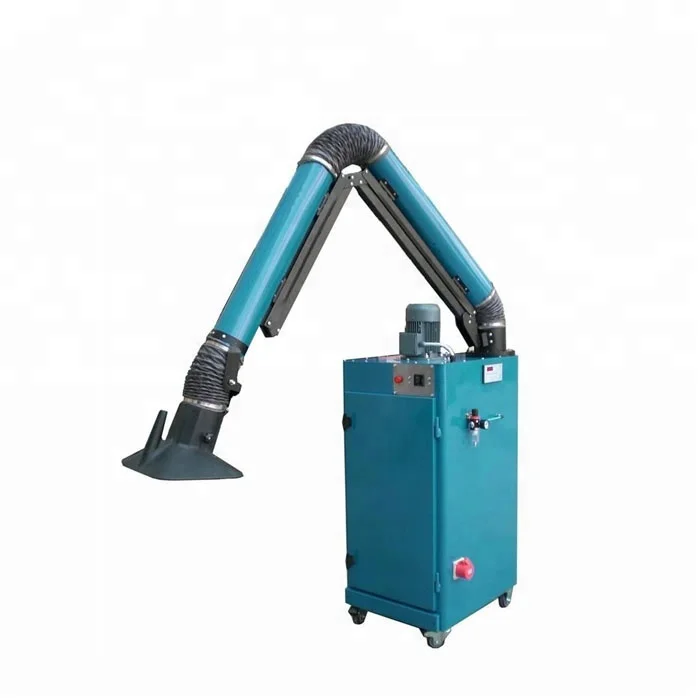

Industrial Vacuum Cleaner Dust Collector/soldering fume extractor

Product Overview

Description

Industrial Vacuum Cleaner Dust Collector/ soldering fume extractor

Product introduction

SX - YDS type portable welding fume purifier for welding, polishing, cutting, produce smoke and dust purification processes as well as grinding and other rare metals, recovery of valuable materials, etc., can be suspended in the air purification lot of harmful the small metal particles. With high purification efficiency, low noise, flexible, small footprint and so on.

For electric arc welding, carbon dioxide arc welding, MAG welding, carbon arc gouging welding, gas cutting melting, special welding fumes generated workplace.

 Want to know more, contact me!

Technical parameters for your reference:

Model	Air volume (M3/h)	Power (Kw)	Voltage (V/Hz)	Filter area (M2)	Filter efficiency (%)	Dimension (mm)	Noise dB(A)
SX--YDS1200	1200	0.75	380/50 220/50           380/50 380/50	12	More than 99.97%	580×550×1250	60
SX--YDS1500	1500	1.5		12		580×550×1250	62
SX--YDS2400	2400	2.2		15		580×550×1300	68
SX--YDS3600	3600	3.0		20		600×550×1750	72
SX--YDS2400S	2400	2.2		20		600×750×1600	69
SX--YDS3600S	3600	3.0		30		600×750×1700	72
SX--YDS4800S	4800	4.0		36		800×900×1410	70
SX--YDS7200S	7200	5.5		40		800×900×1410	72

Note :  1.   Can be designed according to users' special requirements.

             2.   Can select one-arm, two-arm or stationary welding smoke purifier according to the operating conditions.

             3.   Can choose filter cylinder surface soot cleaning way according to users' requirements for manual ash removal mode or automatic ash removal mode.

             4.   Can add layers adsorbed on activated carbon or other odor removal devices according to the welding method and exhaust components.

 Want to know more details to contact me!

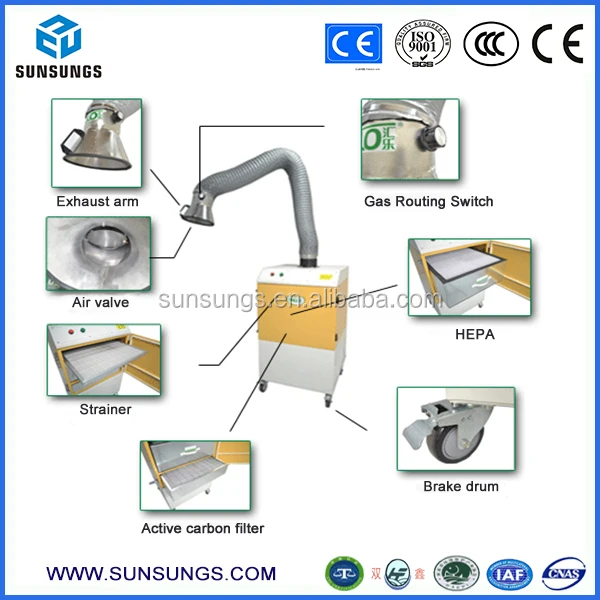

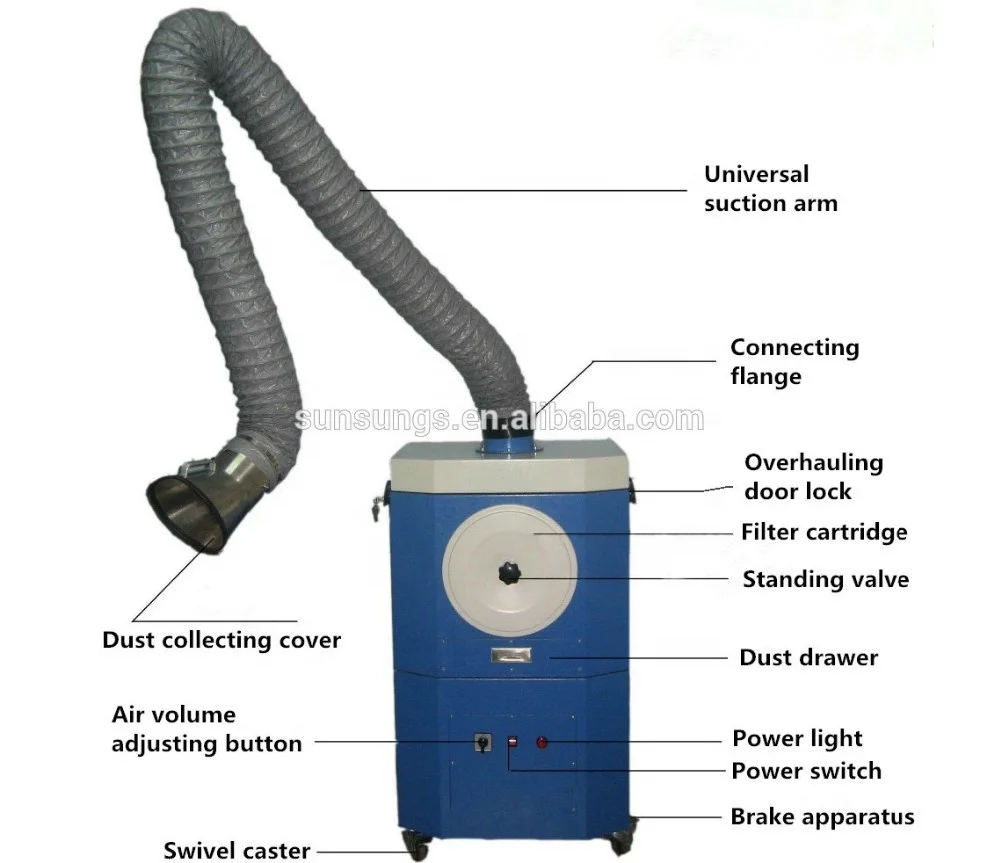

 The main parts include:

Universal aspiration arm, high temperature resistant vacuum hose, suction hood warfare (with air volume control valve), resistance, flame retardant high efficiency filter, clean room, activated carbon filters, heavy ash drawer combination with the brakes, flame retardant, sound-absorbing cotton, heavy rubber universal casters, fan, import motor, electric control, etc.



Application sites

SX-YDS type portable welding fume extractor is used for welding, polishing, cutting, grinding process such as smoke and dust purification and recycling of rare metals, precious materials, etc., can purify large amounts of suspended in harmful to human body small metallic particles in the air. With high purification efficiency, low noise, flexible use, cover an area of an area small, etc.



Suitable for arc welding, carbon dioxide-shielded welding, gouging MAG welding, carbon arc welding, gas welding and cutting, and other special welding workplaces produced fume.









Contact me for the best offer!
