Small Size X86 4G RAM 128G SSD Win7 Intel Dual Core i7 Mini Computer

Product Overview

Description

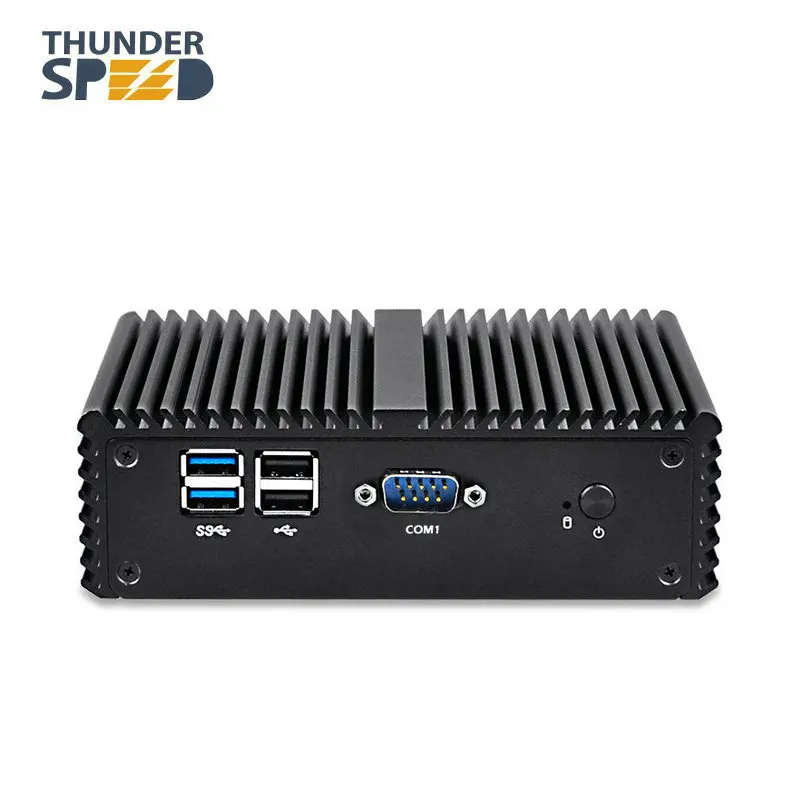

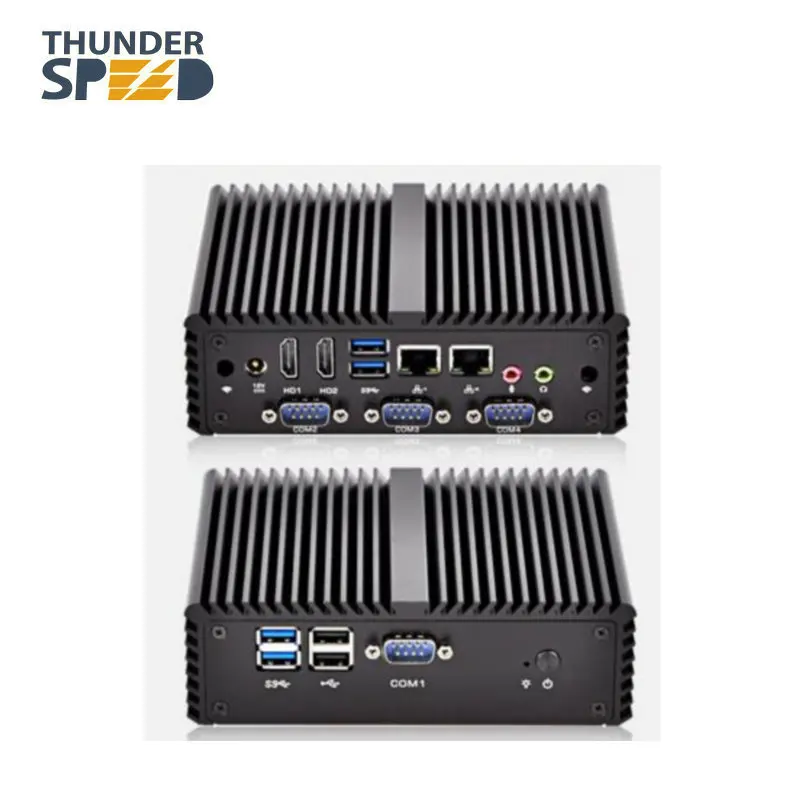

TK570P is our new arrival Mini PC with intel core i7 4500U processor, 2*nics, 4*rs232, 2*hdmi, 2*usb2.0 and 4*usb3.0 ports, support win7/8/10,linux etc.

Default TK570P is the barebone device (no ram, no ssd, no wifi), if you need add ram, ssd, wifi, please contact with us to get the price.





Specification
Size	156×127×48mm
Gross Weight	1.5KG
Onboard CPU	Option 1. Intel Celeron Processor 3215U (2M Cache, 1.70 GHz, Broadwell) Option 2. Intel® Core™ i3-4005U Processor 3M Cache, 1.70 GHz Option 3. Intel® Core™ i5-4200U Processor 3M Cache, 1.6-2.6Ghz Option 4. Intel® Core™ i7-4500U Processor 4M Cache, 1.8-3.0 GHz
Memory	Support DDR3L 1600 MHz,1.35V 1 x DDR3 DIMM Memory Slot, Max. Support up to 8GB Memory
Storage	Support MSATA SSD Support HDD (2.5 inch SATA HDD )
Onboard VGA	Intel HD Graphics
LAN	2 * Realtek 8111E 10/100/1000 Controller
Audio	Realtek ALC662 6-Channel HD Audio
Wifi	Optional
Power Consumption	10W

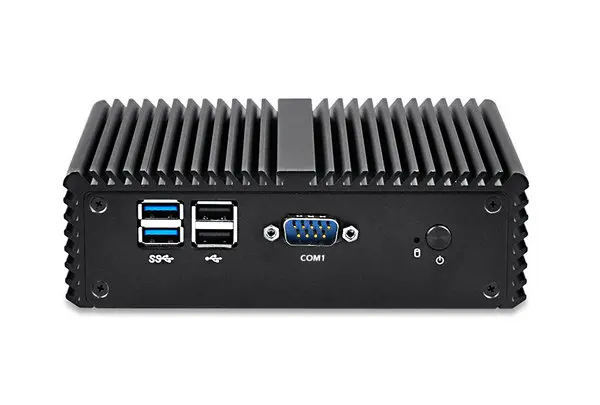

Front-Panel Connectors	• power on/off button • Power LED • 1 x COM port • 2 x USB 2.0 Ports • 2 x USB 3.0 Ports

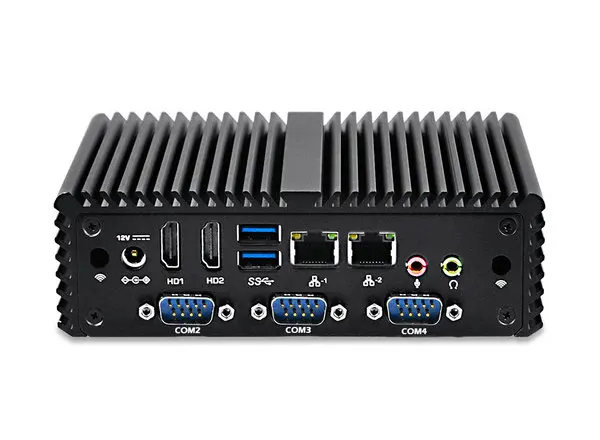

Back-Panel Connectors	• 1×DV 12V DC input • 2 x HDMI Connectors • 2 x RJ-45 Ports • 2 x USB 3.0 Ports • 1 x Speak Out Connector • 1 x Mic In Connector • 3 × COM ports • 2 × Antenna ports
Internal Connectors	• 1 x Minipcie port (for mSATA SSD) • 1 x Minipcie port (for WIFI/BLUETOOTH) • 1 x Minipcie port (for 3G/4G Module) • 1 x DDR3 DIMM Memory Slot • 1 x GPIO header • 1 x SIM card Slot • 1 x SATA Port • 1 x SATA power header • 1 x Front panel header • 1 x Front panel audio header • 1 x Front panel USB header • 1 x Automatically boot jumper
Operating System	Support Win7/8/10, Linux etc.





1.Computer Digital Libraries

2.Educational Institutions

3.Solar Computer Applications

4.Schools, Computer Labs

5.Small, Medium, Business & Office Applications

6.Manufacturing Industries & Much More

7.Computer Education for Rural Areas

We accept Alibaba,Alipay,Credit Card,T/T,Western Union,Money Gram
For security reasons, we will only ship orders to the delivery address you confirmed with alibaba.

particularly during the holiday season.

1. One Year limited Warranty for defective items.
2. If item is defective within 3 month, we'll send you a replacement or repair it without extra charger after we receive the defective item, we pay the shipping cost from China to your side. If item is defective after 3 month, you can still send it back to us, we'll repair them, but you need to pay the extra shipping cost.
