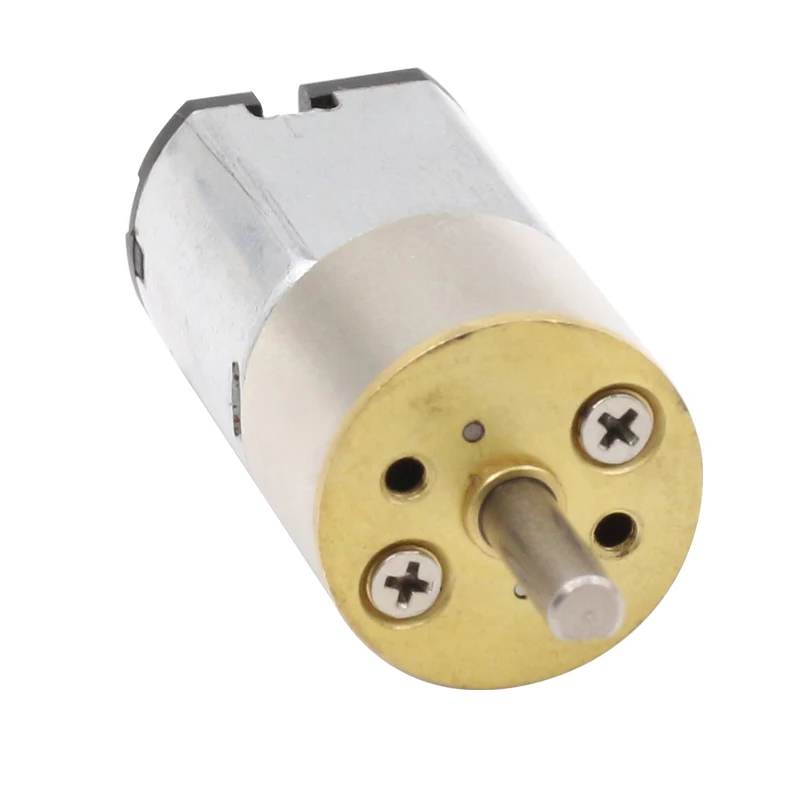

JGA16 050 electric dc motor 16mm 12V High rpm Micro electric motor gearbox 050 Copper gearbox high quality mini gear motor
- Category: >>>
- Supplier: Shenzhen Jinshun Laite Motor Co. Ltd.
Share on (60287036890):
Product Overview
Description
RGA16-050 Metal Gear Motor
1.Standard Operating Conditions:
1-1 Rated Voltage: 6V DC constant between motor terminals
1-2 Direction of Rotation: CW when viewed from output shaft side
1-3 Operating Temperature and Humidity Temperature range of -10℃~+50℃, Humidity range of 30%~80% temperature range of -10℃~+50℃
1-4 Storage Temperature Temperature range of -20℃~+60℃
2.Measuring Conditions:
2-1 Motor Position: To be place t horizontally when measuring
2-2 Power Supply: Regulated DC power supply
2-3 Environmental Temperature and Humidity: Temperature range of 15℃ to 30℃
Relative humidity 30%and 70%
2-4Power Supply: Regulated DC power supply
2-5 Application: --Robotics, Small Appliance, Fanner, Electric Curtain;
--Medical Pump, Surgery Tools, Medical Stirrer, centrifugal Machine; Electric Valve, Actuator, medical device
--Electric motor,low noise,low current and no spark.
--Robotics, Small Appliance, Fanner, Electric Curtain;
--Medical Pump, Surgery Tools, Medical Stirrer, centrifugal Valve, Actuator, medical device
2-6 Character: --Electric motor,low noise,low current and no spark.
--High quantity ,small body
Model: RGA16-050
Rated volt: 6V
Rotation speed 340Rpm 230rpm 120rpm 80rpm 50rpm
Gear Ratio: 35 52 100 150 250 360
RS-030 DC MOTOR 6V 12000RPM 12v 12000rpm
Product Description
6v electric JGA16-030 mini geared motor for conveyor belt
Data sheet
| JGA16-030 | ||||||||||||
| Voltage | No Load | Load Torque | Stall | Reducer | weight | |||||||
| Workable | Rated | Speed | Current | Speed | Current | Torque | Output | Torque | Current | Ratio | Size | |
| Range | Volt.V | rpm | ma | rpm | ma | kg.cm | W | kg.cm | A | 1:00 | mm | g |
| 3-6V | 6 | 600 | 80 | 430 | 300 | 0.13 | 0.6 | 0.6 | 1 | 25 | 9.5 | 25 |
| 3-6V | 6 | 333 | 80 | 233 | 300 | 0.2 | 0.6 | 1.1 | 1 | 45 | 9.5 | 25 |
| 3-6V | 6 | 214 | 80 | 145 | 300 | 0.3 | 0.6 | 1.75 | 1 | 70 | 11 | 25 |
| 3-6V | 6 | 150 | 80 | 105 | 250 | 0.5 | 0.6 | 2.5 | 1 | 100 | 11 | 25 |
| 3-6V | 6 | 105 | 80 | 73 | 250 | 0.7 | 0.6 | 3.5 | 1 | 142 | 11 | 25 |
| 3-6V | 6 | 75 | 80 | 52 | 250 | 1 | 0.6 | 5 | 1 | 200 | 12.5 | 25 |
| 3-6V | 6 | 60 | 80 | 42 | 250 | 1.3 | 0.6 | 6 | 1 | 250 | 12.5 | 25 |
| 3-6V | 6 | 42 | 80 | 29 | 250 | 2 | 0.6 | 8 | 1 | 355 | 14 | 25 |
| 3-6V | 6 | 30 | 80 | 21 | 250 | 2.7 | 0.6 | 12 | 1 | 500 | 14 | 25 |
| 3-6V | 6 | 15 | 80 | 10 | 250 | 5 | 0.6 | 25 | 1 | 970 | 14 | 25 |
Note:it is the regular data,if want to customize the voltage,speed or shaft length,pls contact our salers.

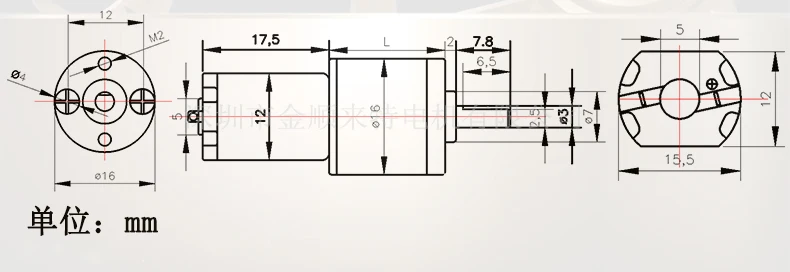

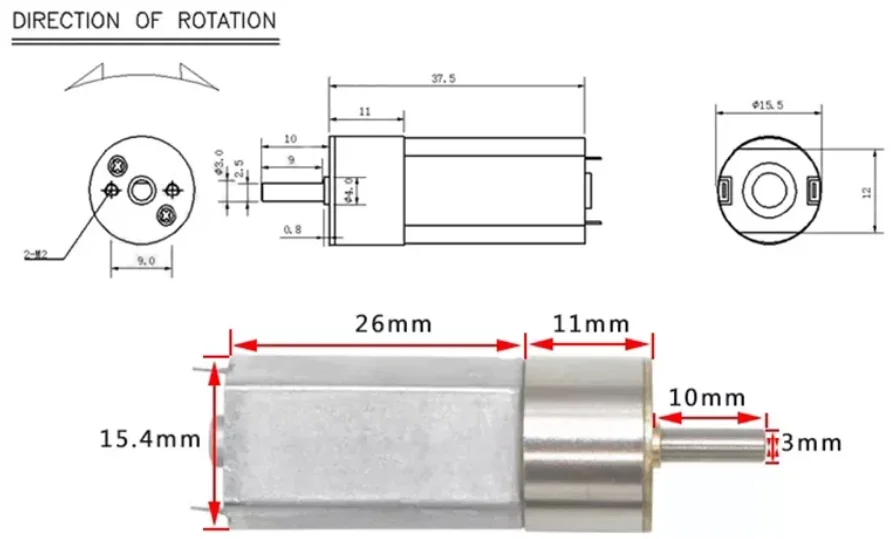

Outline drawing

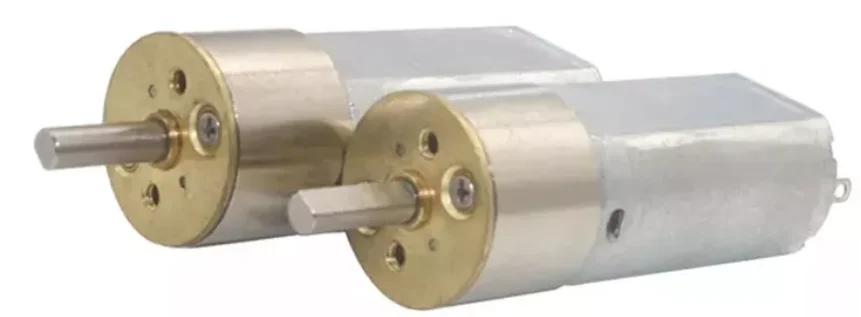

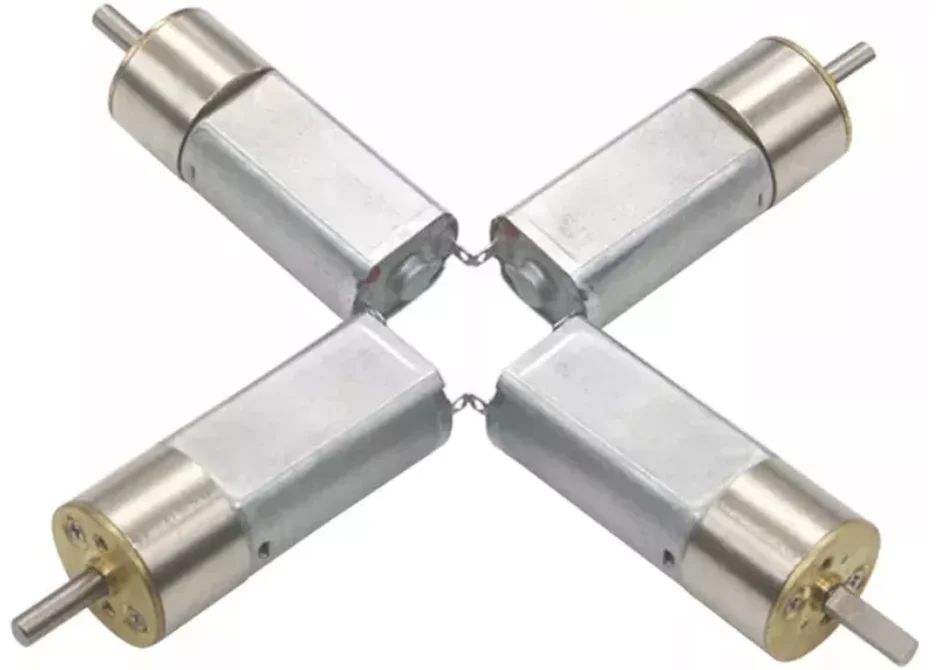

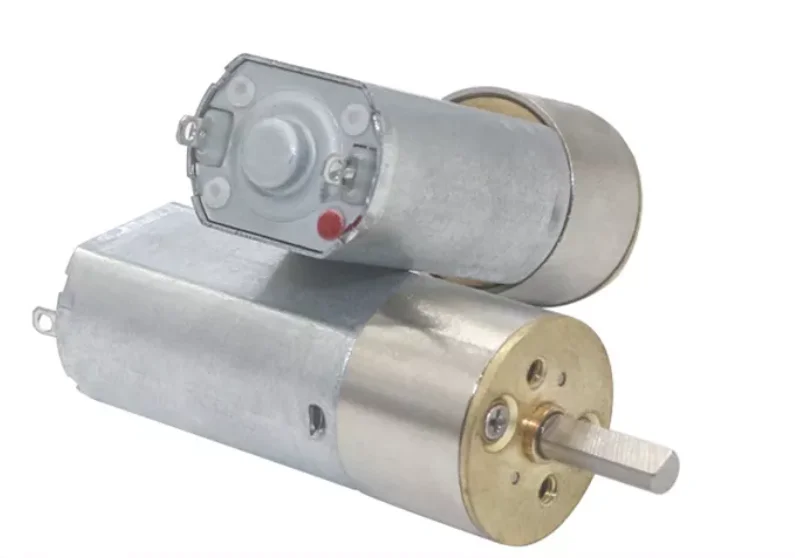

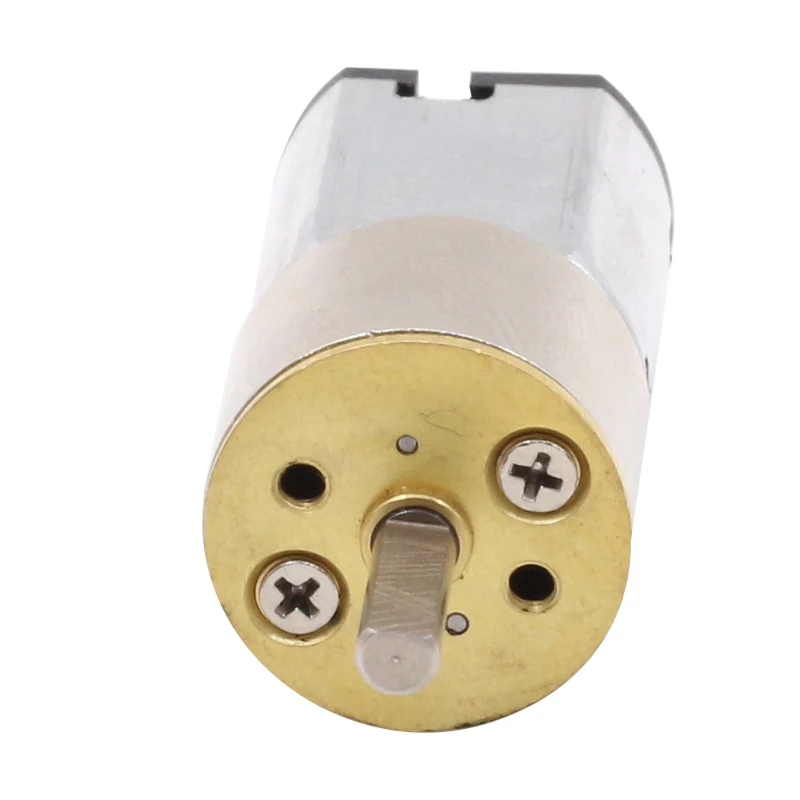

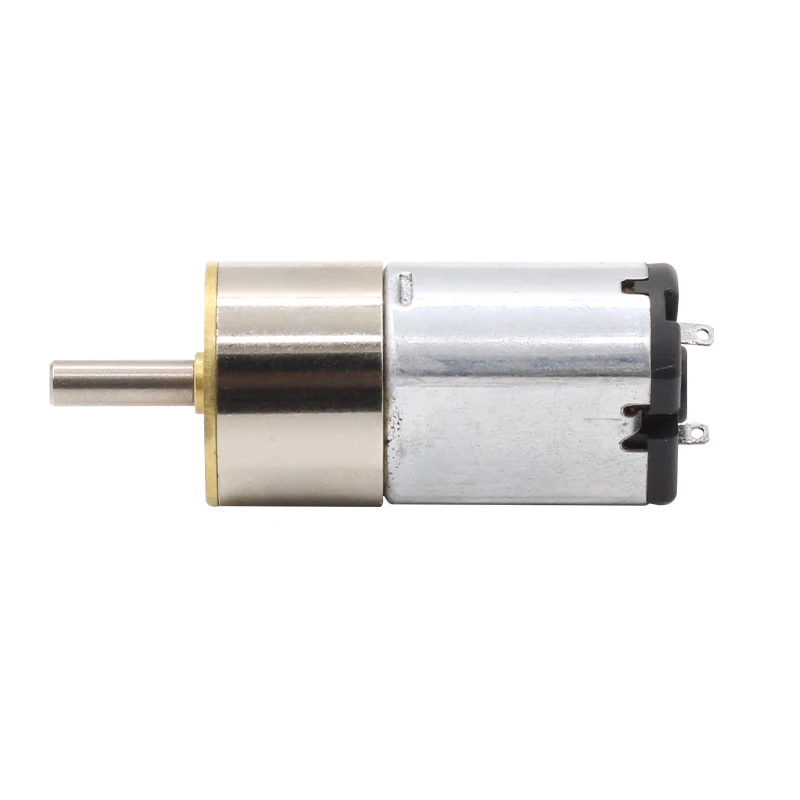

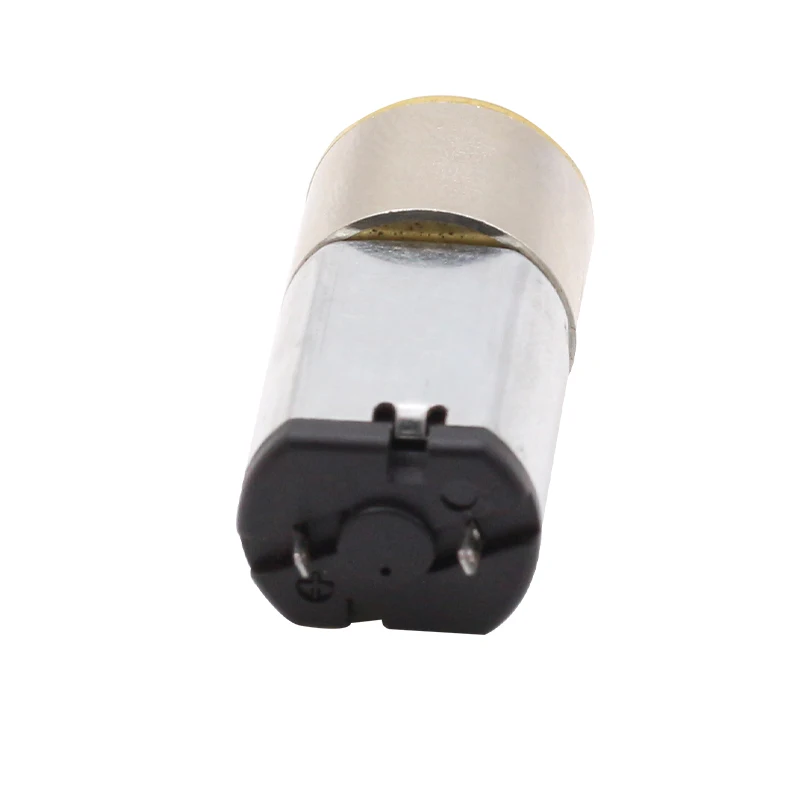

Photos show
Remarks:
1.Shaft diamension can be customized.
2. The voltage can be 12v,24v;The dc motors speed is adjustable.

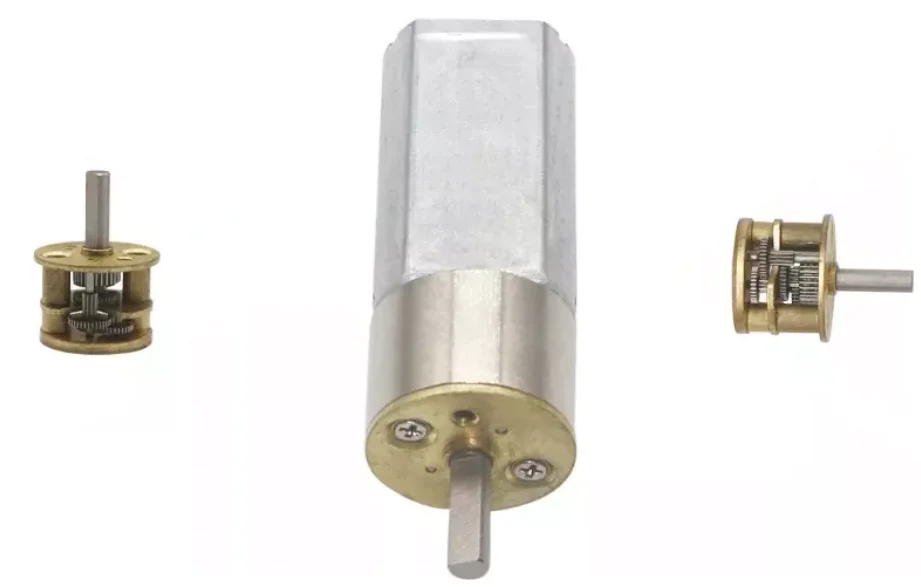

3.This gearbox can matched with other dc motor.
15years OEM&ODM in DC motor industrial,professional R&D of dc gear motors
3500+square meters production space to supply the motors for customers
Have a complete quality testing system,passed the ISO9001 management system certification and passed the Eurpean ROHS,FCC,CE certification
Produce various micro speed-reducing motor shafis,reduction gearbox etc.according tocustomer requirements
