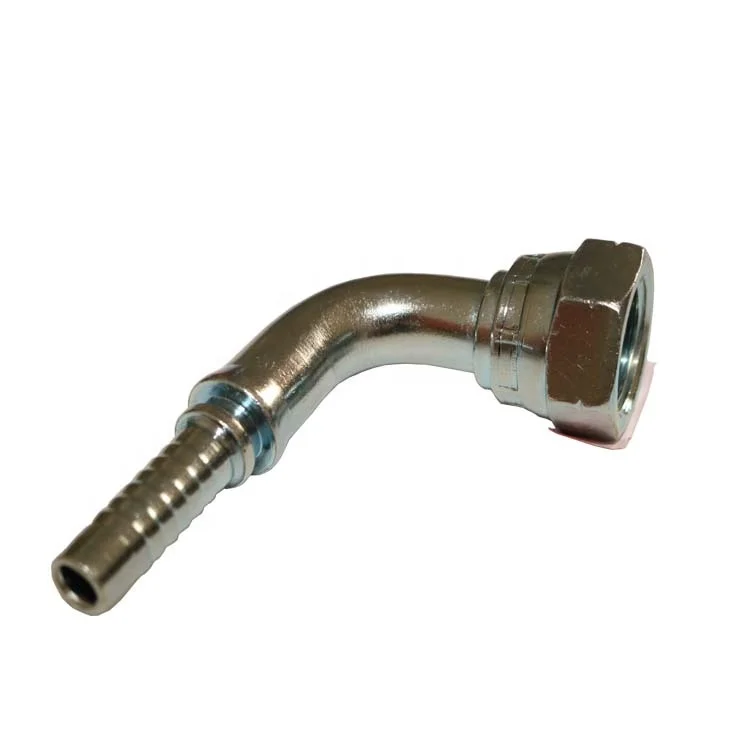

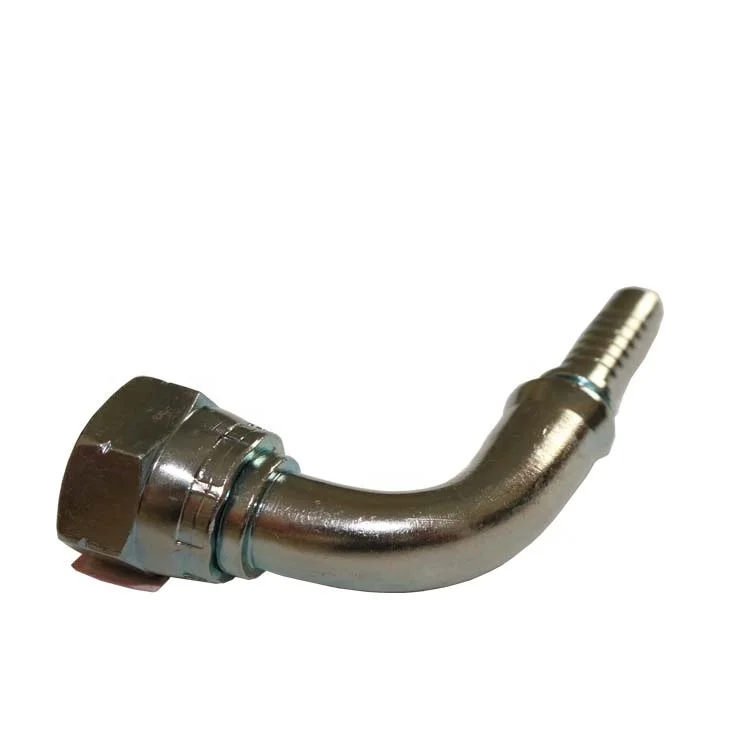

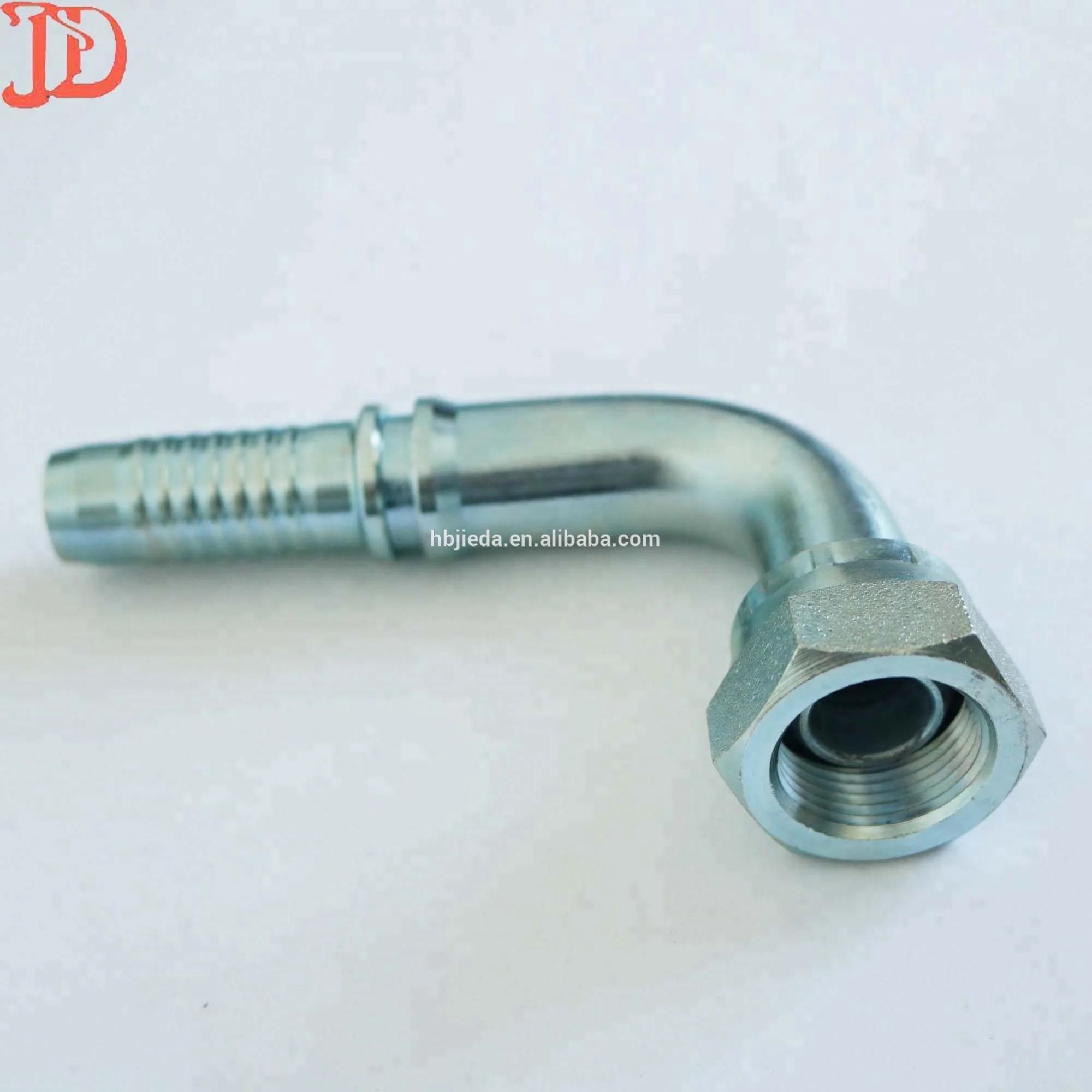

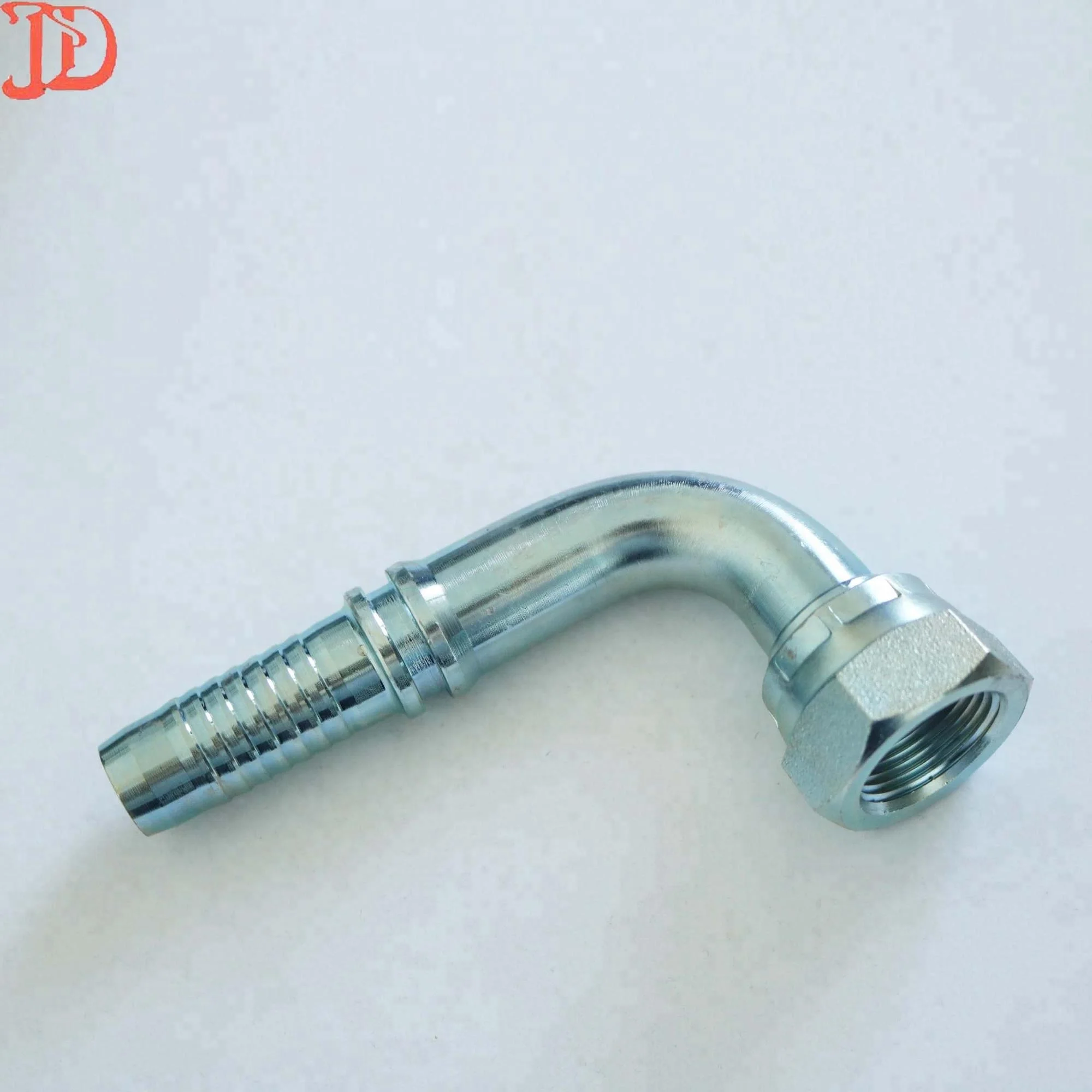

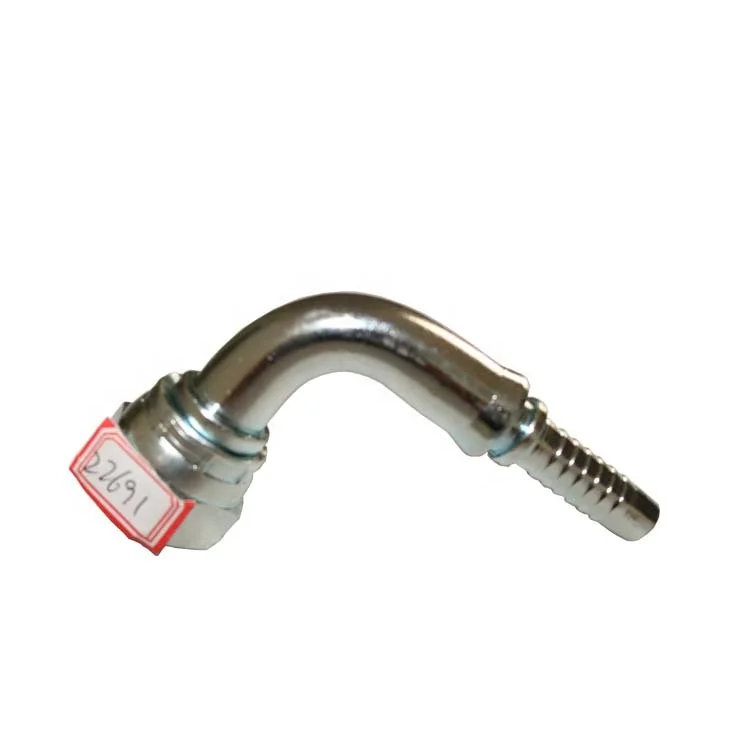

Hebei forged end connection hydraulic hose fittings Carbon steel Single Hex 90 degree BSP 22691
- Category: >>>
- Supplier: Hejian Jieda Hydraulic Fittings Co. Ltd.
Share on (60287122553):
Product Overview
Description
Product Description
Hebei forged end connection hydraulic hose fittings Carbon steel Single Hex 90 degree BSP 22691
E | HOSE BORE | DIMENSIONS | |||||
PART NO. | THREAD E | DN | DASH | A | C | S1 | S2 |
29611-02-03 | G1/8"X28 | 5 | 03 | 20 | 7 | 14 | 14 |
29611-04-04 | G1/4"X19 | 6 | 04 | 21 | 8 | 19 | 19 |
29611-04-05 | G1/4"X19 | 8 | 05 | 21 | 8 | 19 | 19 |
29611-06-04 | G3/8"X19 | 6 | 04 | 24 | 9 | 22 | 22 |
29611-06-06 | G3/8"X19 | 10 | 06 | 23 | 9 | 22 | 22 |
29611-08-06 | G1/2"X14 | 10 | 06 | 28 | 12 | 27 | 27 |
29611-08-08 | G1/2"X14 | 12 | 08 | 26.5 | 12 | 27 | 27 |
29611-10-10 | G5/8"X14 | 16 | 10 | 31 | 11.5 | 30 | 30 |
29611-12-10 | G3/4"X14 | 16 | 10 | 28.5 | 13.5 | 32 | 32 |
29611-12-12 | G3/4"X14 | 20 | 12 | 28.5 | 13.5 | 32 | 32 |
29611-16-16 | G1"X11 | 25 | 16 | 32 | 16 | 41 | 41 |
29611-20-20W | G1.1/4"X11 | 32 | 20 | 43 | 18.5 | 50 | 50 |
29611-24-24W | G1.1/2"X11 | 40 | 24 | 43.5 | 19 | 55 | 55 |
29611-32-32W | G2"X11 | 50 | 32 | 46.5 | 23 | 70 | 70 |
| Note:1.For use with braide hoses.2.if use with spiral hoses,hose fitting series number is 29612-xx-xx | |||||||
materil | carbon steel & stainless & custom | head code | hexagon |
technology | forged | shape | straight |
type | fitting | standard | BSP,JIC,DIN,Metric |
origin | Hebei ,China | colour | yellow/black/white |
model number | 26711D 28611 29611 22611D | surface treatment | galvanized |
brand | Jieda |
|
|
connection | FEMALE |
|
|
Company Information
Welcome to Hejian Jieda Hydraulic Fittings Co.Ltd!
The factory specializes in the production of sets of rubber tube assembly and many kinds of hydraulic pipe joints and hydraulic hose fittings. The main products include ferrule,nipple, union,adapter,flange,nut,tee,elbow,outlets,banjo,staple-lok,oil plug and some other hydraulic joints. We have all kinds of thread standards including METRIC,ISO,JIC,BSP,SAE,JIS,ORFS,MT,etc.
We offer a complete product line of over 500 different styles and sizes for braided hose couplings. From 1/4" I.D. to 1-1/2” I.D., our selection should make it easy to find the right size and style for your hydraulic application.
We provide products with high quality and competitive price. We also provide OEM service. If the products you want we do not display on our website, please send us the design drawing or the size.
