Lab oven 2000c 2400c china electric thermal oven laboratory muffle furnace

Product Overview

Description

High temperature electric muffle furnace/chamber muffle furnace/muffle furnace

Application of electric muffle furnace

Laboratory electric muffle furnace is widely applicable for sintering of ceramic samples,metal, stone, ceramic,dissolution

analysis of high-temperature heating;chemical element analysis, and small pieces of steel hardening, annealing, tempering,universities,

research institutes.



Features of electric muffle furnace/chamber muffle furnace





1.The unique touch screen control system, and make the control more accurate graphic interface
   convenient operation



2.Furnace with high purity alumina fiber materials produced through unique technology, heat
   preservation performance outstanding thus reducing power consumption by 30%



3.Can be equipped with computer software interface, through the computer PC global monitoring
    and operation



Technical parameters of electric muffle furnace/chamber muffle furnace



Model	CY-M1200	CY-M1400	CY-M1700
Chamber model	Side Door
Display	LED  / LCD for optional
Limiting temperature	1200C	1400 C	1700 C
Working temperature	≤1150C	≤1350C	≤1650C
Heating rate	Suggestion 0~20C/min
Temperature accuracy	±1℃
Regular chamber size	120*120*130(mm)
	150*150*150mm
	200*200*200mm
	200*200*300mm
	250*160*350mm
	250*250*300mm
	300*300*300mm
	300*300*400mm  or as customized
Heating element	Aludirom	SiC	MoSi2
Thermal couple	k Type	S Type	B Type
Temperature control	PID automatic control via SCR power control
Heating curves	30 steps programmable(adjustable)
Chamber material	Alumina Fiber
Working voltage	AC 220V 50-60Hz, or as customized
Packing	PLY wood box
Accessories	Door stopper 1 pc, glove 1pair, crucible tongs 1pc, manual book

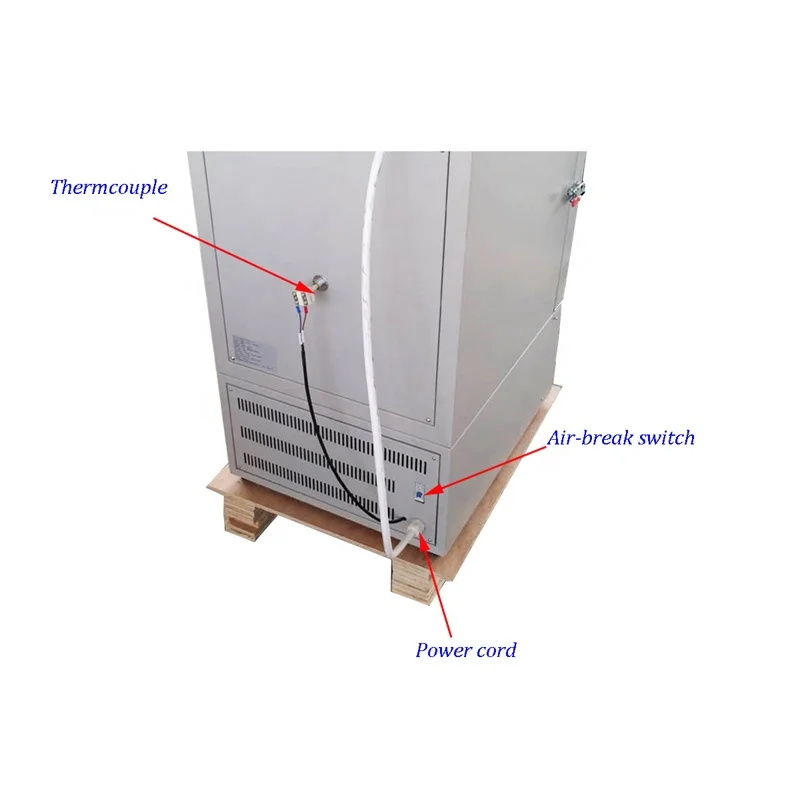

More photos of electric muffle furnace

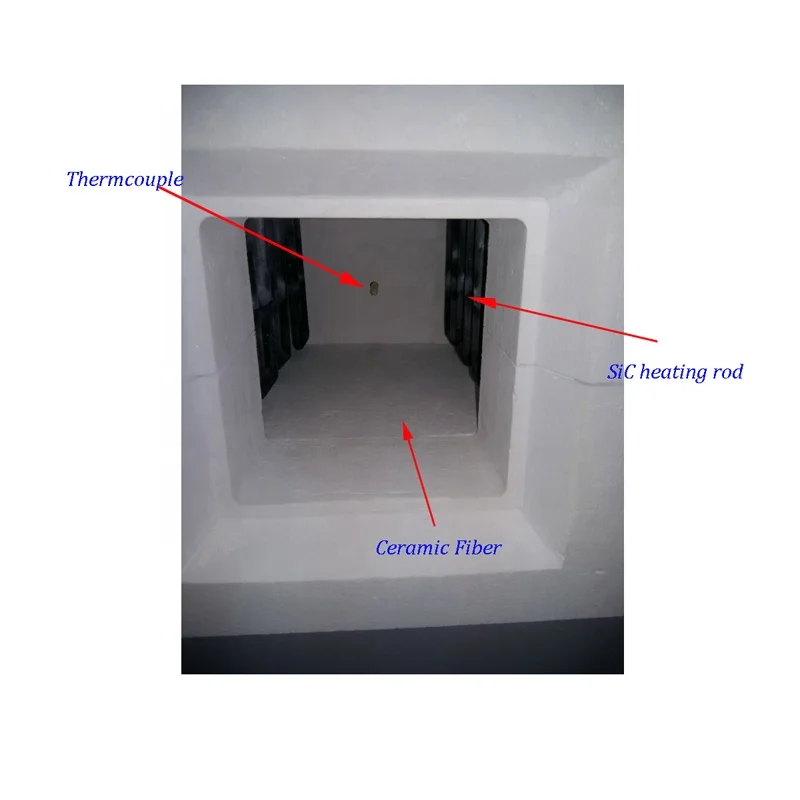

Furnace chamber of electric muffle furnace

Drop down door of electric muffle furnace
