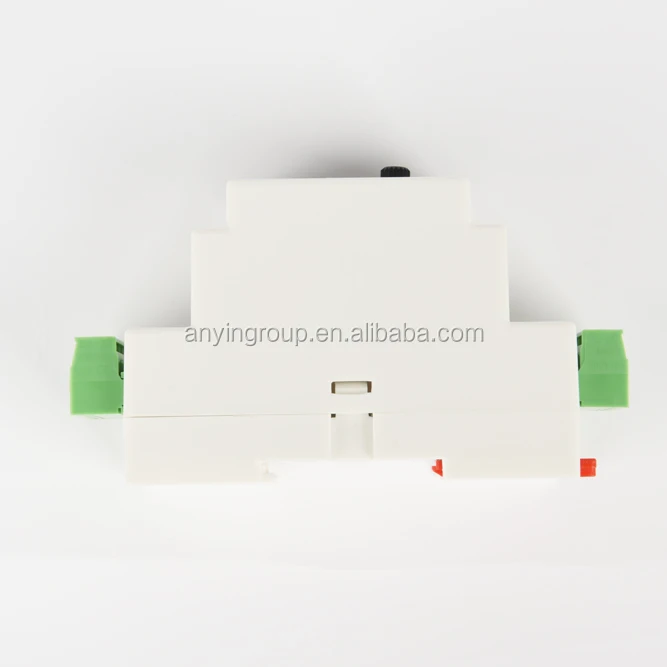

2020 High Sensitive Water Leak Detector/Water Leak Detection/Water Leak Alarm

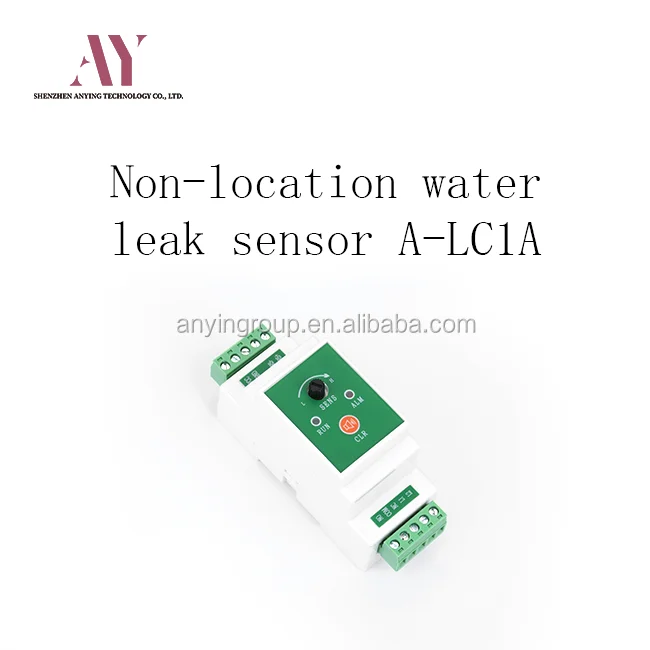

1. Item: High Sensitive Water Leak Detector/Water Leak Detection/Water Leak Alarm  A-LC1A MODULE

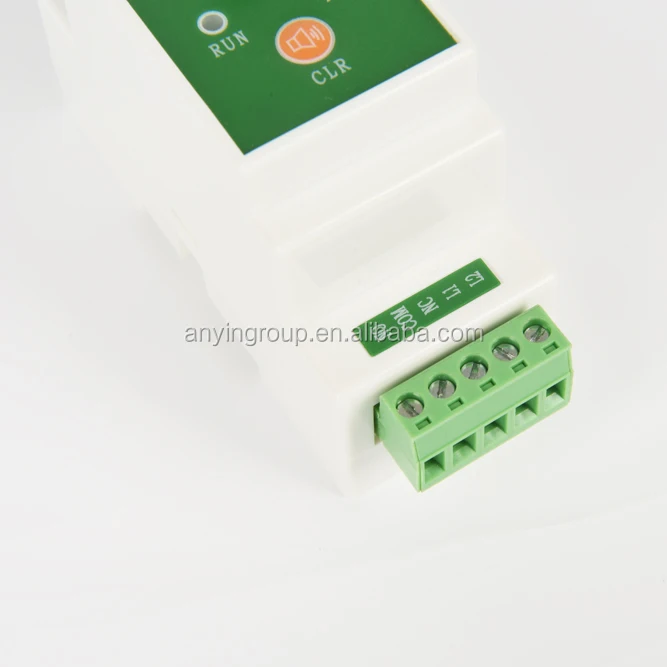

2. Connection for Water Leak Detector A-LC1A:   L1, L2 For Leading Wire Connection (Or Water Sensor Cable Directly)

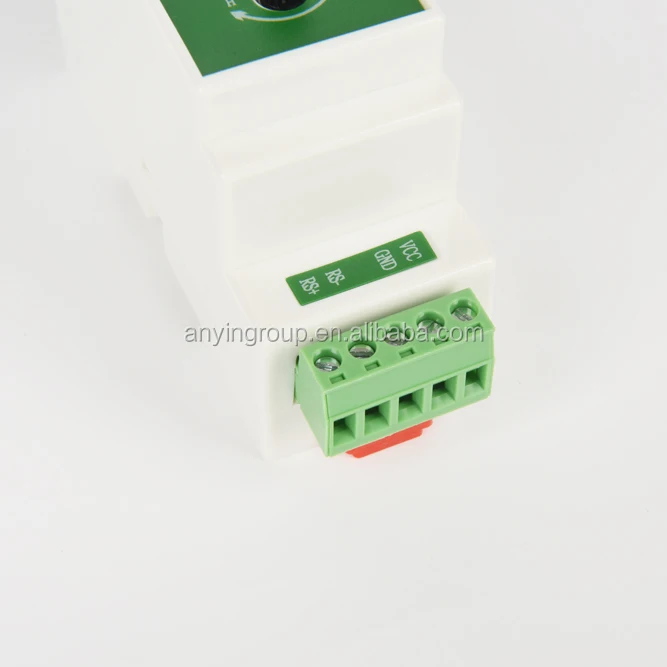

3. MODBUS COMMUNICATION: RS+, RS- OUTPUT CONNNECTED TO PC OR NOTEBOOK.

Description:

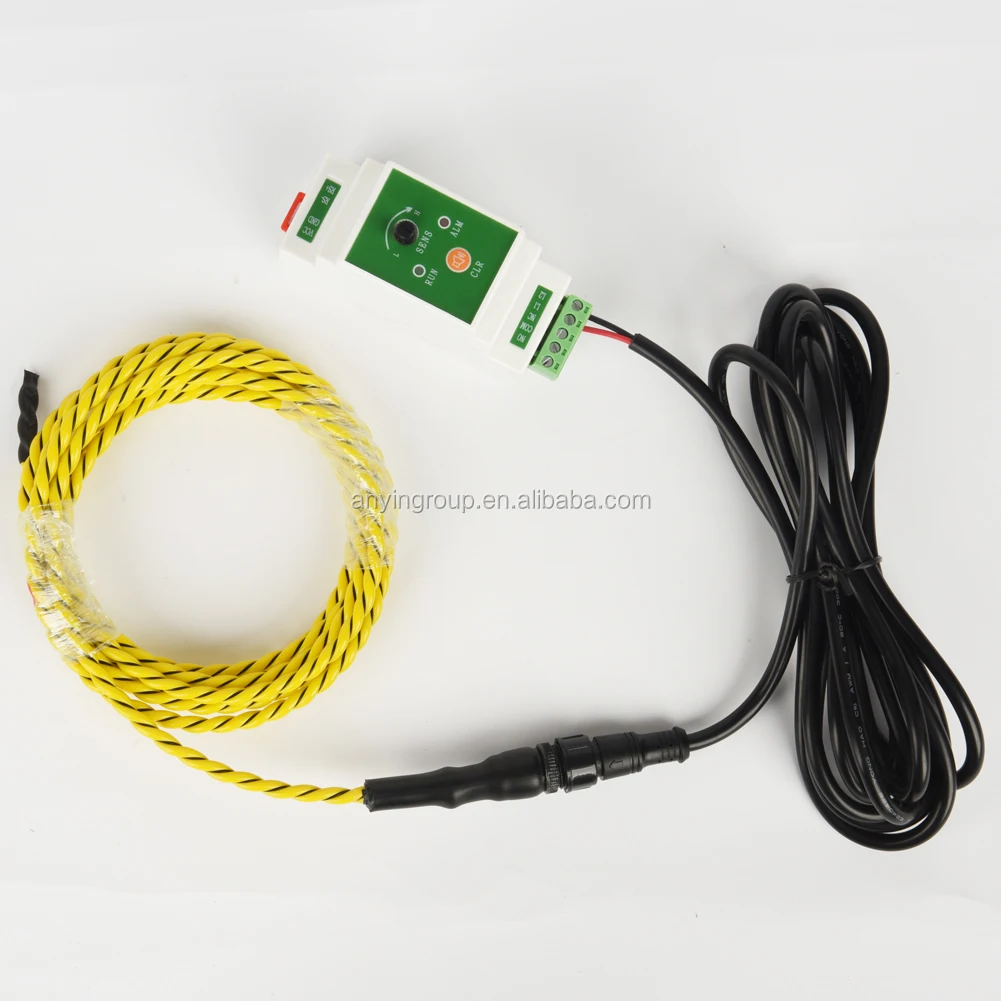

A-LC1A linetype water leak sensor can monitor the dual-core leakage sensor cable up to 500 meters

It can be use with the sensor cable , and also can be use with the other sensor  probes .

Once the sensor contacted the water , A-LC1A will produce sound and light alarm ,and drive relay .

The ALC1A linetype water leak sensor using modbus RTU protocol controller programming ,and monitoring  system to facilitate integration .

A-LC1A either as stand alone leak detection alarm can also be integrated with other network hosts collected using .

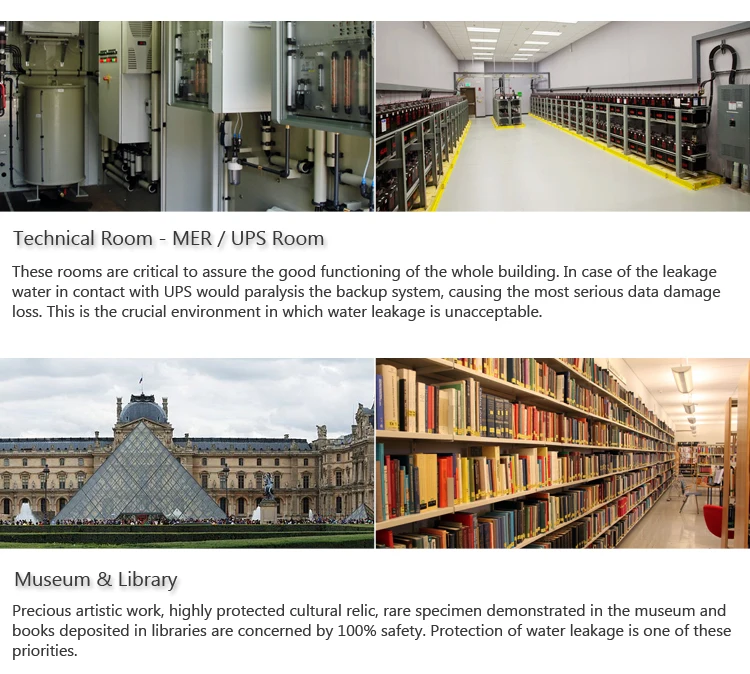

It can be used in the base stations ,warehouses ,libraries ,museums ,parking lots and industrial sites and otherimportantplaces of real-time leak detection ,and more can be used for airhandling units ,chillers ,liquid containers ,pump tank

and other equipment needed to monitor leakage .

Features:

  ·Practical and reliable twisted pair serial RS-485 communication test ,as far as communication     distance up to 1200 meters ,the standard industrial modbus protocol.

  ·12V DC power supply , the distinction between positive and negative access.

  ·Sensor sensitivity adjustable.

  ·A variety of communication baud rate and set the module address software and communication baud rate ,    without the use of switch .

  ·Relay output in the form NC coexist ,are free to choose .

  ·Good anti-static ,anti-surge technology to ensure reliable operation of the product.

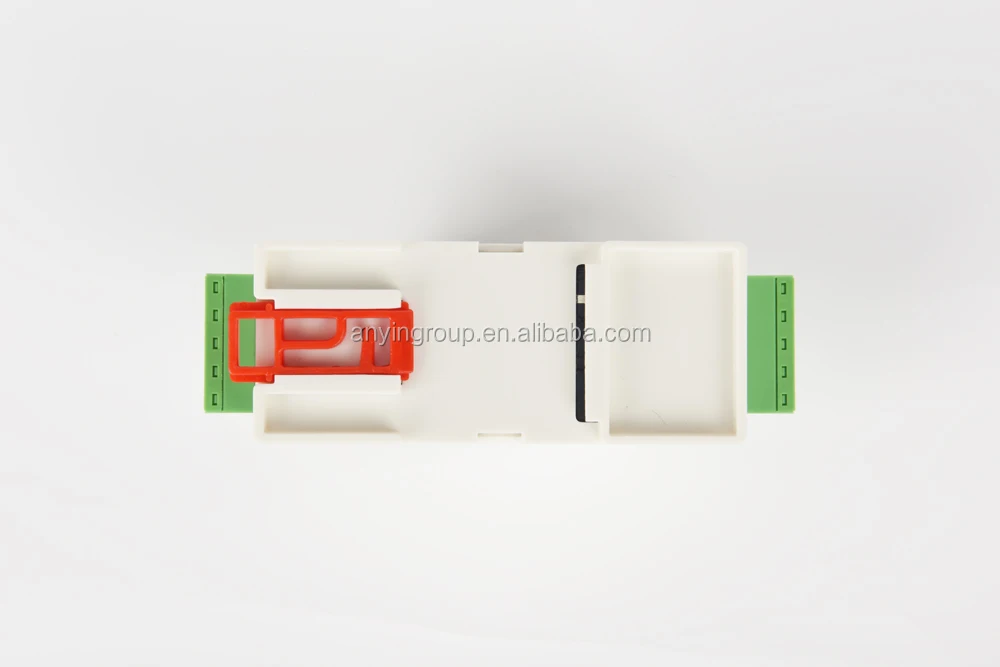

  ·Convenient 35MM DIN rail mounting.

  ·Dimension :55*115*36mm
