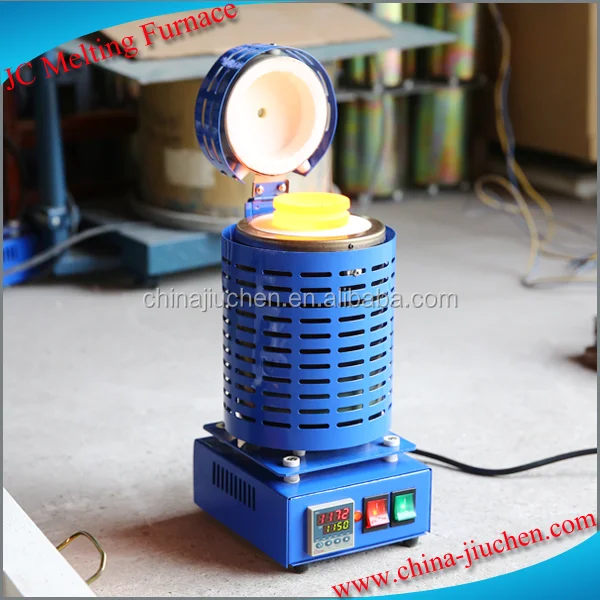

Supplier 220V 4kg Portable Electric Gold Silver Metal Smelting Furnace

MODEL

Melting Capacities

Electrical Specifications

Net Weight

Heating  Speed to 2102 ºF /1150℃

JC-K-220-1 JC-K-110-1

1kg(14K gold: 821g,26.4 troy oz)

2kg(14k gold:1648g,53 troy oz)

3kg(14k gold:2799g 90troy oz)

4kg(14k gold:3750g ,120 troy oz)

220V,1000watts, 4.5amps  110V,1000watts, 9amps

5kg(9.9lbs)

    25-30minutes

JC-K-220-2 JC-K-110-2

1kg(14K gold: 821g,26.4 troy oz)

2kg(14k gold:1648g,53 troy oz)

3kg(14k gold:2799g 90troy oz)

4kg(14k gold:3750g ,120 troy oz)

220V,1500watts, 6.8amps  110V,1500watts, 13amps

5kg(9.9lbs)

15-20minutes

Setting the Melt Temperature and Handling the Melt

Please Note: This unit is pre-set to degrees centigrade (°C).

1. Remove the crucible and clean the inside with a hard paper towel to remove loose graphite or other debris

2. The furnace has two on/off switches: the GREEN switch turns on thetemperature thermostat allowing you to set the desired  melting temperature.The RED switch turns on the heating element to start the melting process.

3. The thermostat has two digital read-outs: the bottom readout (SV) displays the setting you enter into the furnace. The top       read-out (PV) displays the actual temperature inside the crucible during operation.

4. To set the desired melting temperature, turn on green on/off switch. Wait a few seconds; the bottom (SV) readout should        show the default temperature setting of 1950°F.

   To change the temperature setting, simply press the left arrow key to move the cursor to the proper desired digit and press    the up or down keys to adjust it up or down. Adjust each digit to the desired setting.

5. When you are ready, place the metal pieces or grain in the crucible and set the crucible in the furnace. Close the lid.

    Press the red button to start the melting process.

6. When the metal is molten and has reached casting temperature, turn off the red switch. Open the lid and pour the metal          into your prepared flask.

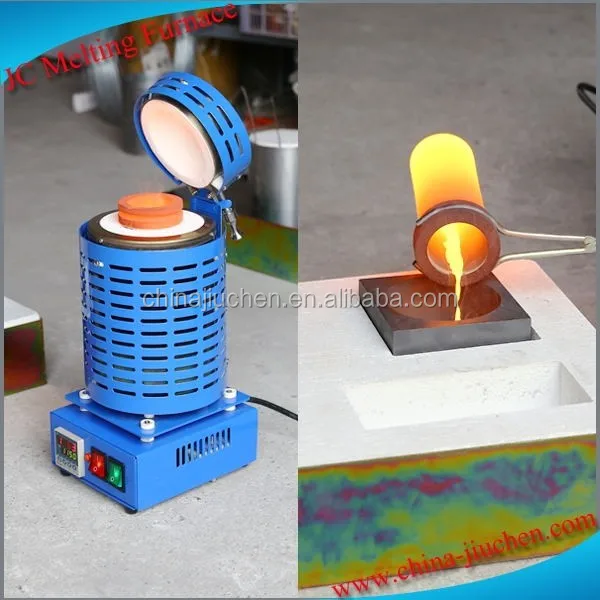

 Gold bar melting Operating Process as follows

Step 1 Put gold bar into the crucible.

Step2 Heat up the furnace with 15 minutes

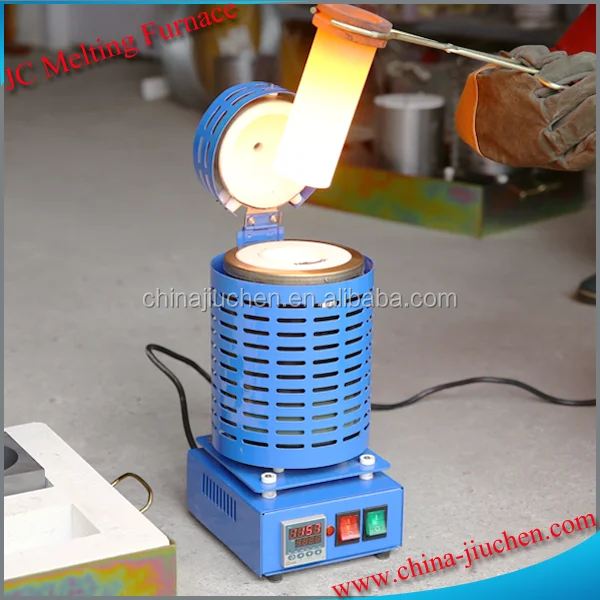

Step3. Take out the Melting crucible from the furnace,then put it on tray.

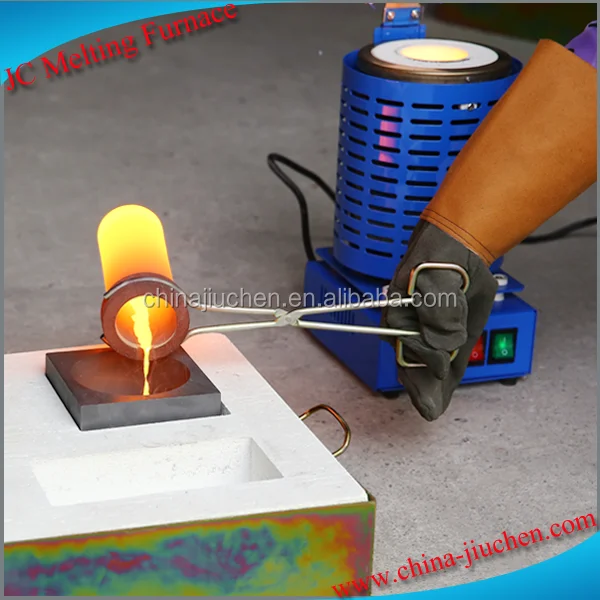

Step4.Pour slowly the gold liquid from the crucible.

Step5.Wait the liquid cooling in the mould within several seconds.

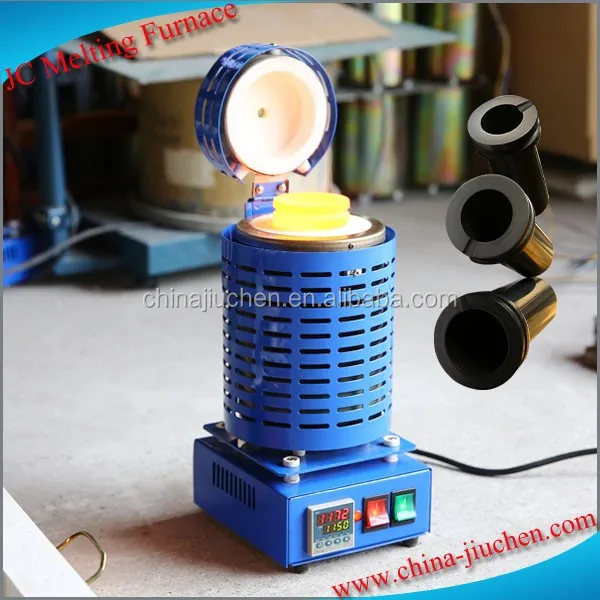

Replacement Parts

JC long life heating elements can be easily replaced in both the Standard and

Maxi ElectroMelt furnaces.

 Warranty and Return:

All the products have been tested before ship out.

All products electrical parts have 1 year warranty,including temperature controller,relay, thermocouple,heating elements have 6 months warranty,including chamber,heating coil etc.

If there is no man-made problems,we will replace or repair for you freely.
