2.auto constant heating control by computer meter or PLC
3.forward or reverse run auto control by meter
4.two layer steel
5.auto clean drum inside
6.national stand 304 or 316# stainless steel for choose

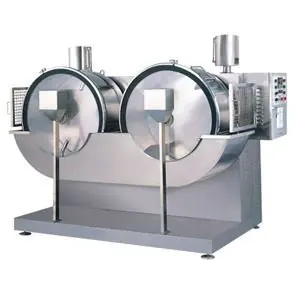

The equipment is equipped with the advanced interlayer electric-heating & circulating system. The liquid inside the drum is totally separated with the heating medium in the interlayer of the drum so that the drum can be heated and maintained at a temperature when it is stationary. It is especially suitable for test at low ratio of liquids. All test date are accurate. The inside of the drum can be cleaned thoroughly so that there will be no any residual liquid and west residue remained. As a result of that, color spot or chromatic difference can be eliminated completely.
Model
R60-2
R80-2
R801-2
Drum diameter(mm)
600
800
800
Drum widit(mm)
300
300
400
Effective volume (L)
23
45
60
Leather loaded(kg)
8
11
15
Drum speed(r/min)
0-30
Motor power(kw)
0.55*2
0.75*2
0.75*2
Heating power(kw)
4.5*2
Temperature range controlled(0C)
Room temperature-80±1
Dimension(mm)
2000*1300-1600
2300*1300*1650
2300*1400*1650
Packaging & Shipping
Company Information
Our company provides GJOB1-2 series impendent iron, wooden drums, GJOF series full-automatic stainless steel cylinder, octagonal milling drums, HC series paddles, and many other leather machinery products all the year round. Our Products are sold well in Zhejiang, Shandong, Guangdong, Fujian, Henan, Hebei, Sichuan, Xinjiang, Liaoning, and other areas. They are popular with many leather factories all over the country. Our products have been successively passed provincial tests and the test conducted by National Leather & Shoe Machinery Quality Testing and Supervision Center. They were awarded the Silver Prize on China High- and New- Technology & New- Products Exhibition in year of 2005. Our product parts, steel-cored nylon-plastic drum posts, have obtained national patent right. At the same time, our company provides many services including design of leather machinery with special specifications, repair and adjustment of equipment, and technical reform. We have established complete testing system and reliable after-sale services.
