Wind turbine low voltage charging solar 48v 5000w pv wind hybrid controller

Product Overview

Description





Wind turbine low voltage charging solar 48v 5000w pv wind hybrid controller







Wind and Solar hybrid generation is quite advanced renewable energy system presently. Really, continue achieving green power to utilize for our word day and night.

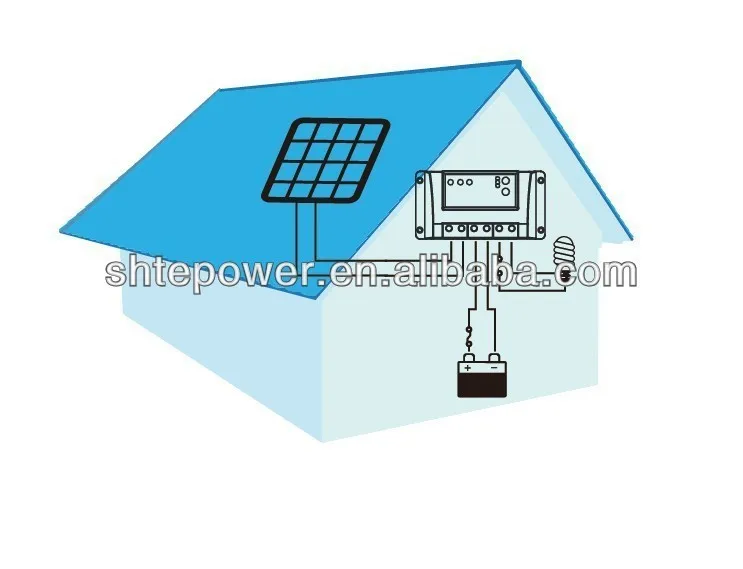

The charge controller is used to manage power from wind-turbine and solar panel into accumulator battery intelligently and transfer automatically.

Product features (  5000w pv wind hybrid controller  )



1. LCD showing system critical parameters
2. Aavilabe for RS232/485 data transfer
3. CE certification
4. Module designed







Design advance:



1. wind turbine safe running speed limited auto
2. wind turbine generator low voltage charging be available
3. Wind-turbine auto brake or manual switch operation.
4. solar penal protection as: Reverse polarity protection, Anti-reverse charging.
5. PWM system control.
6. battery protection auto as: Reverse polarity protection, Short circuit protection, over-charging or over-discharging.
7. Temperature compensation
8. Setting panel for user special setting of system









Product tech-data(  48v 5000w pv wind hybrid controller   )



Model No.	TEC-50-48	TEC-50-96	TEC-50-120	TEC-50-240
Wind turbine power	5000 W
Solar rated power	1500 W
Rated Battery Voltage	48 V	96V	120V	240 V
Wind-turbine input power max.	9000 W
Wind-turbine input current max.	200 A	100A	80A	50A
Over-charge voltage	58.8 V	116V	144V	164 V
Over-charge recovery voltage	56 V	110V	138V	288 V
Over-discharge Voltage	42.5 V	86V	108V	216 V
Over-discharge recovery volt.	47 V	92V	115V	230 V
Method of control	Two way control with PWM
Free-load lost power	≤6 mA
Voltage lost on charging	≤0.26V
Voltage lost on discharge	≤0.15V
Display	* LCD show battery charging current; battery voltage; system operation status * LED show battery situation ;device working status
Protection Mode	Solar cells reverse charging, solar cells anti-reverse connection, battery over-charging, battery over-discharge, battery anti-reverse connection, over-load, Load anti-reverse connection, wind-turbine current limited, wind-turbine rotation limited, manual brake switch equipped.
Over-load and short-circuit protection	1.25times 60sec./ 1.5times 5sec. action
ambient temperature	-25°C - +55°C
humidity	<85% RH without condensation

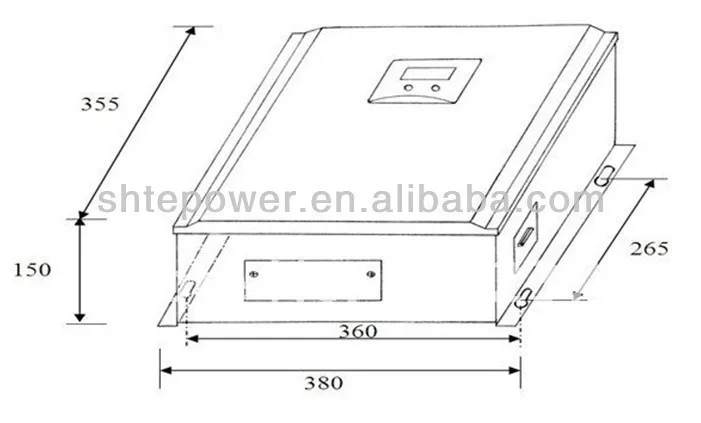

Main-device Dimension	355mm x 380mm x 150mm
Main- device Weight	8KG

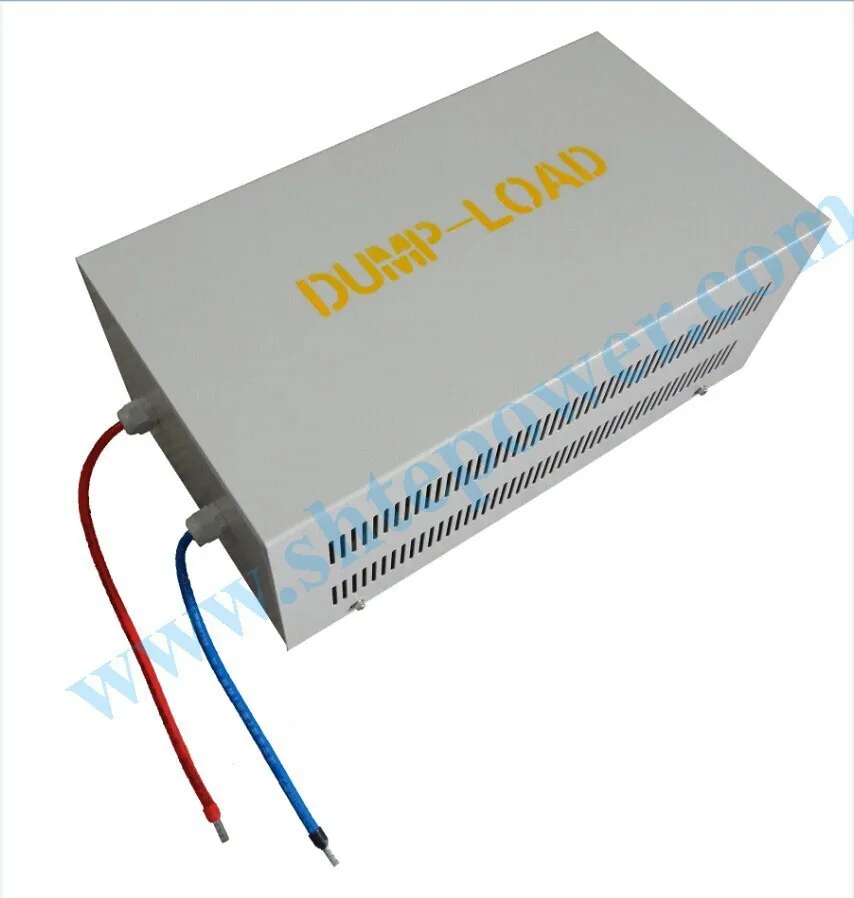

Dump-load Dimension	710mm X 410mm X 440mm
Dump-load Weight	5 kg
Cooling Method	Cooling Fan

























      Thanks for looking through our solar 48v 5000w pv wind hybrid controller. If you have any questions, pls contact me. I will explain to you as soon as posiible.
