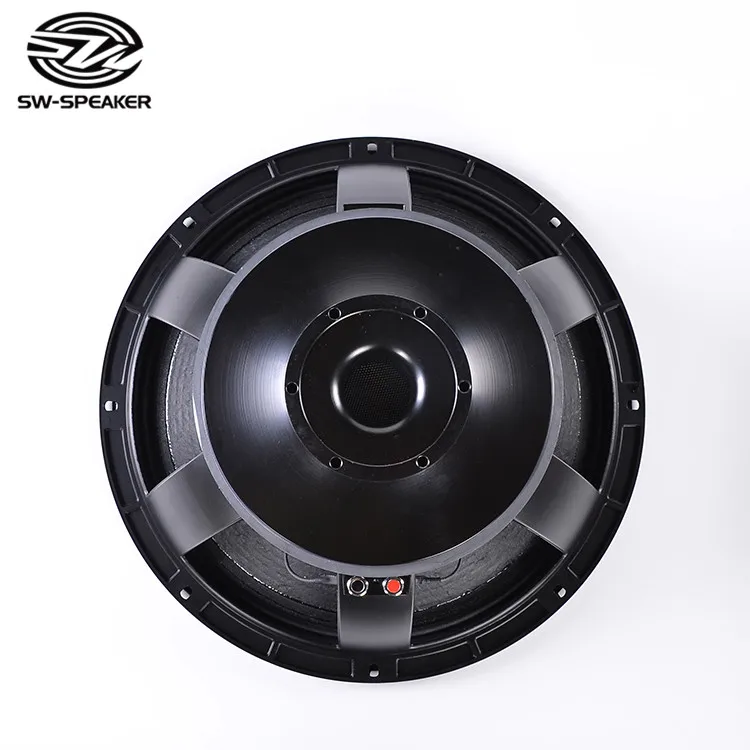

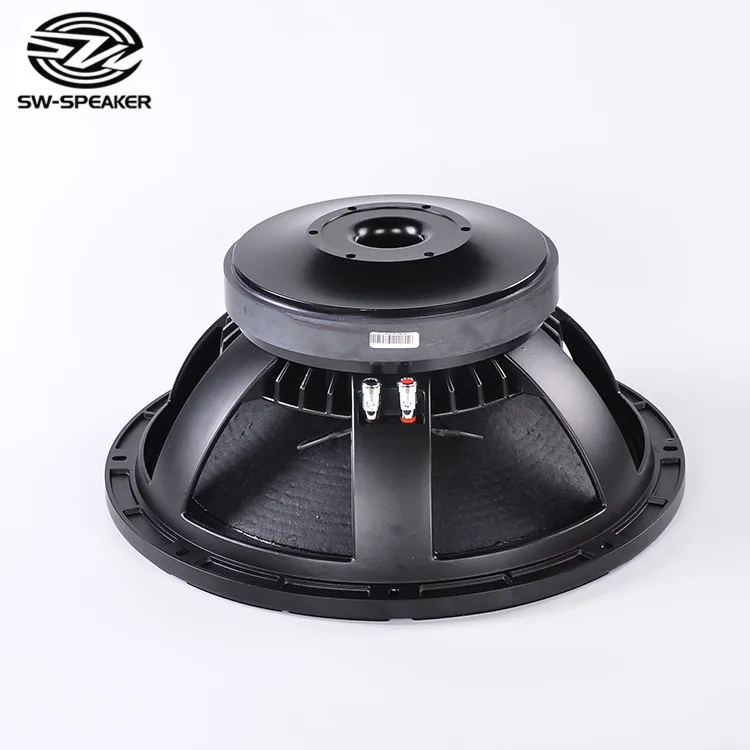

speaker for passive 15 inch subwoofers
- Category: >>>
- Supplier: Guangzhou Soundwave Electronic Technology Co. Ltd.
Share on (60287591758):
Product Overview
Description
speaker for passive 15 inch subwoofers
2000 W continuous program power capacity
100 mm (4 in) copper voice coil
35 - 1500 Hz response
96 dB sensitivity
Aluminium demodulating ring allows a very
low distortion figure
Double silicone spider with optimized compliance
Ventilated voice coil gap for reduced power
compression
| Model | 15TBX100 |
| Product name | LF Drivers |
| General Specification | |
| Nominal Diameter | 380 mm |
| Norminal impedance | 8 ohm |
| Minimum impedance | 6.2 ohm |
| AES power | 400 W |
| Sensitivity (1W/1m) | 100 db |
| Frequency Range | 40-2000 Hz |
| Voice Coil Diameter | 76 mm |
| Winding Maerial | Copper |
| Former Material | Glass Fibre |
| Winding Depth | 16 mm |
| Parameters | |
| Fs | 42 Hz |
| Re | 5 ohm |
| Qes | 0.26 |
| Qms | 5.9 |
| Qts | 0.25 |
| Vas | 164 L |
| Sd | 855 cm2 |
| Xmax | ±5 mm |
| Mms | 88 g |
| Bl | 22.1 Txm |
| Le | 1.3 Mh |
| ETB | 161 |
Related products
Packaging & Shipping
Shipping
1. Fedex/DHL/UPS/TNT/ for samples, door to door
2. By air or by sea for batch goods, for FCL; Airport / port receiving
3. Customers specifiying freight forwarders or negotiables shipping methods!
4. Delivery time: 3-5 days for samples; 5-15 days for batch goods.
Trade Terms
1. Payment : T/T, Western Union, Cash, 30% deposit; 70% balance before delivery.
2. MOQ: 1pcs
3. After-sales service:offer one-year warranty. If parts are damaged (during warranty), we'll provide some free replacement parts.
4. package informations: 1pcs per box. / The volume of the box is 380×380×180mm .
Q1: What is our warranty for speaker drivers?
A1: For our speaker driver, we have one-year warranty. If there is any quality problem on our side occurred in this period, we will be responsible for shipping cost and then replacement.
Q2: How about the delivery time?
A2: 2-5 days for stock
5-20 days for new order depend on order quantity since receipt of 30% T/T deposit payment.
Q3: What kind of payments does Soundwave support?
A3:T/T,Westen Union,L/C,Cash are accpeted.
Q4: What's the minimum order quantity(MOQ)?
A4: MOQ is one piece each model
Q5: Do you offer free sample or not?
A5: According to our company's rule,sample and freight cost need to be paid by your esteemed company. And we will return the cost to you when you place the first order with us. Thanks.
Q6: Can you produce according to customers' design?
A6: Sure, we are a professional manufacturer,accept OEM & ODM
Q7:Can you tell me about your main customers?
A7: That's our customers privacy, we should protect their information.
At the same time, please rest assured that your information is also safe here.
